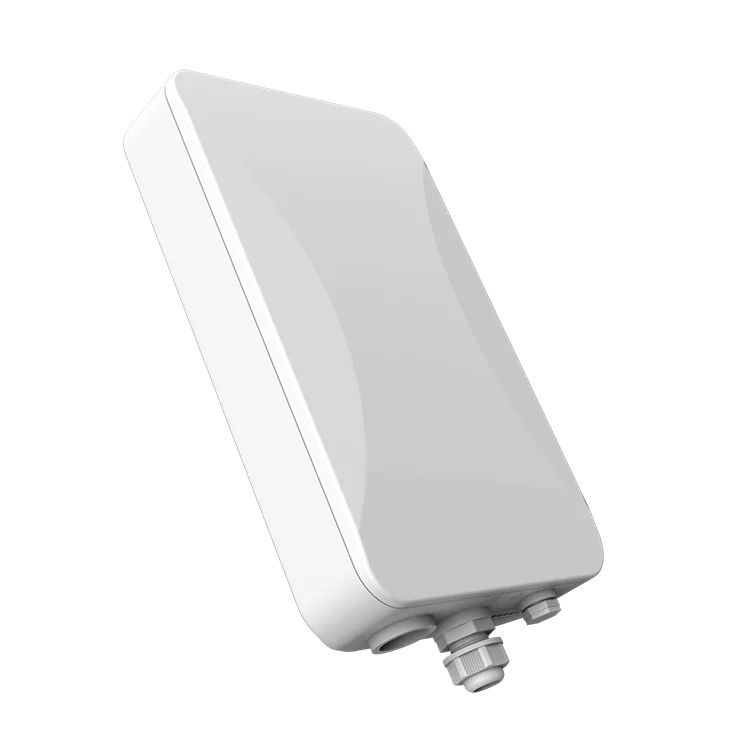

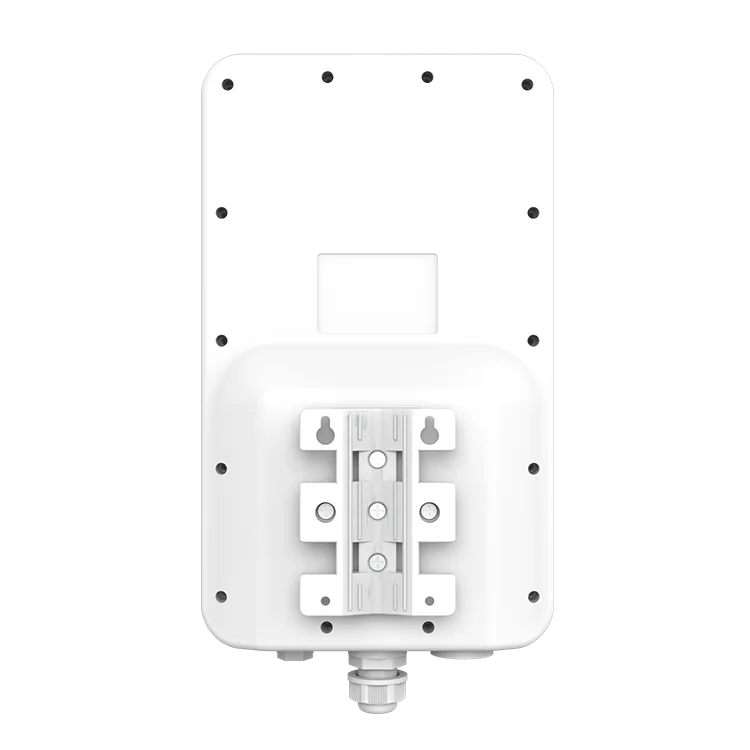

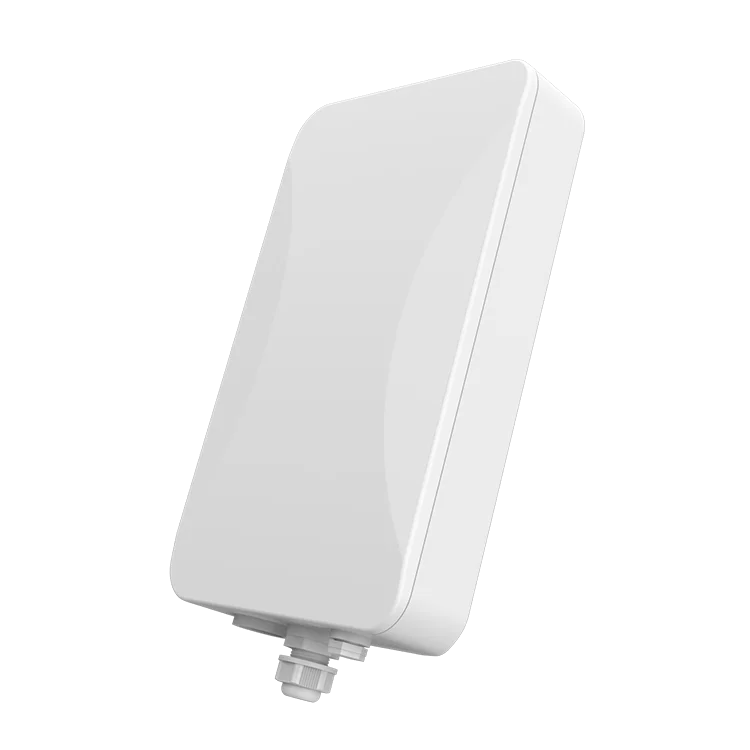

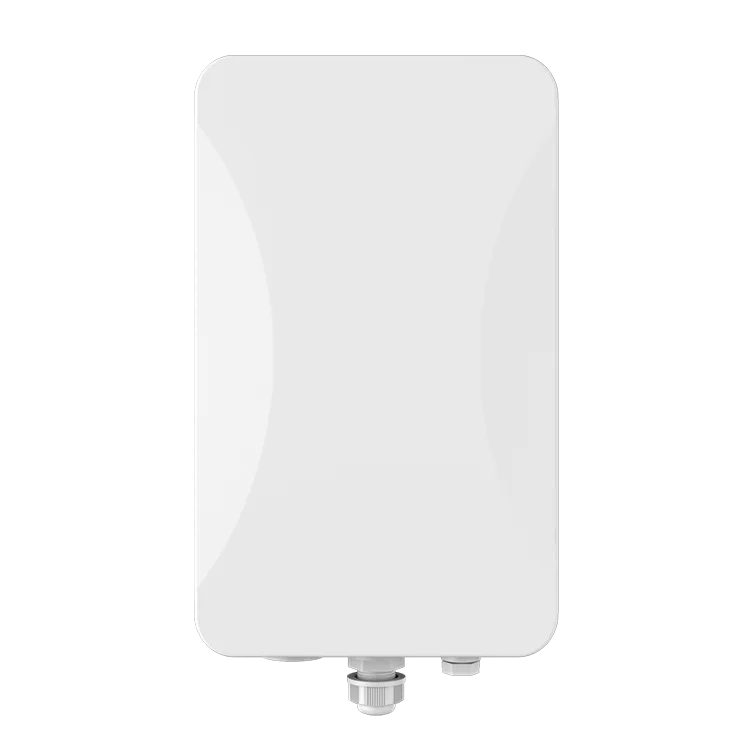

6dBi Omni Antenna Yuncore MTK7621 Outdoor Access Point AP
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. ltd
Share on (1601276237118):
Product Overview
Description
Basic Info.
Model | Ports | Application | Antenna | Water-proof Level |
AX-HQ820 | 2 | Outdoor | *2.4G 8dBi omni antenna | IP65 |
Trademark | Origin | Data rate | HS Code | Production Capacity |
OEM/ODM | China | 300Mbps | 8517629900 | 100000/Month |
Products Description
AX-HQ820 is an 11ax Wi-Fi standard Outdoor Wireless AP with build in omni antenna with 100+ meters distance, equipped with MTK Chipset, it support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.
Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz(600Mbps 11ax 2*2)+5GHz(1200Mbps 2*2), equipped 1G WAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower sub-carrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
What’s more, with IP67 water-proof level, lightning protection, it can install at every place to work as an stable base station for more wireless range and more access users.
Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz(600Mbps 11ax 2*2)+5GHz(1200Mbps 2*2), equipped 1G WAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower sub-carrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
What’s more, with IP67 water-proof level, lightning protection, it can install at every place to work as an stable base station for more wireless range and more access users.
Main Features
l MTK MT7621 chipset, 11ax, Wi-Fi6 standard;
l Dual 2.4G and 5.8G band, 1800Mbps high speed;
l High power design, MIMO omni antenna, more than 100 meters wireless coverage;
l 1*10/100/1000Mbps WAN port support IEEE 802.3af PoE standard;
l 1*10/100/1000Mbps LAN port.
l Support IP67 water-proof level, with lightning protection board inside, totally to protect the whole product even install in the harish environment;
Can work with cloud server for remote configure and management.
l Dual 2.4G and 5.8G band, 1800Mbps high speed;
l High power design, MIMO omni antenna, more than 100 meters wireless coverage;
l 1*10/100/1000Mbps WAN port support IEEE 802.3af PoE standard;
l 1*10/100/1000Mbps LAN port.
l Support IP67 water-proof level, with lightning protection board inside, totally to protect the whole product even install in the harish environment;
Can work with cloud server for remote configure and management.
Product Paramenters
Specification: | |||||||||
Model | AX-HQ820 | ||||||||
CPU | MT7621A+MT7905N+MT7975DN | ||||||||
Flash | SPI NOR 16MB | ||||||||
DDR3 | 256M | ||||||||
2.4G Band | 2.4GHz ~ 2.484GHz | ||||||||
2.4G WIFI protocol | 802.11 b / g / n /ax | ||||||||
5G Band | 5.150GHz～5.850GHz | ||||||||
5G WIFI protocol | 802.11a/n/ac/ax | ||||||||
2.4G Antenna | Built in two 2.4G antennas, each with a gain of 5dBi | ||||||||
5G Antenna | Built in two 5G antennas, each with a gain of 5dBi | ||||||||
Maximum rate | 2.4G up to 574Mbps, 5G up to 1201Mbps | ||||||||
2.4G Tx power | 802.11b | 11M | 22±2dBm | 1M | 22±2dBm | ||||
802.11g | 54M | 19±2dBm | 6M | 20±2dBm | |||||
802.11n HT20 | MCS7 | 18±2dBm | MCS0 | 20±2dBm | |||||
802.11n HT40 | MCS7 | 18±2dBm | MCS0 | 20±2dBm | |||||
802.11ax HT20 | MCS11 | 15±2dBm | MCS0 | 20±2dBm | |||||
802.11ax HT40 | MCS11 | 15±2dBm | MCS0 | 20±2dBm | |||||
5G Tx power | 802.11a | 54M | 18±2dBm | 6M | 20±2dBm | ||||
802.11n HT20 | MCS7 | 17±2dBm | MCS0 | 19±2dBm | |||||
802.11n HT40 | MCS7 | 17±2dBm | MCS0 | 19±2dBm | |||||
802.11ac HT20 | MCS7 | 16±2dBm | MCS0 | 19±2dBm | |||||
802.11ac HT40 | MCS7 | 16±2dBm | MCS0 | 19±2dBm | |||||
802.11ac HT80 | MCS9 | 16±2dBm | MCS0 | 19±2dBm | |||||
802.11ax HT20 | MCS11 | 15±2dBm | MCS0 | 19±2dBm | |||||
802.11ax HT40 | MCS11 | 15±2dBm | MCS0 | 19±2dBm | |||||
802.11ax HT80 | MCS11 | 15±2dBm | MCS0 | 19±2dBm | |||||
2.4G Receiving sensitivity | 802.11b | 11M | -82dBm | 1M | -88dBm | ||||
802.11g | 54M | -72dBm | 6M | -88dBm | |||||
802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | |||||
802.11n HT40 | MCS7 | -68dBm | MCS0 | -85dBm | |||||
802.11ax HT20 | MCS11 | -60dBm | MCS0 | -88dBm | |||||
802.11ax HT40 | MCS11 | -56dBm | MCS0 | -85dBm | |||||
5G Receiving sensitivity | 802.11a | 54M | -72dBm | 6M | -89dBm | ||||
802.11n HT20 | MCS7 | -71dBm | MCS0 | -89dBm | |||||
802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |||||
802.11ac HT20 | MCS7 | -66dBm | MCS0 | -89dBm | |||||
802.11ac HT40 | MCS7 | -60dBm | MCS0 | -86dBm | |||||
802.11ac HT80 | MCS9 | -57dBm | MCS0 | -83dBm | |||||
802.11ax HT20 | MCS11 | -58dBm | MCS0 | -88dBm | |||||
802.11ax HT40 | MCS11 | -55dBm | MCS0 | -85dBm | |||||
802.11ax HT80 | MCS11 | -52dBm | MCS0 | -82dBm | |||||
2.4G EVM | 802.11b:≤-10 dB ；802.11g: ≤-25 dB ；802.11n:≤-28 dB；802.11ax:≤-35 dB | ||||||||
5G EVM | 802.11a:≤-25 dB ；802.11n: ≤-28 dB ；802.11ac:≤-32 dB；802.11ax:≤-35 dB | ||||||||
frequency deviation（ppm） | ±20ppm | ||||||||
Port (WAN) | 1*10/100/1000M，support 48V POE | ||||||||
Port（LAN） | 1*10/100/1000M | ||||||||
Reset Button | reset（Long press for 6-10 seconds to restore factory default configuration） | ||||||||

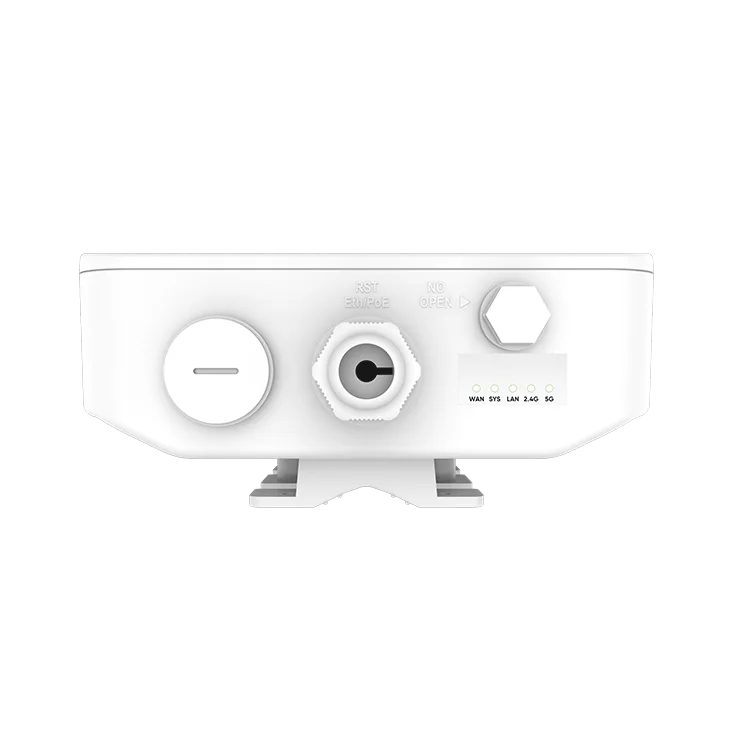

LED | PWR, SYS, WAN, 2.4G, 5G | ||||||||
Consumption | < 15W | ||||||||
Size | 304mm × 181mm × 88mm | ||||||||
Weight | 1.6kg | ||||||||
Environment | Operating temperature-20°C to 55°C；Storage temperature: -40°C to 70°C；humidity：5％～95％（No condensation） | ||||||||
ESD | Air +/-8K， Contact +/-4K | ||||||||
Surge protection | line to ground 4K，line to line 2K | ||||||||
