Capacitor 5kV 320uF,High Voltage Capacitor 5kV 320MFD,High Energy Storage Capacitor 5kV,High Current Pulse Metal Capacitor 320uF

Product Overview

Description

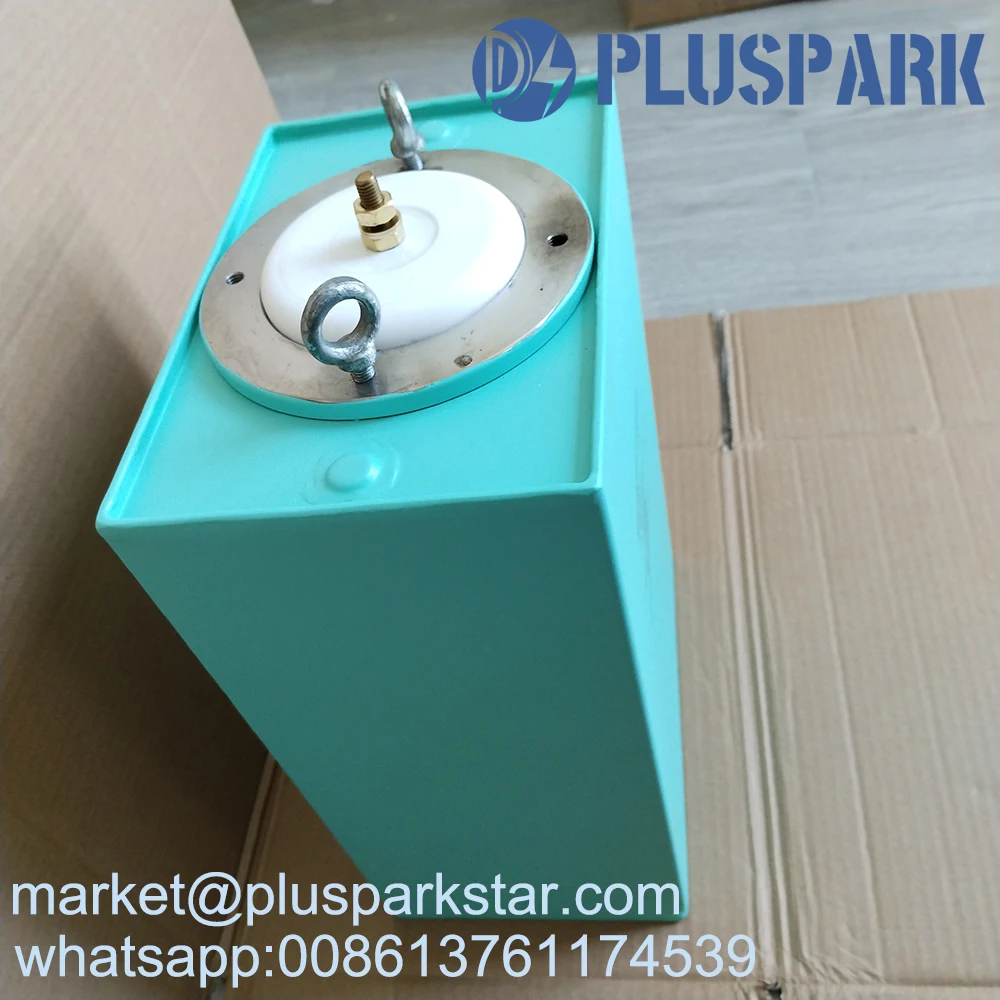

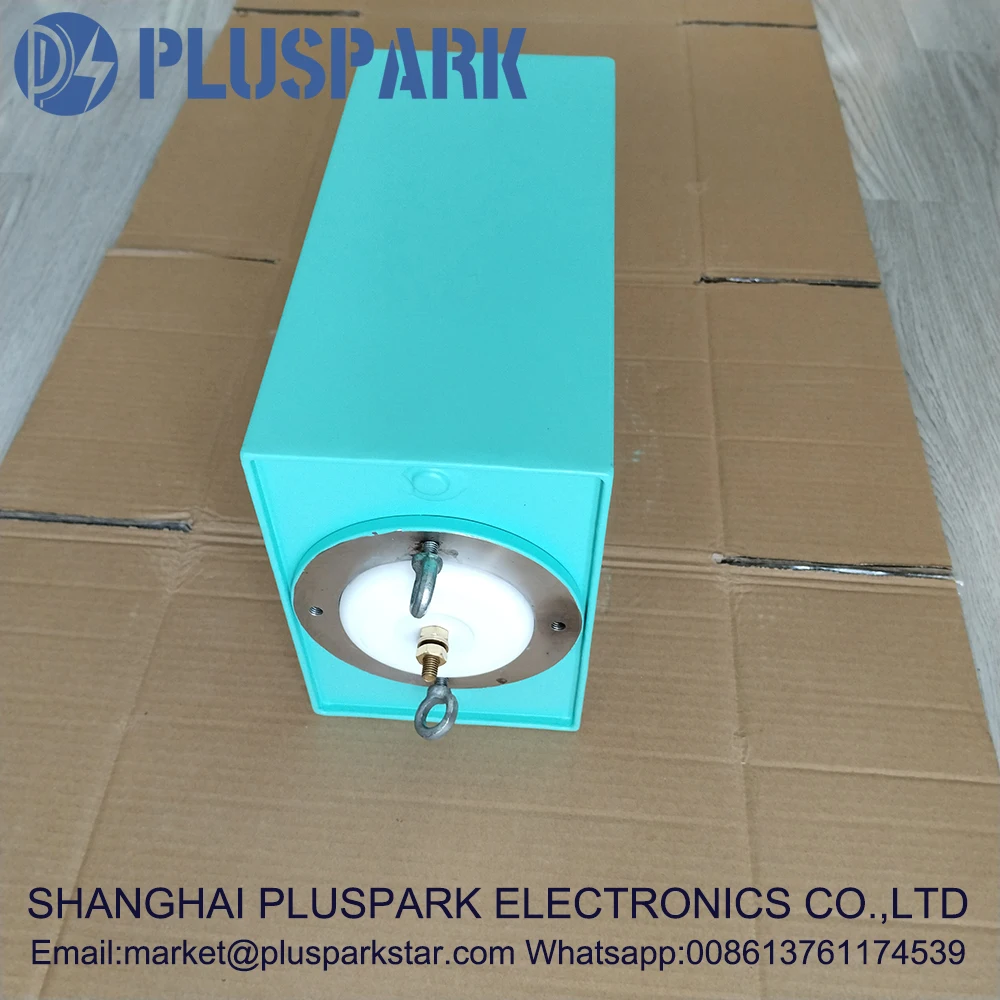

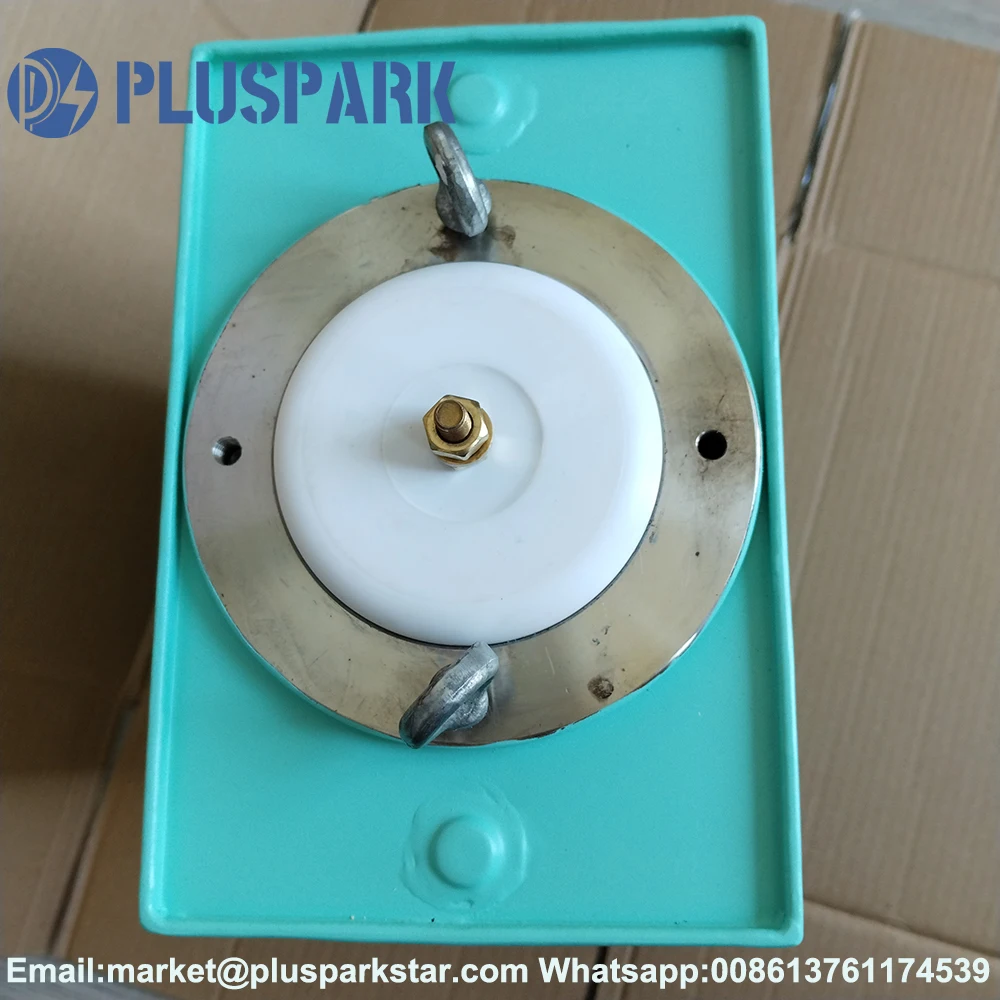

High Voltage Energy Storage Capacitor 5kV 320uF(320MFD 5000VDC)

Specifications
Rated Voltage	5kV.DC	or	5000V.DC
Capacitance	320uF	320MFD	320MKF	320000nF
Tolerance Range	+/-10%	or	+/-5%
low inductance	High Peak discharge Current		High Energy Density
Desc	High Voltage Energy Storage Pulse Capacitor 5kV 320uF 320000nF
Manufacturer	Shanghai Pluspark Electronics Co.,Ltd

Heavy duty energy discharge capacitor ESC Series

Capacitance Range	0.01uF to 46000uF
Rated Voltage Range	1kV to 200kV DC
Low Inductance	~40nH
Pear Current	5KA to 250KA
Applacations	Plasma,High Current Pulse,Marx Generator,Laser,energy experiments etc

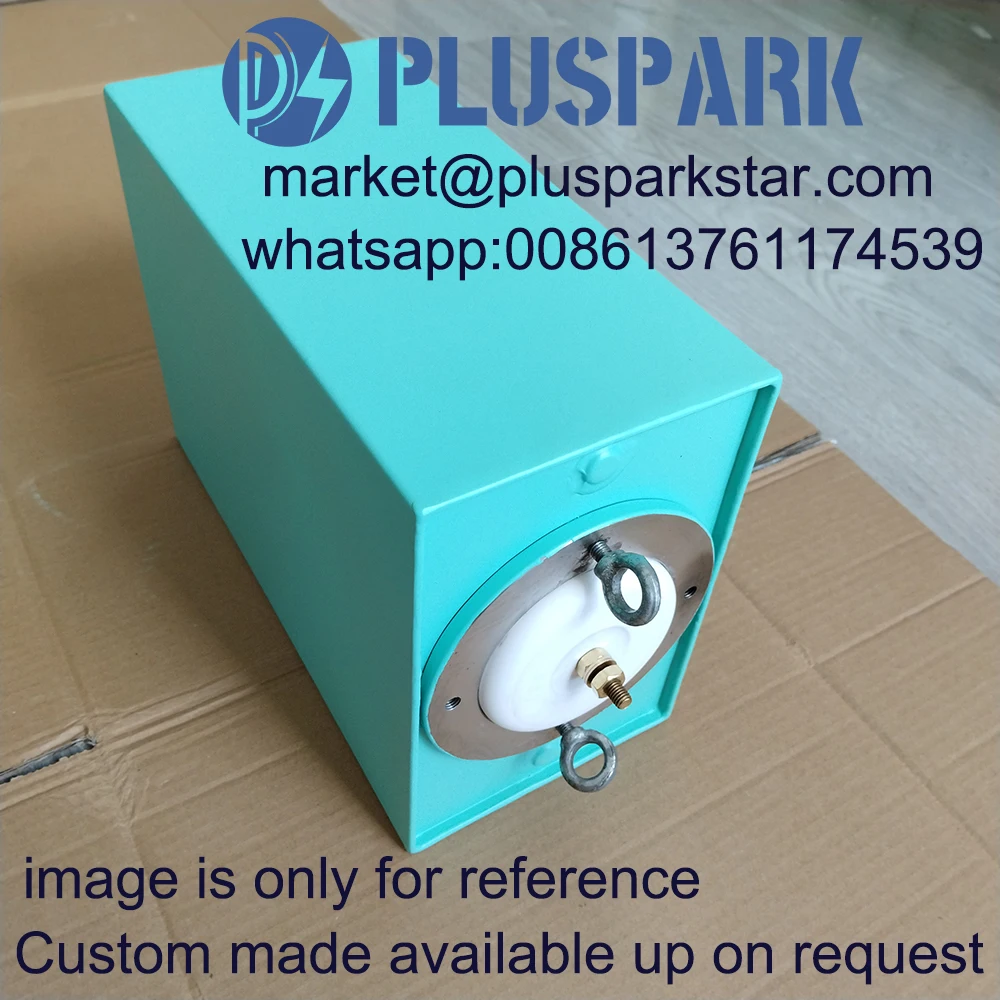

Costom made available up on request

Rating of High Voltage impulse Capacitor 5KV 1uF~2000uF

Items	Rated Voltage		Capacitance			Part Number
	kV.DC	V.DC	uF	MFD	nF
High Voltage Energy Storage Capacitor 5kV 1uF	5kV	5000V	1uF	1MFD	1000nF	ESC1032
High Voltage Energy Storage Capacitor 5kV 2uF	5kV	5000V	2uF	2MFD	2000nF	ESC1033
High Voltage Energy Storage Capacitor 5kV 100uF	5kV	5000V	100uF	100MFD	100000nF	ESC1034
High Voltage Energy Storage Capacitor 5kV 120uF	5kV	5000V	120uF	120MFD	120000nF	ESC1035
High Voltage Energy Storage Capacitor 5kV 140uF	5kV	5000V	140uF	140MFD	140000nF	ESC1036
High Voltage Energy Storage Capacitor 5kV 160uF	5kV	5000V	160uF	160MFD	160000nF	ESC1037
High Voltage Energy Storage Capacitor 5kV 180uF	5kV	5000V	180uF	180MFD	180000nF	ESC1038
High Voltage Energy Storage Capacitor 5kV 190uF	5kV	5000V	190uF	190MFD	190000nF	ESC1039
High Voltage Energy Storage Capacitor 5kV 200uF	5kV	5000V	200uF	200MFD	200000nF	ESC1040
High Voltage Energy Storage Capacitor 5kV 240uF	5kV	5000V	240uF	240MFD	240000nF	ESC1041
High Voltage Energy Storage Capacitor 5kV 320uF	5kV	5000V	320uF	320MFD	320000nF	ESC1042
High Voltage Energy Storage Capacitor 5kV 350uF	5kV	5000V	350uF	350MFD	350000nF	ESC1043
High Voltage Energy Storage Capacitor 5kV 2000uF	5kV	5000V	2000uF	2000MFD	2000000nF	ESC1044

 Online Price is only for reference,Contact us for the real and latest price.
