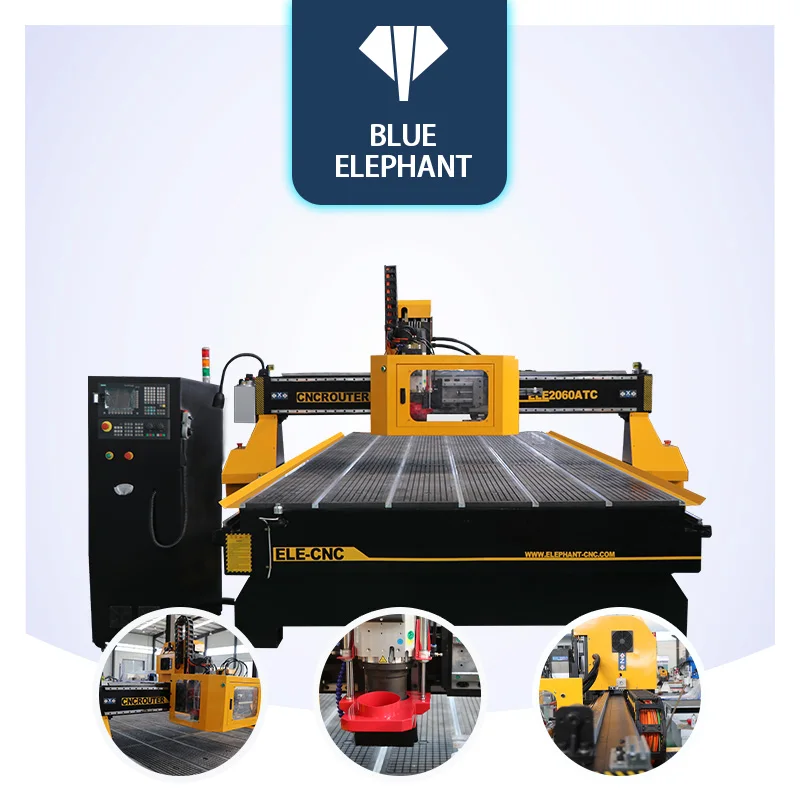

Superior Quality 3D ATC CNC Wood Router with a carousel tool changer Wood KT board engraving center for cabinet door making


Description:
3D ATC CNC Wood Router with a carousel tool changer can change more than 8 sets of tools automatically in the Wood engraving process. It mainly for heavy-duty and automatic woodworking, cause it can greatly save time, fewer people and time needed for machine operation. 3D ATC CNC Wood Router Machine for sale at cost price.
Features:
1. Italy HSD ATC air cooling spindle with a top speed of 24000RPM, Carousel tool changer for a faster tool shifting;
2. Global quality CNC Parts/kits, which guarantee stable performance and high finishing quality;
3. Rigid vacuum table with grids and T-slots help you clamp the workpiece in place;
4. 3 Axis Woodworking CNC Router recommended for more complex 3D surface processing;



Technical Parameters


 X,Y,Z Working Area
2000*6000*300MM
Working Voltage
380V/3PH/50Hz(Can Be Customized to Meet Different Country’s Requirement)
Control System
SYNTEC 6MB control system
Spindle
9Kw Italian HSD air-cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
850w Japan YASKAWA servo motor and 1000w driver
Pump (2 sets)
5.5kw air vacuum pump
Lubrication
Automatic lubrication System
Max. Rapid Travel Rate
55m/min
Max. Working Speed
40m/min
X,Y,Z Traveling Positioning Accuracy
±0.02/300mm
Command Language
G Code




Related Product






Product Details


Control system
The control system of CNC router adoptsthe more advanced Taiwan Syntec system , which is widely acclaimed internationally and can perfectly control 3axis ,4 , 5 , 6 , axis . The Syntec system can work online and Wifi links , greatly increasing the intelligence of the device.
CNC head
ATC CNC router selects Italian HSD air-cooled spindle , power : 9.5KW.Choose from manual , quick-release ,high-power and high-speed spindles for optimum processing of rigid sheet materials.



Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the spindle or on the side of the gantry.This carousel tool change method has the feature of faster tool change speed, so the production efficiency is higher.
Safety System
ATC CNC router has the unique safety protection system and provides external emergency stop function for equipment users.This function can effectively protect the personal safety of the equipment users,meet the European safety CE standards, and is very popular among users .


Driving system
World-class servo motor and driving system ensures machine to run with fastspeed and low noise
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily .


Customer video feedback




Sample & Application






Customer Feedback






Company Information










Exhibition




Packaging & Delivery




FAQ


1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2.Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
