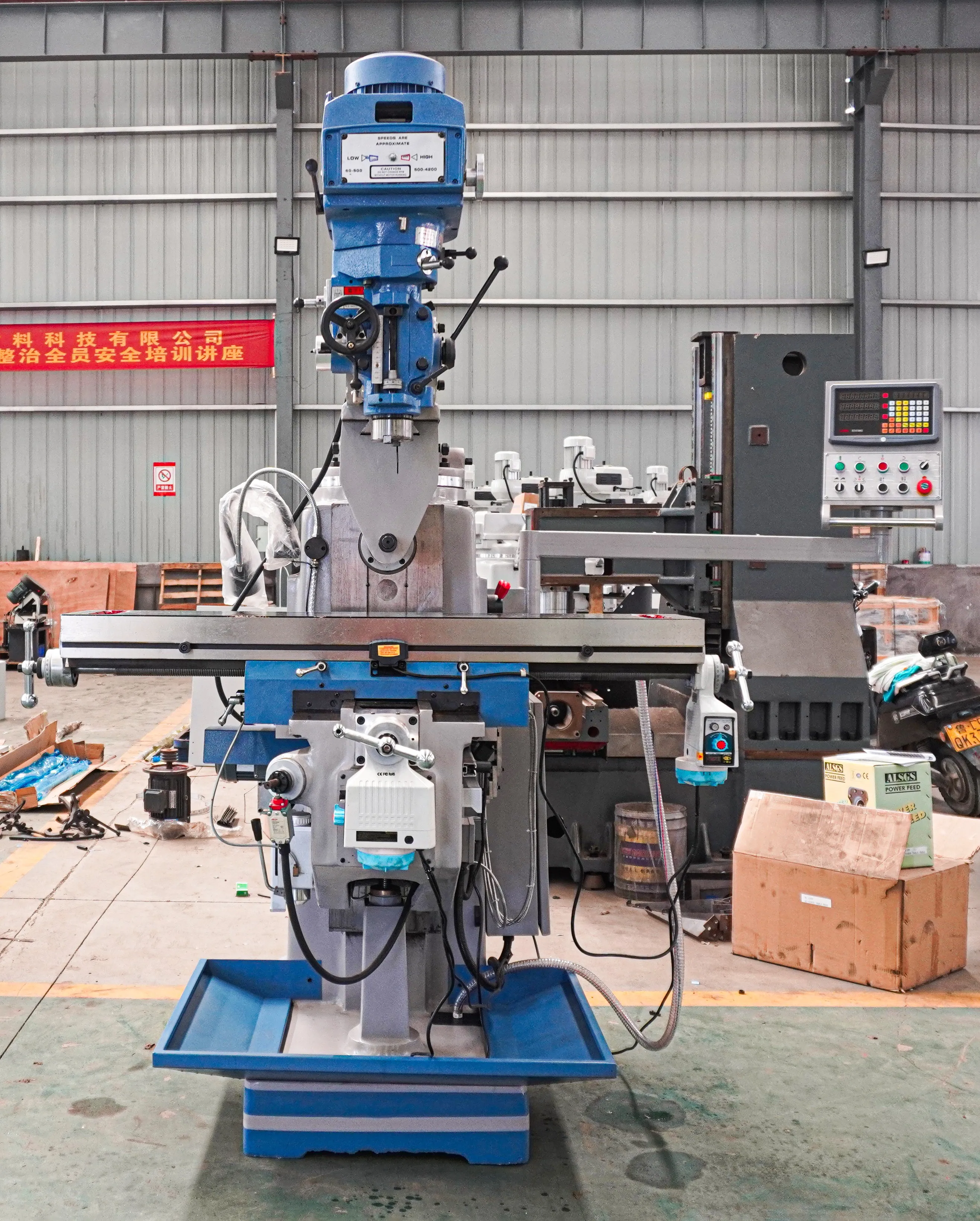

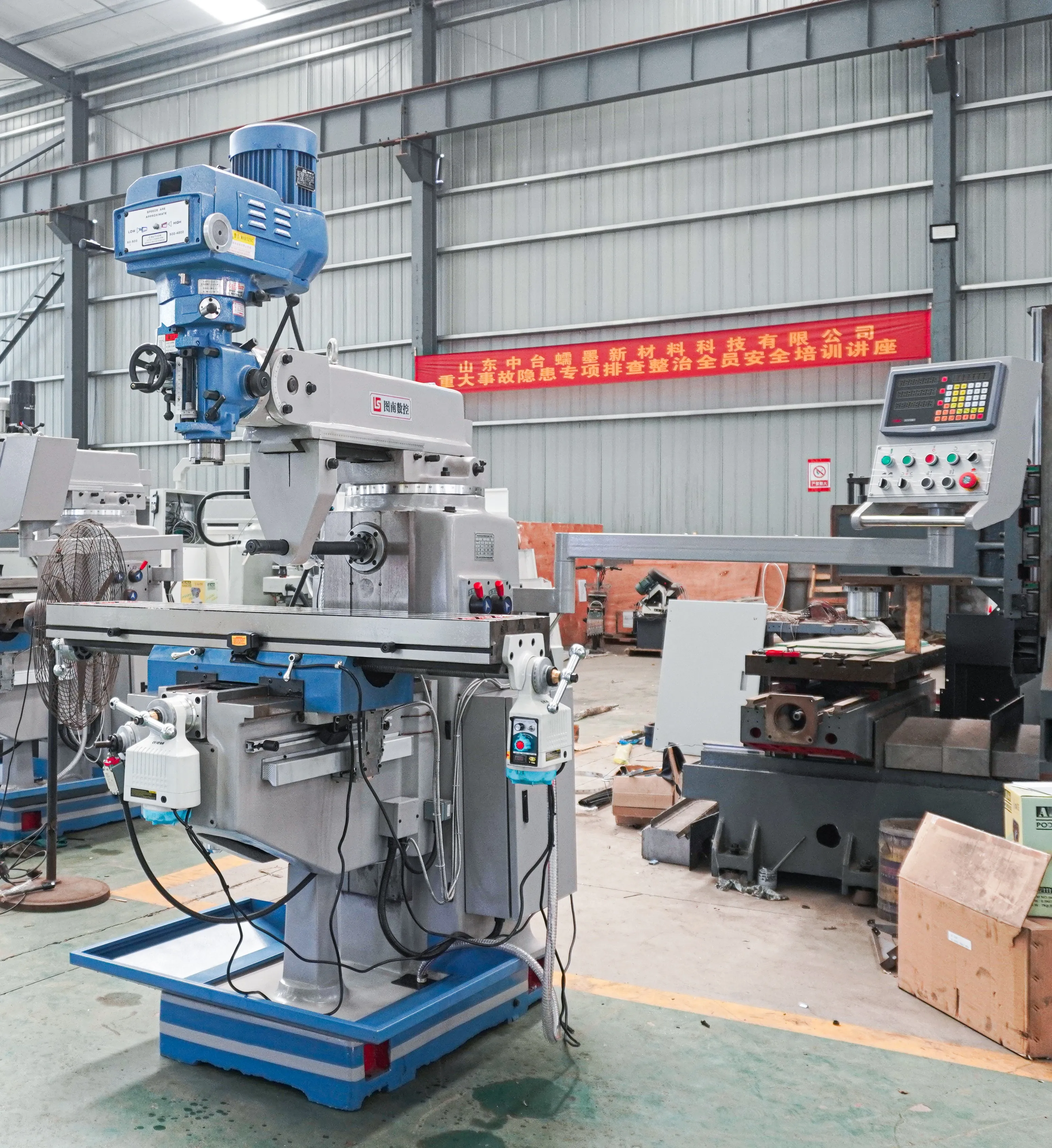

Chinese Brand 4HW Turret milling machine Universal Vertical Milling machine
- Category: >>>
- Supplier: Shandong Tunan Cnc Machine Tool Co. Ltd.
Share on (1601276344614):
Product Overview
Description
Product Description
Specifications
Specifications | Units | 4H | 5H | 5HW | ||
Table size | mm | 1270x254(10”x50”) | 1370x305 | 1370x305 | ||
Table travel | mm | 780/400/420 | 780/400/420 | 810/400/420 | ||
T slot(number-width-pitch) | mm | 3-16-50 | 3-16-65 | 3-16-80 | ||
Spindle taper | standard:R8 optional:ISO40 | standard:R8 optional:ISO40 | standard:R8 optional:ISO40 | |||
Spindle speed range | rpm | standard:16 steps, 50HZ:65-4500 ,60HZ:80-5440 Optional:variable 65-4000 | standard:16 steps, 50HZ:65-4500 ,60HZ:80-5440 Optional:variable 65-4000 | standard:16 steps, 50HZ:65-4500 ,60HZ:80-5440 Optional:variable 65-4000 | ||
Spindle travel | mm | 127 | 127 | 127 | ||
Spindle feed range | mm | 0.04,0.08,0.15(3 steps) | 0.04,0.08,0.15(3 steps) | 0.04,0.08,0.15(3 steps) | ||
Distance between spindle nose and table surface | mm | 80-400 | 80-480 | 150-550 | ||
Main motor power | kw | 2.2/3.75 | 2.2/3.75 | 2.2/3.75 | ||
Head rotation (left-right) | 。 | ±90° | ±90° | ±90° | ||
Head rotation (front-rear) | 。 | ±45° | ±45° | ±45° | ||
Weight | kg | 1100 | 1200 | 1500 | ||
Overall dimension | mm | 1550x1650x2250 | 1800x1750x2300 | 1800x1750x2300 |
Packing & Delivery
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
