Highshine two double layer 250 300 500ml 1000ml round hdpe chemical bottle extrusion blowing blow moulding molding machine
- Category: >>>
- Supplier: Hangzhou Qianshang Machinery Co. Ltd.
Share on (1601276362805):
Product Overview
Description
Highshine Blow Molding Machine
Kevin zhou
Phone:+86 18067841986

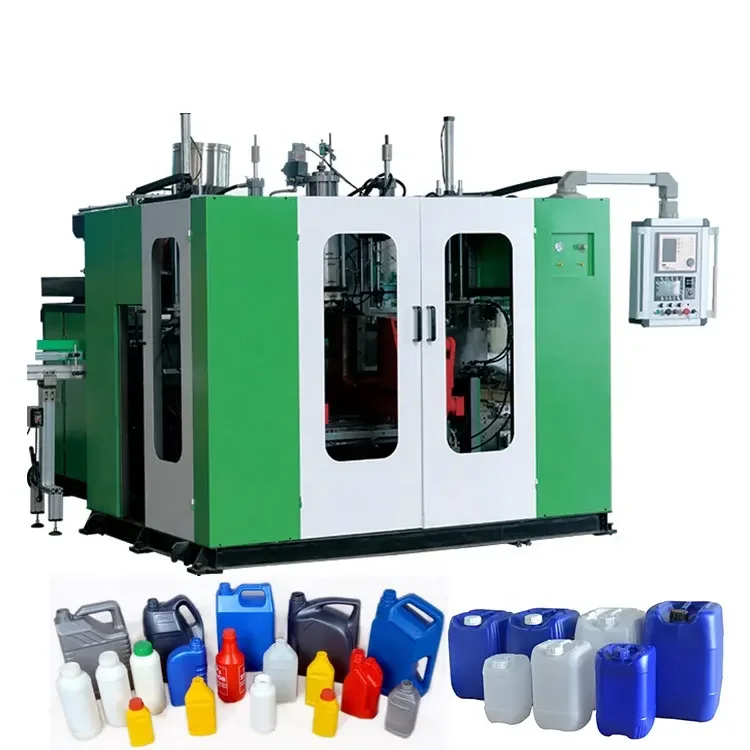

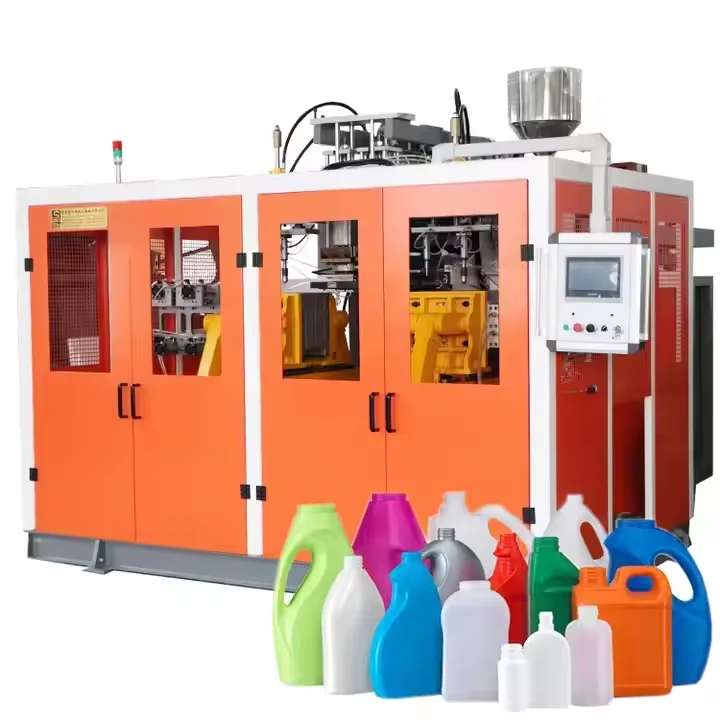

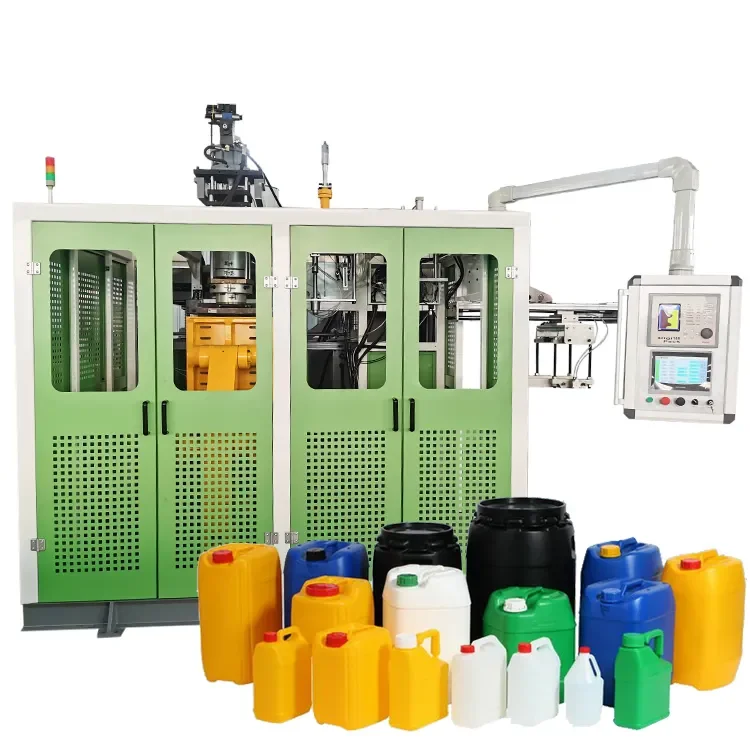

Extrusion blow molding machine

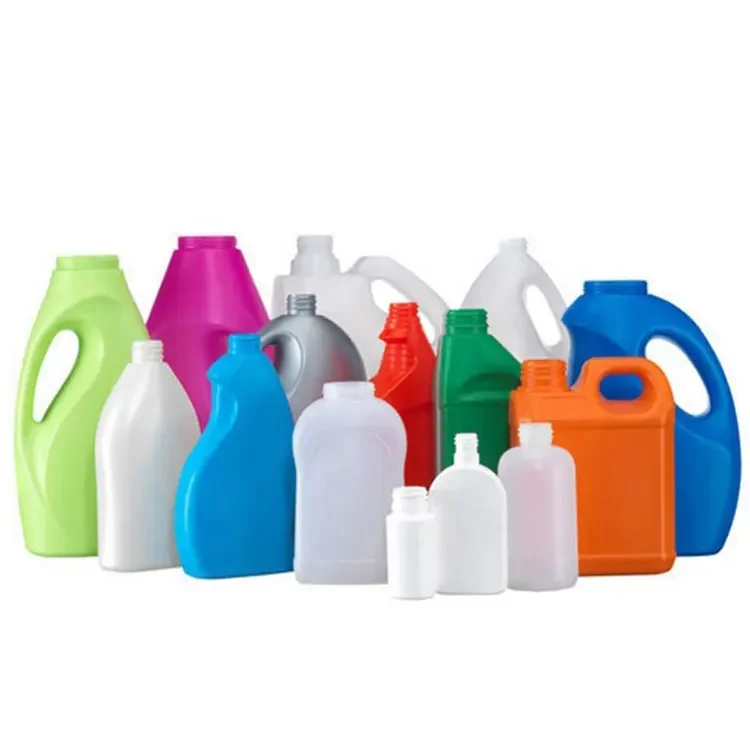

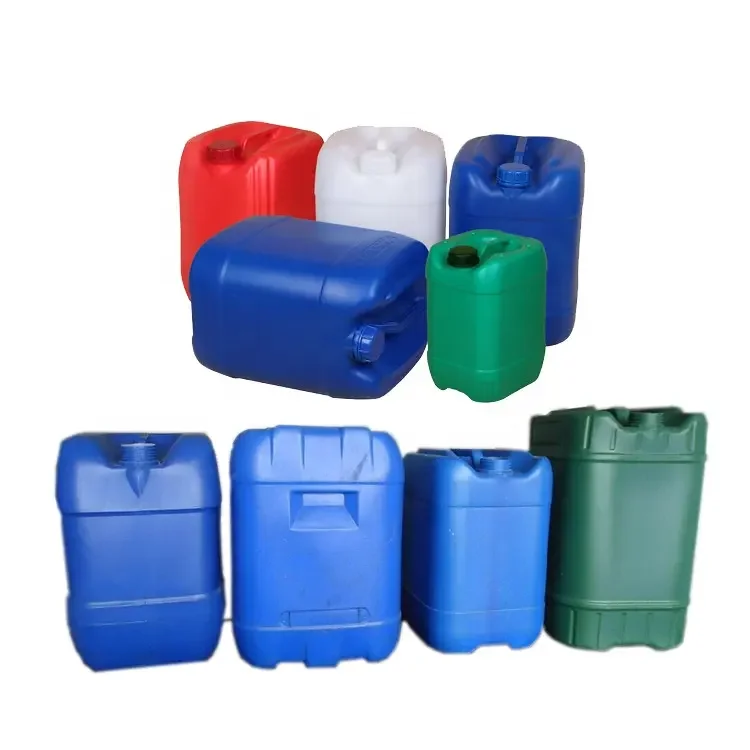

Extrusion blow molding machine is widely used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, detergents, water bottles, milk bottles, oil bottles, plastic balls, cosmetic bottles, lubricant bottles, plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit. We help you on marketing research, products selection and factory layout, ensure your investment with a big profit feedback. We are the professional end supplier in blow molding field, supporting you from new project consultation stage to after sales service. We are your professional blow-molding working team and partner, would help our customer grow up and get win-win benefit together.
Machine parameter
Specification | Unit | KSC-15L | KSC-15L/II | |
Suitable Material | PE PP HDPE PVC.. | |||
Max Product Volume | L | 15 | 15 | |
Dry Cycle | Pcs/h | 900 | 600*2 | |
Machine Size | m | 4.0*2.2*2.7 | 4.6*3.1*2.8 | |
Machine Weight | Tons | 7.8 | 11 | |
Clamping Force | Kn | 120 | 120 | |
Platen Distance | mm | 280-660 | 280-660 | |
Mold Moving Stroke | mm | 620 | 620 | |
Template Size(W*H) | mm | 520*540 | 520*540 | |
Max Mold Size(W*H) | mm | 520*540 | 520*540 | |
Screw Diameter | mm | 75 | 90 | |
Screw L/D | L/D | 25 | 25 | |
Screw Driver Power | Kw | 30 | 37 | |
Screw Heating Power | Kw | 17.6 | 21 | |
Screw Screw Heating Zone | Zone | 4 | 4 | |
HDPE Output | Kg/h | 100 | 140 | |
No of Die Heating Zone | Zone | 3 | 3 | |
Die Heating Power | Kw | 9.1 | 9.1 | |
Max Single Die Diameter | mm | 230 | 230 | |
Double Die Center Distance | mm | 240-260 | 240-260 | |
Triple Die Center Distance | mm | 110-160 | 110-160 | |
Quadruple Die Center Distance | mm | 80-110 | 80-110 | |
Total Power | Kw | 67.7 | 82.1 | |
Oil Pump Motor | Kw | 11 | 15 | |
Average Energy Consumption | Kw | 28.5 | 36.4 | |
Blowing Pressure | Mpa | 0.7 | 0.7 | |
Air Consumption | M3/min | 0.6 | 0.8 | |
Cooling Water Pressure | Mpa | 0.3 | 0.3 | |
Water Consumption | L/min | 60 | 60 | |
Machine component
We choose famous brand component for our machine. make sure the machine working stable and durable.Each machine would be tested over 72 hours automatically, to make sure every machine component are in good condition, would not bring any trouble to our customer.
Blow Mold
We have own mold department, we design drawing, manufacturing mold parts, assembly together, testing molds on our machines, make sure running goods before shipment.
We choose quality mold material, such as P20, Aluminum, BeCu, for better finished product.
Mold design with optimized cooling system, help to reduce cooling time, increase production speed.
Mold with deflashing, automatic running condition.
Auxiliary Equipment

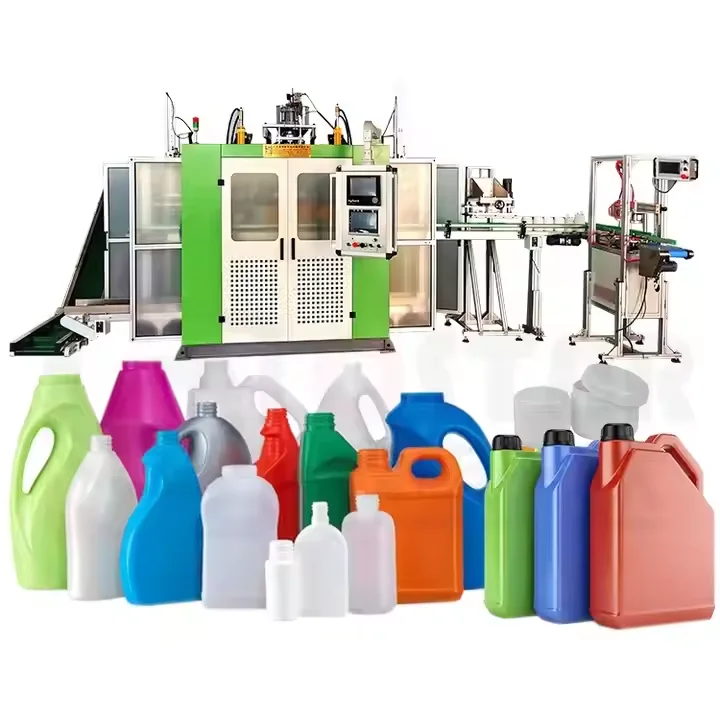

We supply our customer blow molding machine, blow molds, and also necessary auxiliary, such as auto loader, crusher, conveyor, air compressor, chiler, leakage detector, in-mold labelling machine, outside labelling machine, self-adhesive labelling machine, robot, bottle neck trimming machine, automatic package machine. we are offering complete solution, automatic production line.
FAQ
Q1:Can your machine meet our need well?
Yes,we will supply you a proposal as to your specific requirement, and each machine is
customized to satisfy customer’s need well.
Q2: How can you ensure the machine’s quality if we put the order?
Our factory with TUV management system, all machines are manufactured on standard
procedure, and we have experienced QC department, to check every machine 3 times before
shipment.
Q3: How long takes before my machine shipment.
Usually takes about 30-40days after your confirm, we also have some machine in stock, could
be ready for shipment within 7days.
Yes,we will supply you a proposal as to your specific requirement, and each machine is
customized to satisfy customer’s need well.
Q2: How can you ensure the machine’s quality if we put the order?
Our factory with TUV management system, all machines are manufactured on standard
procedure, and we have experienced QC department, to check every machine 3 times before
shipment.
Q3: How long takes before my machine shipment.
Usually takes about 30-40days after your confirm, we also have some machine in stock, could
be ready for shipment within 7days.
Q4: What would you offer before I arrange balance payment?
After machine ready, we would send machine photos and video to you check, if you have
mold, we would test mold and send samples too, you are also welcome to come to our
factory, to check machine running by yourself, or by any third part inspection organization
authorized by your side.
Q5: What’s your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical
support.
Q6: How can I install my machine when it arrives?
We will send our engineers to your factory to install the machines and train your staff how to
operate the machines.
After machine ready, we would send machine photos and video to you check, if you have
mold, we would test mold and send samples too, you are also welcome to come to our
factory, to check machine running by yourself, or by any third part inspection organization
authorized by your side.
Q5: What’s your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical
support.
Q6: How can I install my machine when it arrives?
We will send our engineers to your factory to install the machines and train your staff how to
operate the machines.
Q7: How about the spare parts?
One year free spare parts would shipped with machines, and if you need new spare parts,
send us message, we would arrange it within 24hours by DHL/UPS service.
One year free spare parts would shipped with machines, and if you need new spare parts,
send us message, we would arrange it within 24hours by DHL/UPS service.
