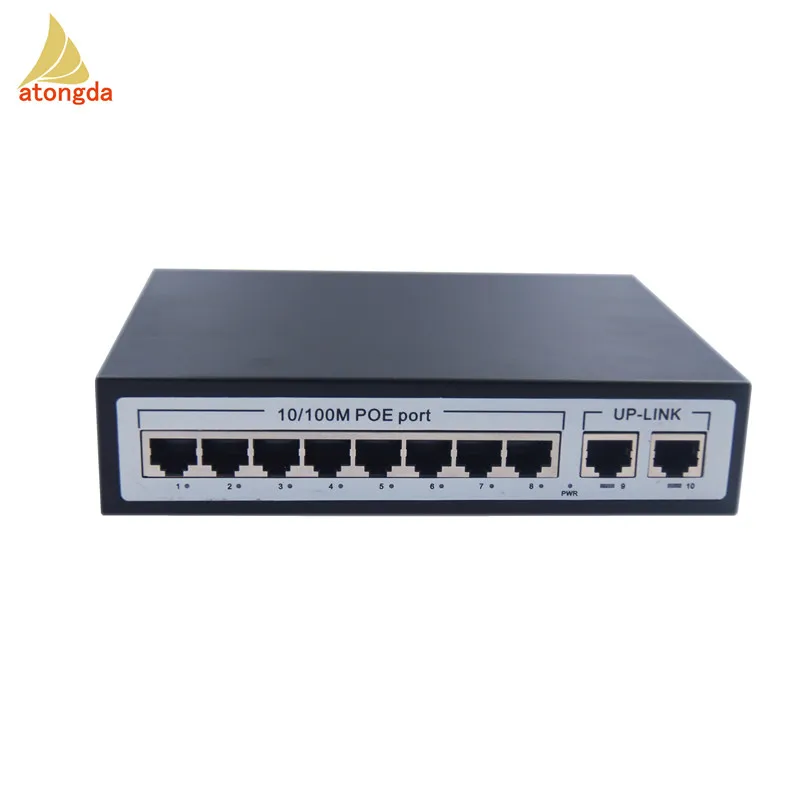

Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera
Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera
Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera
Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera
Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera
Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera
Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera

Factory Original OEM 1000Mbps 8 Port 100Mbps POE 2 Uplink Ethernet 1port SFP fiber Switch For CCTV IP Camera

Share on (1601276482254):


Price:$12.00 - $15.00

Quantity:


Product Overview

Description





Product Name
POE Switch 100Mbps
Port
4 8 16 24 Port POE
Power
15.4 W Power Supply
Uplink
1 or 2  100Mbps or 1000Mbps optional






Product features:

• 10/100Mbps Auto-Negotiation RJ45 ports with POE port
Uplink 1 port or 2 Port 100Mbps or1000Mbps 1 port SFP
• Complies with IEEE802.3af/at standards
• Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
• Bandwidth 1.8Gbps/3.2G/52G
• Supports PoE power up to 15.4W for each PoE port
•Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device
• LED indicators for monitoring power, link,activity and speed
• 48V 2A power adapter,Optional


Model
ATD-POE402M
ATD-POE8021M
ATD-POE1602M
ATD-POE2402M
POE port
4
8
16
24
Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
IEEE 802.3af
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af
IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control; IEEE 802.1af DTE Power via MDI
Data Transfer Rate
Ethernet: 10/100 Mbps (Half / Full Duplex)
Ethernet: 10/100 Mbps (Half / Full Duplex)
Ethernet: 10/100 Mbps (Half / Full Duplex)
Ethernet: 10/100 Mbps (Half / Full Duplex)
Forwarding Rate
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
Packet Length is 10Kb, Packet Buffer is 4.1M, Gigabit wire-speed forwarding
Data RAM Buffer
96 K bytes
96 K bytes


96 K bytes


96 K bytes


Power
100-240 V, 50/60 Hz, 2.0A
AC110~265V 50Hz
AC100-240V 50/60Hz
AC100-240V 50/60Hz
Bandwidth

1.8 Gbps
3.2Gbps (non-blocking)
52Gbps bandwidth
Power Consumption
15.4W per each POE port
PoE Max: 60 Watts
15.4W per each POE port
PoE Max: 130Watts
15.4W per each POE port
PoE Max: 260 Watts
15.4W per each POE port
PoE Max: 440 Watts
Temperature
 Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Operating: -20° ~ 70°C
Storage: -20° ~ 75°C
Humidity
Max 90% (non-condensing)
10%~90%,
10%~90%,
10%~90%,
Dimensions
130 x 116 x 30mm
180 x150 x 30mm
485 x 260 x 45 mm
485 x 260 x 45 mm
Weight
0.9kg
2.2kg
4kg
4.3kg


Related Products




Certifications

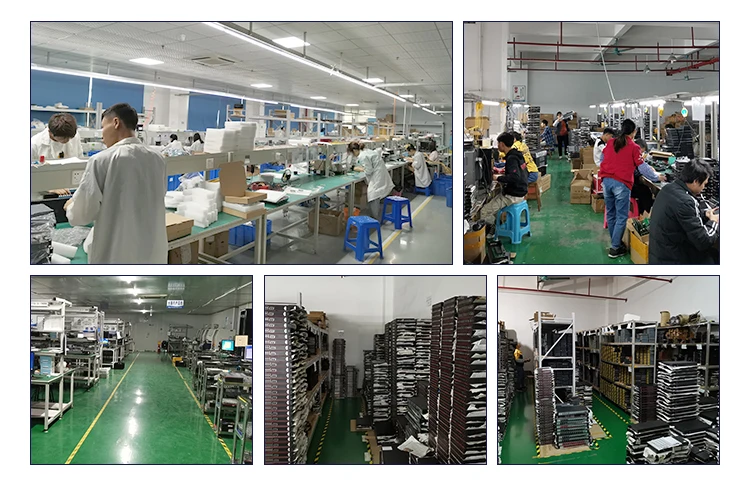

Company Profile

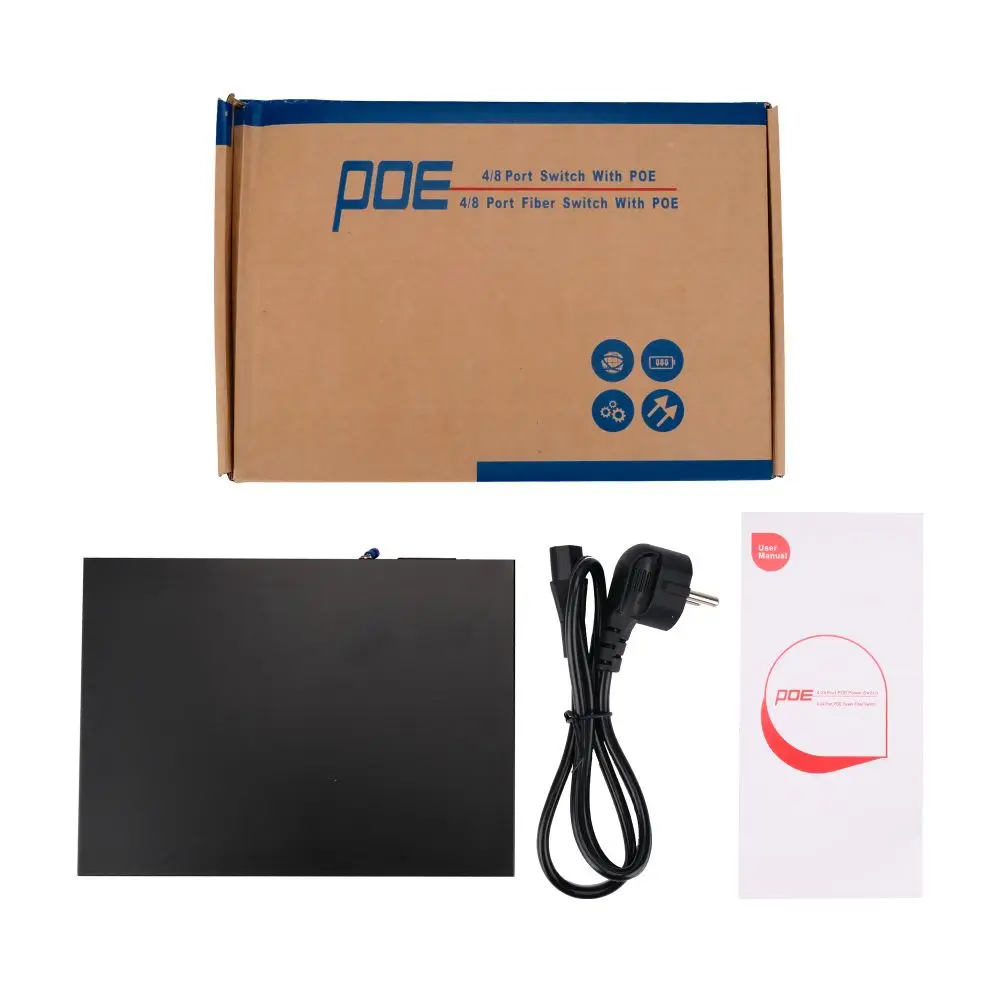

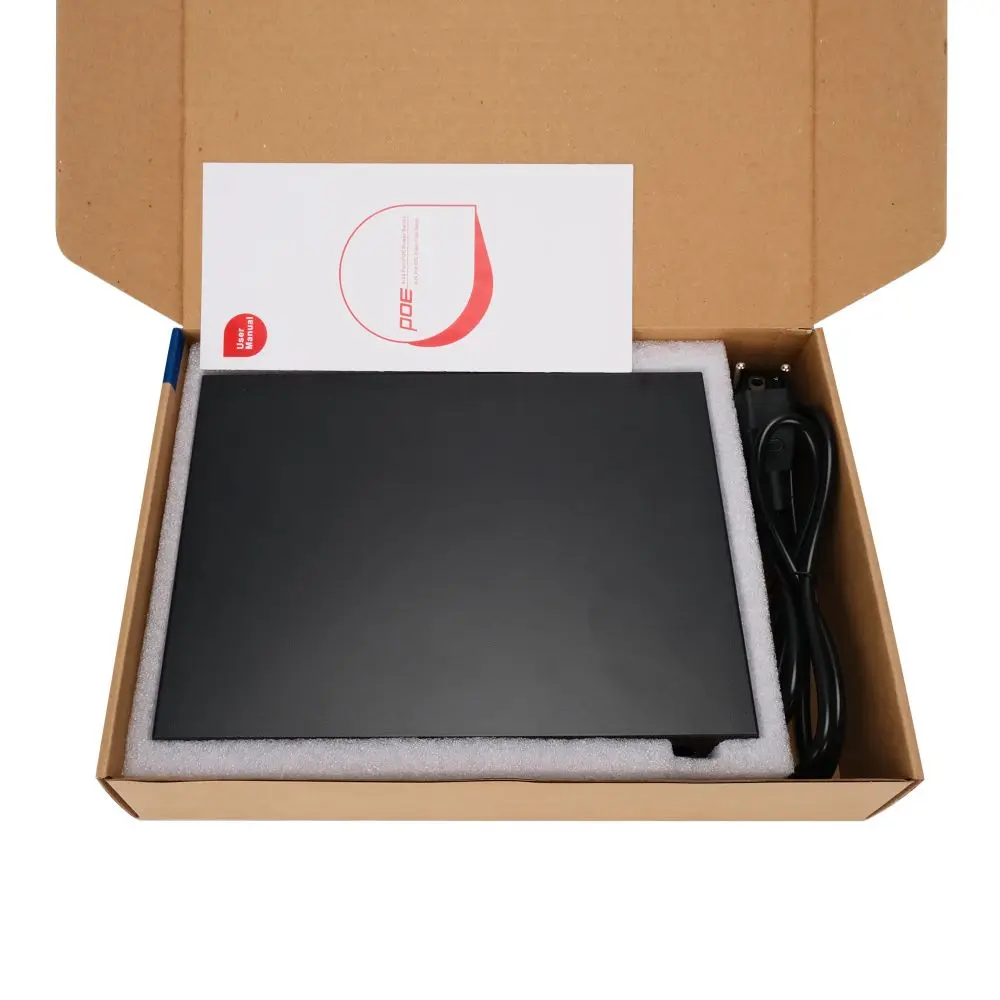

Packaging & Shipping




FAQ


1. What's products your company manufacture

We Focus on Developing and producing HDMI Converter, Media Converter,Video Converter,POE Switch,Industrial POE Switch and Patch
Cord, ODF , PLC Splitter etc.

2. Can I get sample for free?

Yes, of course, we can free for under 30 USD. but need you pay shipping fee, or you provide your company DHL Fedex Account.

3. Can print Logo for me?
Yes, sure, we can support print LOGO for you, if quantity more, can print logo on the Box and carton

4.what delivery time?
Usually in 7 days, if you accept no Logo, can ship in one day.
