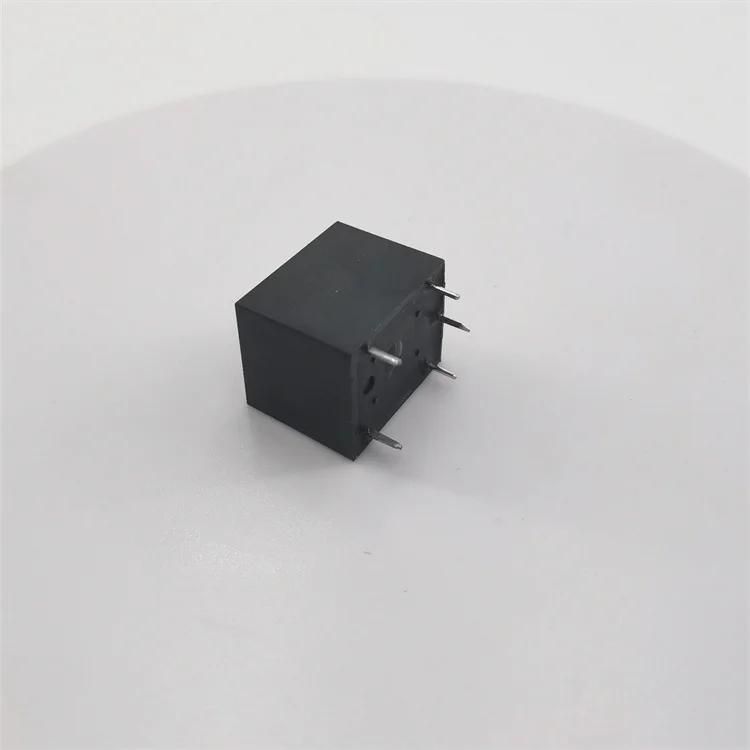

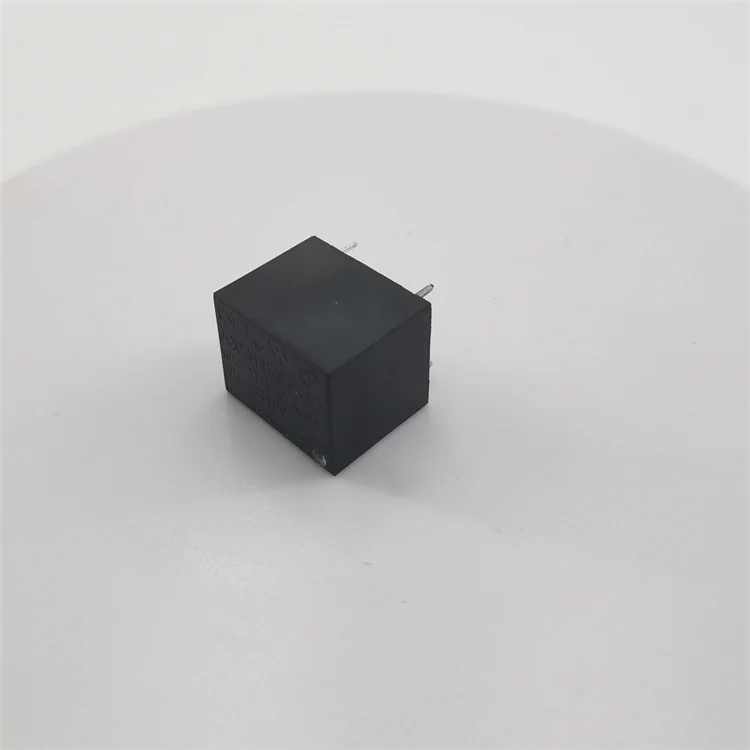

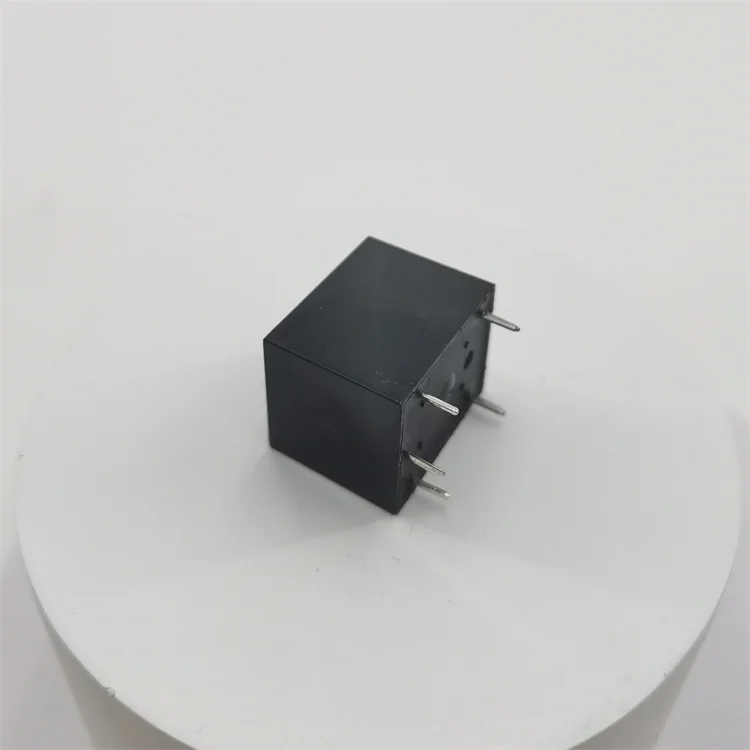

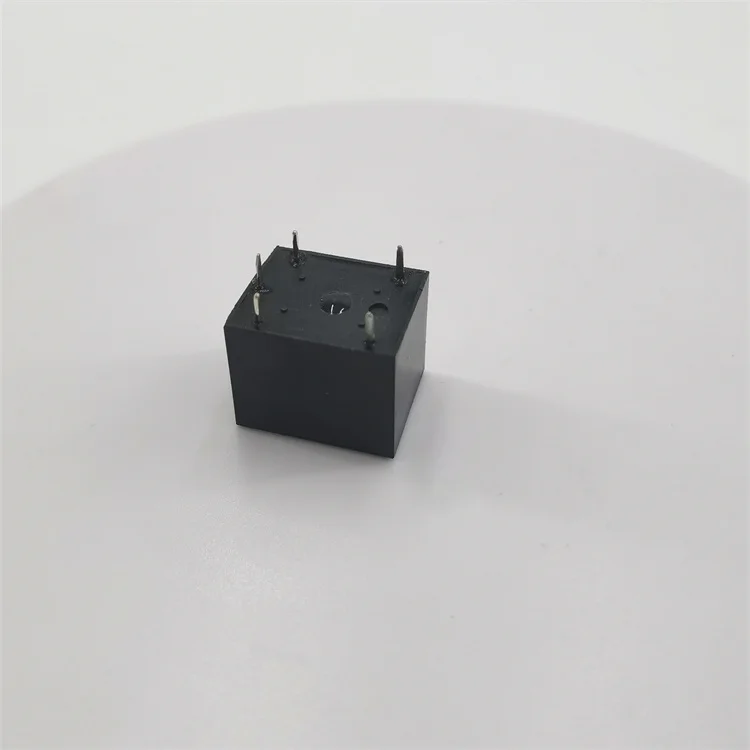

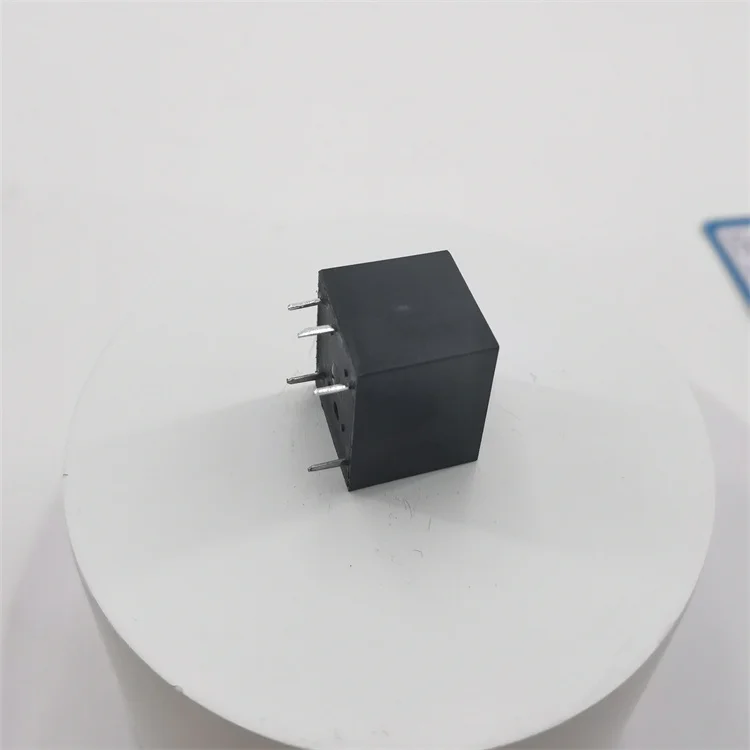

RoHS Compliant FRJQC 3FB S 12V Relay 5 Pin 10A/15A General Plastic Seal Type PCB High Power Mini Relay
- Category: >>>
- Supplier: Shanghai United Supply Chain Group Ltd.
Share on (1601276488784):
Product Overview
Description
Product Description

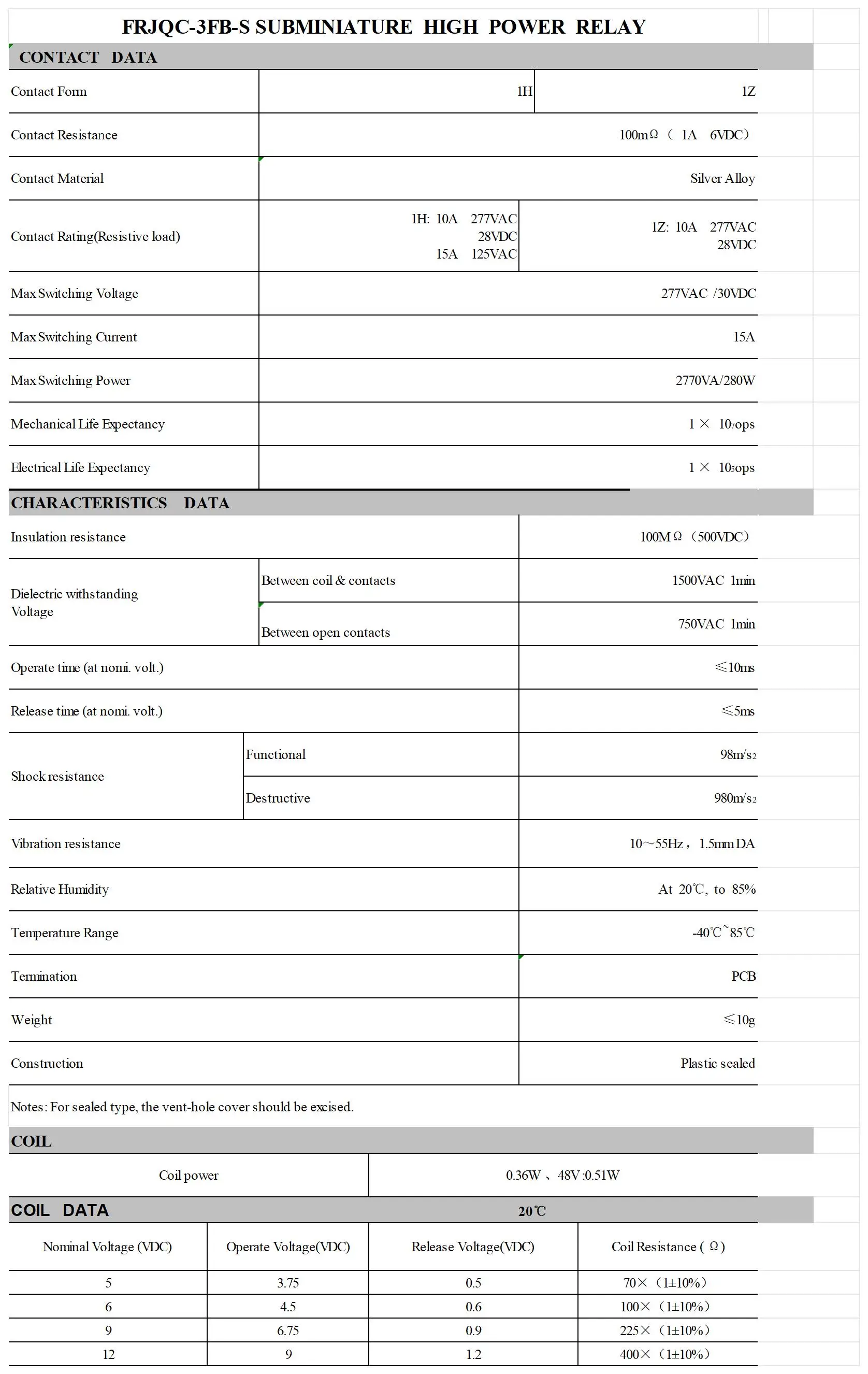

Specification
Features | ◆15A contact switching capacity ◆Miniature, Standard PCB pinout ◆Plastic Sealed ◆Environmental friendly product（RoHS compliant） |
model | FRJQC-3FB-S |
Contact Material | Silver Alloy |
Contact Form | 1H/1Z |
Contact Rating(Resistive load) | 1H: 10A 277VAC/28VDC 15A 125VAC 1Z: 10A 277VAC/28VDC |
Mechanical Life Expectancy | 1×107ops |
