automatic galvanometer fiber laser welding machine for energy storage battery Lithium battery electrode weld equipment
- Category: >>>
- Supplier: Jinan Lansen Laser Equipment Co. Ltd.
Share on (1601276567993):
Product Overview
Description
Product Overview
Lithium battery electrode
fiber laser welding machine

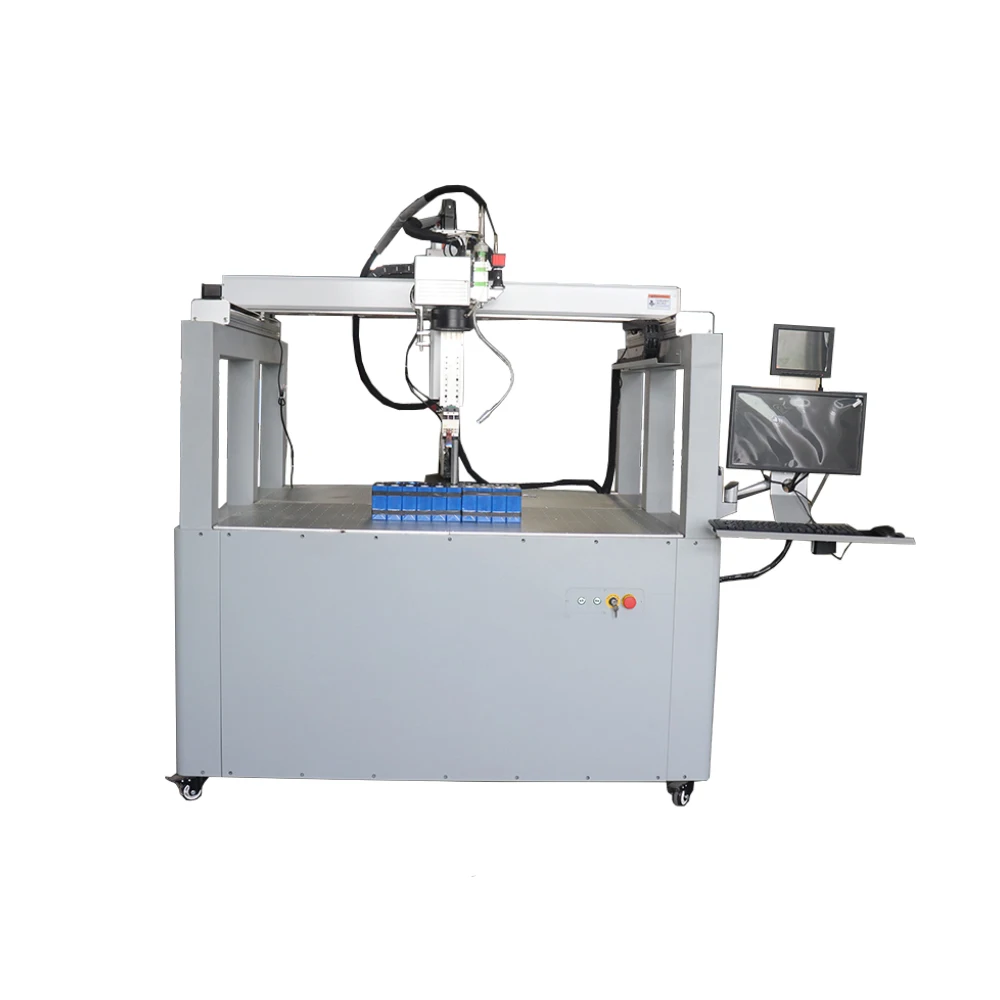

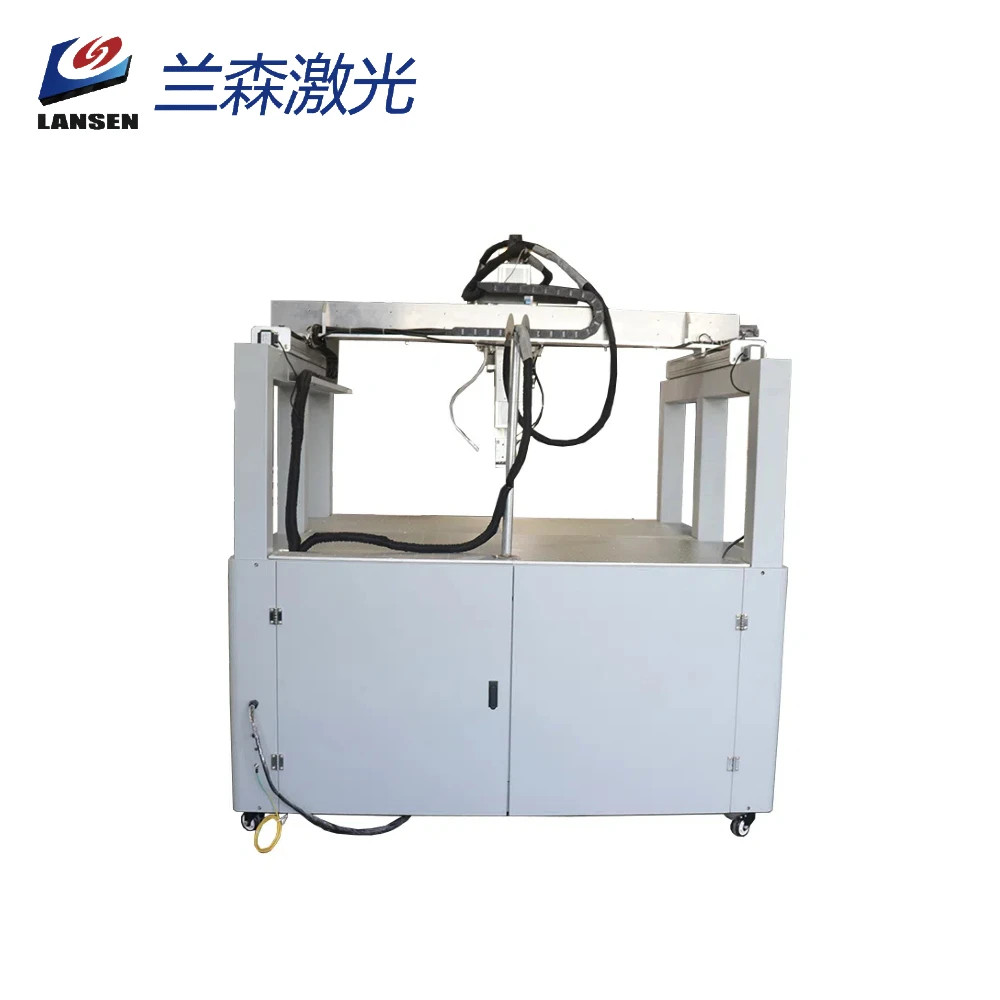

Gantry galvanometer laser welding machine is suitable for precision welding of lithium battery packs and power batteries. The integrated design and large workbench can realize the welding of multiple products at the same time. It has fast welding speed and high precision, and can cope with various complex welding needs. It can weld fine microelectronic components, integrated circuit leads and other precision parts. For example, mobile phone batteries, lithium batteries, electronic components, sensors, tungsten wires, aluminum alloys, laptop computer shells, electrical accessories, filters, nozzles, zinc alloy crafts, etc. As an excellent choice for lithium battery welding, the gantry galvanometer laser welding machine has won the trust and praise of users for its high efficiency, stability and precision.
PRODUCT SPECIFICATIONS
Laser power | 1000W | 1500W | 2000W | 3000W | 4000W | 6000W | |||||
Laser brand | MAX/JPT/RAYCUS/IPG (Optional) | ||||||||||
Frequency | 20KHz | ||||||||||
Power adjustment range | 10%-100% | ||||||||||
Laser wave length | 1080nm | ||||||||||
Welding spot | 0.5-2.0mm | ||||||||||
Fiber length | 10-15m | ||||||||||
Cooling | By chiller, cool water | ||||||||||
Positioning method | CCD + red light preview | ||||||||||
CCD accuracy | 0.01mm | ||||||||||
Welding head | Galvo Type | ||||||||||
Welding speed | 50-60mm/s | ||||||||||
Axis driver | Servo motor | ||||||||||
Bttery fixture | Customizable | ||||||||||
Voltage | AC220V/AC380V 3P/50HZ | ||||||||||
SAMPLE & FEATURES

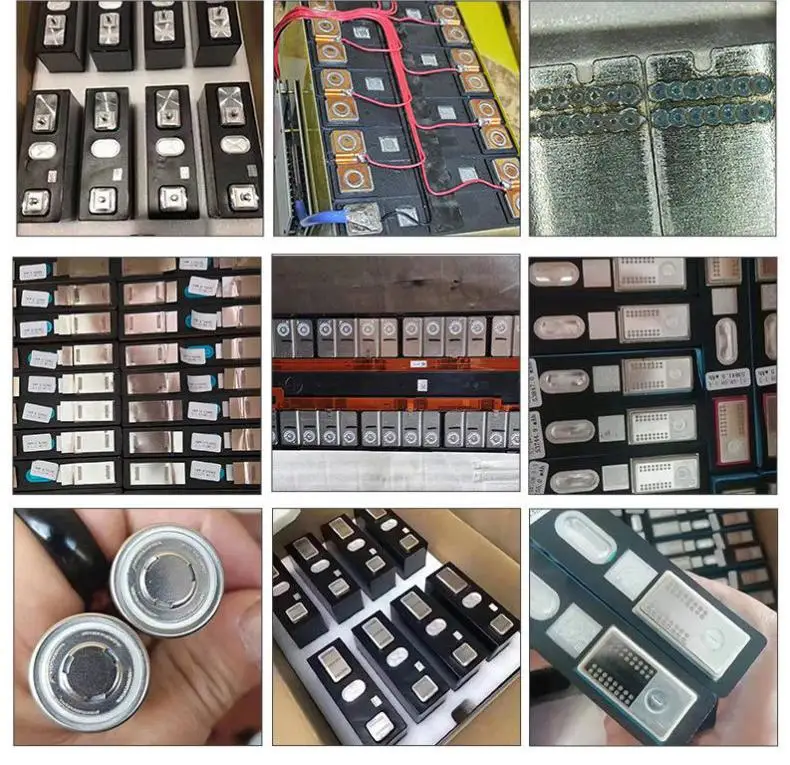

Suitable for square aluminum shell power battery PACK, polymer power battery pack pole lug, large monomer nickel, copper aluminum connection plate, explosion-proof valve plate, busbar connection plate, PACK laser welding, large polymer pole lug nickel and other kinds of battery welding and so on.
FEATURES
1.Excellent processing quality
The laser welding spot is fine, the taper is small, the precision is high, and the welding surface is smooth and free of bubbles
2.High processing efficiency
Fast welding speed, work efficiency increased by 3-5 times
3.Wide range of applications
Square aluminum shell power battery pack, polymer power battery pack, cylindrical power battery pack, large monomer to nickel,welding stud, large polymer tab to nickel and other types of batteries.
4.Multiple operation modes
Spot welding, butt welding, stitch welding, seal welding, etc
5.Industrial PC Control
Can perform laser point, straight line, circle, square and other plane arbitrary graphic welding processing
The laser welding spot is fine, the taper is small, the precision is high, and the welding surface is smooth and free of bubbles
2.High processing efficiency
Fast welding speed, work efficiency increased by 3-5 times
3.Wide range of applications
Square aluminum shell power battery pack, polymer power battery pack, cylindrical power battery pack, large monomer to nickel,welding stud, large polymer tab to nickel and other types of batteries.
4.Multiple operation modes
Spot welding, butt welding, stitch welding, seal welding, etc
5.Industrial PC Control
Can perform laser point, straight line, circle, square and other plane arbitrary graphic welding processing
PARAMETERS

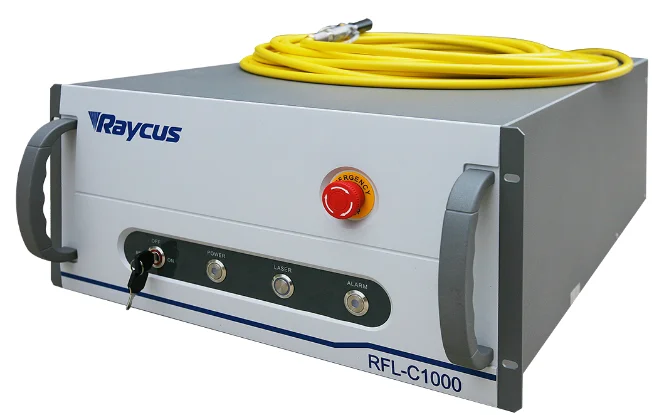

Brand laser
Brand laser, stable performance, higher photoelectric conversion rate and longer service life.

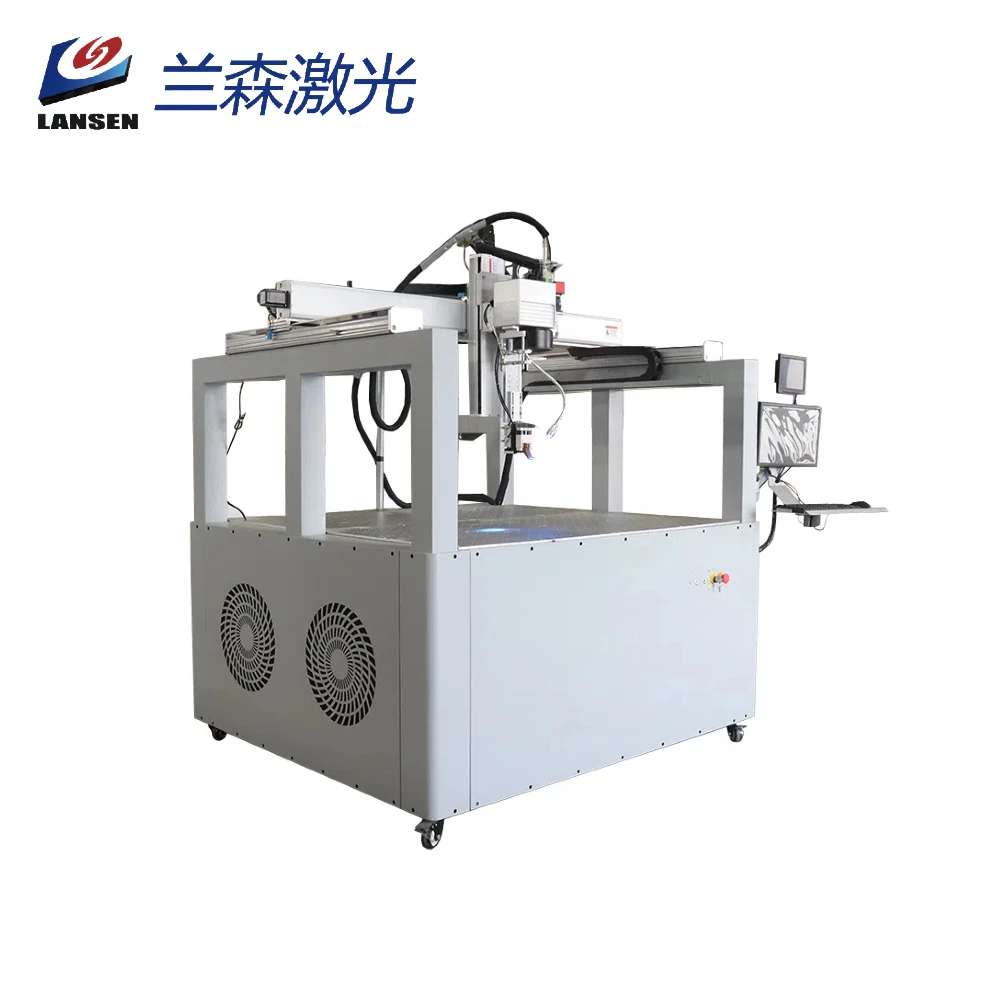

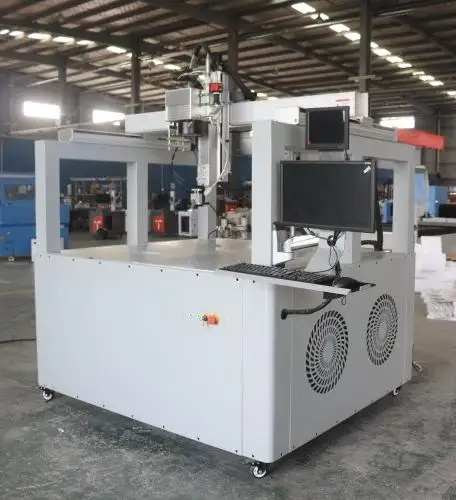

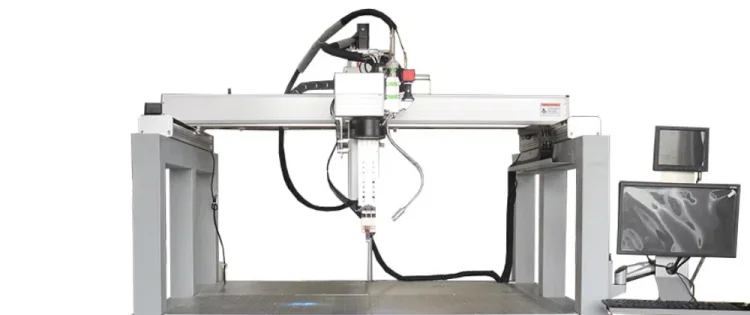

Gantry structure
It can perform large-area welding, support the installation of multiple sets of fixtures
at the same time, can weld lithium battery packs of various specifications, and can automatically raise and lower the laser beam,
which is more flexible and stable.
at the same time, can weld lithium battery packs of various specifications, and can automatically raise and lower the laser beam,
which is more flexible and stable.

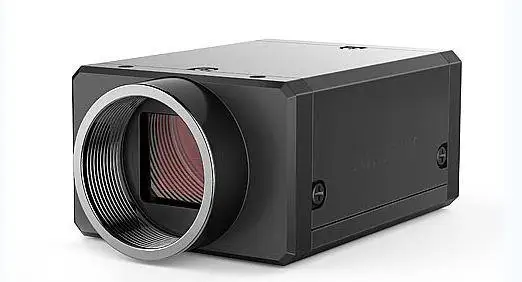

CCD monitoring system
Magnify the product and accurately position it to facilitate observation of the weld
surface quality and ensure welding quality
surface quality and ensure welding quality

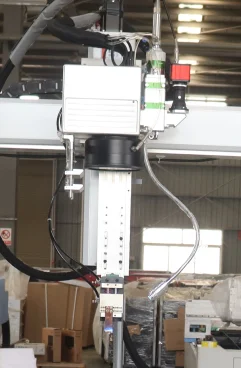

Galvanometer welding head
The high-speed galvanometer scanning welding head has fine spot, high precision, smoother welding surface, and is compatible with various welding modes of power battery packs

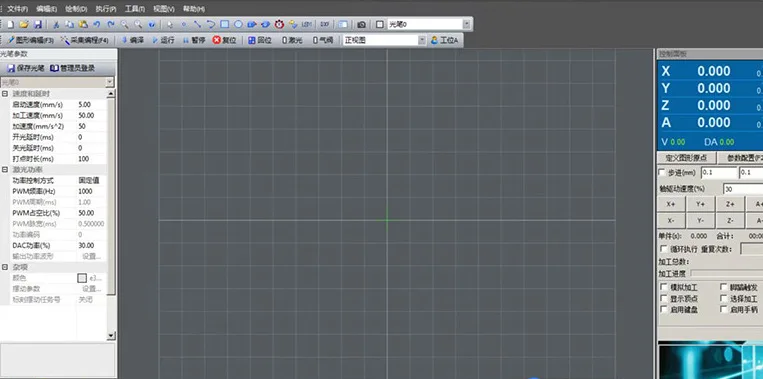

Welding system
User-friendly operation software, simple and
easy to learn, users can easily edit welding tracks, such as: points, lines, arrays, etc.
easy to learn, users can easily edit welding tracks, such as: points, lines, arrays, etc.

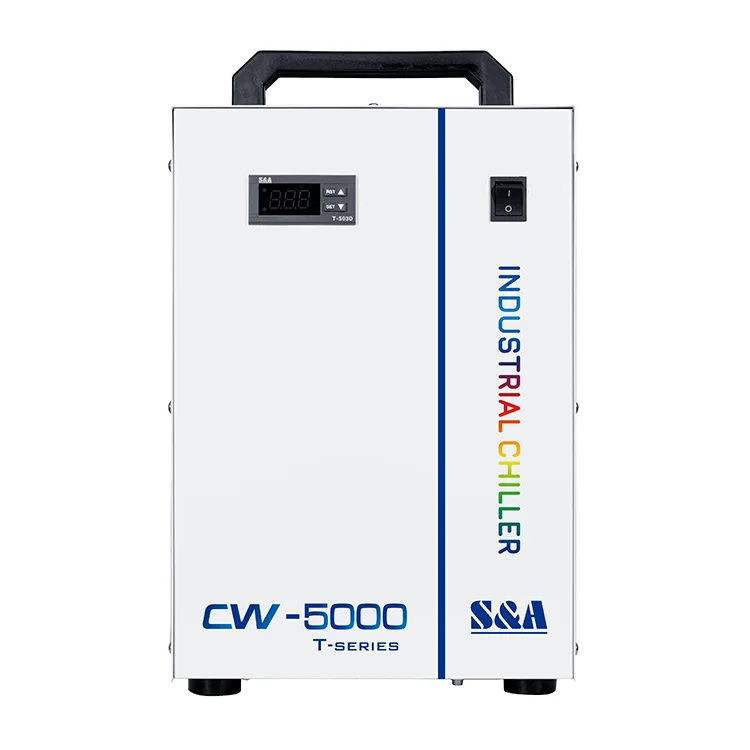

Water Cooler
Industrial-grade water cooler provides good protection for the internal components of the
equipment, greatly extending the service life of the equipment
equipment, greatly extending the service life of the equipment
