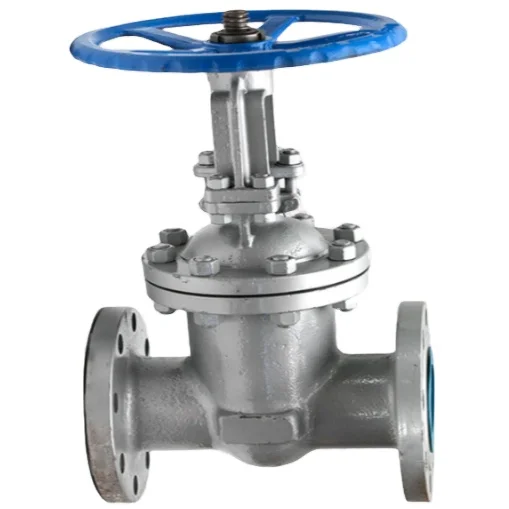

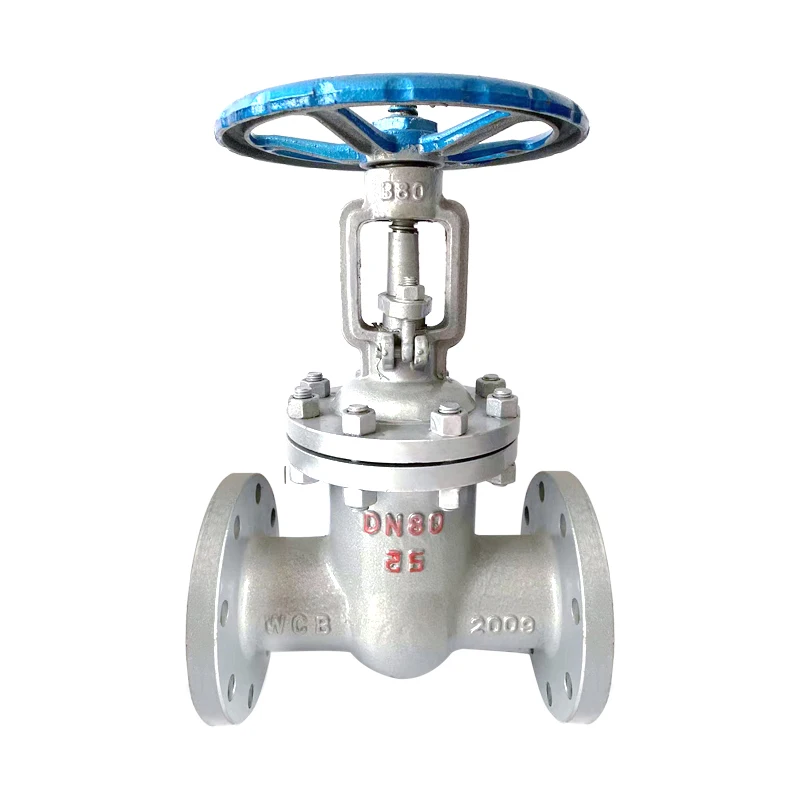

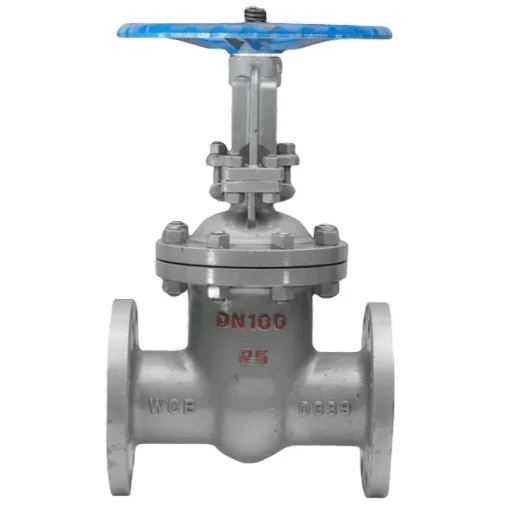

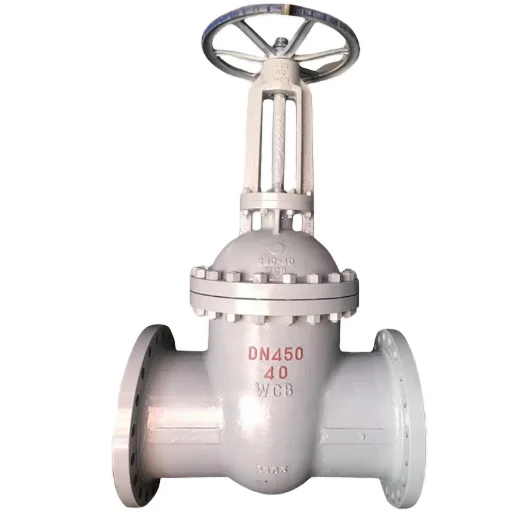

30years factory manufacture gate valve ANSI standard wcb rising stem hard seal cast steel flanged gate valve
- Category: >>>
- Supplier: Sichuan Jinhongshun Fluid Technology Co. Ltd.
Share on (1601276606370):
Product Overview
Description
Company Profile
Canton Fair.
Due to different materials, pressures and sizes, the prices of valves cannot be displayed one by one. Please contact customer service to give a correct quotation.
Why Choose Us
Accept customization
1. Material customization
2. Size customization
3. Color customization
4. Pressure customization
5. Logo customization
3. Color customization
4. Pressure customization
5. Logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you!
Our company participates in large-scale urban construction projects in China.
1. Project of China Railway
2. Project of GREENTOWN CHINA HOLDINGS LTD.
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
Products Description

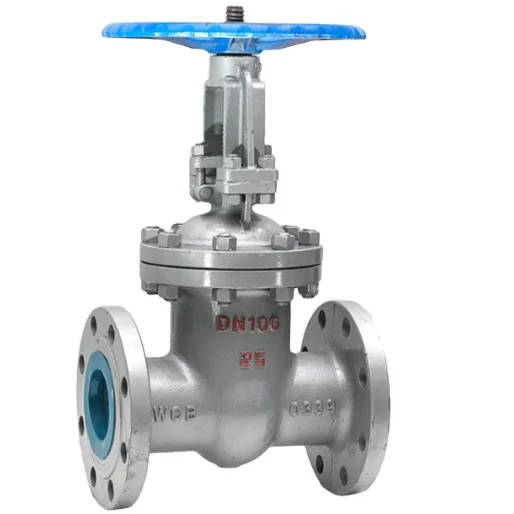

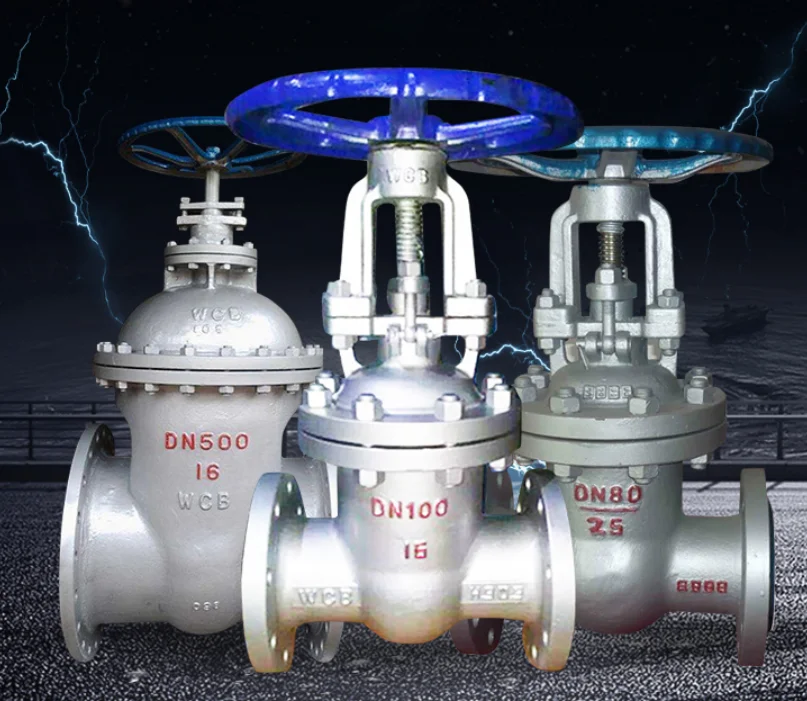

The opening and closing parts of cast steel gate valve Z41H-25C are gate plates.
The movement direction of the gate plate is perpendicular to the direction of the fluid. The gate valve Z41H-16C/25C can only be fully opened and closed, not regulated and throttled.
Manual gate valves are suitable for a wide range of pressure, temperature and caliber, especially for medium and large caliber pipelines.
Nominal size DN15~DN800, nominal pressure 1.0mpa ~ 25.0mpa, sealing surface adopts asbestos graphite or flexible graphite, working temperature ≤570℃, operation modes are manual, gear transmission, electric, pneumatic, etc., mainly suitable for petroleum, chemical, pharmaceutical, chemical fertilizer, power industry and other working conditions of the pipeline.
Main features
1. Compact structure, reasonable design, good rigidity of the valve, smooth channel, small flow resistance coefficient, small erosion and erosion of the sealing surface by the medium.
2. The sealing surface adopts stainless steel and hard alloy, high temperature and high pressure resistance optional materials, wide range of application,long service life.
3. Flexible graphite packing plate, reliable sealing, light and flexible operation.
4. Drive mode, motor, electric, pneumatic, gear transmission, structural form; Elastic wedge type single valve, rigid wedge type single valve plate and double gate type.
5. The applicable pressure, temperature range is large, widely used in petroleum, chemical, thermal power plants and other oil,water, steam pipeline for connecting or cutting off the opening and closing device of the pipeline medium.
2. The sealing surface adopts stainless steel and hard alloy, high temperature and high pressure resistance optional materials, wide range of application,long service life.
3. Flexible graphite packing plate, reliable sealing, light and flexible operation.
4. Drive mode, motor, electric, pneumatic, gear transmission, structural form; Elastic wedge type single valve, rigid wedge type single valve plate and double gate type.
5. The applicable pressure, temperature range is large, widely used in petroleum, chemical, thermal power plants and other oil,water, steam pipeline for connecting or cutting off the opening and closing device of the pipeline medium.
Relevant implementation standards
Design and manufacture: API600, API6D, GB12234
Flange size: ANSI B16.5, JB/T79, GB9113
Pressure temperature: ANSSI B 16.34
Length: ANSI B16.10, GB12221
Butt welding joint size: ANSI B 16.25
Inspection and test: API598, JB/T9092
Applicable medium: water, steam, oil, acid, alkali medium, etc.
Flange size: ANSI B16.5, JB/T79, GB9113
Pressure temperature: ANSSI B 16.34
Length: ANSI B16.10, GB12221
Butt welding joint size: ANSI B 16.25
Inspection and test: API598, JB/T9092
Applicable medium: water, steam, oil, acid, alkali medium, etc.
PN | Strength test | Water seal test | Gas seal test | ||||||
MPa | Lbf/in2 | MPa | Lbf/in2 | MPa | Lbf/in2 | ||||
150 | 3.1 | 450 | 2.2 | 315 | 0.5～0.7 | 60～100 | |||
300 | 7.8 | 1125 | 5.6 | 815 | |||||
600 | 15.3 | 2225 | 11.2 | 1630 | |||||
900 | 23.1 | 3350 | 16.8 | 2440 | |||||
1500 | 38.4 | 5575 | 28.1 | 4080 | |||||
2500 | 64.6 | 9367 | 47.4 | 6873 | |||||
Main parts and materials:
Part name | Material | ||||||||||
Body | WCB | ZGCr5Mo | CF8 | CF8M ZG1Cr18Ni9Ti | CF3 | CF3 | |||||
Cover | WCB | 12CrMoV ZGCr5Mo | 304 CF8 | 316 CF8M | CF3 | CF3 316L | |||||
Support | WCB | WCB | CF8 | CF8M | CF3 | CF3 | |||||
Disc | WCB | ZGCr5Mo | CF8 | CF8M | CF3 | CF3 | |||||
Stem | 2Cr13 | 25Cr2MoV | 1Cr18Ni9Ti | ||||||||
Seat ring | 25 | 304 | 304 | 304 | 304 | 304 | |||||
Gasket、Ring gasket、Sealing ring | Cladding gasket、304、Reinforced flexible graphite | ||||||||||
Packing | Reinforced flexible graphite | ||||||||||
Stem Nut | ZCuA110Fe3 | ||||||||||

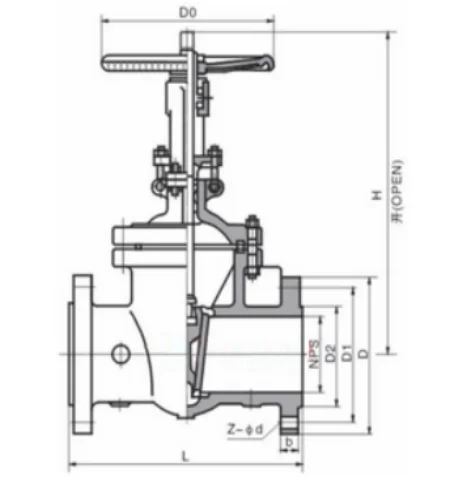

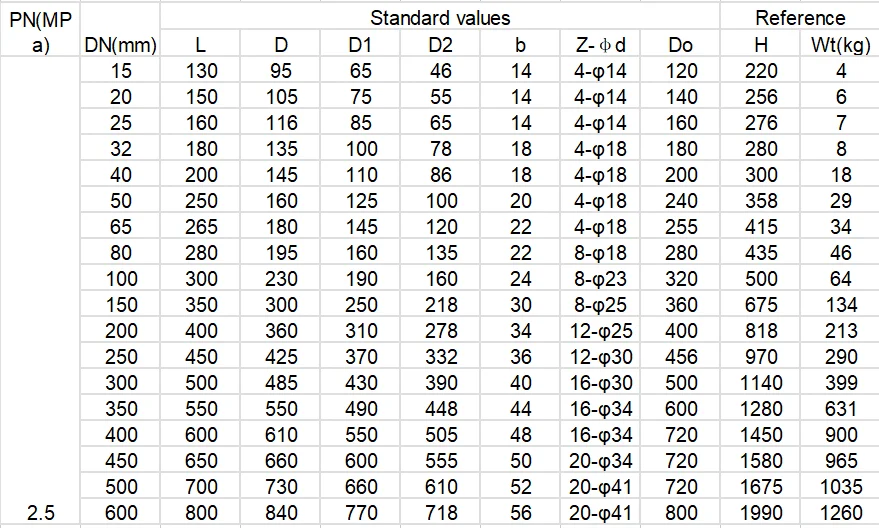

Main structure and connection dimensions
