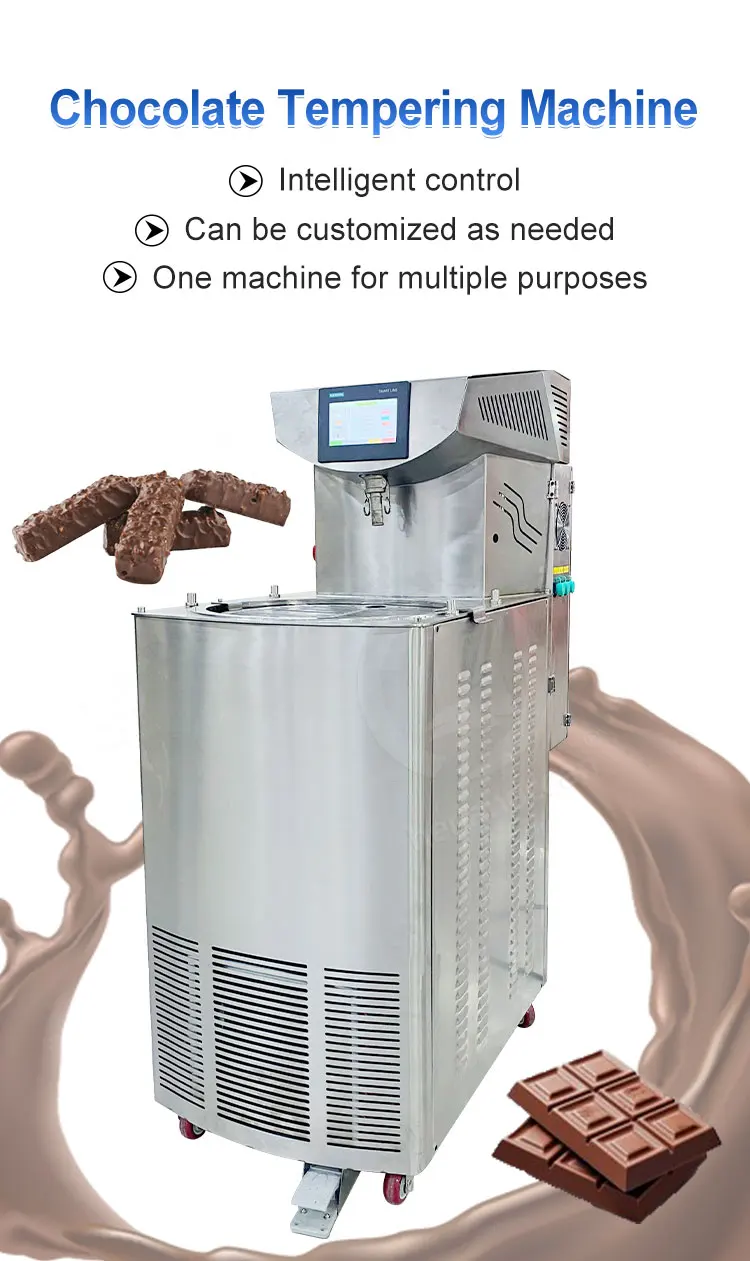

OCEAN Professional Automatic Stainless Steel Chocolate Melt Device Chocolate Temper Machine Price

Share on (1601276631509):


Price:

Quantity:


Product Overview

Description





Product Description




Introduction

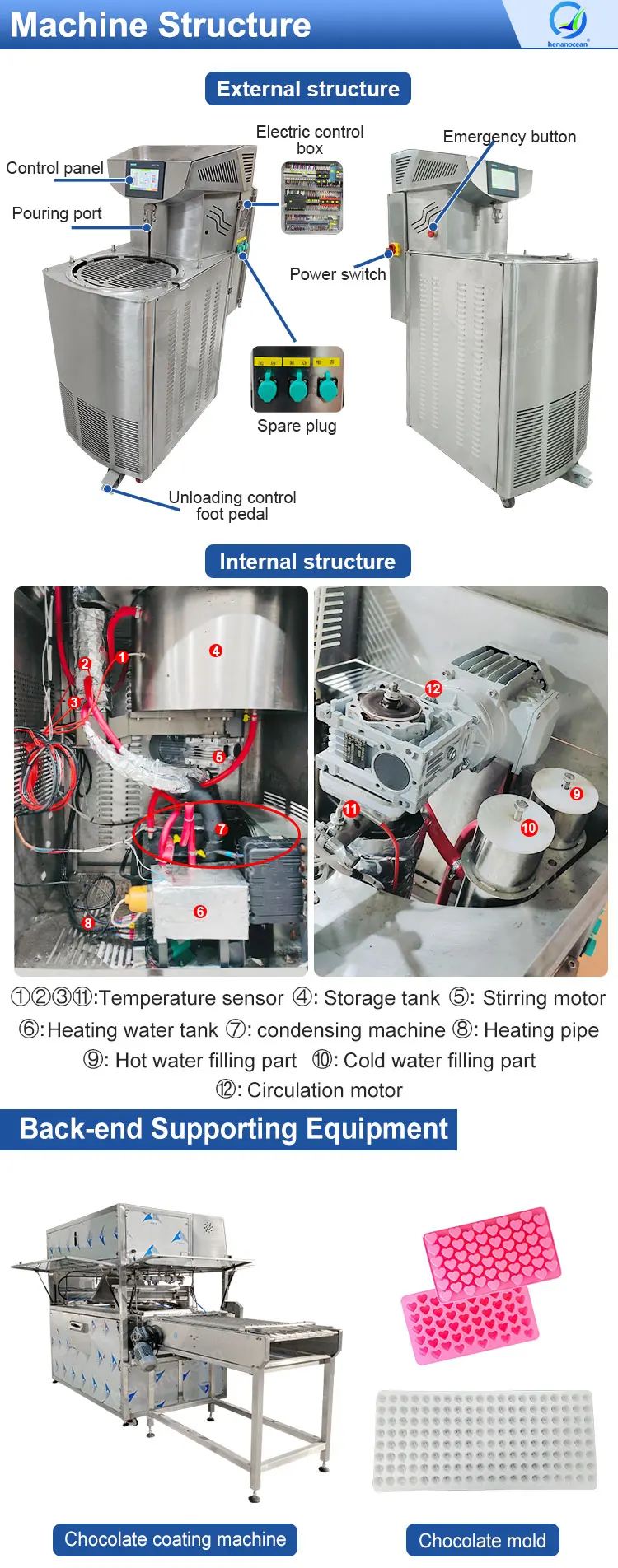

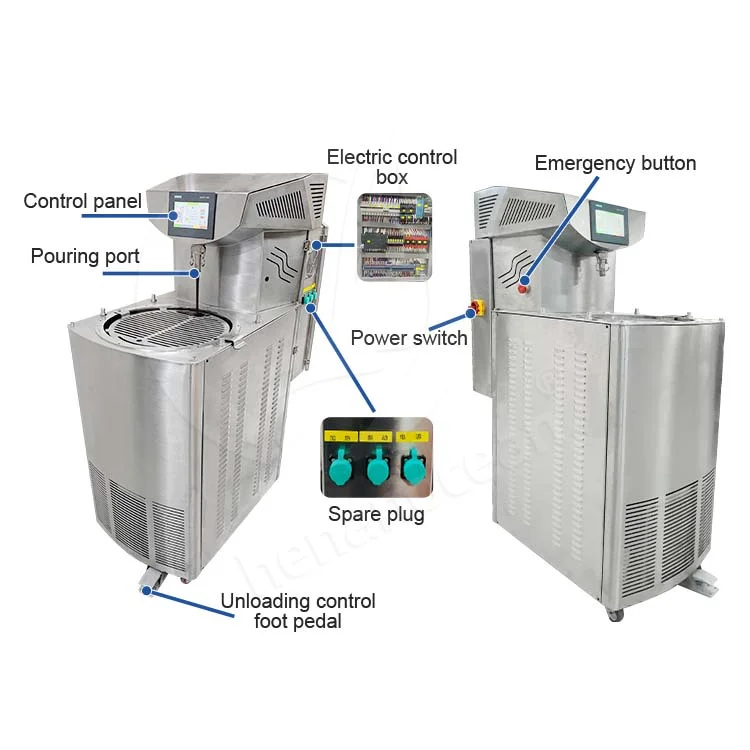

The chocolate tempering machine consists of a storage tank, a circulation system, a control system and a shell. The working principle of the chocolate tempering machine is to heat and melt the chocolate through the built-in heating device, and continuously circulate the chocolate in the storage tank through the circulation system. At the same time, the temperature is controlled through the control system, so that the chocolate reaches the required temperature and maintains a constant temperature. Warmed chocolate exhibits a better appearance, increases taste and extends shelf life.


Application
Chocolate tempering machine is suitable for bakeries, cafes, ice cream and chocolate candy shops, food processing plants, etc.


Features
1. The machine body is made of stainless steel and is easy to clean. (The whole machine is made of 201 material, and the parts in contact with food are made of 304)

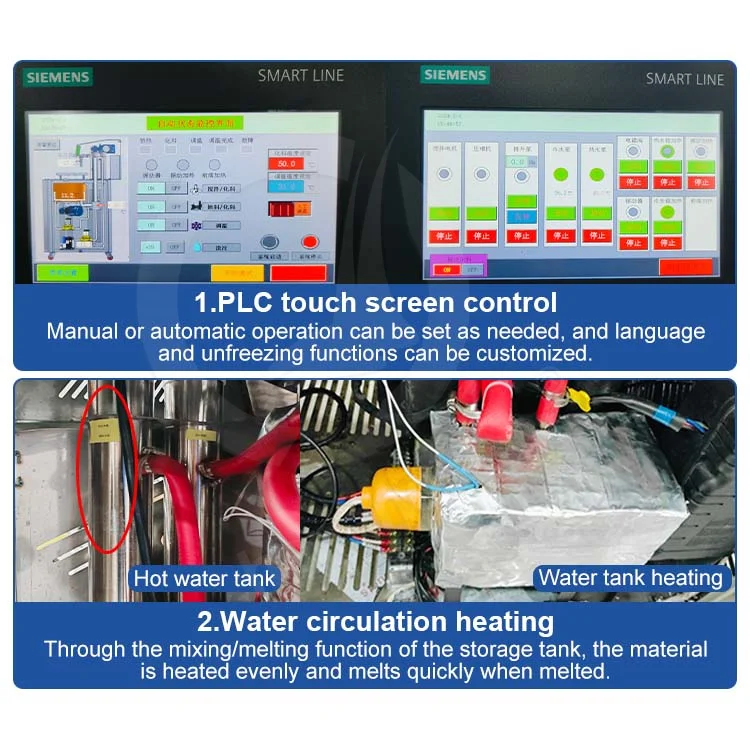

2. The electronic control system uses a touch color screen, the control interface has a manual/automatic switch. According to customer needs, manual operation or the temperature regulator can operate automatically according to the set parameters.
3. The control interface has the function of thawing and defrosting materials. When the pipe or outlet is blocked by chocolate, this function can be used. The cold water pump and hot water pump will heat up at the same time to quickly melt the blocked chocolate.
4. The control interface can set the melting temperature and temperature adjustment temperature. A temperature sensor is installed inside the equipment to monitor the temperature of the equipment in real time.
5. The temperature control machine uses water circulation heating, and uses the mixing/melting function of the storage tank to make the material heated evenly when melted, and the chocolate melts quickly.

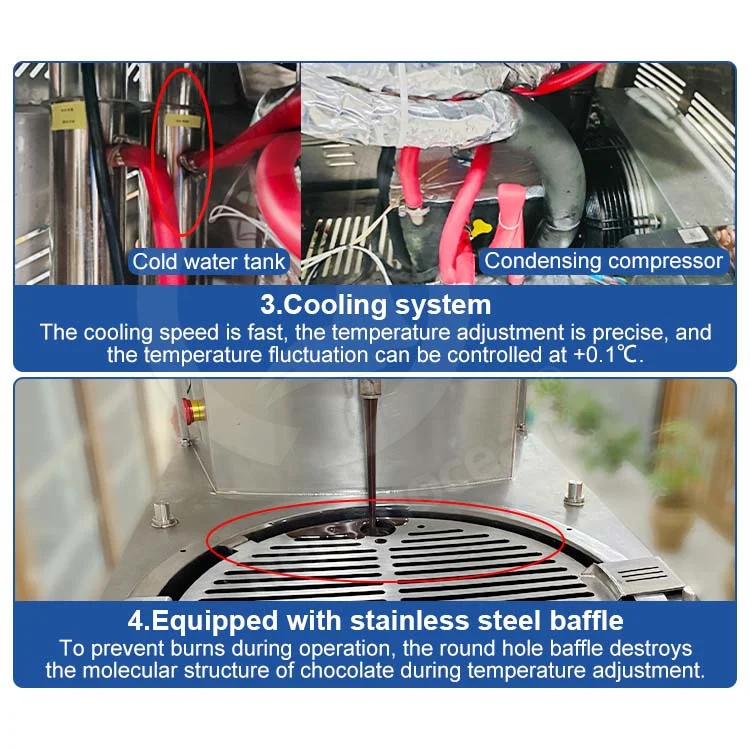

6. The temperature regulating machine uses a condensing compressor for cooling, which has fast cooling speed and accurate temperature regulation. The temperature fluctuation can be controlled at +0.1℃.
7. The control interface is equipped with alarm query, which can query the fault alarm status of the thermostat. After inserting the USB flash drive, the fault timetable can be exported to collect statistics on the equipment failure rate and stability.
8. The discharge connecting plate under the storage tank is made of one-piece aviation aluminum plate, which has better thermal insulation effect.
9. A stainless steel baffle is installed above the storage tank to prevent hands from being burned when the machine is running. The round hole baffle under the pouring port will destroy the chocolate molecular structure, and then the chocolate molecular structure will be reorganized in the storage tank, making the taste more delicate when eating.

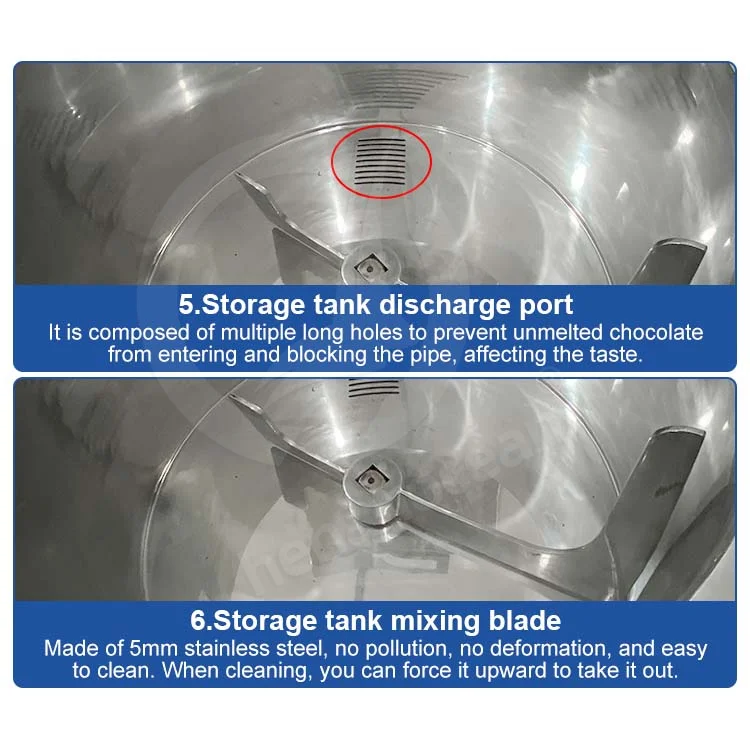

10. The outlet of the storage tank is composed of multiple long holes to prevent large pieces of unmelted chocolate from entering the pipe and blocking the pipe, and coating the food surface, affecting the taste.
11. The mixing blade of the storage tank is made of 5mm stainless steel, which is pollution-free, does not require deformation, and is easy to clean. When cleaning, you can force it upward to take it out.












Model
OCEAN-CTM-25L
OCEAN-CTM-60L
OCEAN-CTM-100L
Voltage
220/380V 50HZ
380V 50HZ
380V 50HZ
Power
6KW
9KW
11KW
Capacity
80 kg/h
200 kg/h
300 kg/h
Dimension
1060*840*1780mm
1350*880*1780mm
1600*770*1100mm
Weight
314kg
360kg
430kg

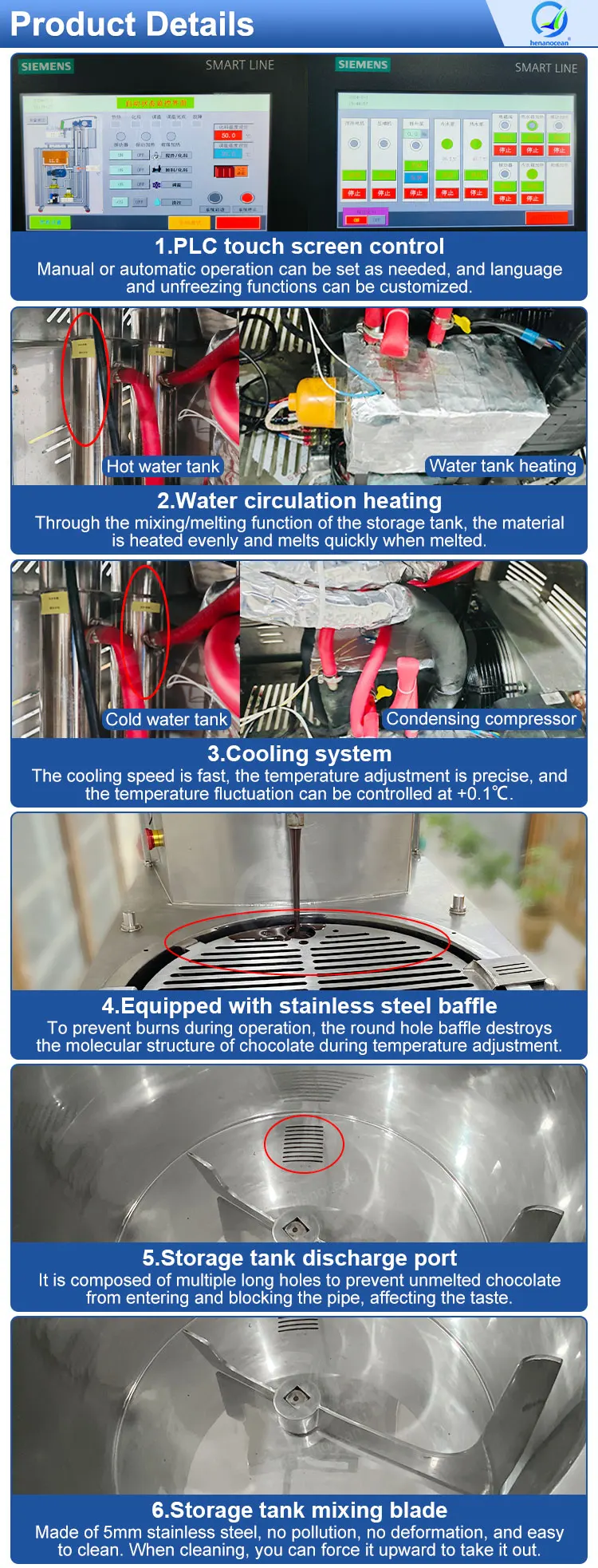

Production Details

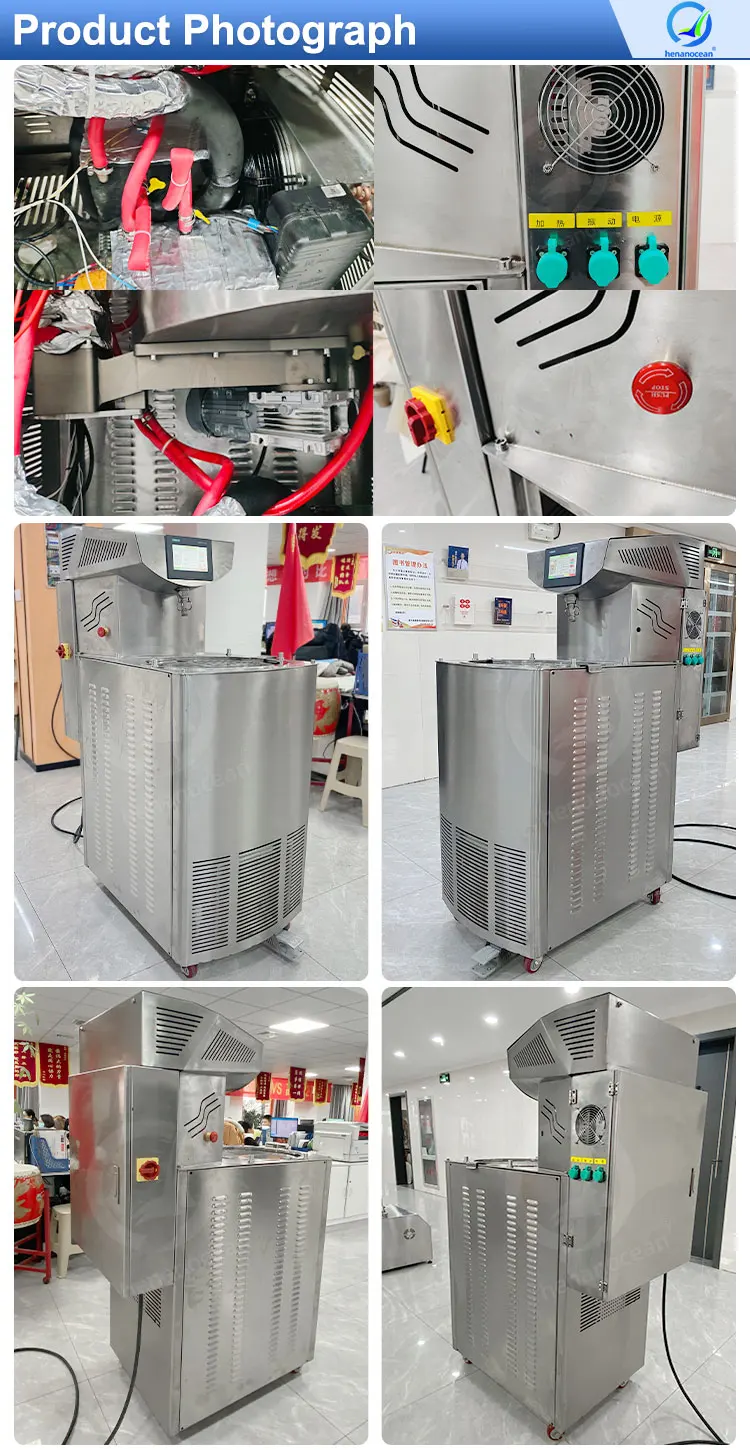

Product photograph

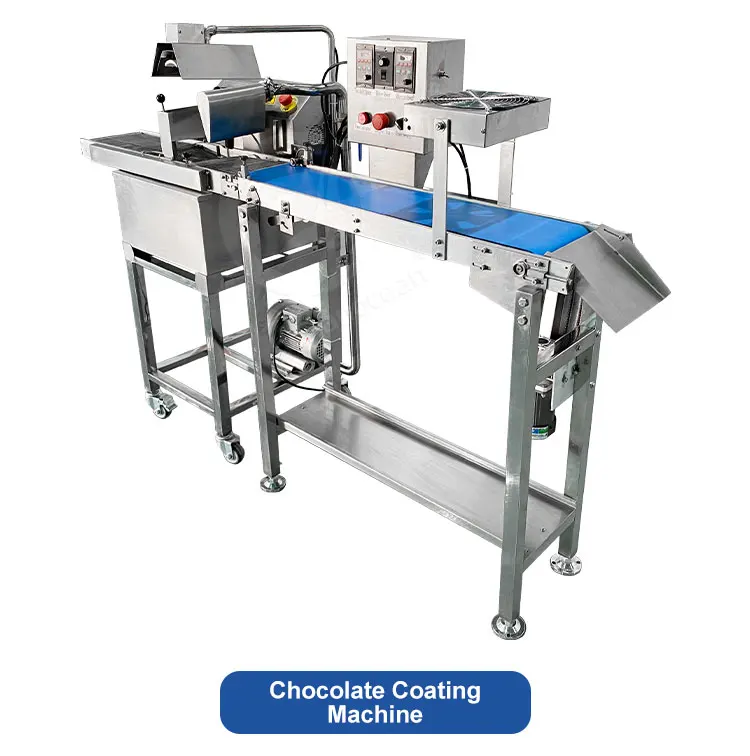

Recommend Products

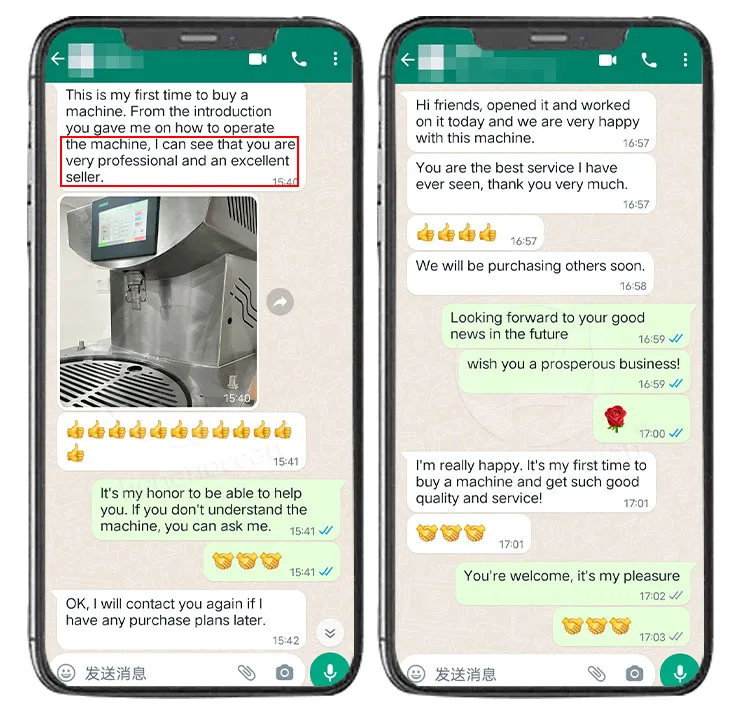

Good Review from Oversea Customers




Company Information



1. More than 20 years of professional mechanical equipment manufacturers.
2. R&D team keep sustained technology improving anddeveloping.
3. Strict Q.C.and full process monitoring management.
4. ISO 9001, ISO 14001, ISO 45001, CE. BSCI, ETL certificated.OEMODM services.
5. Self owned professional R&D capacity,lab, QC capability.


Certification and Approva



Oversea Customer Visit



Exhibition Photos



Oversea After-sales Service




Our Services



1. 24-hour communication service.
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.


FAQ




Q1: What's your company after- sales service ?
A1: Our machine will be checked three times before shipment to ensure that the
machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine.
3. In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company.

Q2: Do you provide any warranty about your equipment ?
A2: One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos,To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.

Q3: How to transport without customs clearance experience ?
A3: We have reliable forwarder agent which can ship items to you by sea/air/
Express to your home. We will help you choose the most suitable shipping service.

Q4: Does your company provide training ?
A4: Yes, we provide a series of instructional videos and after-sales service
videos,supporting Chinese, English, French, Spanish, and Arabic.

Q5: Differences from other brands in China ?
A5: We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
