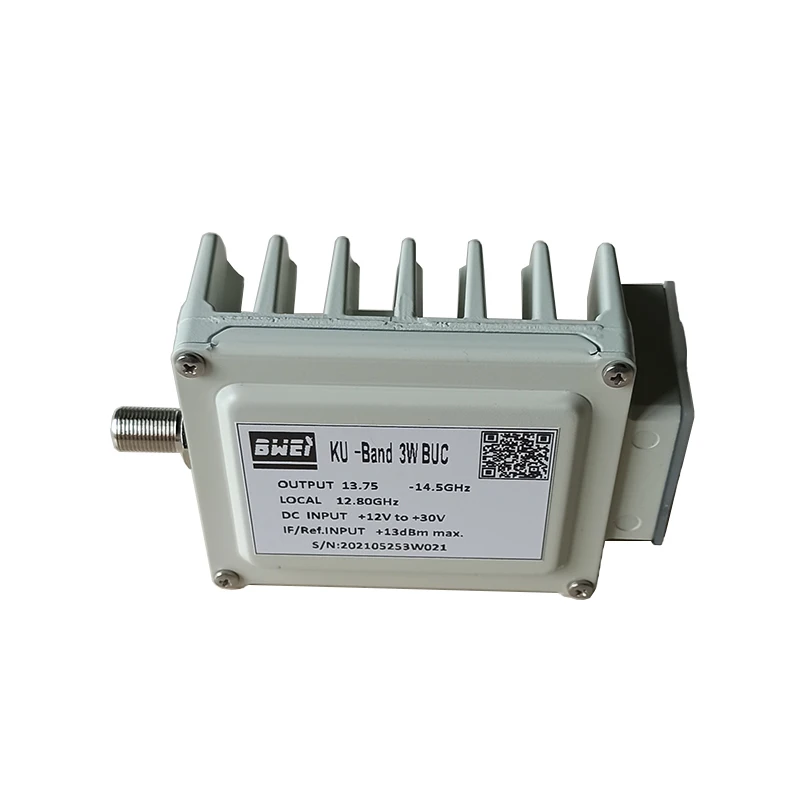

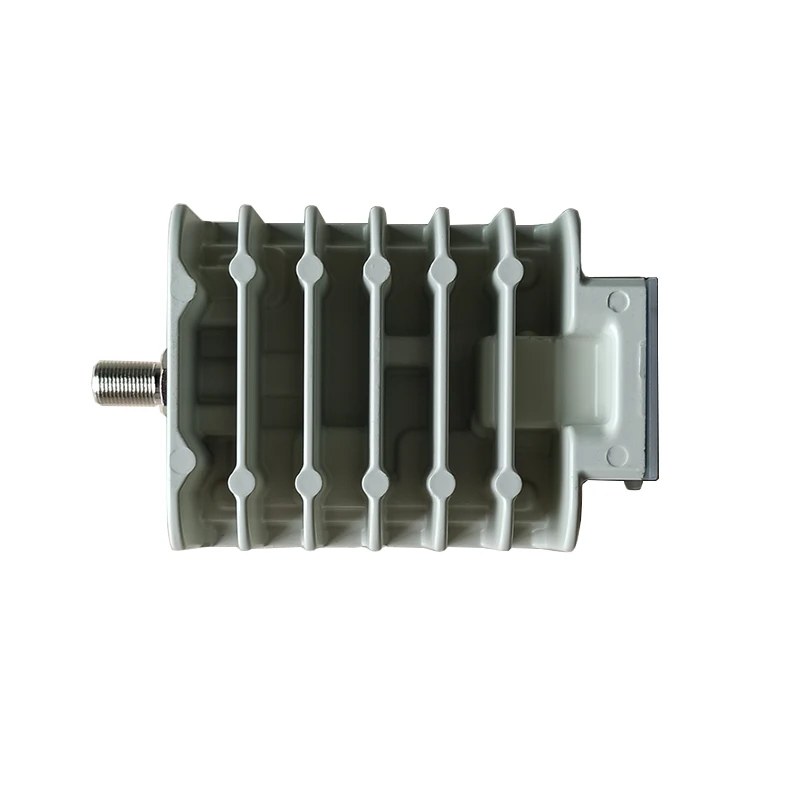

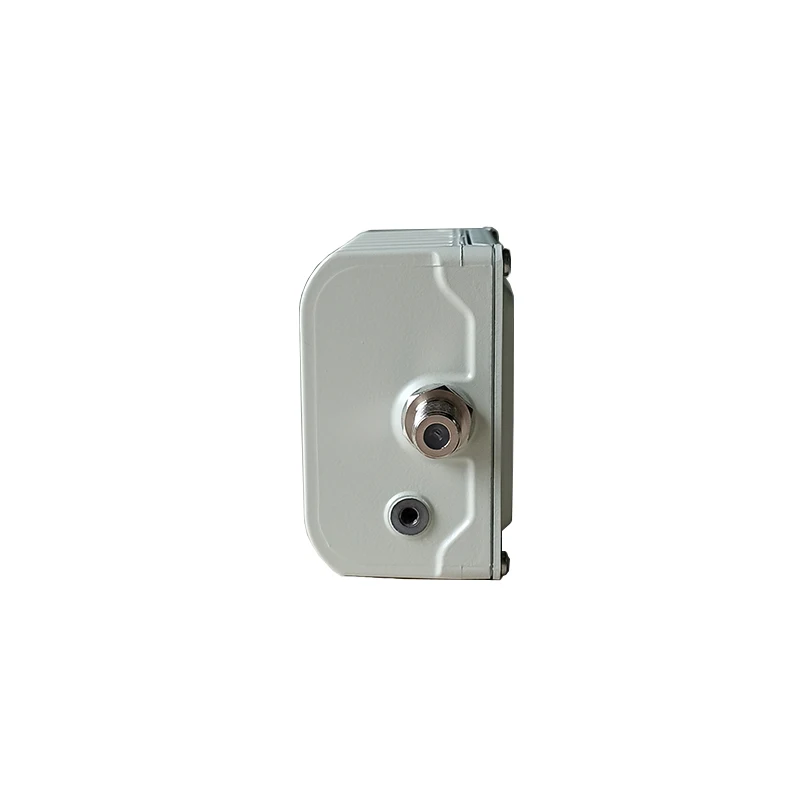

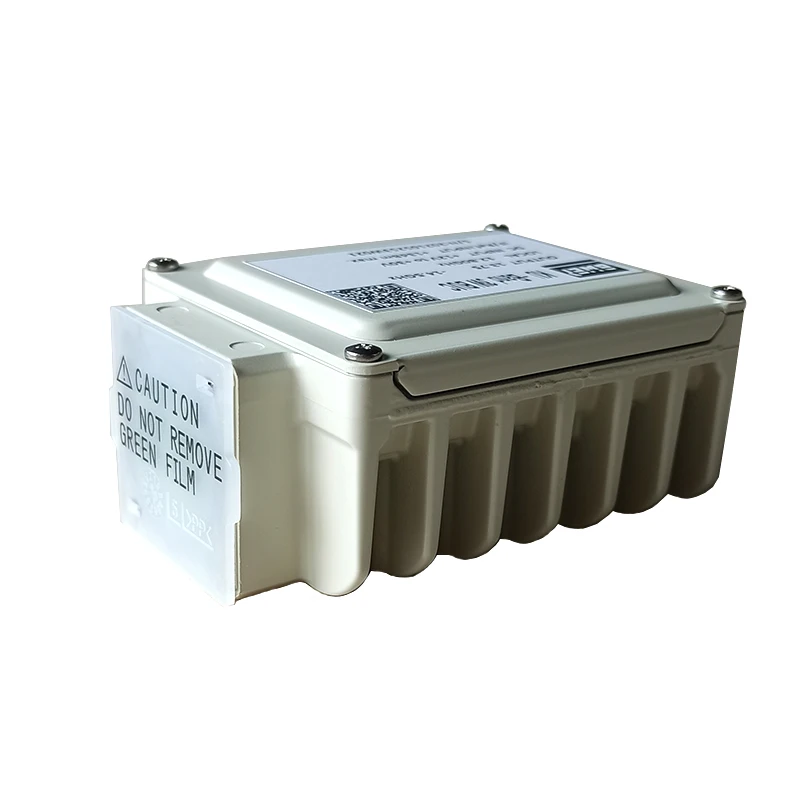

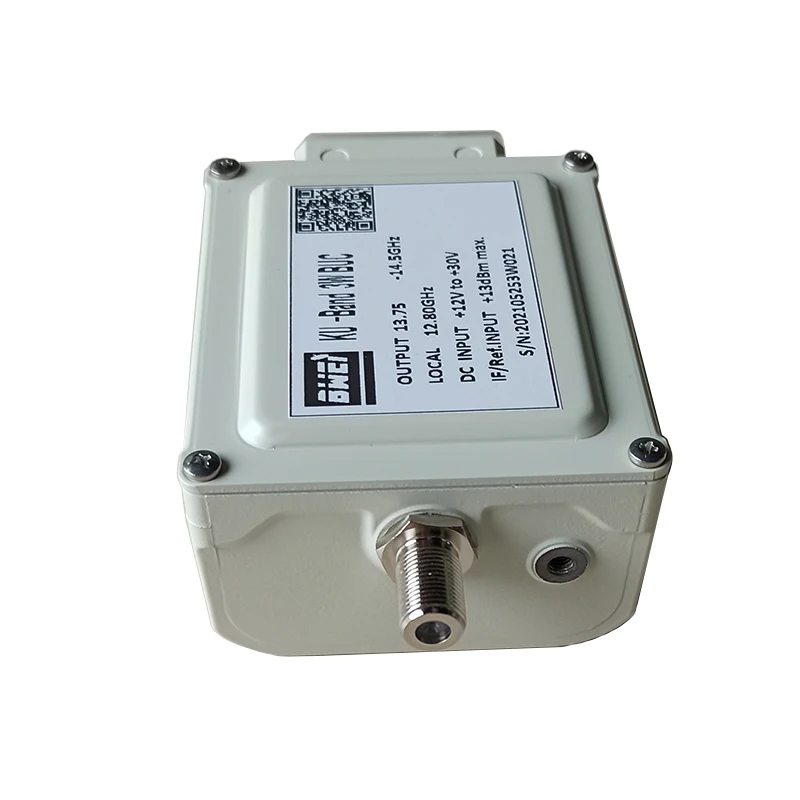

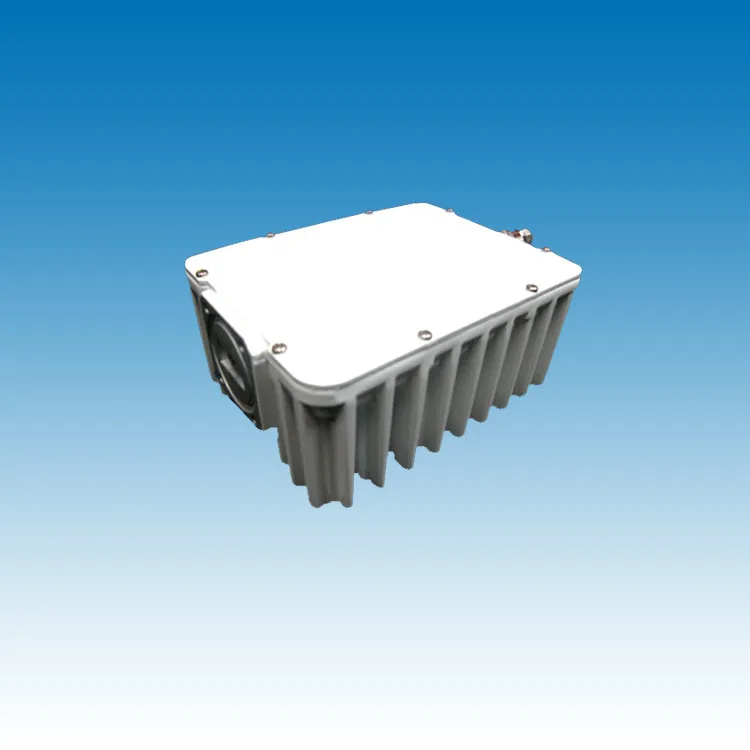

block up converter 12.8 L Band to Extended KU Band 13.75Ghz 14.5Ghz L.O. frequency 12.8ghz 3w BUC 12800

Tx specification :

1.

IF Input Frequency Band: 950-1450MHz

Local Oscillator frequency: 13.05GHz

RF Output Frequency Band : 14.0-14.5GHz

2.

input frequency (GHz)   950 – 1700 MHz
 l.O. frequency (GHz)        12.80 GHz

Output frequency (mHz)  13.75 – 14.5 GHz

Local Oscillator Pease Noise (RMS 100H to 1MHz) : 2.5°

Input impedance: 75Ω

Input VSWR: 2.5:1

Input power range: -25 to -5dBm

Output saturated powe: 33dBm (2W) typical

Output saturated power : 32-24.5dBm versus all condition

Power flattens: 2dB typical

Output noise :  -94dBm/Hz

Output spurious level:

13.6-14.9GHz.:  -25dBm

28.0-29.0GHz:  -20dBm

Linear Gain : 59 min

DC Characteristics:

Input Voltage Range at Tx IF connector: 13-24V

Tx Power consumption : 18W typical

Non Damage voltage : 0-30V

Environmental condition

Operational temperature range :-40 -70°C

Non-operating temperature : -50 -80°C

Moisture/humidity protection: IP67

Physical/Electrical Interfaces:

 75-Ohm female F-Type connector

DC power

IF L Band

Output Tx Signals via WR 75 without grooved with gasket

our company has been in this satellite tv products industry for more over 23years

There is  a professional R & D and production team. The product has been tested by more than 200 countries in the world, and our company products are very mature.

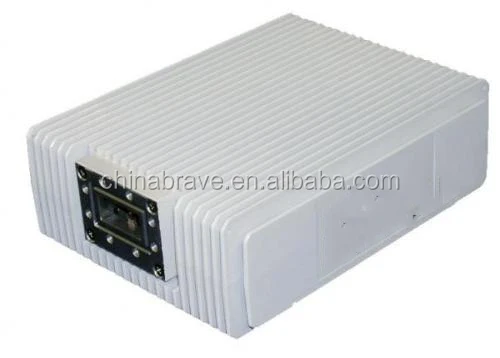

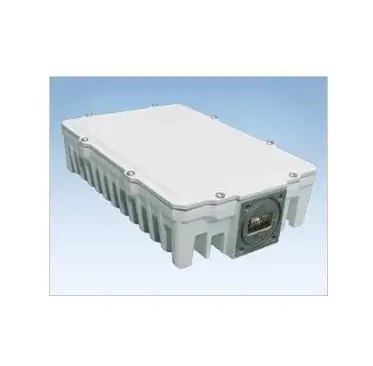

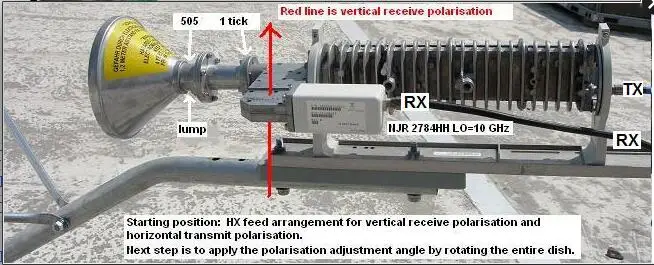

Ku-band BUC Series Transmitter 2W

BUC: (Block Up-Converter) The up-conversion power amplifier transforms the L-band signal output by the satellite Modem into a high-frequency RF signal and sends the signal back to the C band, KU band or KA band satellite

Widely used in satellite digital broadcasting, data communications and defense communications.

Can be applied to live television stations, the emergency command and transmission unit of the relevant units

The KU upconverter BUC transmitter is used in a wide range of applications and is listed as a designated model in many government procurement projects
