Fault relay Monitoring BMS aircraft warning light ICAO L810 Low Intensity omnidirectional 32cd red steady Obstruction Light
- Category: >>>
- Supplier: Hunan Chendong Technology Co. Ltd.
Share on (1601276706372):
Product Overview
Description
Product Description
Fault relay Monitoring BMS aircraft warning light ICAO L810 Low Intensity omnidirectional 32cd red steady Obstruction Light
Options:
* Dual aviation obstruction light (1 duty & 1 stand-by)
* Solar Powered system
* Low intensity aviation obstruction light type A , Type B . Type E Optional
* IR Wavelength - 850nM
As specified by Annex 14 of ICAO regulations, Low Intensity Obstruction Lights (LIOL) should be used to warn the presence of
obstacles up to 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.
Low Intensity Obstruction Lights are the simplest devices according to ICAO standards and they have the following characteristics
and uses:
* Type A (intensity >10cd, red steady burning) can be used alone;
* Type B (intensity >32cd, red steady burning), can be used either alone or in combination with medium intensity obstacle
lights Type B, Type AB or with high intensity obstacle lights Type AB;
* Type E (intensity >32cd, red flashing), can be used either alone or in combination with medium intensity obstacle lights,
Type B. Flashing rate will be set at the same rate of other flashing beacons installed on the structure.
For more details
emma@chendongtech.com
what'sapp :0086-13342512879
what'sapp :0086-13342512879
Skype: chendongtech1

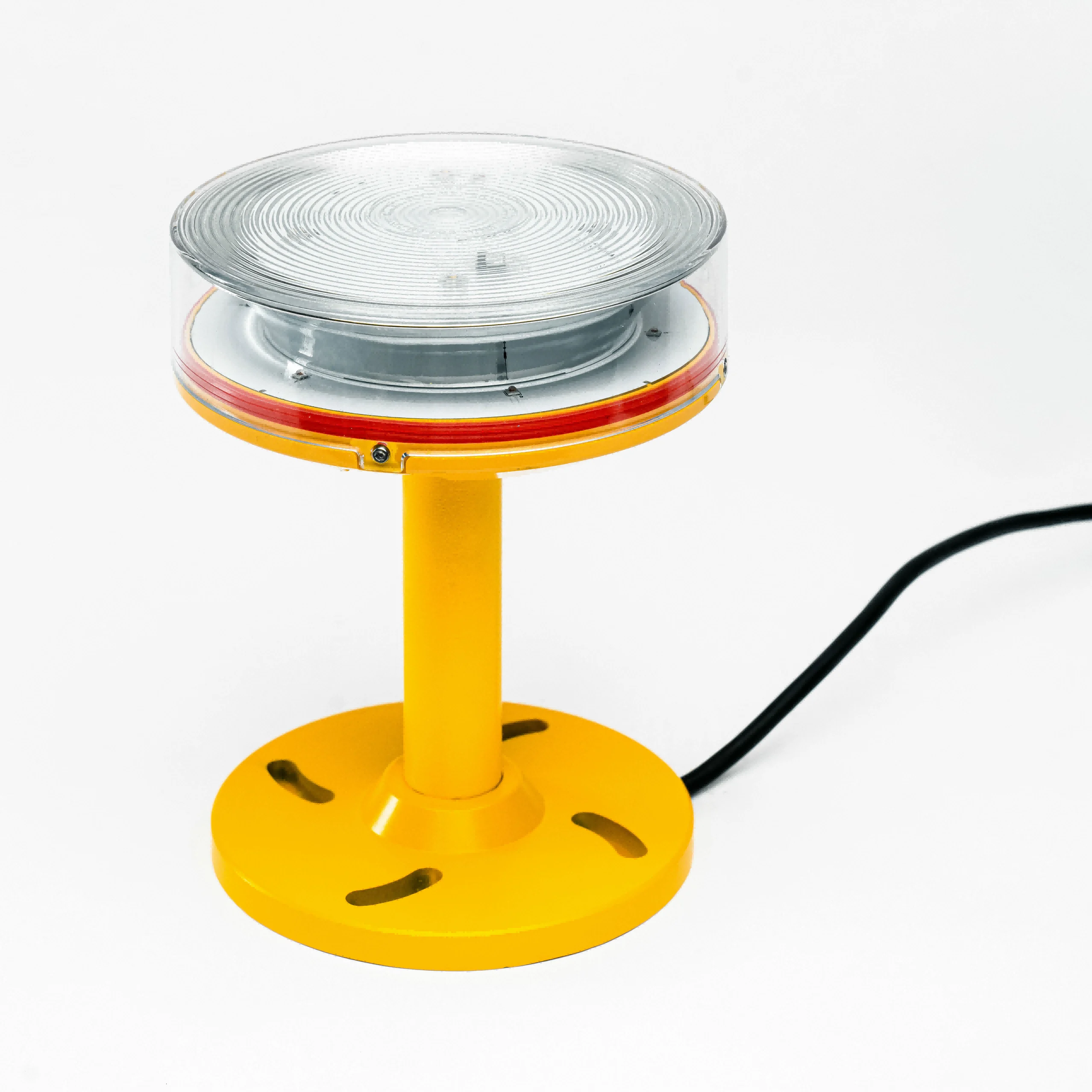

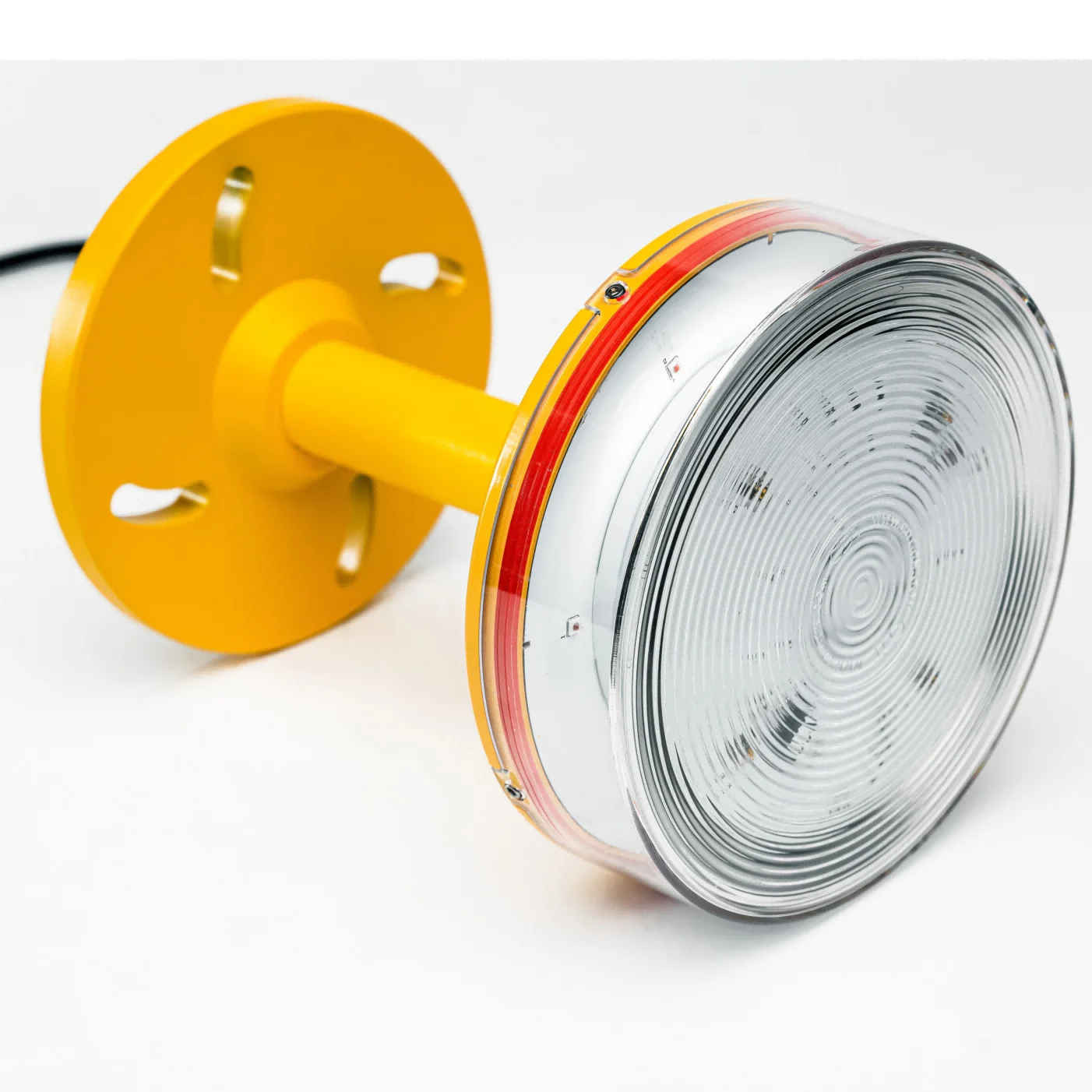

Product Presentation
ITEM | Parameter |
Model | cm-11 |
Operating voltage | AC220V(other available) |
Power consumption | ≤5W |
Flashing frequency | Steady burning or Flashing |
Peak light intensity | ≥32cd |
Light source | RED LED |
Lifespan | ≥500000 hours |
Emitting color | RED |
Beam angle | 360° horizontal beam angle ≥4° vertical beam spread |
Ingress protection | IP6 |
Lightning protection level | 15KA |
Light controlled sensitivity | 50lux |
Operating temperature | -55℃~55℃ |
Net weight | 1.5kg |
Wind load | 240km/h |
Specification
* Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fits the bad environment very well.
* House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
* Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.
* Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and
environmental protection.
* Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller.
* Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.
* Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
* The circuit of the light has surge protection, so that the light is suitable for a harsh environment.
* Integral structure, protection level of Ip65.
* GPS synchronizing function is available.

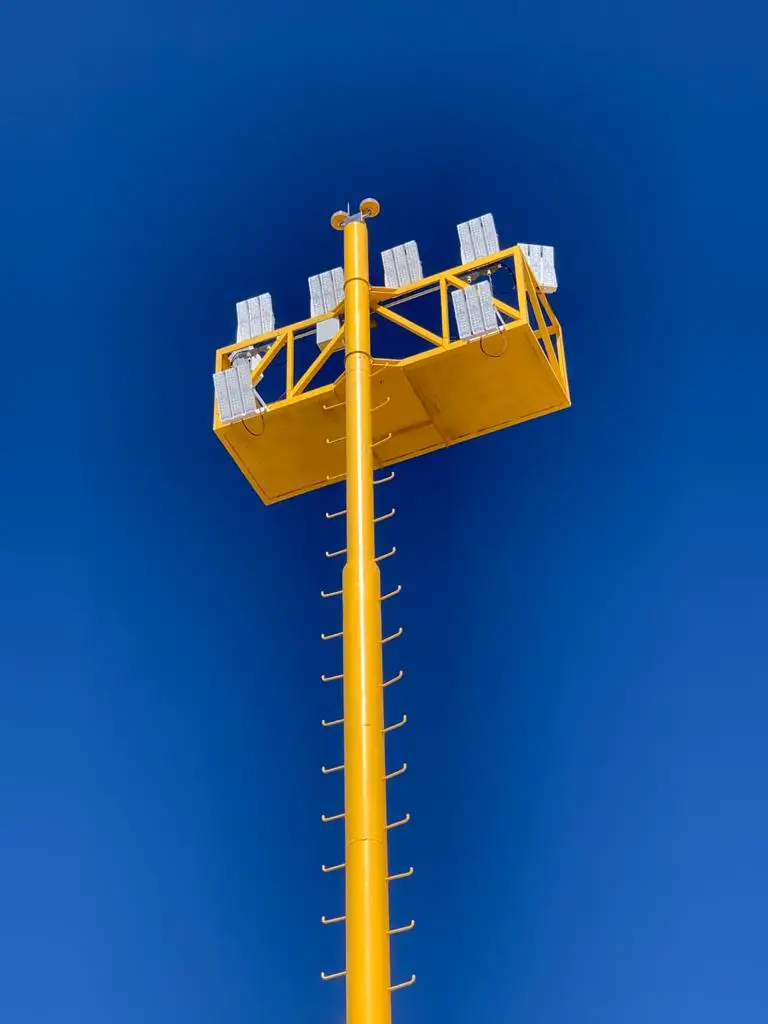

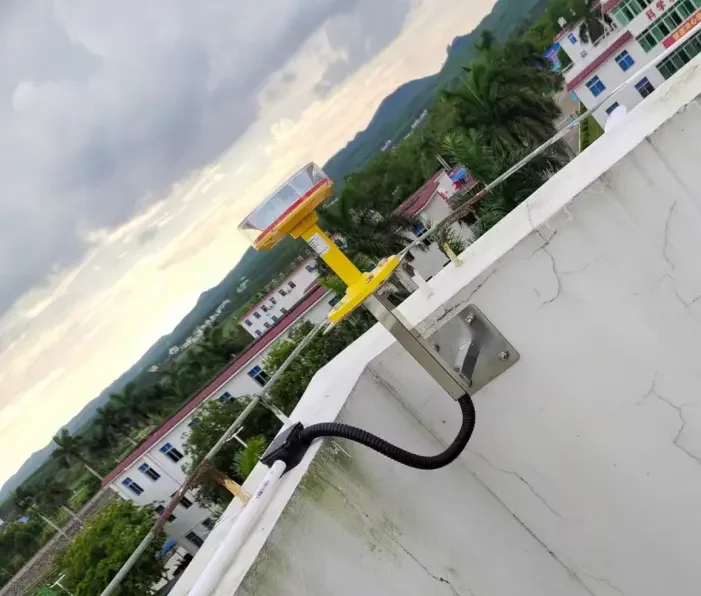

Installation Project
