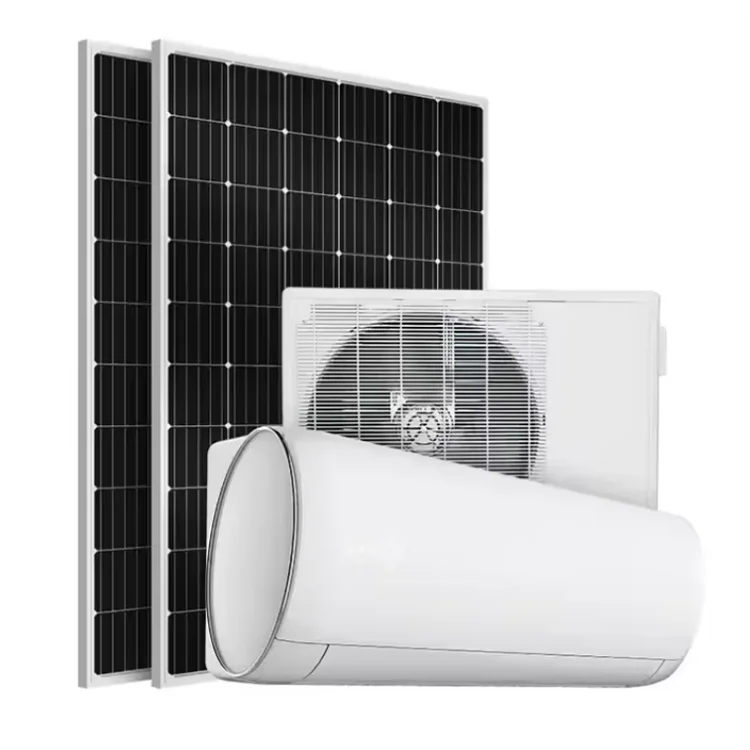

12000BTU Pure Solar Off Grid Inverter Air Conditioner for Home and Hotel Use
12000BTU Pure Solar Off-Grid Inverter Air Conditioner for Home and Hotel Use
12000BTU Pure Solar Off-Grid Inverter Air Conditioner for Home and Hotel Use
12000BTU Pure Solar Off-Grid Inverter Air Conditioner for Home and Hotel Use
12000BTU Pure Solar Off-Grid Inverter Air Conditioner for Home and Hotel Use
12000BTU Pure Solar Off-Grid Inverter Air Conditioner for Home and Hotel Use
12000BTU Pure Solar Off-Grid Inverter Air Conditioner for Home and Hotel Use

12000BTU Pure Solar Off Grid Inverter Air Conditioner for Home and Hotel Use

Share on (1601276782904):


Price:$500.00 - $520.00

Quantity:


Product Overview

Description



Product Description

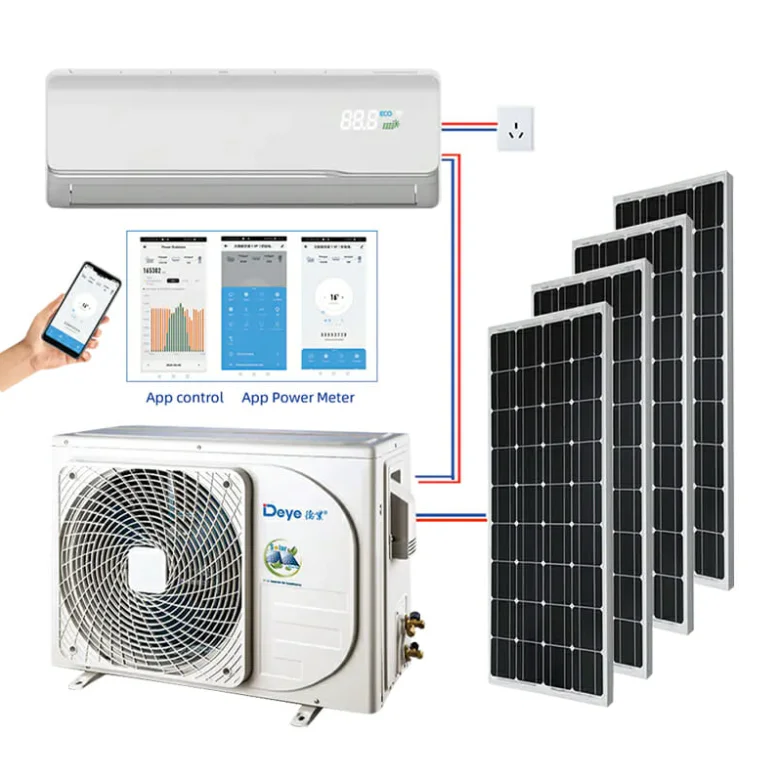

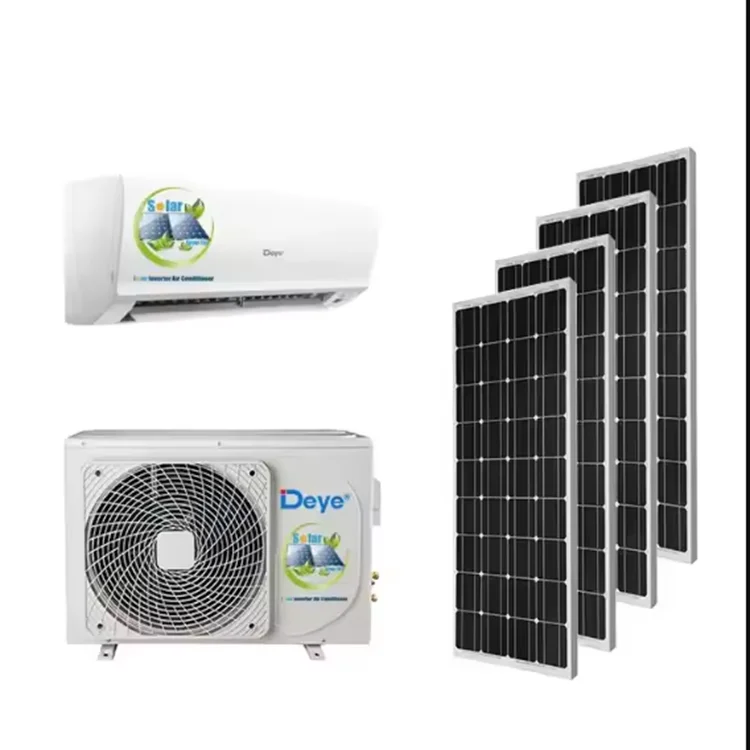

T3/T1 Hybrid AC/DC eco solar air conditioner portable
Model
Unit
DGA2-ACDCBLW-12K
DGA1-ACDCBLW-18K
DGA1-ACDCBLW-24K
Climate Type
Tropical
T3/T1
T3/T1
T3/T1
Application area
m2
12-20
20-30
30-42
Power Supply
AC Power
Ph-V-Hz
1Ph 208V-240V/50-60HZ
1Ph 208V-240V/50-60HZ
1Ph 208V-240V/50-60HZ
DC Power (PV in Series)
V
80-380V
80-380V
80-380V
DC Power Current
A
Adviced Solar Panel
Pcs
(3-4)*330W in series
(3-6)*330W in series
(3-8)*330W in series
Rated Cooling
Capacity(T1)
W
3510(900-3900)
5070(1200-6000)
6450(1800-7900)
BTU
12000(3000-13300)
17300(4100-20400)
22000(6100-27000)
Power input(T1)
W
940(190-1270)
1400(220-2100)
1790(300-3200)
Capacity(T3)
W
2910
4290
5130
BTU
9900
14700
17500
Power input(T3)
W
1050
1630
1940
Rated Heating
Capacity
W
4100(1000-4500)
6100(1200-6800)
7800(1800-9100)
BTU
14000(3000-15300)
20800(4100-23000)
26600(6100-31000)
Power input
W
1170(190-1700)
1770(220-2500)
2290(300-3500)
T1 EER (W/W)/ (BTU/W)
/
3.75/12.75
3.60/12.35
3.60/12.30
T3 EER (W/W)/ (BTU/W)
/
2.75/9.45
2.65/9.00
2.65/9.00
COP (W/W)/ (BTU/W)
/
3.50/11.95
3.45/11.75
3.40/11.60
Dehumidification capacity
L/h
1.3
1.7
2.5
Compressor
Model
/
WHP04200
WHP05600
5RD198
Type
/
2xRotary Inverter
2xRotary Inverter
2xRotary Inverter
Brand
/
Highly
Highly
Panasonic
Indoor fan motor
Model
BLDC-15W
BLDC-45W
BLDC-45W
Speed(Turbo/Hi/Mi/Lo)
r/min
1300/1200/1100/950
1050/950/850/750
1350/1250/1150/1000
Indoor air flow(Turbo/Hi/Mi/Lo)
m3/h
540/485/435/350
980/880/740/620
1290/1180/1070/900
Indoor noise level (Turbo)
dB(A)
≤42.5
≤46
≤50
Indoor unit
Dimension(W×H×D)
mm
840×205×295
1080×330×237
1080×330×237
Packing (W×H×D)
mm
920×290×360
1140×300×382
1140×300×382
Net weight/Gross weight
Kg
9.0/12.5
15.0/18.5
15.0/18.5
Outdoor fan motor
Model
/
BLDC-40W
BLDC-55W
BLDC-75W
Speed
r/min
880
880
850
Outdoor air flow
m3/h
2100
2200
3300
Outdoor noise level
dB(A)
≤52
≤55
≤58

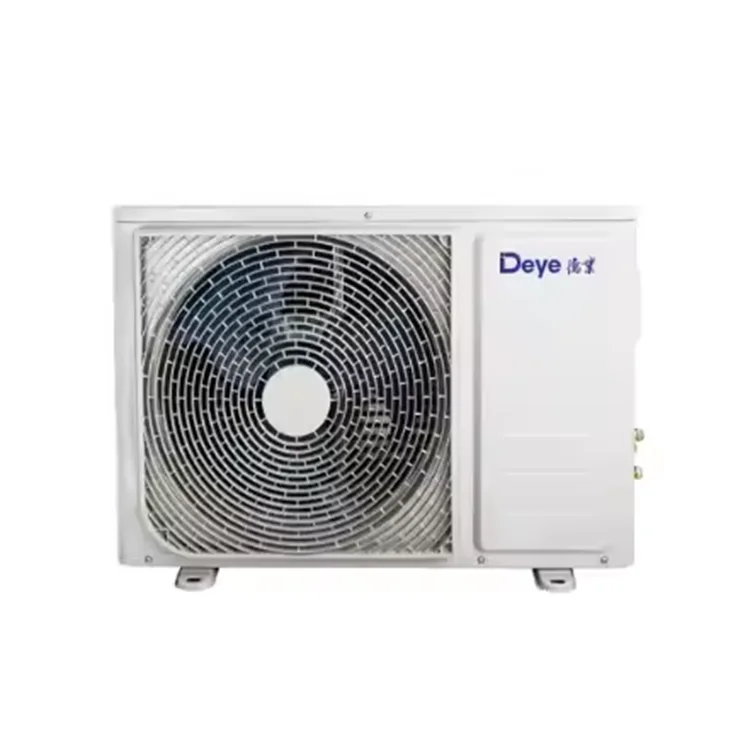

Outdoor unit
Dimension(W×H×D)
mm
802×564×323
802×564×323
900×700×337
Packing (W×H×D)
mm
910×622×405
910×622×405
1006×755×418
Net/Gross weight
Kg
33.5/37.5
37/42.0
50/54.5
Refrigerant type
/
R410A
R410A
R410A
Max Design pressure
MPa
4.3/1.5
4.3/1.5
4.3/1.5
Refrigerant copper pipe
Gas side/Liquid side (inch)
inch
3/8 1/4
1/2 1/4
1/2 1/4
Max. refrigerant pipe length
m
15
20
25
Max. difference in level
m
8
10
10
Drain pipe size
mm
16
16
16
Refrigerant connction copper pipe length
m
3
4
4
Connection wire length
m
4
5
5

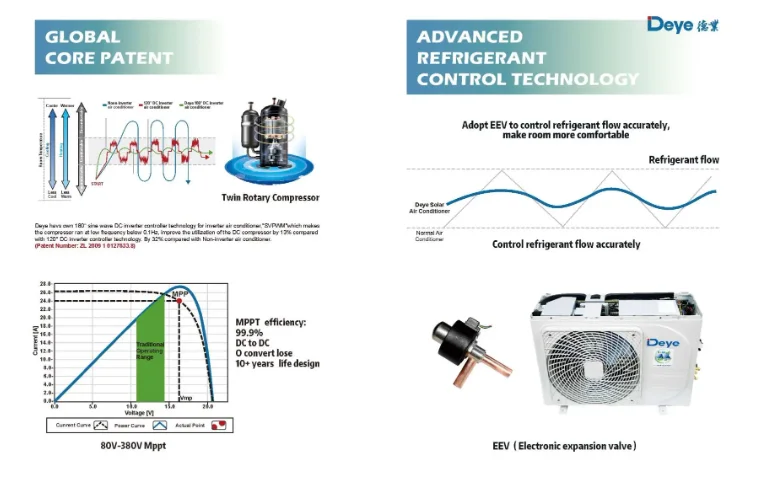

Electronic Expansion Valve
/
Yes
Yes
Yes
Loading QTY 40″ Hq/ 20″GP
Sets
200/85
160/75
115/5






About Us and Our Advantage


Founded in 2006, Mutian Solar Energy Technology Development Co., Ltd.
Mutian Solar Energy Technology Development Co., Ltd.has 10 years of experience in manufacturing and trading solar energy products， serving more than 50 countries and regions around the world, and is a leader in smart power, striving to become a world-class integrated solution provider of power protection and energy saving. We now have a professional technical team of 20 engineers and are located in Baoding National High-tech Industrial
Development Zone, which is known as"China Electric Valley".


















FAQ


Q1: How to choose a right system and products?
A1:Tell us your requirements, then our seller will recommend a suitable product and system to you.
Q2: The advantages of home photovoltaic system.
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
investment, big income; zero pollution; Low maintenance costs.
Q3: Why choose us?
A3: Mutian Solar have been engaged in new energy power generation for more than 10 years. Our products and services cover more
than 60 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions
for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter, modules, frame. And we can make sure our products will through very strictly
testing, and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily. And we have offices in many
countries, if you have problems, we can arrange people to help you solve problem.
Q6:What about the package?
A6:Strict double-layer packaging design ,Rigorous vibration testing. Ensure that the product is not damaged during transportation.
