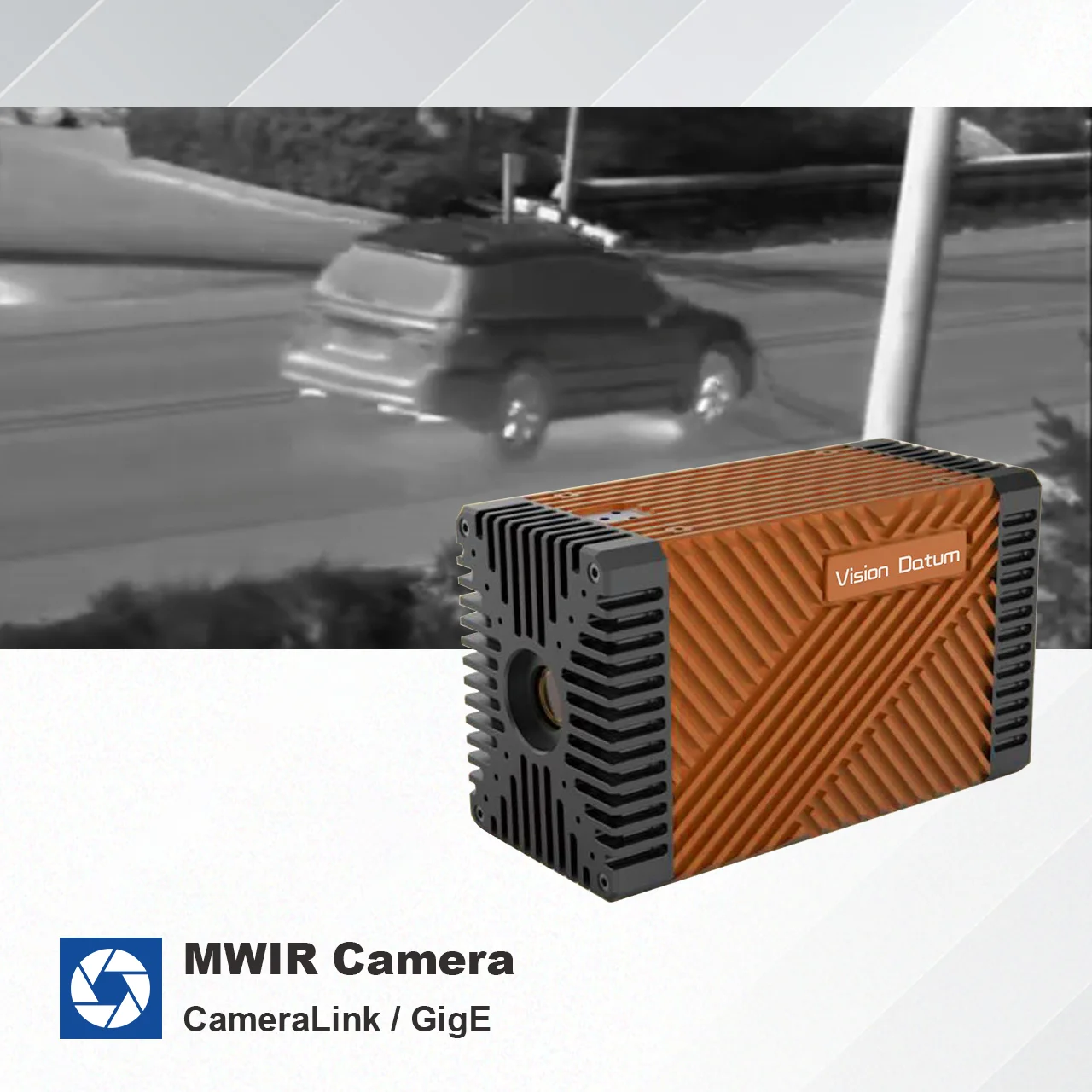

HD 640x512 117kHz MCT Cooled Muti spectral 1500 5200nm MWIR Night Vision Infiray Mid Wave Infrared Thermal Camera Module
- Category: >>>
- Supplier: Hangzhou Vision Datum Technology Co. Ltd.
Share on (1601276799775):
Product Overview
Description
Features

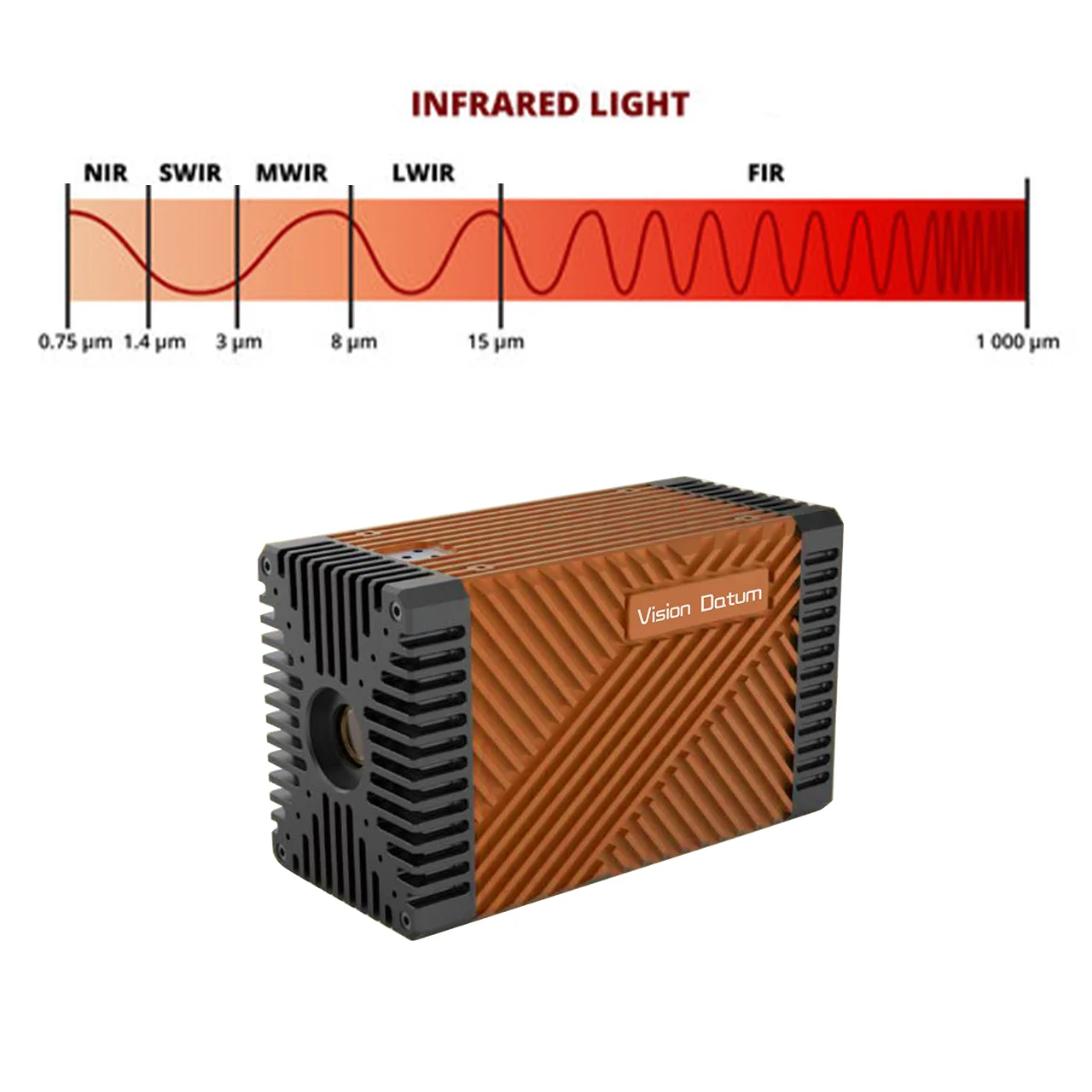

● 1500 to 5200 nm spectrum
● High strength industrial structure design
● Embedded on-board image preprocessing
● Low cost high precision detector

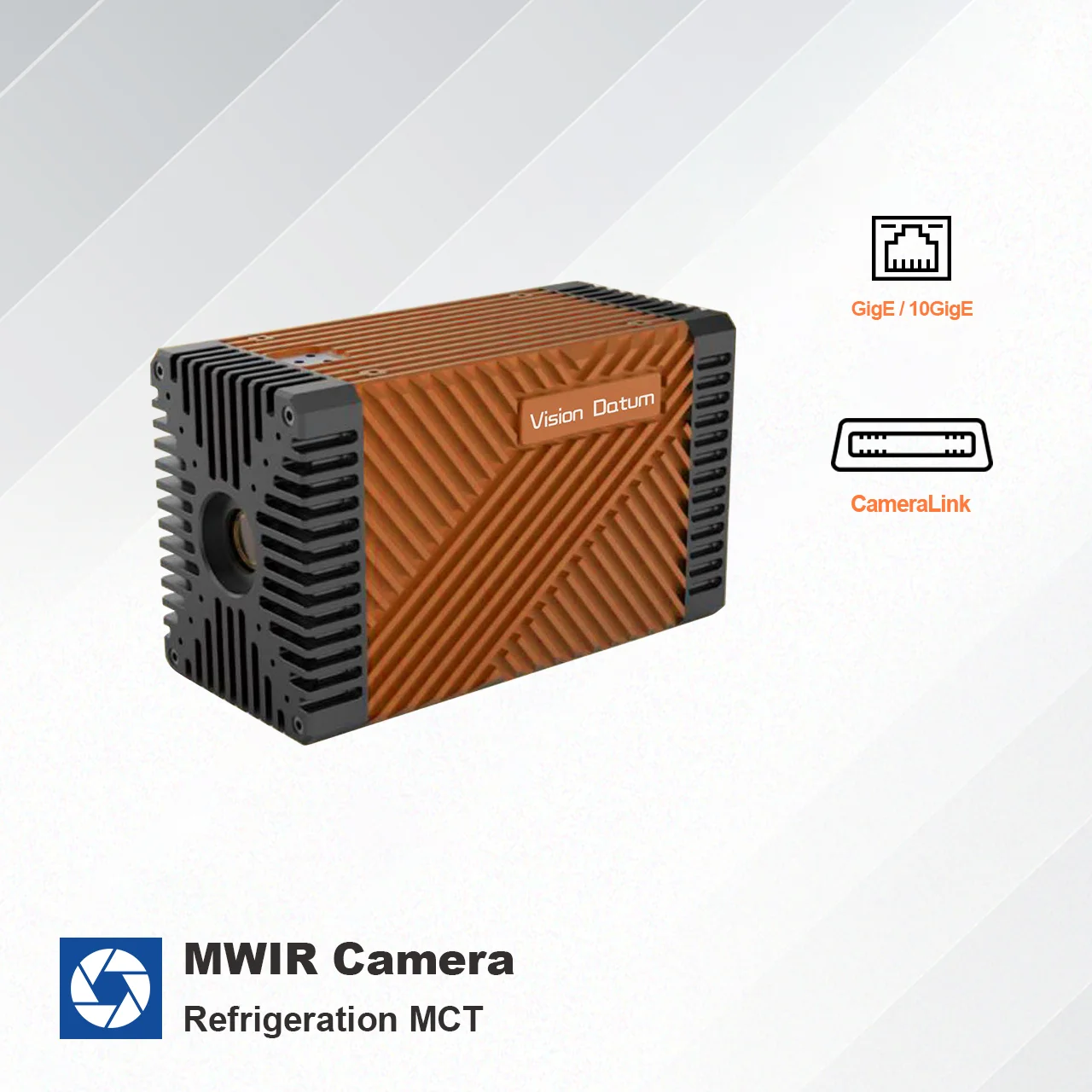

● GigE and Camera Link data interface
Mid-wave camera offers a wide range of high quality interchangeable full optics optimized for the respective focal length and
spectral application.
spectral application.
Target applications include:
* Site Surveillance
* Spectral Thermography
* Photovoltaic Testing
* High Speed Thermography
* Automotive Testing
* Site Surveillance
* Spectral Thermography
* Photovoltaic Testing
* High Speed Thermography
* Automotive Testing
Model | Sensor type | Pixel Spacing | Resolution | Frame Rate | Interface | Spectral range |
Venus-MW640-3748GS | Cooled MCT | 15μm | 640 x 512 | 1-117Hz | Cameralink /Cameralink & GigE | 3700-4800nm |
Venus-MW640-1552GS | Cooled MCT | 15μm | 640 x 512 | 1-117Hz | Cameralink /Cameralink & GigE | 1500-5200nm |
