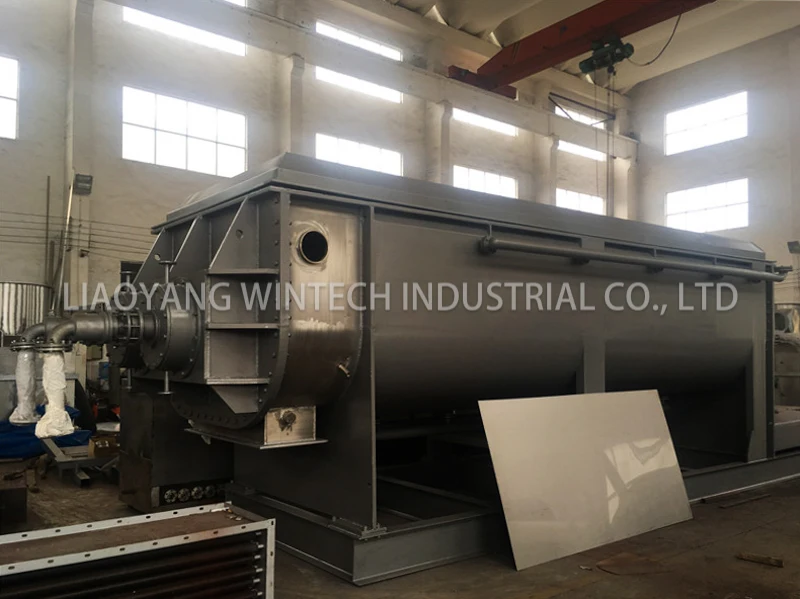

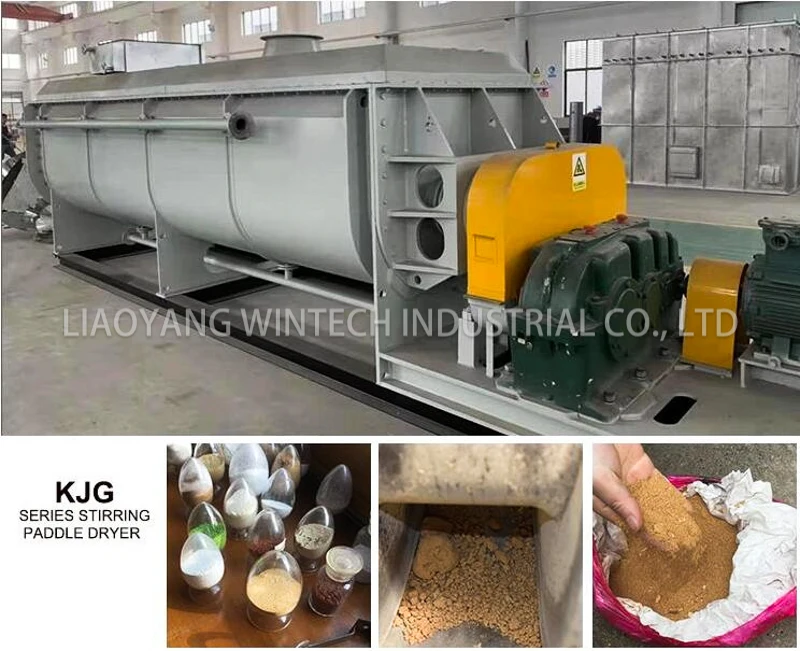

Factory supply hollow paddle dryer for animal manure drying stirring rotary paddle dryer machine
- Category: >>>
- Supplier: Liaoyang Wintech Industrial Co. Ltd.
Share on (1601276808138):
Product Overview
Description
Energy-Saving PLC New Motor Chemical Sludge Hollow Paddle Dryer Manufacturing Industries Competitive Price Gearbox Core
Product Overview
Widely Application Energy Saving Environmental Protection
Low Operation Cost
Easy Operation and Stability
Hollow paddle dryer is a kind of horizontal stirring dryer with heat conduction. Because the internal hollow mixing blade is similar to the paddle, it is called hollow paddle dryer. Because the heat required by the drying equipment is indirectly heated by heat conduction, only a small amount of gas is needed to take away the moisture in the drying process, which greatly reduces the loss of this part of heat taken away by the gas and improves the utilization rate of heat. The dynamic drying hollow blade dryer is an energy-saving drying equipment. It is suitable for the drying of granular and powder materials, and it can also dry the paste materials smoothly.
Main Characteristics:
1. The retention time of materials can be adjusted to deal with high water content materials and obtain extremely low water content materials;
2. Typical conduction drying method, energy saving, high conductivity, high thermal efficiency;
3. Because the required heat is all supplied by hollow blades and jacket, in order to reduce the exhaust humidity, a small amount of hot air can be added, the dust entrainment is low, the exhaust gas is easy to handle, and the auxiliary equipment such as dust removal is not required.
4. The blades are self-cleaning. The blades rotate in opposite directions, and the two inclined planes of the blades repeatedly stir, compress, relax and push forward the materials, so that the page has a unique self-cleaning ability, the heating surface is constantly updated, and the heat transfer coefficient of the blade dryer is higher than that of any other conduction drying methods.
2. Typical conduction drying method, energy saving, high conductivity, high thermal efficiency;
3. Because the required heat is all supplied by hollow blades and jacket, in order to reduce the exhaust humidity, a small amount of hot air can be added, the dust entrainment is low, the exhaust gas is easy to handle, and the auxiliary equipment such as dust removal is not required.
4. The blades are self-cleaning. The blades rotate in opposite directions, and the two inclined planes of the blades repeatedly stir, compress, relax and push forward the materials, so that the page has a unique self-cleaning ability, the heating surface is constantly updated, and the heat transfer coefficient of the blade dryer is higher than that of any other conduction drying methods.

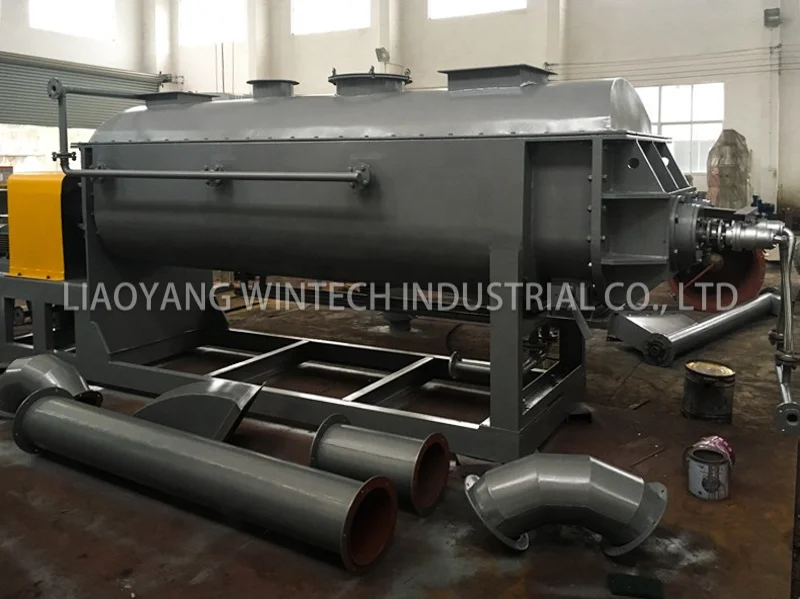

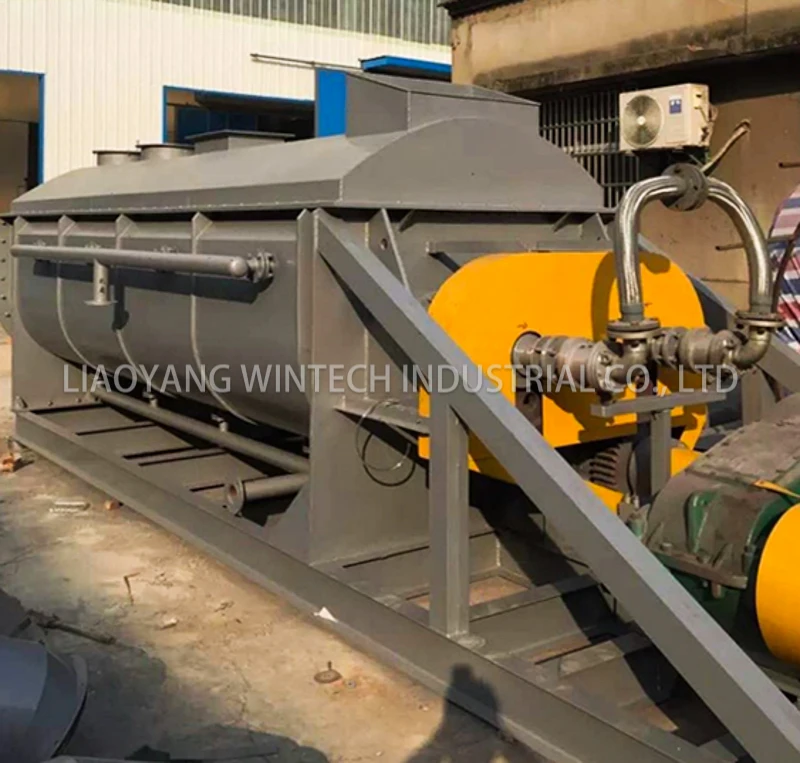

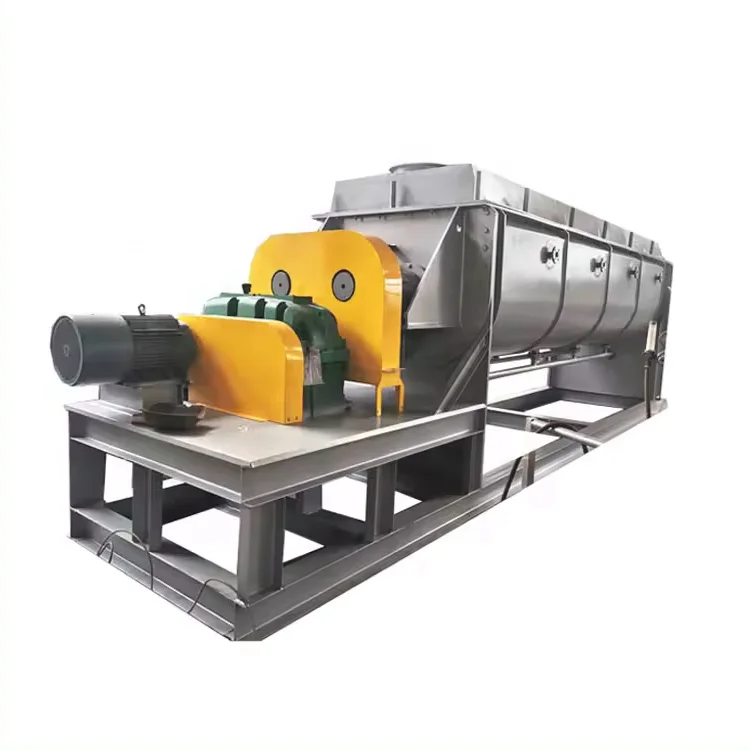

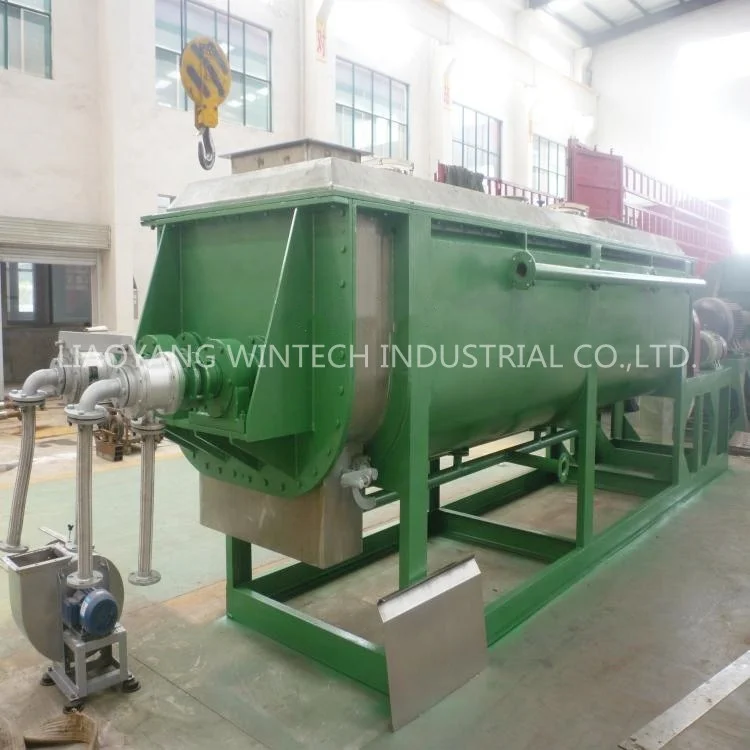

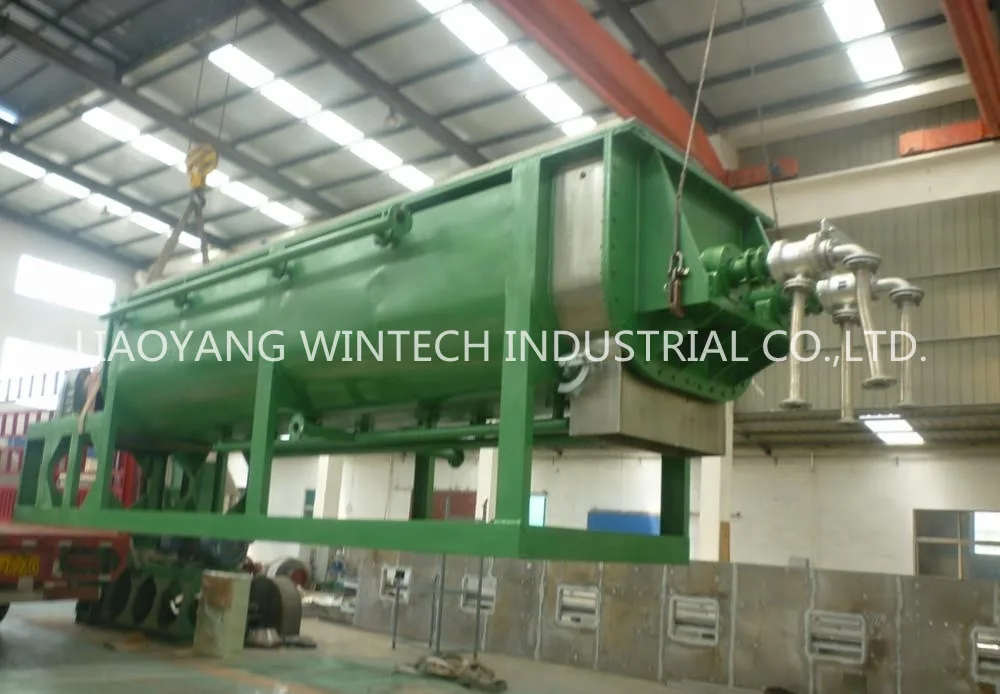

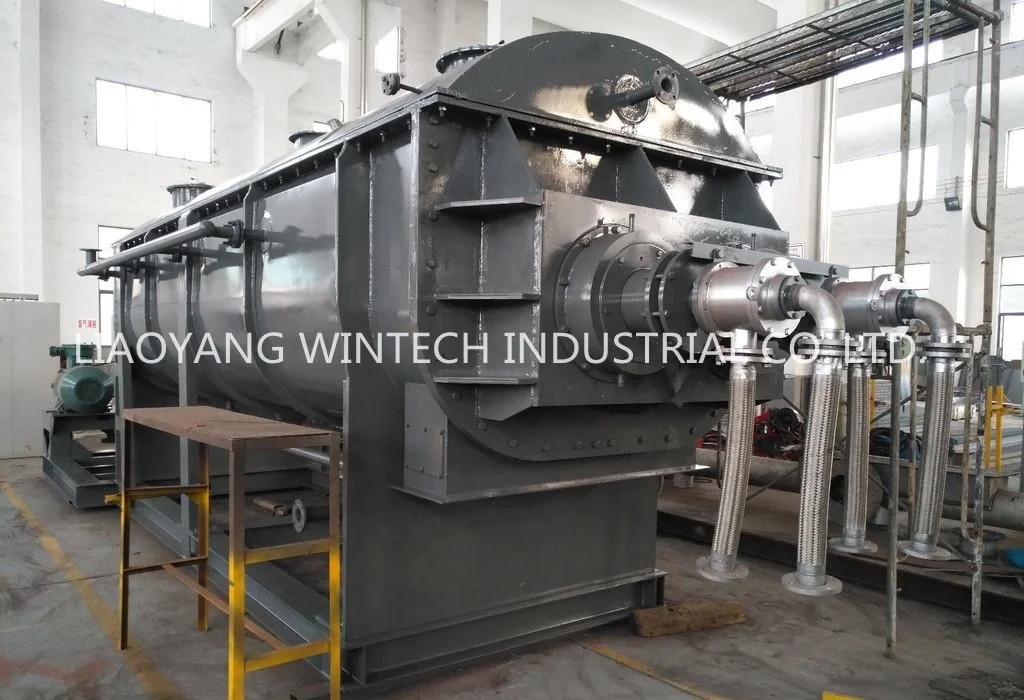

Product More Pictures

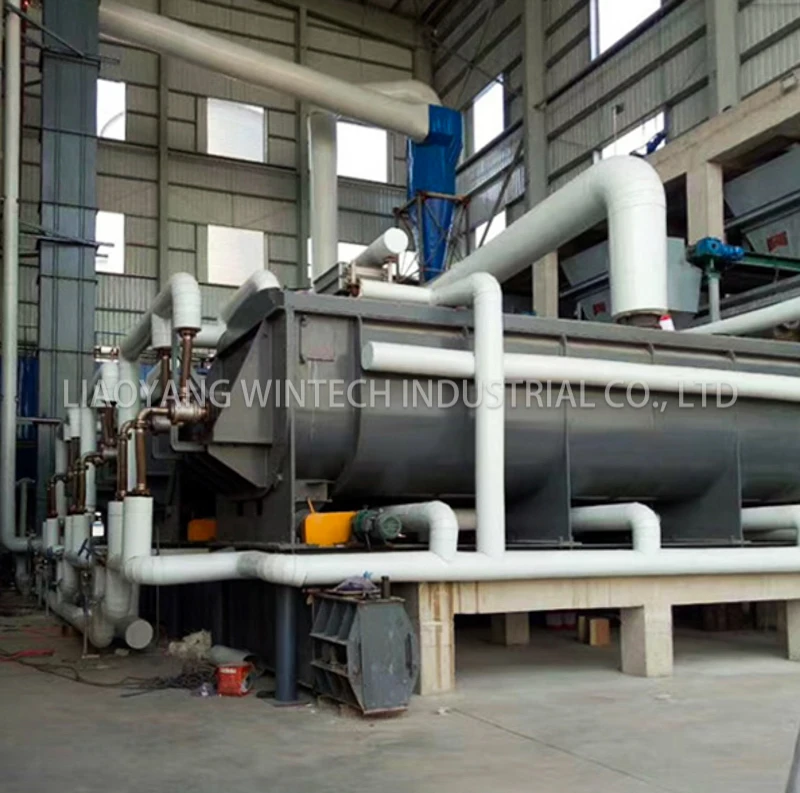

Details Display:
Application Field
1. Inorganic Chemical Industry: calcium nitrate, calcium sulfate, papermaking calcium, calcium carbonate, magnesium hydroxide, carbon black, iron black, iron red, soda, soda, etc;
2. Organic Chemical Industry: dyes, industrial plastics, polystyrene, polypropylene, high and low density polyethylene, polypropylene, etc;
3. Smelting Industry: nickel concentrate powder, sulfur concentrate powder, tar dephenolization, etc;
4. Food Industry: starch, salt, protein, etc;
5. Others: sludge, waste residue, chicken feed, distiller's grains, etc.
2. Organic Chemical Industry: dyes, industrial plastics, polystyrene, polypropylene, high and low density polyethylene, polypropylene, etc;
3. Smelting Industry: nickel concentrate powder, sulfur concentrate powder, tar dephenolization, etc;
4. Food Industry: starch, salt, protein, etc;
5. Others: sludge, waste residue, chicken feed, distiller's grains, etc.
Working Principle

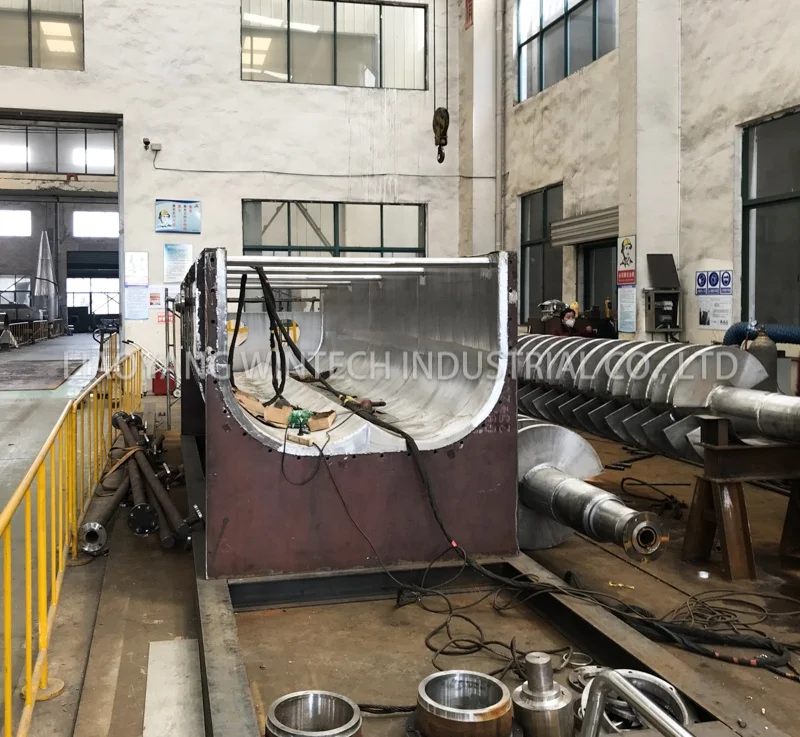

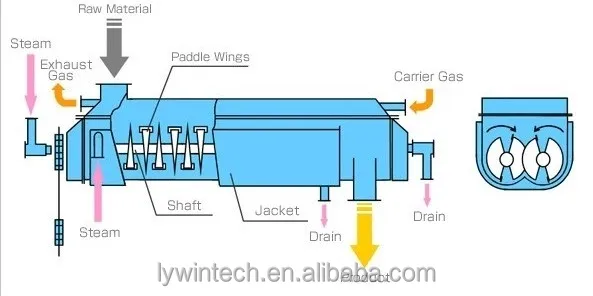

Paddle dryer is a kind of horizontal agitating dryer, which is mainly conductive. The main structure is a W-shaped shell with a jacket. A pair of hollow low-speed rotary hollow shafts are installed in the shell. A number of stirring blades are welded on the shaft. The jacket and the hollow stirring blades are filled with heat carriers. The two heating surfaces heat the materials at the same time. The heat carrier is usually fed from the middle of the dryer and discharged from the other side through the surface of the material layer in a stirred state.

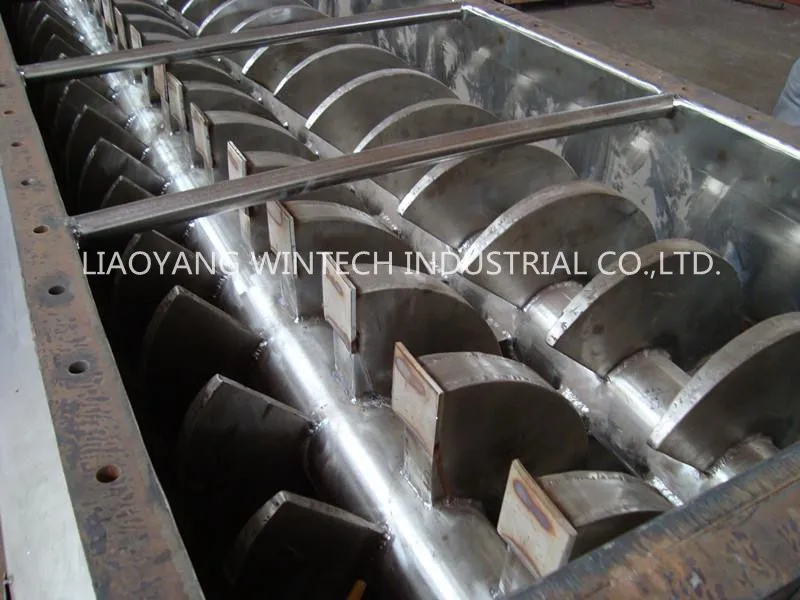

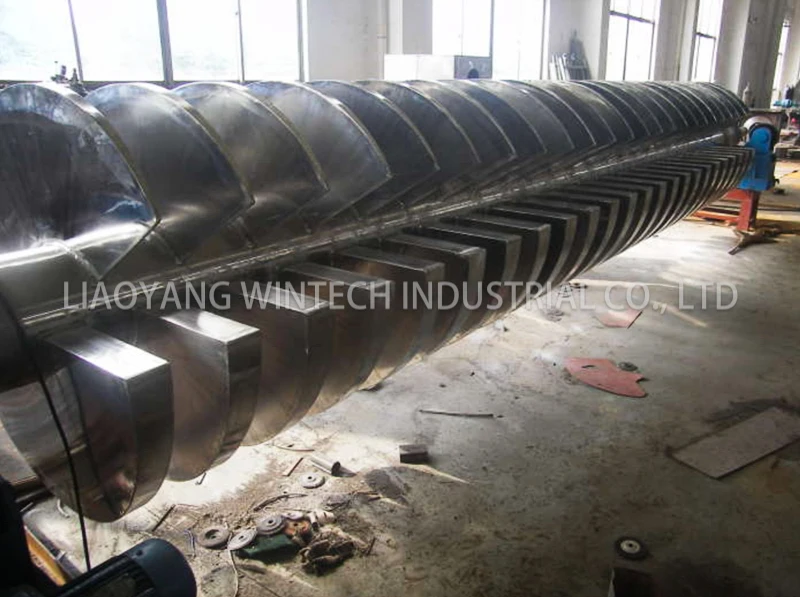

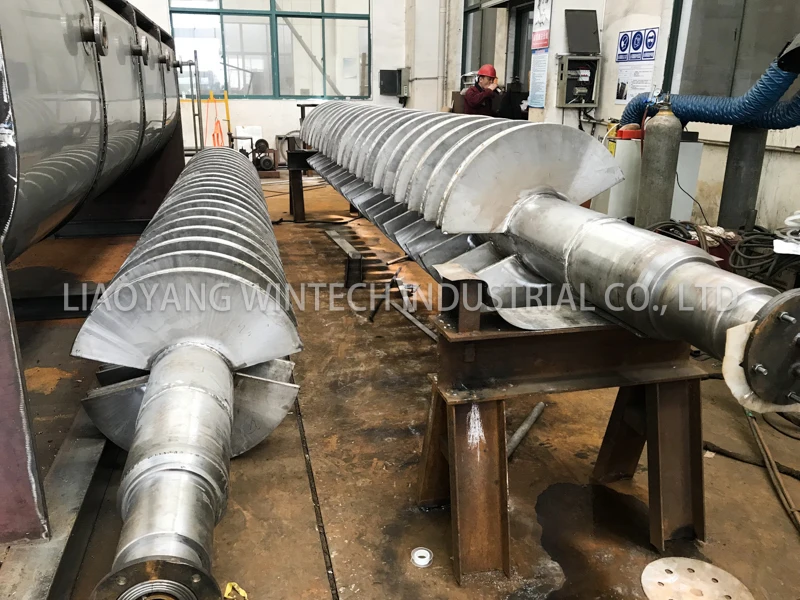

Wedge shaped hollow blades are densely arranged on the hollow shaft, and the thermal medium flows through the blades through the hollow shaft. The heat transfer area in the unit effective volume is very large, and the temperature of the heat medium ranges from - 40℃ to 320℃. It can be water vapor or liquid, such as hot water, heat transfer oil, etc. Indirect conduction heating does not carry air to take away heat, heat is used to heat materials, heat loss is only through the body insulation layer to the environment. The heat transfer surface of wedge-shaped blade has self-cleaning function. The relative movement of material particles and wedge-shaped surface produces washing effect, which can wash away the attached materials on the wedge-shaped surface, so that the clean heat transfer surface is always kept in motion
Wedge shaped hollow blades are densely arranged on the hollow shaft, and the thermal medium flows through the blades through the hollow shaft. The heat transfer area in the unit effective volume is very large, and the temperature of the heat medium ranges from - 40℃ to 320℃. It can be water vapor or liquid, such as hot water, heat transfer oil, etc. Indirect conduction heating does not carry air to take away heat, heat is used to heat materials, heat loss is only through the body insulation layer to the environment. The heat transfer surface of wedge-shaped blade has self-cleaning function. The relative movement of material particles and wedge-shaped surface produces washing effect, which can wash away the attached materials on the wedge-shaped surface, so that the clean heat transfer surface is always kept in motion
Product Parameters
Model | KJG-2.7 | KJG-9 | KJG-13 | KJG-18 | KJG-29 | KJG-36 | KJG-41 |
Heat transfer area | 2.7 | 9 | 13 | 18 | 29 | 36 | 41 |
Effective volume(㎡) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.42 | 2.8 |
Revolution(r.m.p) | 15-30 | 10-25 | 10-25 | 10-20 | 10-20 | 10-20 | 10-20 |
Powder (kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 15 |
Width of dryer body(mm) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1296 |
Total width(mm) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1676 |
Length of dryer body(mm) | 1956 | 2820 | 3048 | 3328 | 4114 | 4115 | 4724 |
Total length (mm) | 2972 | 4876 | 5486 | 5918 | 6808 | 6960 | 7570 |
Distance between feeding and discharging(mm) | 1752 | 2540 | 2768 | 3048 | 3810 | 3810 | 4420 |
Height in center(mm) | 380 | 380 | 534 | 610 | 762 | 915 | 915 |
Total height(mm) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 1778 |
Steam inlet | (2)3/4 | (2)3/4 | (2) 1 | (2) 1 | (2) 1 | (2) 1 | (2) 1 |
Water outlet | (2)3/4 | (2)3/4 | (2) 1 | (2) 1 | (2) 1 | (2) 1 | (2) 1 |
Model | KJG-48 | KJG-52 | KJG-62 | KJG-68 | KJG-73 | KJG-87 | KJG-95 |
Heat transfer area | 48 | 52 | 62 | 68 | 73 | 87 | 95 |
Effective volume(㎡) | 3.54 | 3.69 | 4.79 | 5.21 | 5.78 | 7.39 | 8.07 |
Revolution(r.m.p) | 10-20 | 10-20 | 10-20 | 10-20 | 5-15 | 5-15 | 5-15 |
Powder (kw) | 30 | 30 | 45 | 45 | 55 | 75 | 75 |
Width of dryer body(mm) | 1474 | 1474 | 1651 | 1652 | 1828 | 2032 | 2032 |
Total width(mm) | 1854 | 1854 | 2134 | 2134 | 2286 | 22438 | 2438 |
Length of dryer body(mm) | 4724 | 5258 | 5410 | 5842 | 5461 | 5537 | 6124 |
Total length (mm) | 7772 | 8306 | 8865 | 9296 | 9119 | 9119 | 9704 |
Distance between feeding and discharging(mm) | 4420 | 4954 | 4953 | 5384 | 5004 | 5080 | 5664 |
Height in center(mm) | 1066 | 1066 | 1220 | 1220 | 1220 | 1220 | 1220 |
Total height(mm) | 2032 | 2032 | 2362 | 2362 | 2464 | 2566 | 2566 |
Steam inlet | (2)11/2 | (2)11/2 | (2)11/2 | (2)11/2 | (2)11/2 | (2) 2 | (2) 2 |
Water outlet | (2)11/2 | (2)11/2 | (2)11/2 | (2)11/2 | (2)11/2 | (2) 2 | (2) 2 |
Company Profile
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present:
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition.
Facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.

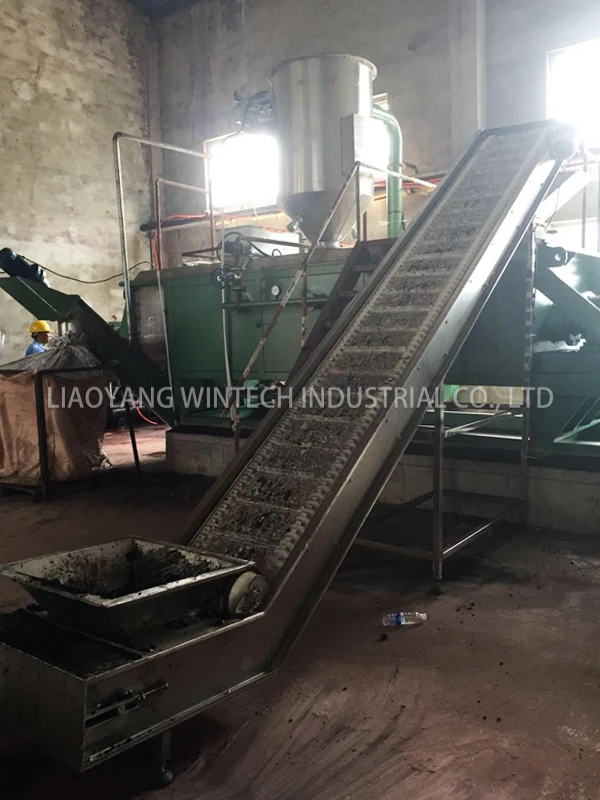

Our Factory:
LIAOYANG WINTECH INDUSTRIAL CO., LTD, takes Drying Equipment and Centrifugal Filter Equipment processing and manufacturing as the main industry, main products are Hollow Paddle Dryer, Vibrating Fluid Bed Dryer, Vacuum Rake Dryer, Drying Oven, Spray Dryer, Drum Dryer, Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, and corresponding supporting equipment, eg. food line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Related Products
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying
2. What certificates do you have?
We can provide CE, ISO 9001, etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Of course, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.
5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying
2. What certificates do you have?
We can provide CE, ISO 9001, etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Of course, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.
5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
