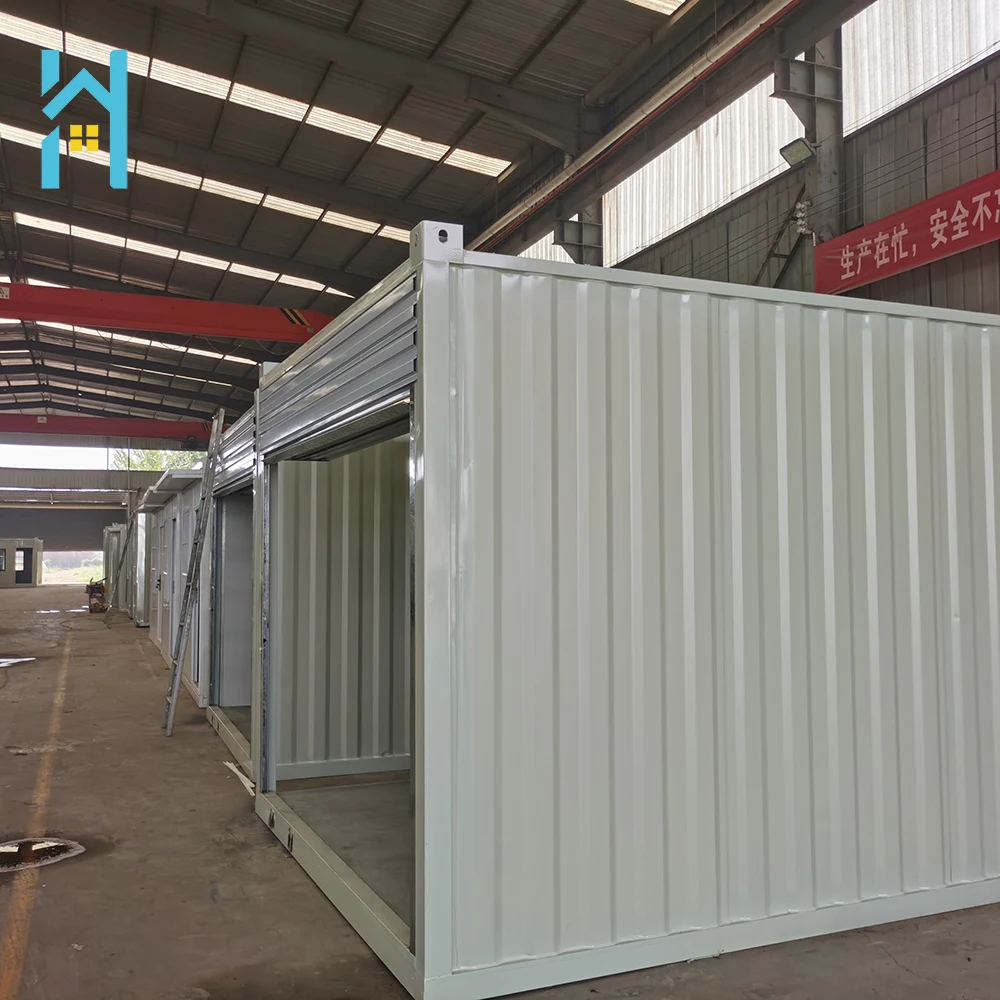

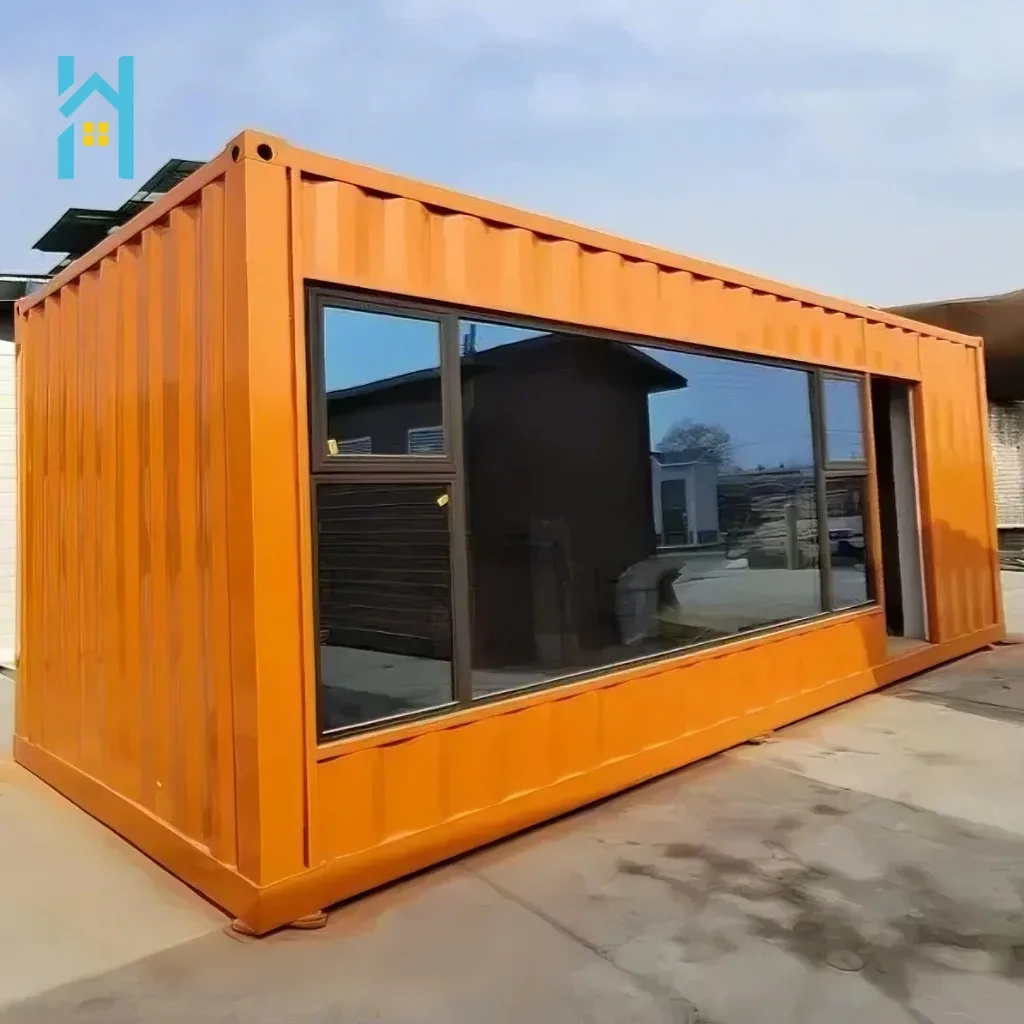

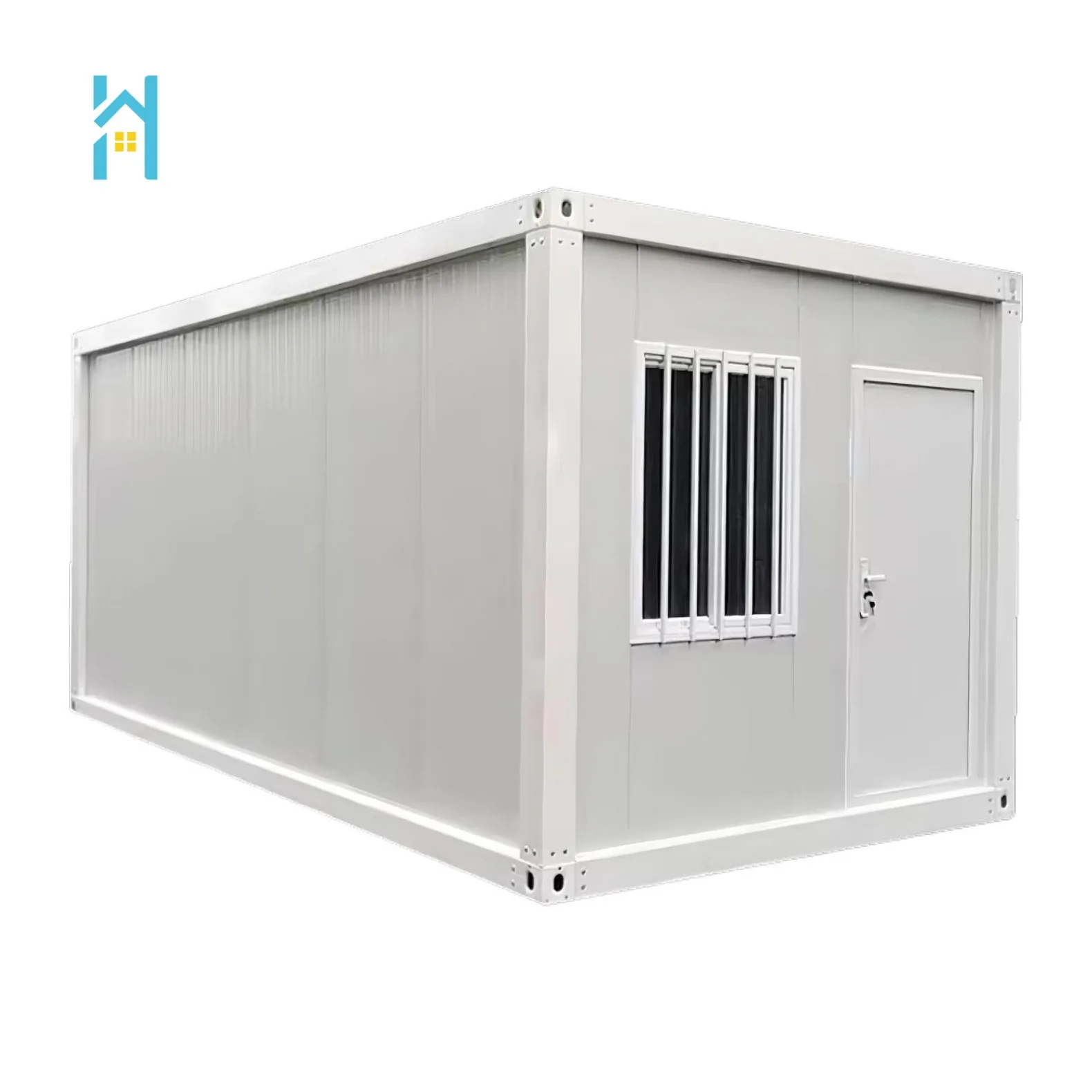

Mobile House Modular Portable Luxury Apartment Fast Install Prefabricated House Prefab Home Detachable Container House

Standard container 6055*2990*2896mm = 18.1㎡

Standard Configuration

1

Base Frame

2 galvanized crossbeams 5630*160*2.2mm, 2 galvanized crossbeams 2685*160*2.2mm, 4 bottom corner fittings (high-end corner
fittings), galvanized content 80g, baked at high temperature of 200 degrees, electrostatic sprayed with gray or white color.

1

set

2

9 FG50100*1.3mm galvanized bottom purlins

1

set

3

Base plate: 5 pieces of 18mm cement pressure board per room

1

set

4

Floor decoration: 1.6mm thick plastic floor

1

set

2

Roof Frame

2 galvanized crossbeams 5630*180*2.2mm, 2 galvanized crossbeams 2685*180*2.2mm, 4 top corner fittings (high-end corner fittings),
galvanized content 80g, baked at high temperature of 200 degrees, electrostatic sprayed with gray or white color.

1

set

6

6 FG60401.3mm galvanized roof secondary beams

1

set

7

75 glass wool quilt for thermal insulation + aluminum foil, bulk density 12kg/m³

1

set

8

4 FG20301.2mm galvanized purlins

1

set

9

0.4mm color steel skin plate

1

set

831*0.35mm color steel integrated ceiling

1

set

Ceiling Z-shaped parts, 38*38 aluminum angle

1

set

3

Columns

4 galvanized columns 2526*210*150*2.2mm

1

set

4

Auxiliary Materials

Column connection screws M12*40, strength grade 8.8

1

set

4 pieces of diameter 50mm PVC downspouts (thickened type)

4

Pieces

1 set of 75mm wide gutter

1

set

1 set of column inside corner (0.6mm thick)

1

set

5

High-End Electrical Configuration

Industrial socket box + industrial socket 32A, distribution box (1 leakage protector, 1 circuit breaker), 3 five-hole sockets, 1
air conditioner socket, 2 LED square lights, national standard cable with three cores, incoming wire: 6 square, air conditioner
socket: 4 square, five-hole socket: 2.2 square, lighting: 1.5 square, copper wire.

1

set

6

Wall Panels

1150 type 75mm rock wool purification panel, double-sided iron sheet 0.36mm

1

set

7

Door

Packing box special door, 0.4mm thick, size 845*2030

1

Piece

8

Window

Container house special plastic-steel sliding window 1130*1130, double-glazed hollow (5+9+5), including screen window, anti-theft
window, latch window, 2 pieces per room

1

set
