Aluminum and copper sorting machine eddy Current Separator Eccentric Eddy Current Separator Product for recycling metal
- Category: >>>
- Supplier: strong machinery LLC
Share on (1601276823950):
Product Overview
Description
Product Description
Description of Eddy Current Separator：
Eddy Current Separator (also known as Copper Aluminum Separator, Non-ferrous Metal Vortex Separator, Eddy Current Non-ferrous Metal Separator ) is our company's latest research and development of high-tech metal non-metallic separator. The Eddy Current Separator has a good separation effect on a variety of non-magnetic metals, can effectively separate non-metallic materials from non-ferrous metals automatically, and can recover a variety of non-ferrous metals efficiently. Achieve separation process mechanization, automation, reduce enterprise labor costs, increase the added value of products effectively.
Eddy Current Separator is suitable for the municipal household garbage after being broken by the crusher, industrial waste, electronic (after shredding machine section),copper, aluminum and other non-ferrous metal recycling, and materials handling separation in the environmental protection industry, etc.
Eddy Current Separator is suitable for the municipal household garbage after being broken by the crusher, industrial waste, electronic (after shredding machine section),copper, aluminum and other non-ferrous metal recycling, and materials handling separation in the environmental protection industry, etc.
Specification
Model | Width(mm) | Processing power(m²/h) | Overall dimensions (mm) | Motor Power(kW) | Weight(kg) | ||
Separation Drum | Drum | ||||||
ST-40 | 400 | 1-4 | 2885*1500*1695 | 1.1 | 4 | 1200 | |
ST-60 | 600 | 4-6 | 2885*1700*1695 | 1.1 | 4 | 1350 | |
ST-80 | 800 | 6-8 | 2950*1900*1695 | 1.5 | 5.5 | 1500 | |
ST-100 | 1000 | 8-10 | 2950*2100*1695 | 1.5 | 7.5 | 1900 | |
ST-120 | 1200 | 10-12 | 2950*2400*1695 | 1.5 | 7.5 | 2100 | |
Application
Features
1. Simple operation with automatic separation of metal and non-metal materials. The reliable single power supply design makes the system compact and dependable.
2. The separable metal particles vary in size, typically ranging from a few millimeters to 100 mm.
3. Easy to install, with customized devices available according to customer demands, effectively connecting with both new and existing assembly lines.
4. Utilizes a high-gradient rare earth permanent magnetic system, ensuring low energy consumption and easy maintenance.
5. Materials of different particle sizes can be sorted based on the rotor's different orientations.
6. Various models are available for selection, with material plate widths ranging from 300 mm to 1500 mm.
7. Multiple rotor designs are available.
2. The separable metal particles vary in size, typically ranging from a few millimeters to 100 mm.
3. Easy to install, with customized devices available according to customer demands, effectively connecting with both new and existing assembly lines.
4. Utilizes a high-gradient rare earth permanent magnetic system, ensuring low energy consumption and easy maintenance.
5. Materials of different particle sizes can be sorted based on the rotor's different orientations.
6. Various models are available for selection, with material plate widths ranging from 300 mm to 1500 mm.
7. Multiple rotor designs are available.

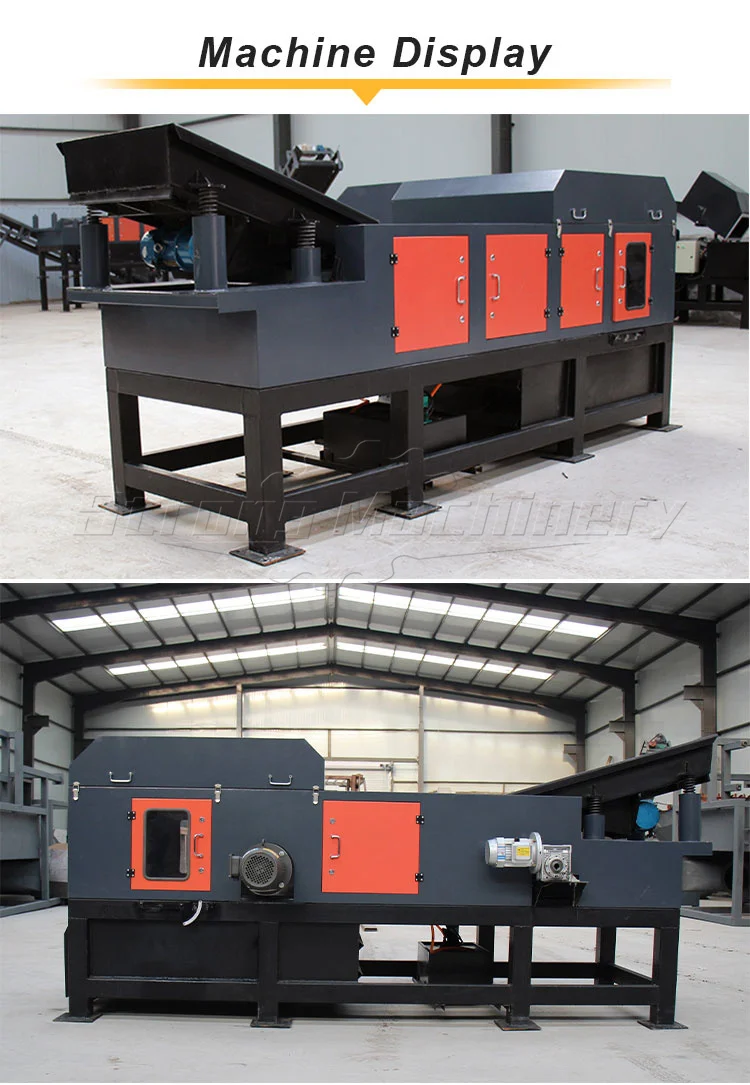

Machine Display

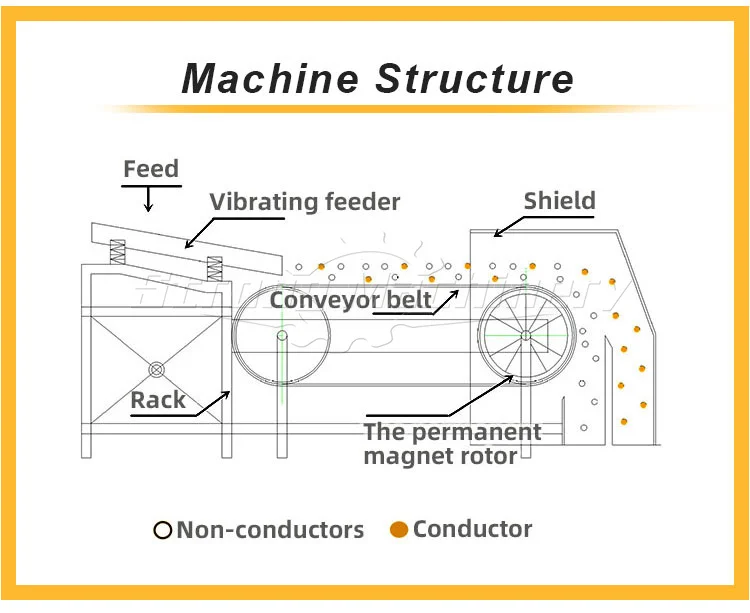

Structure：
The complete set of equipment consists of a control system and the main body. The main body mainly includes the frame, motor, distribution device, sorting assembly (the core part of the equipment), permanent magnet drum, conveyor belt, conveying drive drum, reducer, protective cover, and more.
