Product Overview

Description







FYX Raspberry PI 4B expansion board 2-way RS485 1-CAN interface SPI communication Industrial-grade band isolation RS485 CAN HAT


Expansion interface
2-way RS485+1-CAN
CAN Controller
MCP2515
CAN Transceiver
SIT65HVD230DR or SN65HVD23D
RS485 Transceiver
SP3485
RS485 Communication Rate
300~921600bps
Working Voltage
3.3V
Supply Power Mode
External power supply terminal or Raspberry PI
External power supply range
8-28V DC

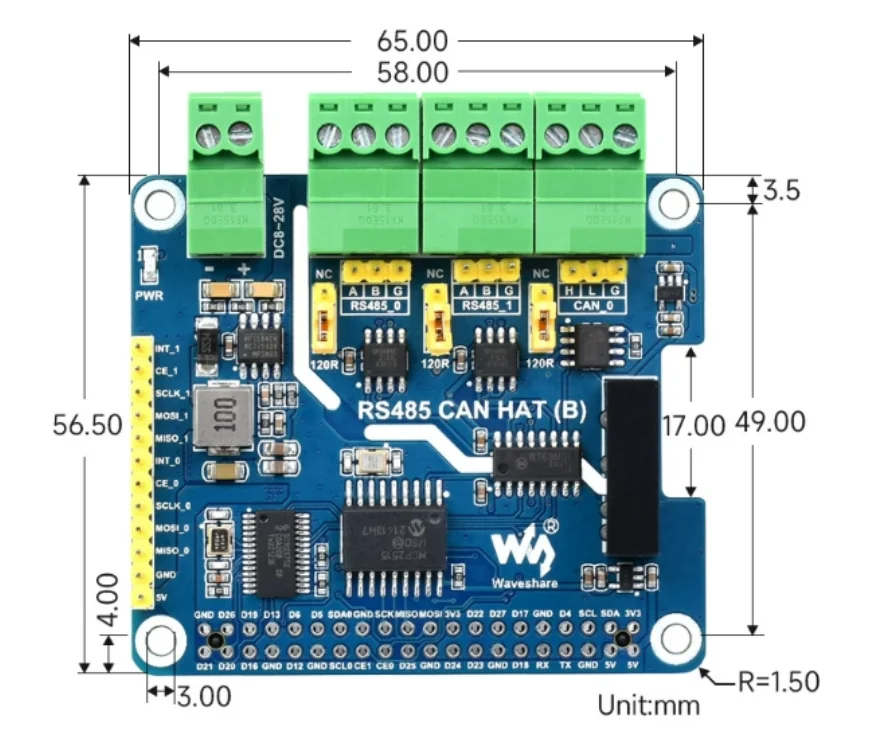

Size
65*56.5mm
