Mining drilling rig rotary drilling soil sand gravel pebble rock construction hydraulic drifter anchoring drilling
- Category: >>>
- Supplier: Zhengzhou Yugong Construction Machinery Co. Ltd.
Share on (1601276848822):
Product Overview
Description
Product Description

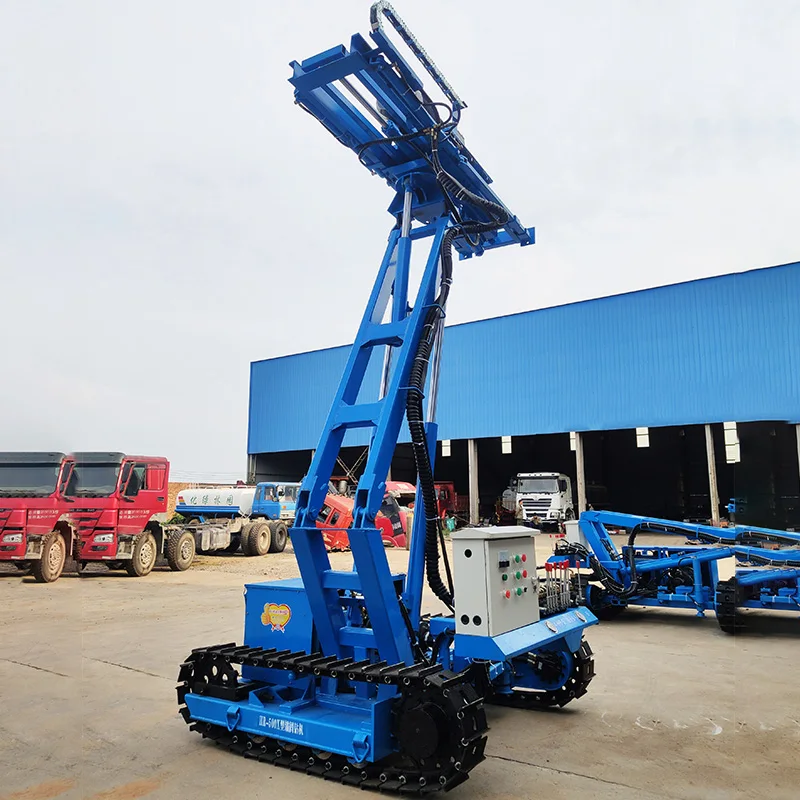

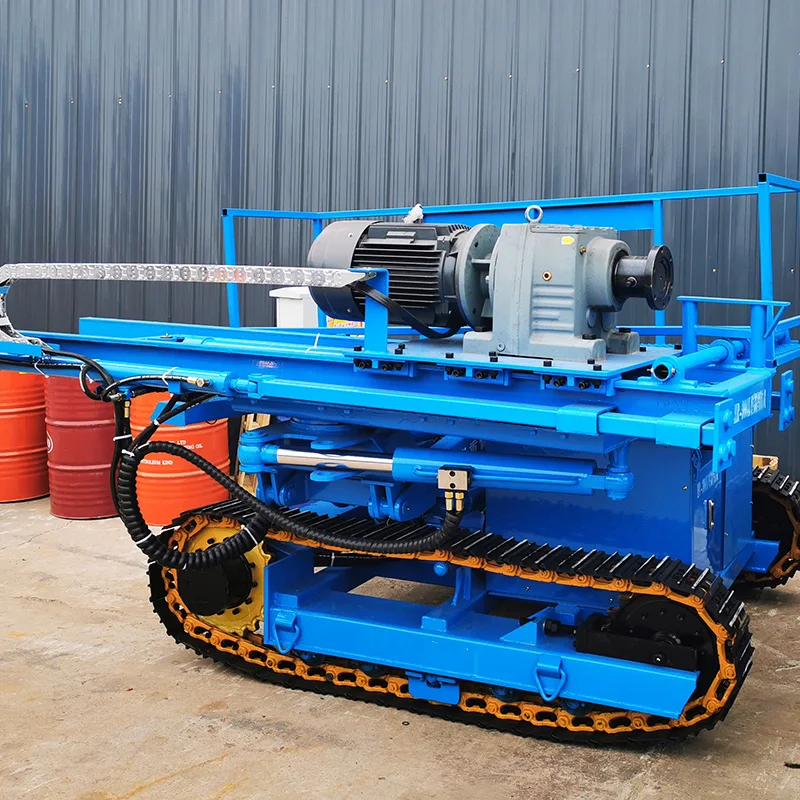

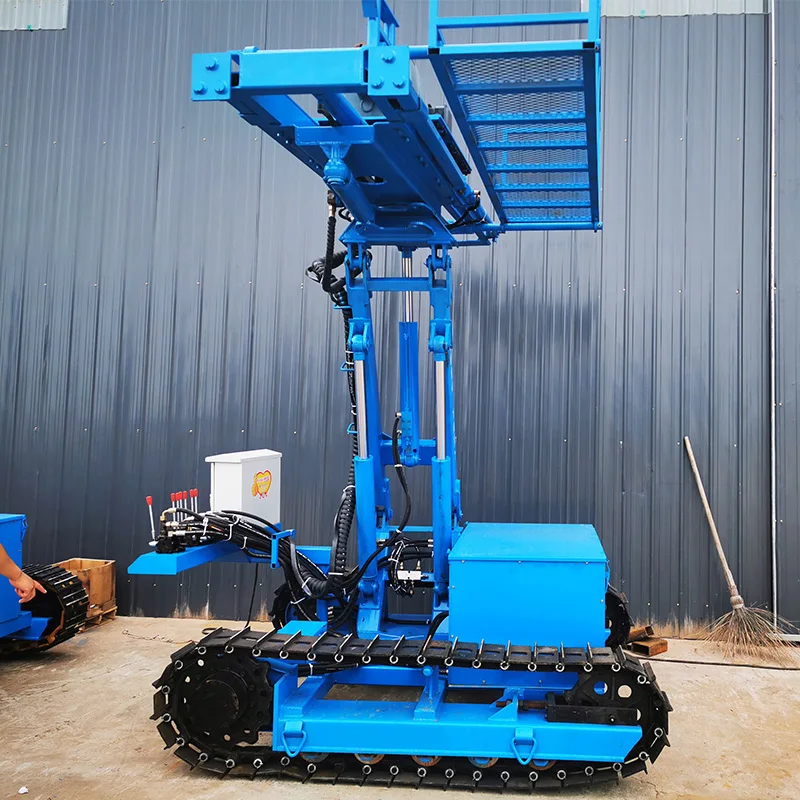

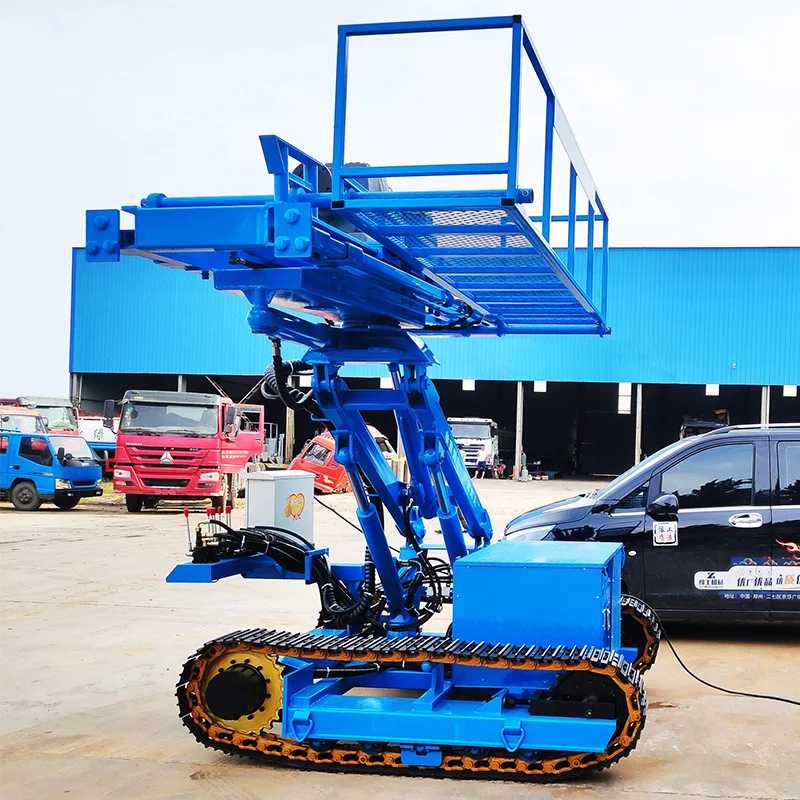

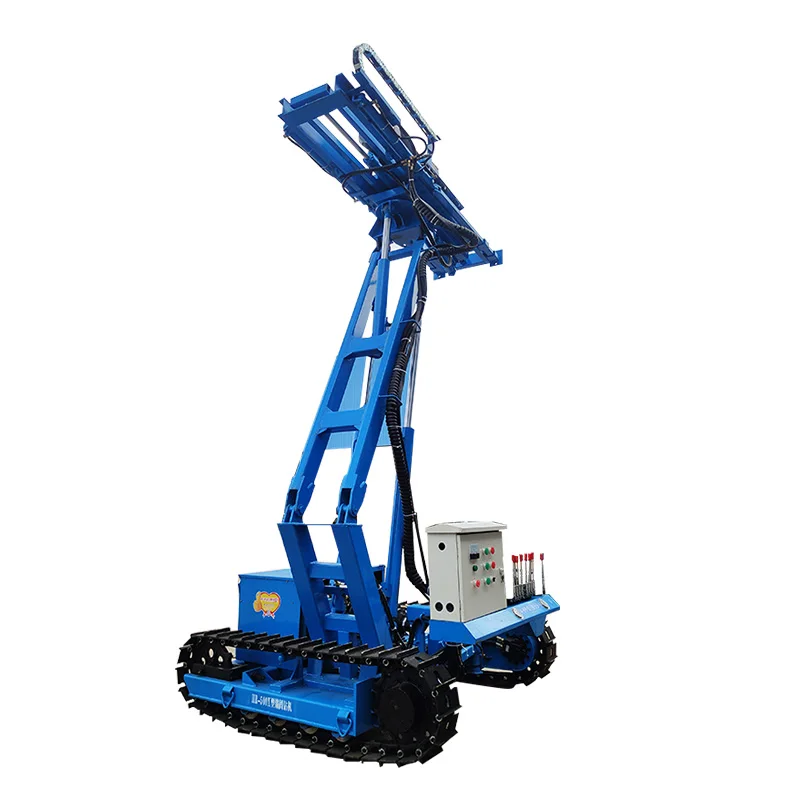

Anchor Horizontal Drilling Rigs
The anchor drilling rig is used for hydropower station/railway/highway slope reinforcement, and all kinds of geological disaster prevention and control of landslides and dangerous rock anchoring engineering, especially suitable for high slope rock anchoring engineering, used for anchoring holes;
The anchoring drill is also suitable for the construction of deep foundation pit support, anti-floating anchor rod and foundation grouting reinforcement engineering holes, blasting engineering blasting holes, high-pressure rotary jet pile, tunnel pipe and roof support holes, etc.
The anchoring drill is also suitable for the construction of deep foundation pit support, anti-floating anchor rod and foundation grouting reinforcement engineering holes, blasting engineering blasting holes, high-pressure rotary jet pile, tunnel pipe and roof support holes, etc.
Specification
Model | YGMG-40 | YGMG-50 | YGMG-70 | YGMG-70A |
Drilling Depth(m) | 10-60 | 25-70 | 35-80 | 35-80 |
Drilling Diameter(mm) | 90-180 | 90-165 | 110-230 | 110-230 |
Drilling Pipe Diameter | φ76*1500 | φ76*1500 φ89*1500 | φ76*1500 φ89*1500 | φ76*1500 φ89*1500 |
Borehole Inclination Angle | 0-90° | 0-90° | 0-90° | 0-90° |
Power Head Output Torsion Speed(rmp) | -- | 0-70 | 0-50 | -- |
Rated Output Torque of Power Head(N·m) | 2400 | 2500 | 3900 | 3900 |
Max Travel of Power Head(mm) | -- | 1800 | -- | 1800 |
Propeller Compension Stroke(mm) | -- | 500 | 500 | 500 |
Max Pulling Force of Power Head(KN) | 25 | -- | 30 | 30 |
Power of Rotary Motor(kw) | 7.5 | -- | -- | -- |
Oil Pump Motor Power(kw) | 4 | 22 | 22 | 22 |
Weight(kg) | 500 | 1300 | 1400 | 1600 |
Rated Pressure of Hydraulic System(Mpa) | -- | 17-18 | -- | -- |
Motor(V) | 380 | -- | -- | -- |
Dimensions(m) | 2.8*0.8*1.4 | 3*0.78*1.36 | 3.1*1*1.5 | 3.1*1*1.5 |
Packing & Delivery
Company Profile
FAQ
1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free. You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free. You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
