Rotex Master Rotary Dryer YGHG 3.0*24*1 Drum Dryer High Performance Industrial Sawdust Rice Husk Silk Materials Drying Equipment

Product Overview

Description

Rotex Master Rotary Dryer YGHG 3.0*24*1 Drum Dryer High Performance Industrial Sawdust Rice Husk Silk Materials Drying Equipment

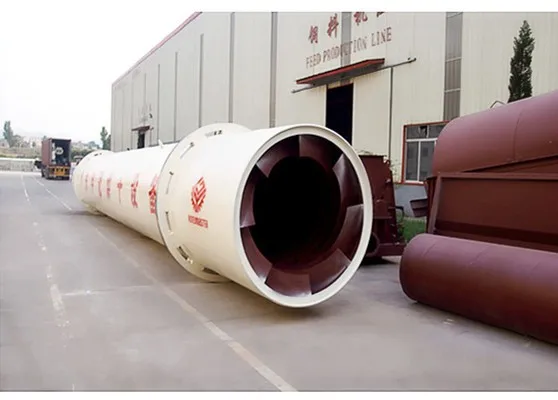

Biomass Rotary Dryer

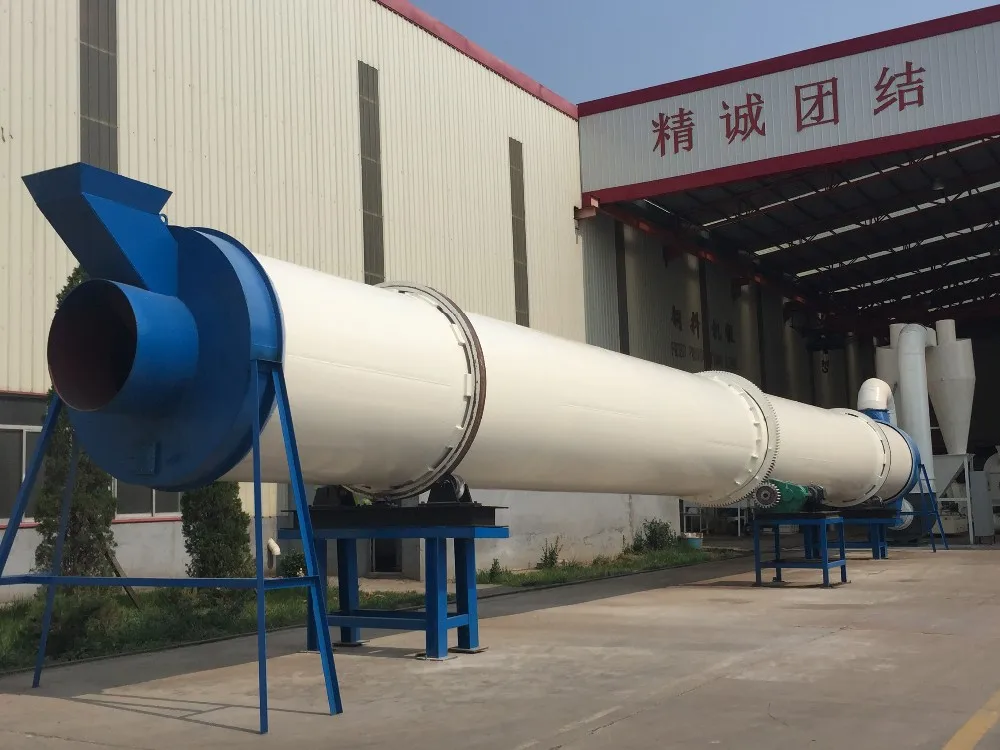

The rotary dryer is mainly composed of a cylinder body, a roller ring, a base retaining roller and a tail dust removing device. The hot air and the material are contacted in the cylinder body, and the material is designed to make the material and the hot air fully contact to achieve the drying effect.





















Usage

Suitable for drying raw materials such as straw, forage, leaves, fish meal, corn sauce, starch residue, distiller's grains, medicinal residue, fruit residue, soy sauce residue, sugarcane residue, peat, organic compound fertilizer, sludge, aquatic product waste, food factory waste, slaughterhouse waste, organic fertilizer material, inorganic fertilizer, etc. in the agricultural, feed, and fertilizer industries.















Key points

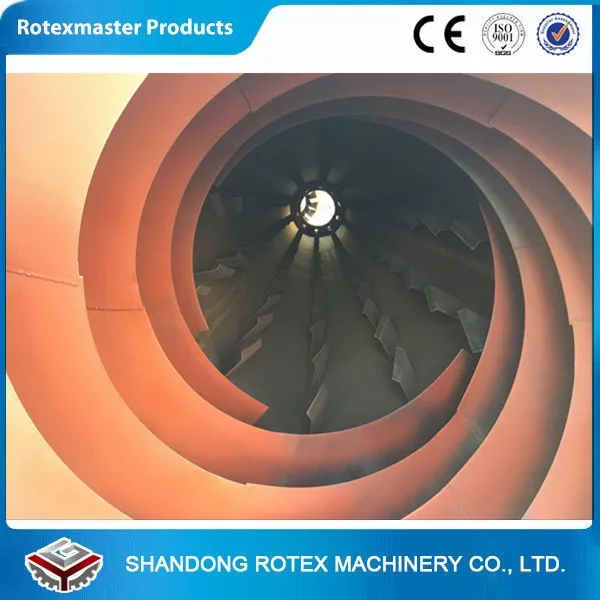

1. The design of the lifting plate in the cylinder is Multi-angle,so that the material forms a curtain in the cylinder.

2. The material and hot air contact surface is high, the thermal efficiency is high, and the drying effect is good.

3. The structure design is reasonable, which is conducive to maintenance.

4. The material has a wide range of applications, can be used for the drying of powder, wood chips, silk materials, etc.





















The model of rotary dryer produced by our company:



Model	Power (kw)	Evaporation (t/h)	Tilt angle	Thickness (mm)
YGHG1.2*12	5.5+15+2.2+1.5	0.3-0.6	2-3°	10mm
YGHG1.5*12	11+18.5+3+2.2	0.47-0.91	2-3°	12mm
YGHG1.8*18	18.5+37+3+2.2	1.01-1.90	2-3°	12mm
YGHG2.0*18	18.5+55+5.5+2.2	1.25-2.3	2-3°	14mm
YGHG2.2*24	22+90+5.5+2.2	2.02-3.36	2-3°	14mm
YGHG2.5*24	22+90+5.5+3	2.61-4.16	2-3°	14mm
YGHG3.0*24	30+132+5.5+3	3.76-5.6	2-3°	16mm























Certification

Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.

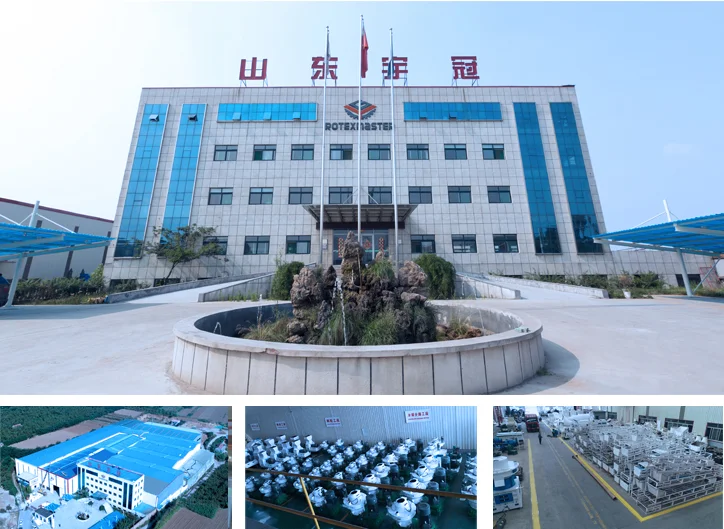

Company Introduction

Our company's core R & D team of more than 30 people. This is a team with many years of equipment research and development, process research and development, production line design experience. In addition, we have technology research and development and experimental bases in Heilongjiang Province, China and Malaysia.
