  • Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors
Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors
Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors
Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors
Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors
Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors
Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors
Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors

Hot Sale Ku Band Transmitter BUC 3W 12.8GHz 13.05GHz N F Connectors

Share on (1601276857052):


Price:

Quantity:


Product Overview

Description



Product Description


1,Ku Band BUC 3W


Model
XS-KuBUC-3-A
Output Frequency
14.0GHz~14.5GHz (basic frequency band)
13.75GHz~14.5GHz (expanded frequency band)
Input Frequency
0.95GHz-1.45GHz (basic band)
0.95GHz-1.70GHz (expanded frequency band)
Linear Gain
58dB typ., 60dB max
IMD3
-26dBc＠30dbmtyp.
Phase Noise
≤-63 dBc/Hz@ 100 Hz；
≤-80 dBc/Hz@ 1kHz
≤-90 dBc/Hz@ 10kHz；
≤-100 dBc/Hz@ 100 kHz；
Input Interface
F/N type connector
Output Interface
WR-75G
Input and Output Standing Wave
2:1 typ.
Power Supply and Power Consumption
18~36VDC，17W@34dBm

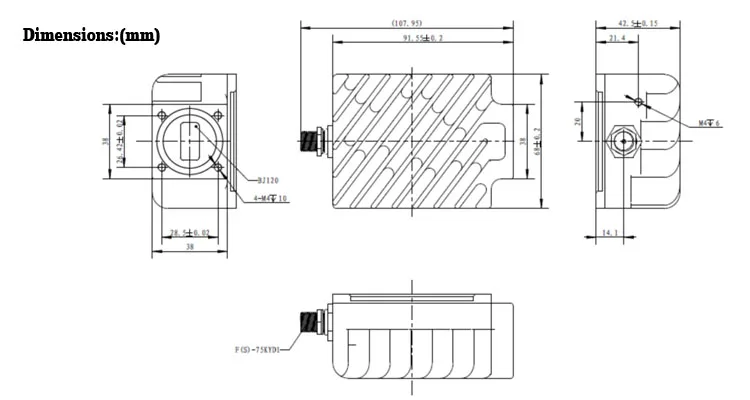

Volume
128.4 x 95.1 x 58.3 mm / 0.7 kg
Size
≤0.7kg




The Main Band Satellite Communications






Package and Shipping


Pack in carton
0.038 cbm for one carton/30 pcs
20GP container--28cbm---527 cartons
40GP container--58cbm---1527 cartons


Our Services


1. More than two hundred workers in our factory to provide best service to our customers

2. All products and sample must pass the inspection of our professional QC team

3. We have excellent after-sales team, they are free to communicate with you at any time .

4. If the order quantity to our MOQ, we can provide ODM services, such as custom pattern, Logo, and gift packaging etc.

5. We can provide sample service, sample is sent for your evaluation if required .

6. Small order is welcome too.



Company Information


1.with many years exprience in searching and developing lnbs,we are developing stronger and stronger.
2.winning many customers' approvement,with their support,we get more and more choices to sell our lnbs to world.
3.with good quality and competitive price,our lnbs always being welcomed by different areas customers.

Never stop,keep moving,we will always treat our customers with the most honest heart
Because we know your success is our real success,thanks.
