HDPE Geocell Outdoor Application PP Material 3d geo honeycomb Ground Enhancement gravel grid driveway paver gravel stabilizer
- Category: >>>
- Supplier: Shandong Lianxiang Engineering Materials Co. Ltd.Shandong Ltd.
Share on (1601276867764):
Product Overview
Description

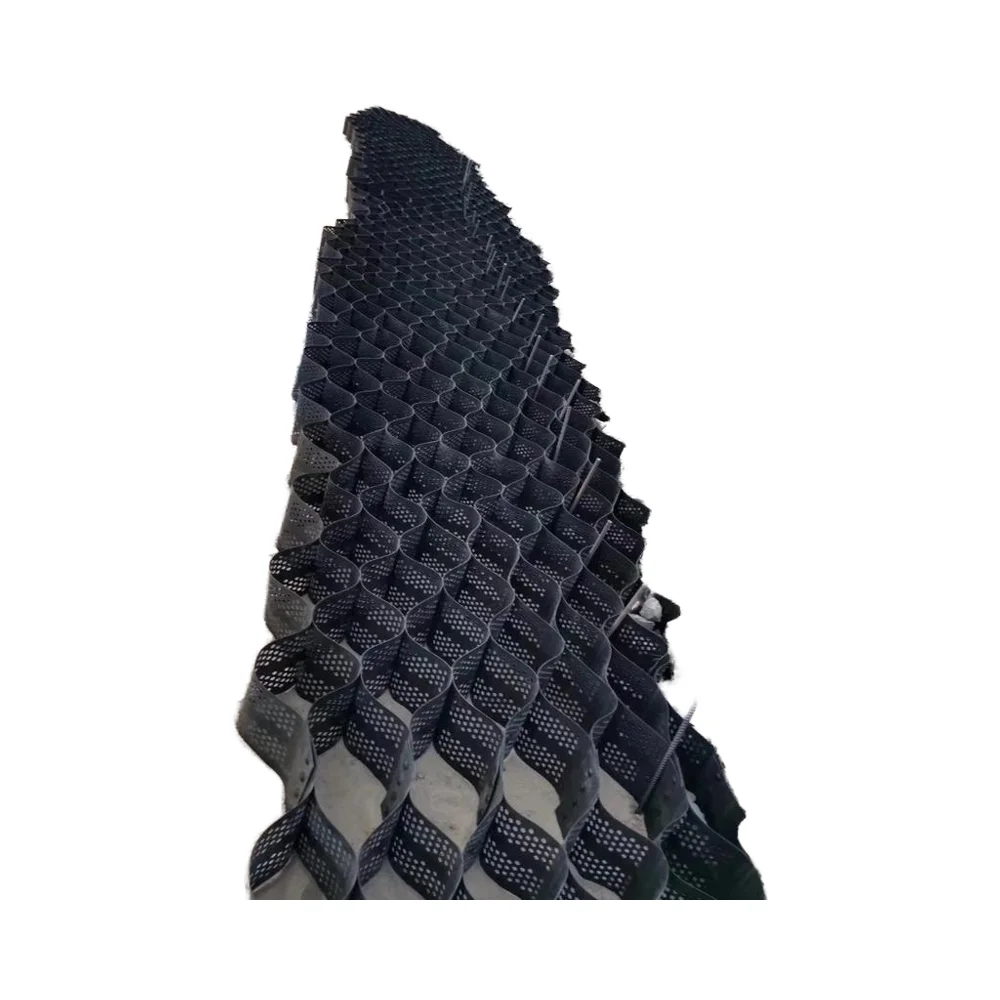

Geocell
Product Description

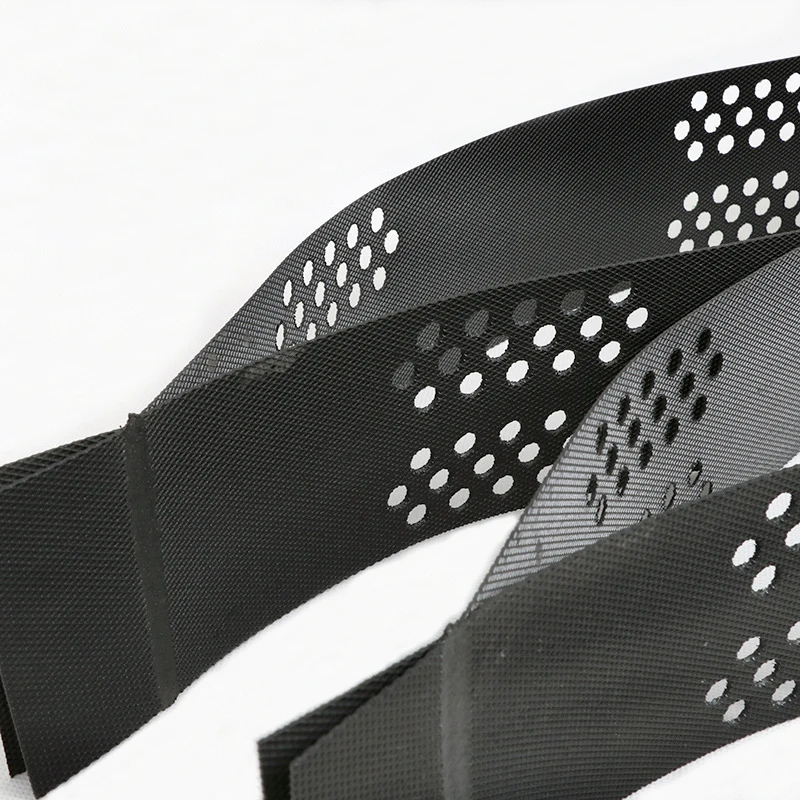

Geocell is a kind of 3D network structure through ultrasonic welding with long plastic material, and it is three-dimensional network after being expanded. Sometimes it needs to be perforated according to customer’s need. The height, welding distance, plate thickness of geocell have significant effects to the project performance of geocell; In projects, different kinds of geocell can form bedding with different cohesion, reinforcement strength and thickness. These bedding can be placed in required position according to the requirements of the project so as to intensify the roadbed of the road and railway, slope, protection, build retaining wall, etc. Width of the long strip is the height of the geocell, and the distance between two welding lines in the same side of the plate when the geocell is not expanded is welding distance.

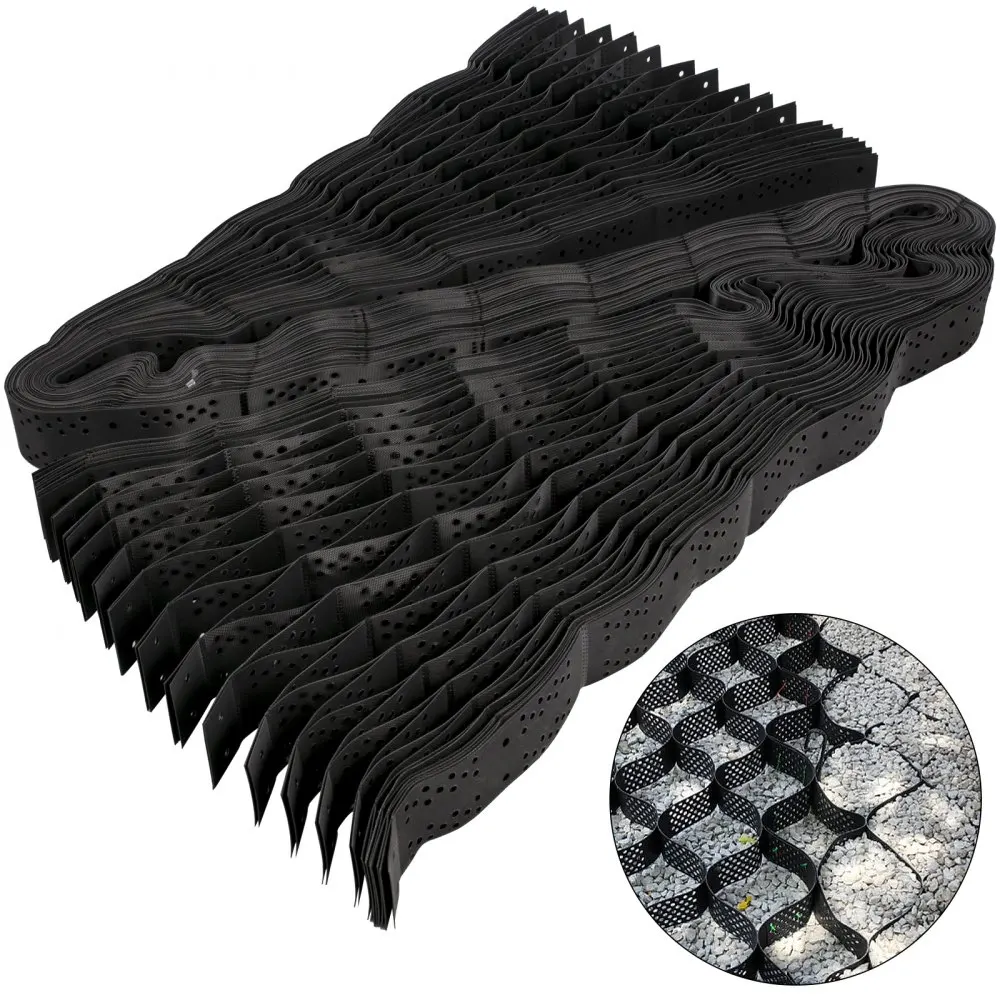

High density polyethylene geocell is a lightweight and flexible three-dimensional, expandable panels made from high Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Application
Geocell Applications

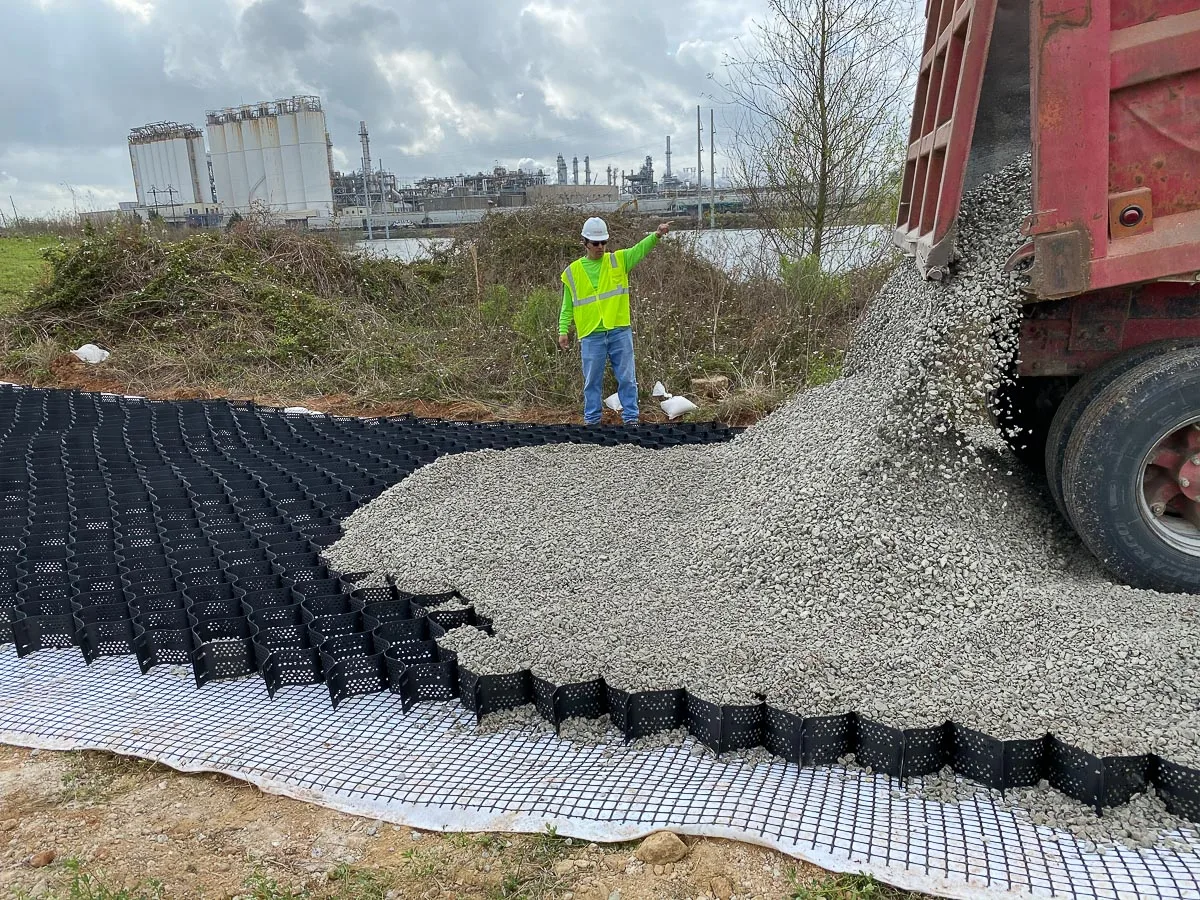

Road Construction
Geocell is a confinement system that performs better than conventional crushed stone sections, and it provides an expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. Geocell can also be used to strengthen paved areas strengthen paved areas

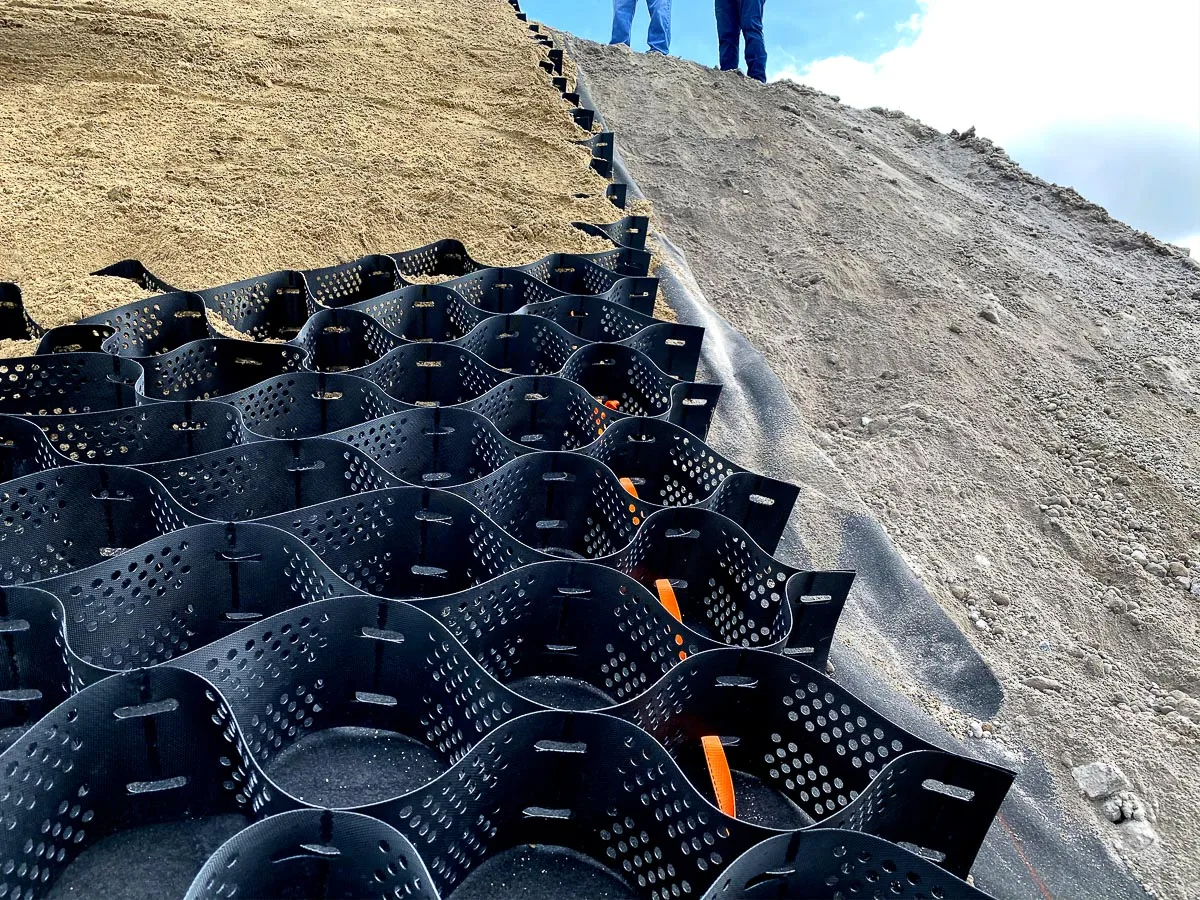

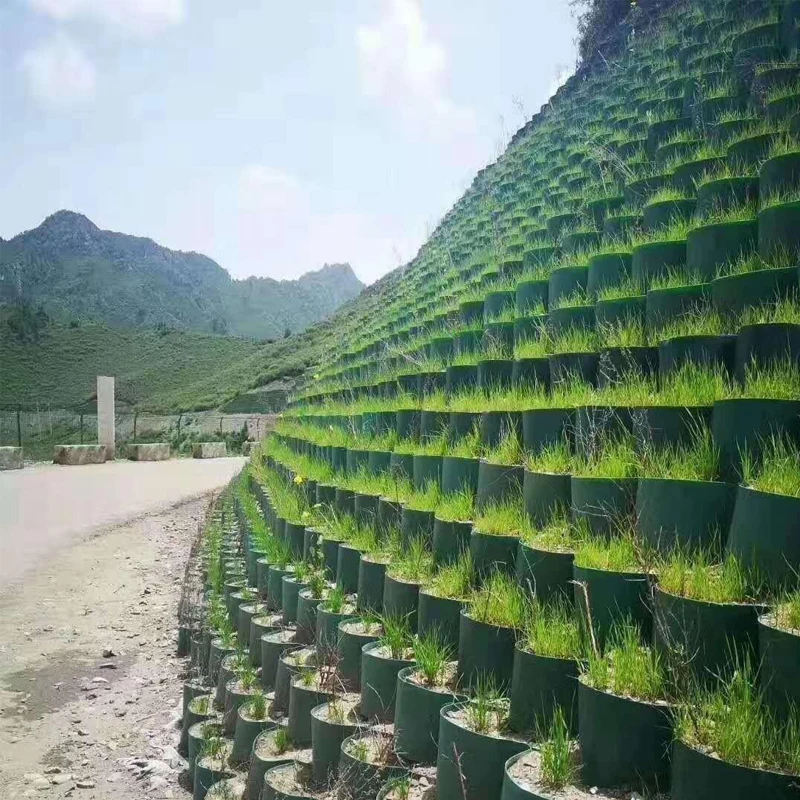

Slope Protection
On slope applications, Geocell can be filled with angular rock, concrete or with vegetated soil. The Geocell confine the infill material, creating a stable layer protecting the slope from erosion. Geocell is a flexible system that will contour to the subgrade of a slope, reducing preparation time. When filled with vegetated soil or rock, the system is permeable - reducing water runoff.
Retaining Walls
Geocell can be used for both cut and fill applications on retaining walls. The flexible panels are custom made to the front to back dimensions required by the project engineer. Geocell can be easily installed around curves, pipes or other structures. Geocell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation.
Channel Protection
Geocell can be installed on slopes as steep as 60 degrees and on channels with flow velocities greater than 25 ft/s (7.6 m/s),depending on infill material. Angular rock is used for velocities up to 10 ft/s (3 m/s), vegetated soil up to 20ft/s (6 m/s) and concrete for velocities greater
than20 ft/s (6m/s).

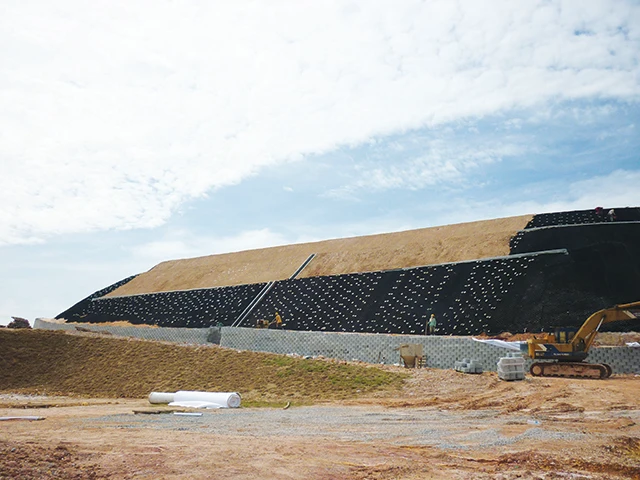

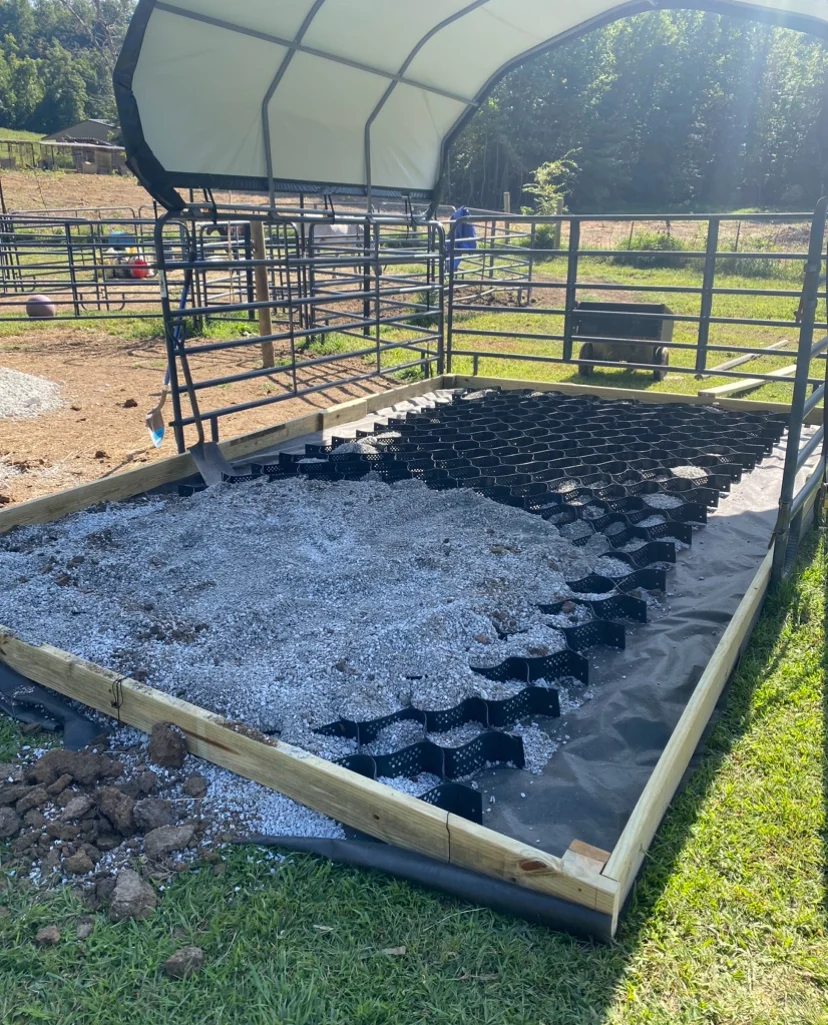

Construction Cases

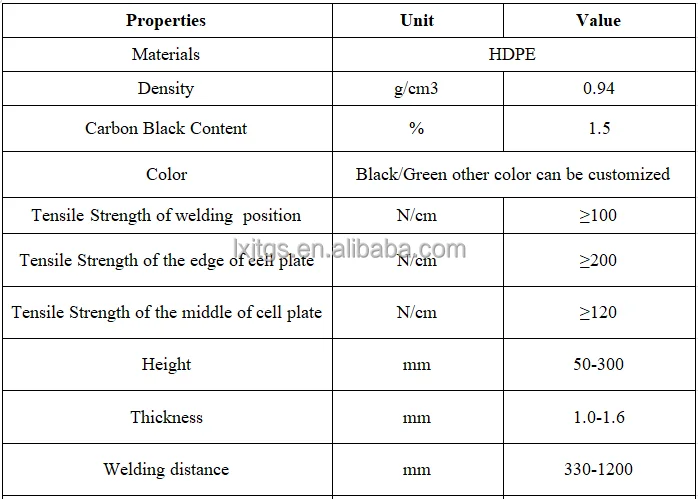

Specification
Other Specifications can be customized!

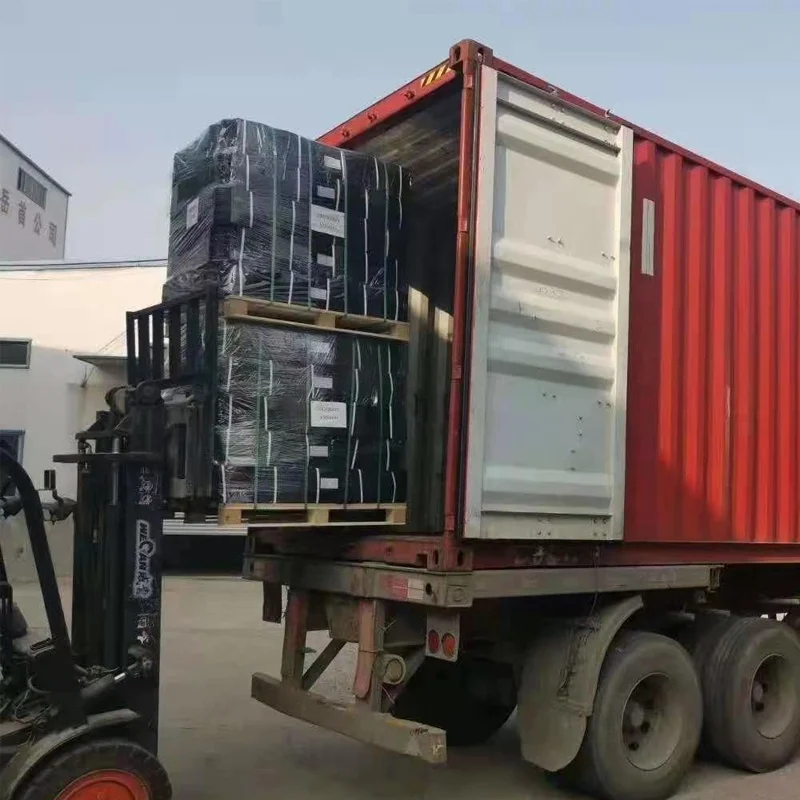

Packing & Delivery

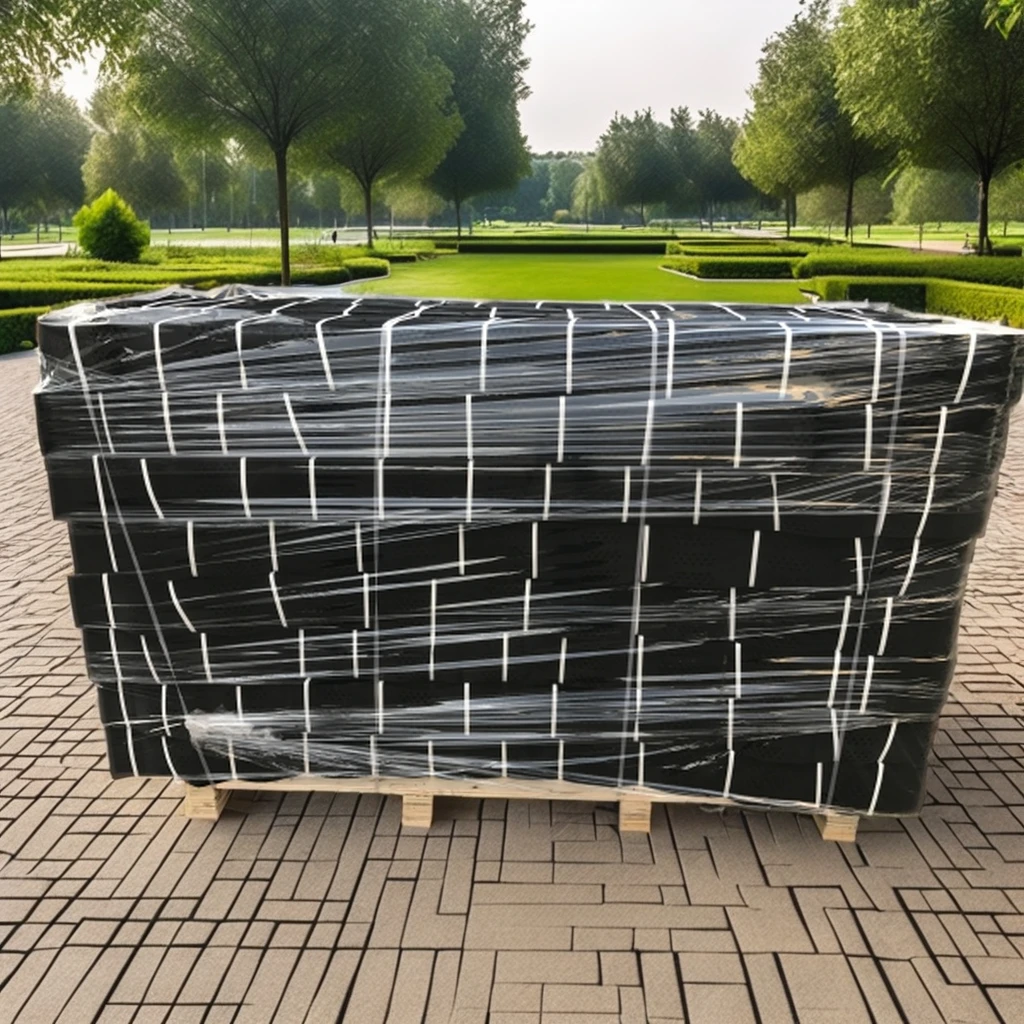

High density polyethylene geocell Packing details: Standard export packaging: straps or pallet packaging
Delivery time:
Quantity(Square Meters) | 1 - 3000 | 3001 - 30000 | 30001 - 50000 | >50000 |
Est. Time(days) | 3-7 | 5-10 | 15-20 | To be negotiated |
Company Profile

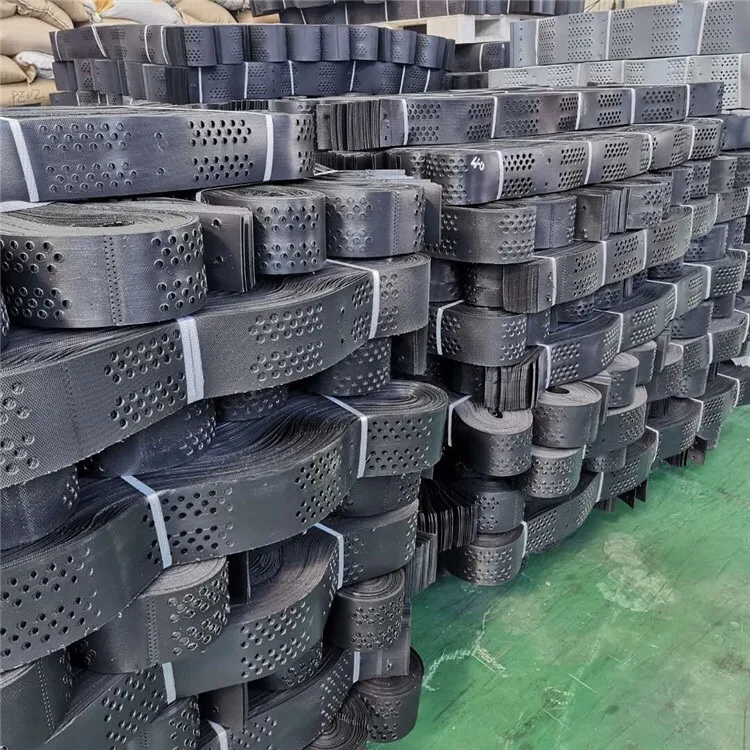

Our Production Line
We have 4 production lines for geocell and can meet your needs with our large production capacity!
Certificate
Quality Control
Strict Quality Control System
We have advanced production equipment and 100 professional and technical workers. We strictly implement 5S management standards from raw material supply, production quality management to factory quality inspection. We conduct random inspections every 1,000 square meters to ensure that every square meter of product meets the engineering design requirements.
Our Team
FAQ
1. Are you a factory?
Yes, we are located in Taian, Shandong province. Welcome to visit our factory!
Yes, we are located in Taian, Shandong province. Welcome to visit our factory!
2. Is free sample available?
Yes, we can provide common sample size , and if you have specific requirements, we can negotiate.
Yes, we can provide common sample size , and if you have specific requirements, we can negotiate.
3. How long is the delivery time?
Within 15 days (usually 3-7 days) after receiving down payment.
Within 15 days (usually 3-7 days) after receiving down payment.
4. What's the MOQ?
1000sqms and can be negotiated. We have large stock and pls feel free to contact us!
1000sqms and can be negotiated. We have large stock and pls feel free to contact us!
