Dual-axis Drum stone sand washer RX50 ore sand washing machinery most sold products in South Africa



Product Introduction

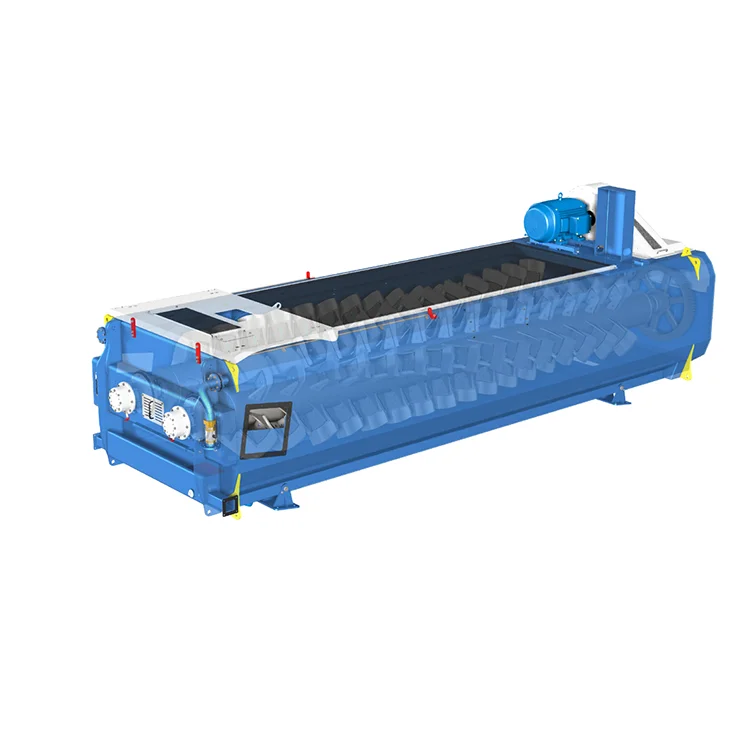

Dual-axis washing machine is an efficient and heavy equipment, which can produce commercial grade materials from heavy clay raw materials and overburden.

Dual-axis washing machine can be used for various materials, including construction applications, sand and gravel, gravel, construction and demolition waste, mining applications (iron ore), other mineral ores, chromium, bauxite, metal.

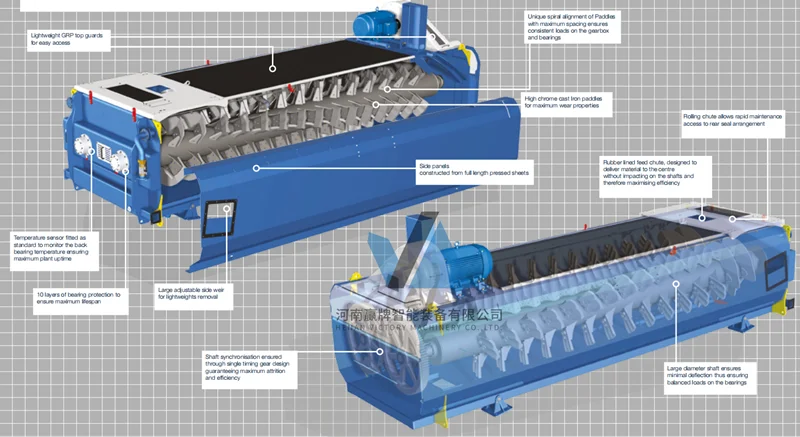

Performance Features



• Lightweight GRP top guards for easy access


• 10 layers of bearing protection to ensure maximum lifespan


• Large adjustable side weir for lightweights removal


• Side panels of RotoMax shell are constructed from full length pressed sheets


• Shaft synchronisation ensured through single timing gear design guaranteeing maximum attrition and efficiency


• Rolling chute allows rapid maintenance access to rear seal arrangement





Click Now for Catalogs & Factory Price!



Working principle



• The shaft is made of high-grade low carbon steel, providing excellent durability.


• Large diameter shaft design ensures minimum deflection and smooth operation while providing maximum material compression and friction


• The larger distance between the axles ensures that the material fed into the Dual-axis washing machine and fall between the axis on the material bed, thus increase service life as possible.

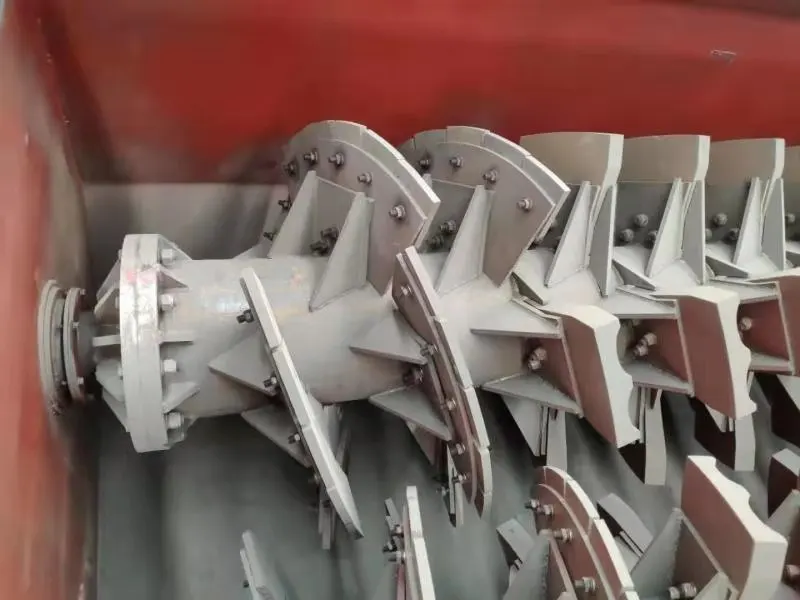

• The helical design of the blade distributes the working load evenly on the shaft, the shell and the transmission system, which significantly prolongs the service life of the blade.


• Through the helical design of the blade, the power can be transmitted effectively, and the material can be scrubbed efficiently.


• Spiral design, accurate shaft time and optimal blade spacing ensure the best meshing and maximum material friction.


• High chromium blades are connected to the bracket by high strength bolts embedded in the blades for maximum protection.


• There are ripples on the blades, which increase the level of energy transfer and the friction applied to the material.


• The helical design of blades eliminates the intermittent impact loads on axles, bearings and gearboxes., the impact of material on the shaft is minimized at the same time.


• Replaceable bolts and high chromium wear-resistant shoes on each bracket can prevent the wear of corner braces and bolts.

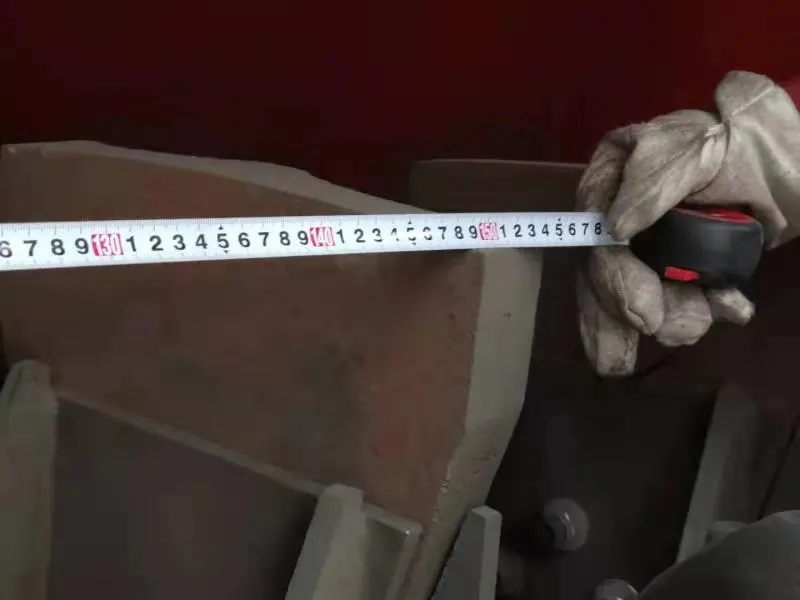

• The blade at the leading edge is thicker (RX150 is 75 mm), and the wear of the blade is minimized.


• Our blade is the largest in the industry, ensuring the maximum energy transfer of materials in the dual-axis washing machine, thus achieving the highest friction level.



Application







Raw material

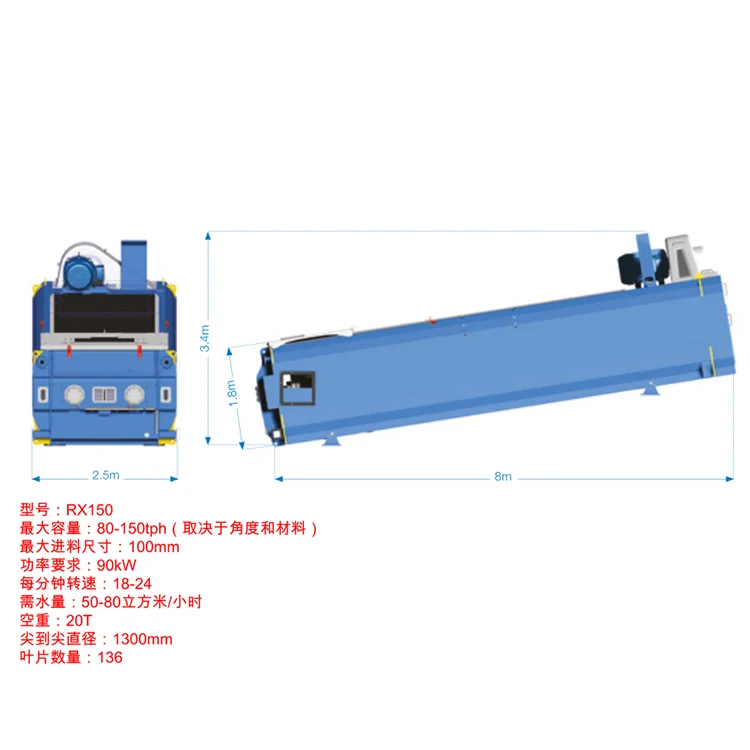

Technical data of Drum Ore Washing Machine



Model	Maximum Capacity	Maximum Feed Size	Power Requirement	RPM	Water Requirement	Empty Weight	Tip to Tip Diameter	Number of Paddles
RX60	30-60tph (dependent on angle and material)	80mm	37kW	18-24	30-50 m3/hr	5T	800mm	64
RX80	50-80tph (dependent on angle and material)	80mm	45kW	18-24	40-60 m3/hr	9T	800mm	118
RX150	80-150tph (dependent on angle and material)	100mm	90kW	18-24	50-80 m3/hr	20T	1300mm	136





Advantages



1. Maximum attrition of heavily clay bound materials.

2. The use of high specification components throughout coupled with FEA testing ensures low cost of ownership by delivering maximum wear resistance.





Click Now for Catalogs & Factory Price!

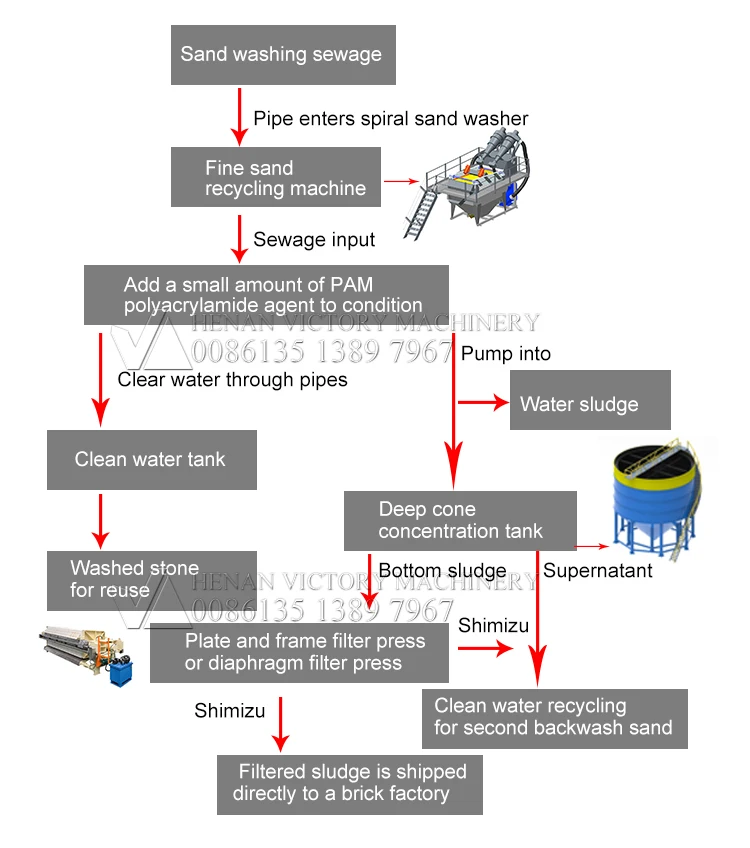

Customised sand processing line



 Deliver A Customised Processing Plant Which Will Add Maximum Value for Your Business,Modular Wet Classification For A Variety Of Industrial Sands. Material Testing Lab.100+ Project Engineers,Service Support Team,Lowest Running Costs.



Completed projects









Certification

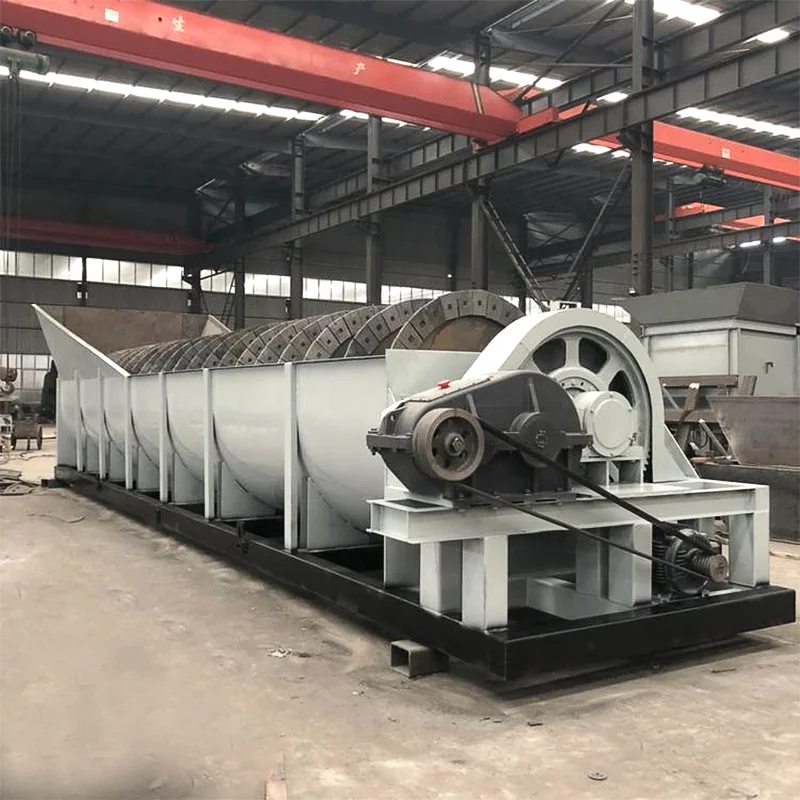

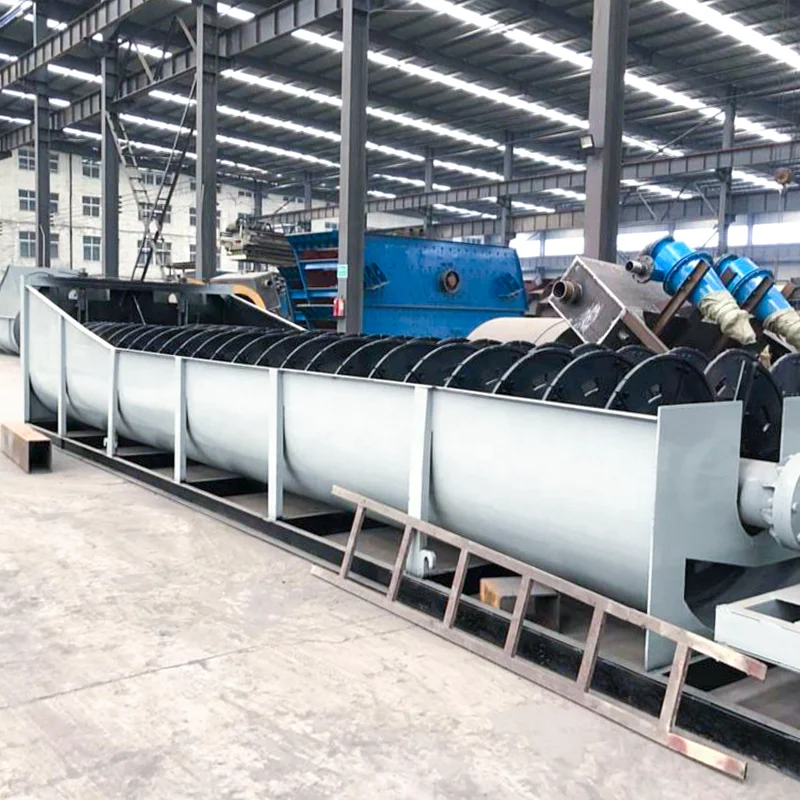

Our Factory



Henan Victory Machinery Co., Ltd is located in the important central hub city of China – Zhengzhou. It is a high-tech enterprise provides "environmental mine construction and operation" as the main and integrates design and development, machinery manufacturing, equipment procurement, management services, mine operations, mining materials procurement management and industry resource integration. The company's business scope covers all over the world. So far, it has completed more than 100 mining and mining industry chain service projects, with more than 40 kinds of ore mining technology and experience.

Our company is committed to providing "environmental mine construction and operation", that is, "design and research - complete equipment manufacturing and procurement - commissioning and delivery" of the concentrator. It mainly covers the following contents: EPC general contracting project of sand and gravel production line, EPC general contracting project of sand washing production line, EPC general contracting project of sewage treatment, etc. It is a professional product and solution provider integrating R&D, production and sales.





Packing & Delivery



Packaging Details:

We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.

Delivery Time:
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.

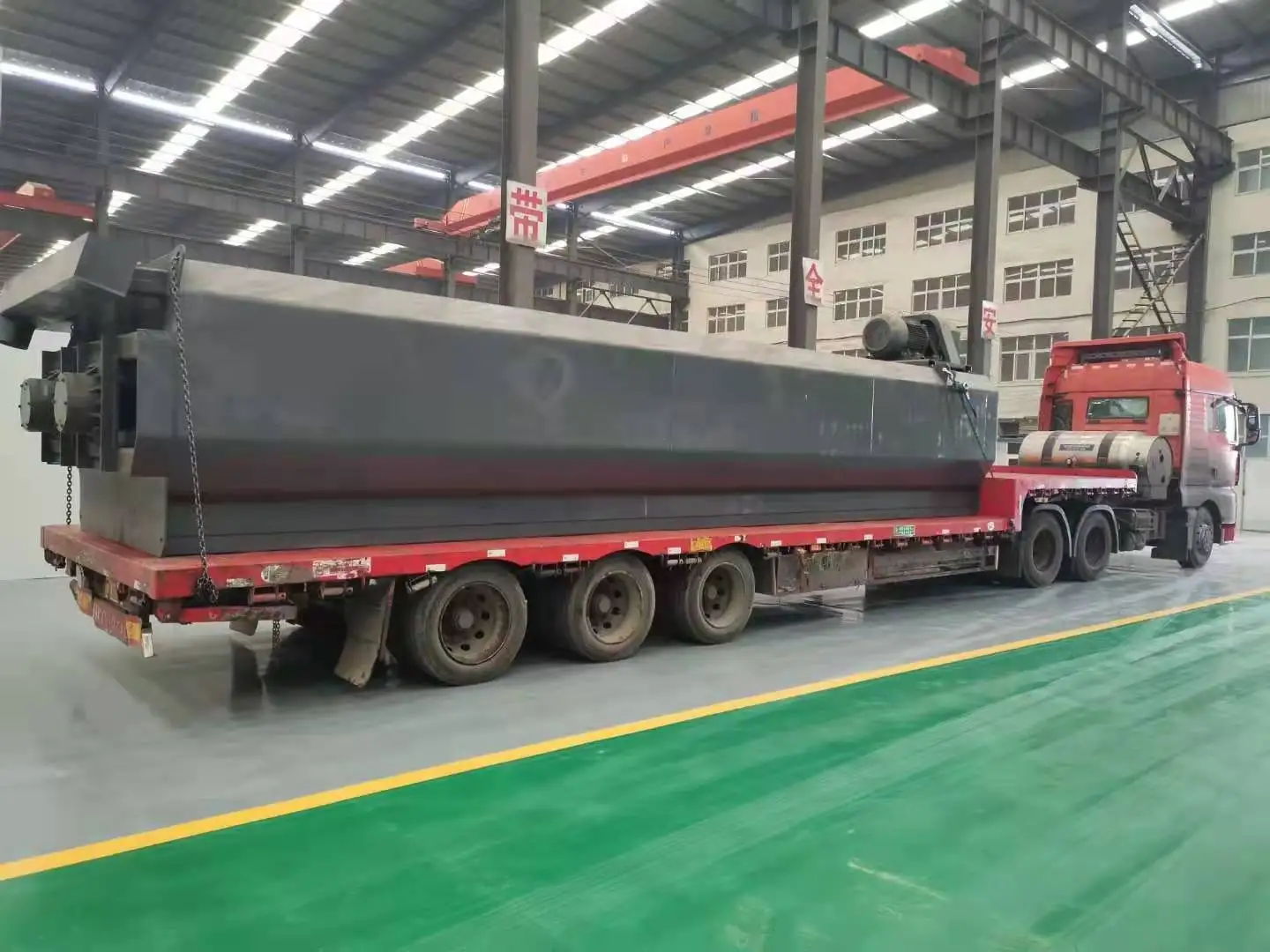

Shipping







FAQ





Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: What is your terms of payment ?

A: 30% advanced payment by T/T, balance paid before shipment.
