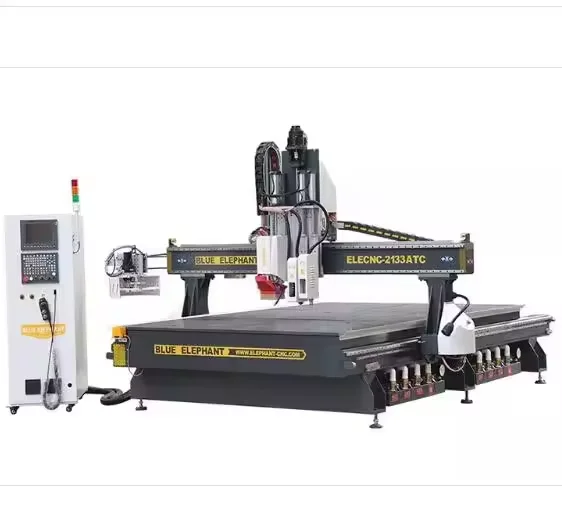

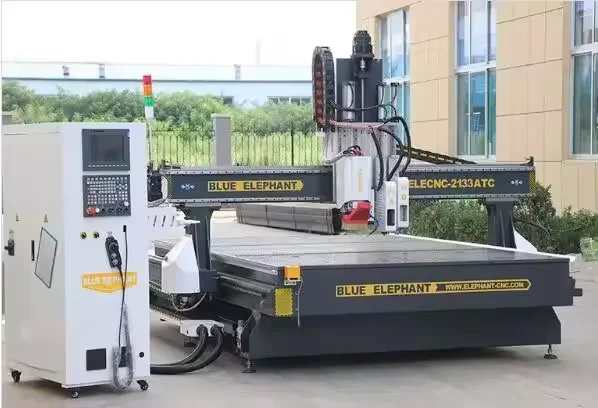

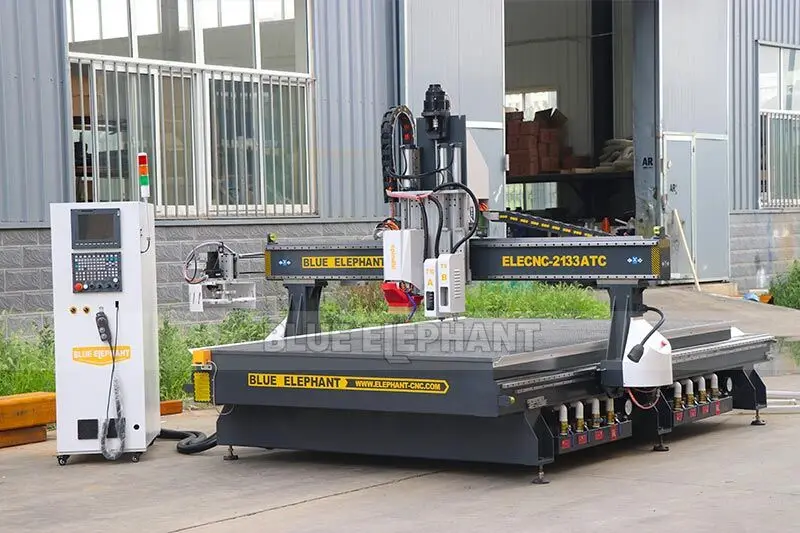

Worth Buying wood carving machine 2133 ATC CNC Router with oscillating knife For sale
Features:
* Designed with round or carousel type auto tool changer, it has the features of fast tool change speed and low guide rail wear.
* Equipped with the oscillating knife, it can be used to cut some soft materials such as PVC, KT board, leather and fabrics, etc.
* With a press wheel, it is specially used to process corrugated paper with creases on the surface for easy folding.
* Adopting Japan Yaskawa servo motor and driver, which ensure the better performance of the machine.
* Equipped with the oscillating knife, it can be used to cut some soft materials such as PVC, KT board, leather and fabrics, etc.
* With a press wheel, it is specially used to process corrugated paper with creases on the surface for easy folding.
* Adopting Japan Yaskawa servo motor and driver, which ensure the better performance of the machine.
Product Paramenters
Model | ELECNC-2133 ATC |
Working area | 2100x3300x400mm |
Spindle type | 9.0KW Italy HSD air cooling spindle |
Inverter type | Taiwan Delta inverter |
Tool magazine | Carousel tool magazine with 8 tools |
Control system | Syntec 11MB control system |
Motor and driver | 850W Japan Yaskawa servo motor and servo driver |
Working Table | T-slot and vacuum table |
limit switch | Japan OMRON limit switch |
Reducer | Japan Shimpo reducer |
Lubrication system | New type 1.5L Automatic lubrication system |
Voltage | 380V,3phase, 50HZ |
Vacuum pump | German Becker pump |
Cooling system | Automatic oil mist cooling sprayer |
X,Y,Z Transmission | X,Y-helical rack pinion,Z ball screw |
Dust collector | New type 1.5kw double bags dust collect with CE |
Tool sensor | Automatic tool sensor |
Product Detalis
Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the
spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production effnciency is higher.
spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production effnciency is higher.
CNC Head
ATC CNC router selects Italian HSD air-cooled spindle, power: 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.
Control system
The control system of CNC router adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis,4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the itelligence of the device.
Driving system
World-class servo motor and driving system ensures machine to run with fast speed and low noise.
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
Safety system
ATC CNC router has the unique safety protection system and provides external
emergency stop function for equipment
users. This function can effectively pro-
tect the personal safety of the equip-
ment users, meet the European safetyCE
standards, and is very popular among
users.
emergency stop function for equipment
users. This function can effectively pro-
tect the personal safety of the equip-
ment users, meet the European safetyCE
standards, and is very popular among
users.
Recommend Products
Sample & Application
Company Information
Exhibition
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
