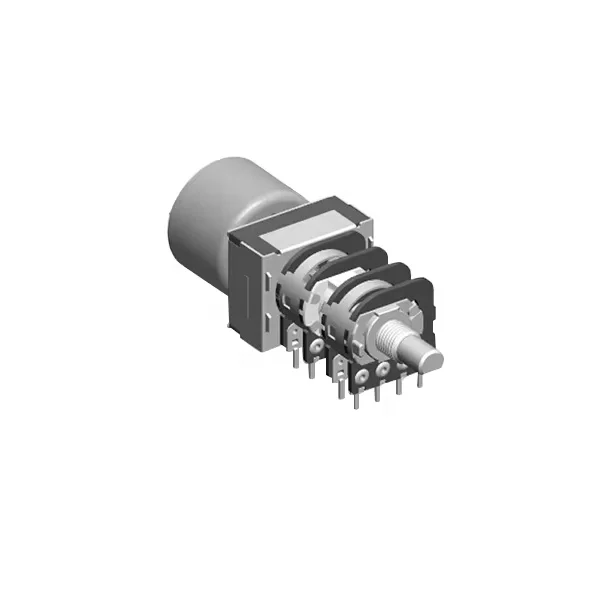

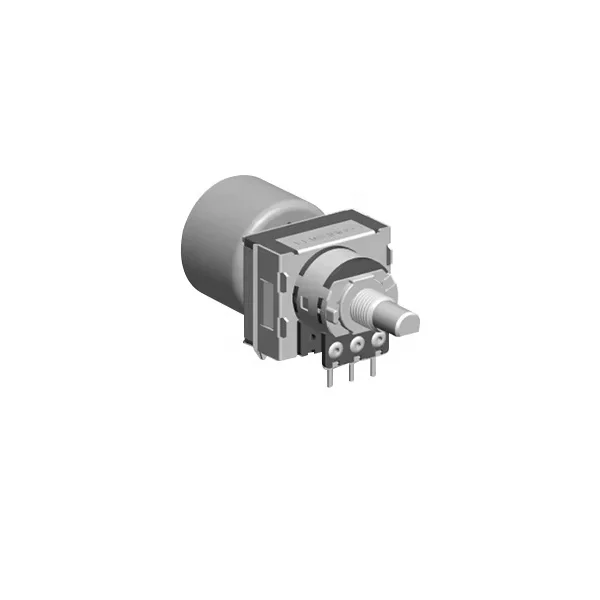

RM1611 Motorized Rotary Potentiometer
- Category: >>>
- Supplier: Soundwell Electronic Products Guangdong Co. Ltd.
Share on (1601276904230):
Product Overview
Description
Potentiometer With Motor Model | RM1611 series |
Rotation angle | 300°±10° |
Rotational noise | ≤47mV |
Working temperature | 5℃～70℃ |
Resistance Taper | A/B/C |
Rotational life | 10,000 cycles Min |
RM1611 Potentiometer With Motor Main Specifications
Rated power | 0.2W | ||||||
Maximum operating voltage | 50V AC/20V DC | ||||||
Rotation angle | 300°±10° | ||||||
Operating torque | 60~350gf.cm | ||||||
Rotational noise | ≤47mV | ||||||
Motor working voltage | 4V~6V DC (4.5V DC standard) | ||||||
Motor working current | 100mA | ||||||
Operating temperature | 5℃～70℃ | ||||||
Rotational life | 10,000 cycles Min | ||||||
Applications | Amplifiers, home stereo systems, stage sound, health care, toys, appliances and other related electronic devices. | ||||||
Product features | Motor- driven rotary potentiometer with reliable performance; Available in many different variants (circuit, shaft type, shaft length etc). | ||||||
Functions | It mainly plays the role of volume adjustment, pressure regulation, speed regulation and so on. | ||||||
RM1611 Potentiometer With Motor Specifications
One、MECHANICAL CHARACTERISTIC
1. Rotational Torque: 60~350gf.cm
2. Total Rotational Angle: 300°±10°
3. Number of detent: 1/11/21/41
4. Detent Torque: 150~600 gf.cm
5. Shaft Stop Strength: ≥6Kgf.cm
6. Shaft Wobble (mm p-p): 0.7*L/30 Max
Two、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Rated Power: 0.2W
4. Maximum Operating Voltage: 50V AC/20V DC
5. Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
6. Insulation Resistance: 100MΩ 1 Minute at DC500V
7. Dielectric Voltage: 1 Minute at AC 500V
8. Motor working voltage: 4V~6V DC (4.5V DC standard)
9. Motor working current: 100mA
Three、ENDURANCE CHARACTERISTIC
3. Rated Power: 0.2W
4. Maximum Operating Voltage: 50V AC/20V DC
5. Residual Resistance: R1,2≤10Ω; R2,3≤20Ω
6. Insulation Resistance: 100MΩ 1 Minute at DC500V
7. Dielectric Voltage: 1 Minute at AC 500V
8. Motor working voltage: 4V~6V DC (4.5V DC standard)
9. Motor working current: 100mA
Three、ENDURANCE CHARACTERISTIC
1. Rotational life：10,000 cycles Min

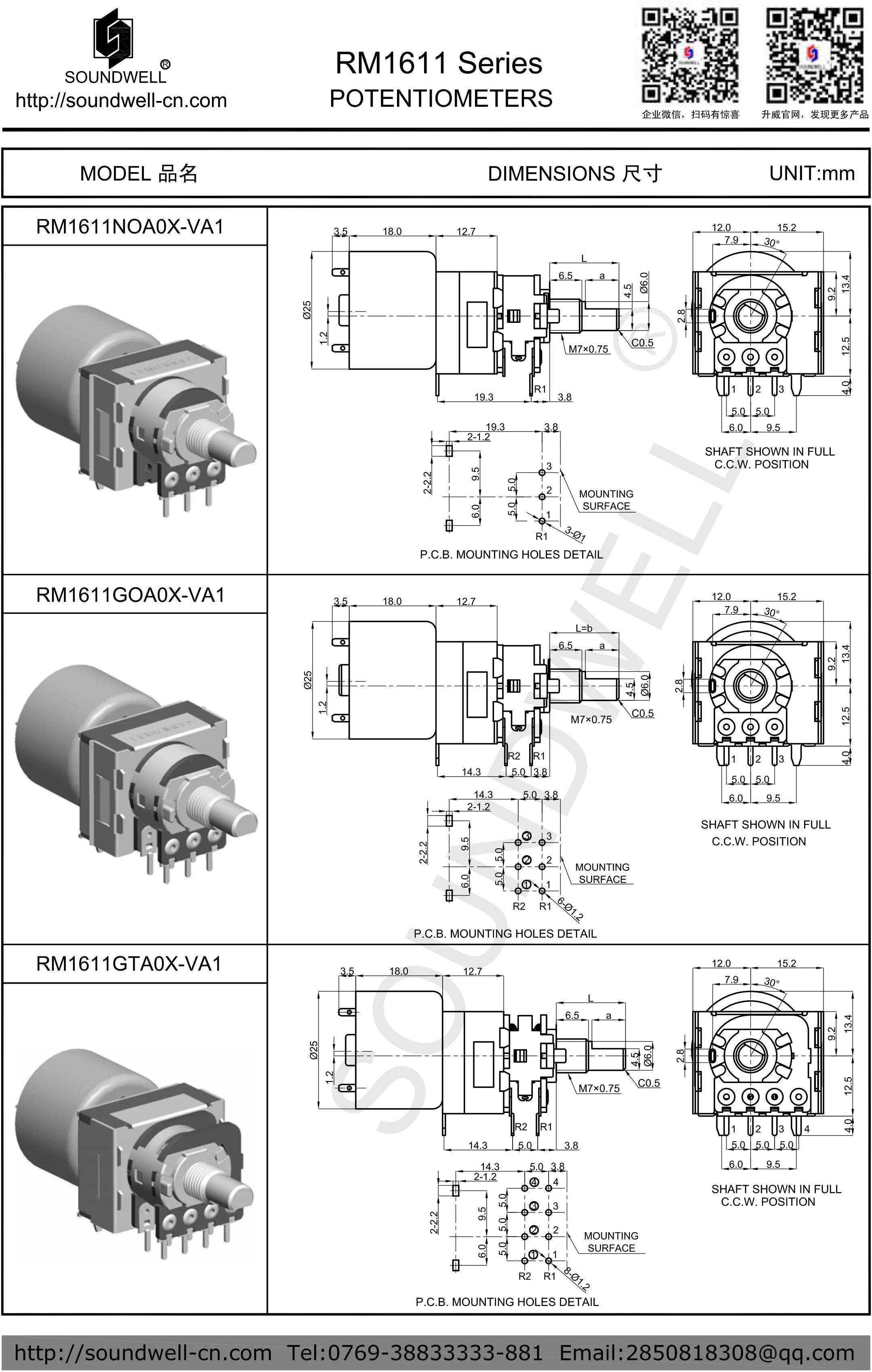

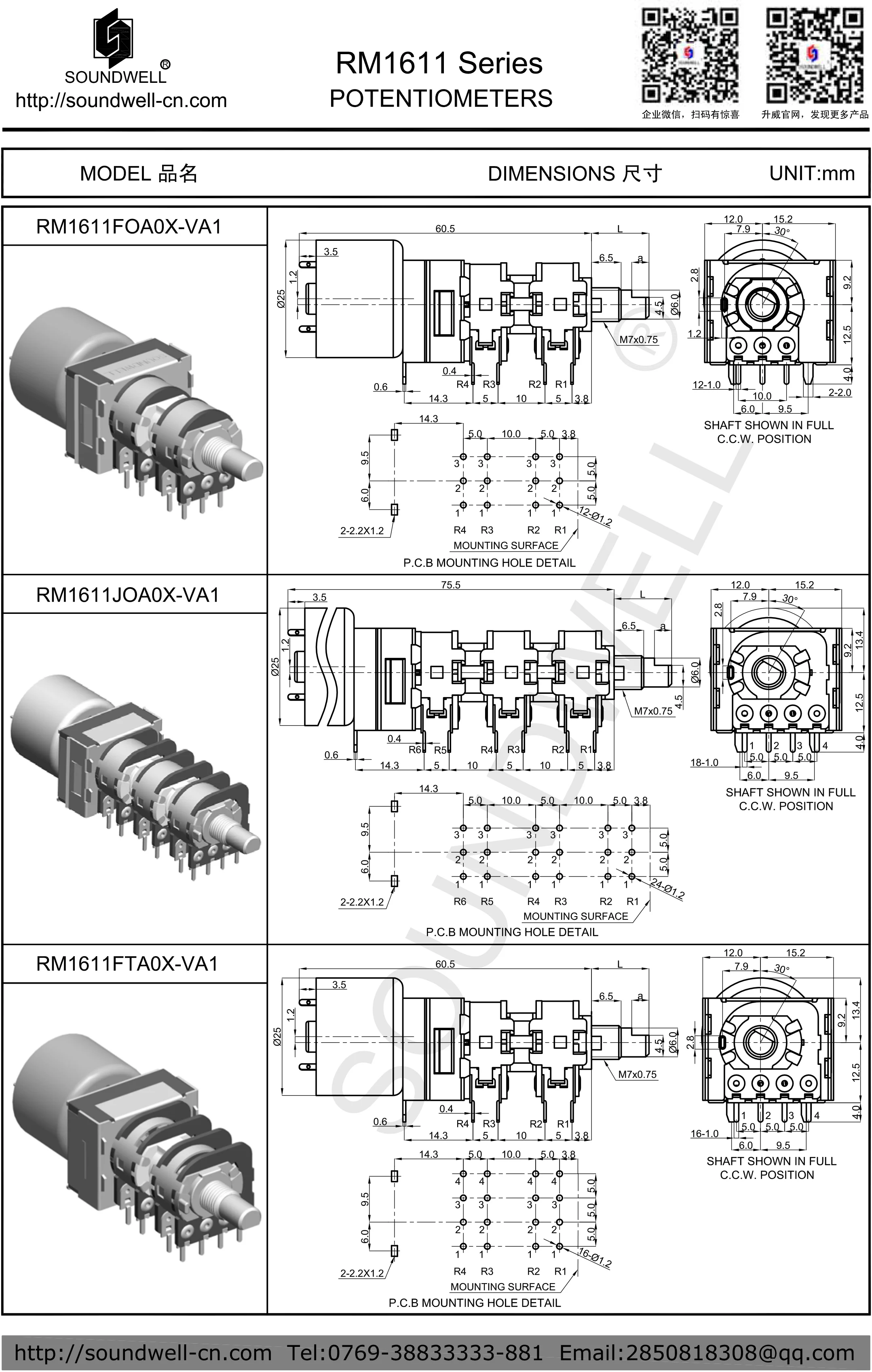

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
