New cylinder DZF 25 15 P A 164024

Share on (1601276909871):


Price:

Quantity:


Product Overview

Description

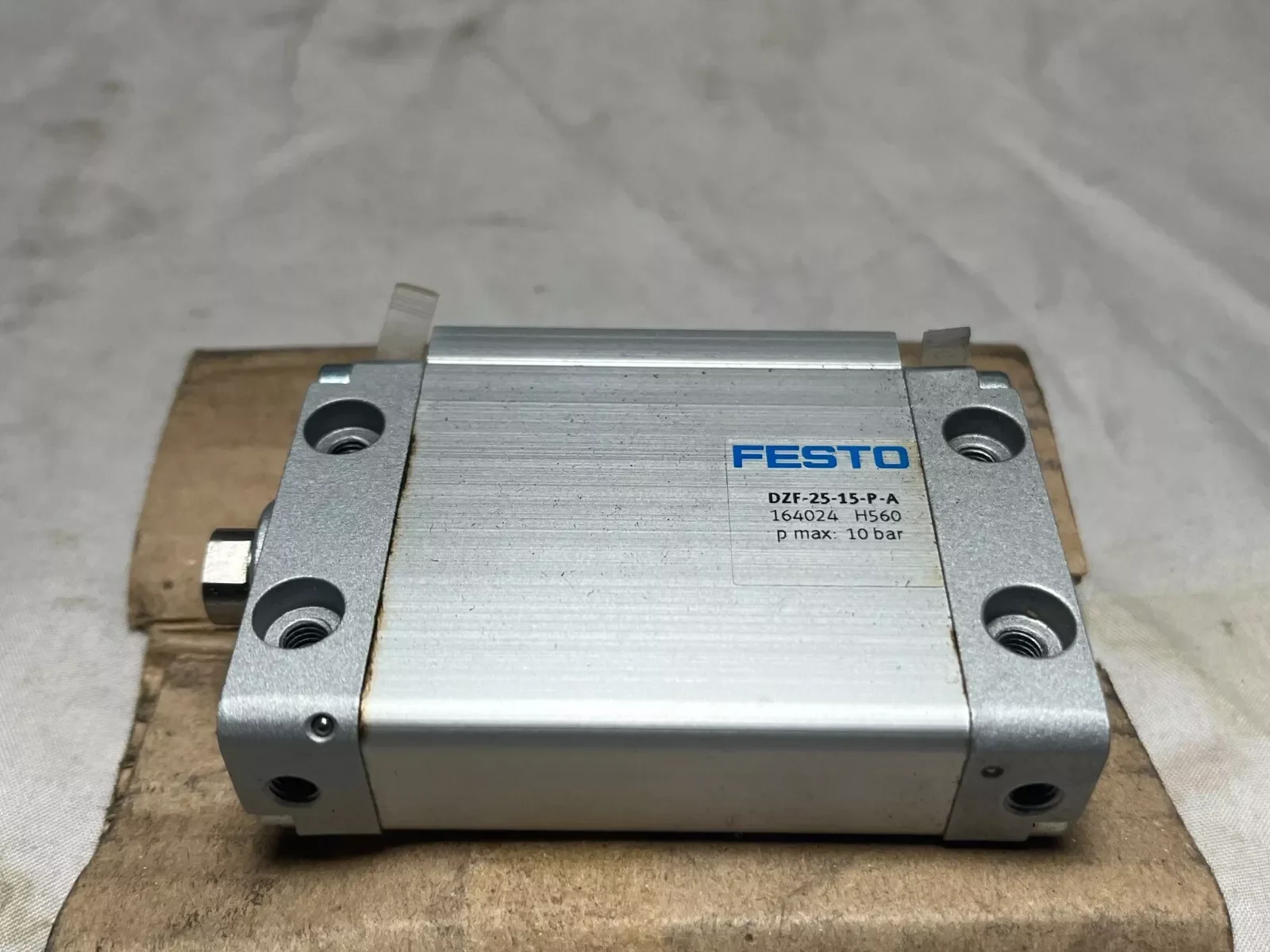

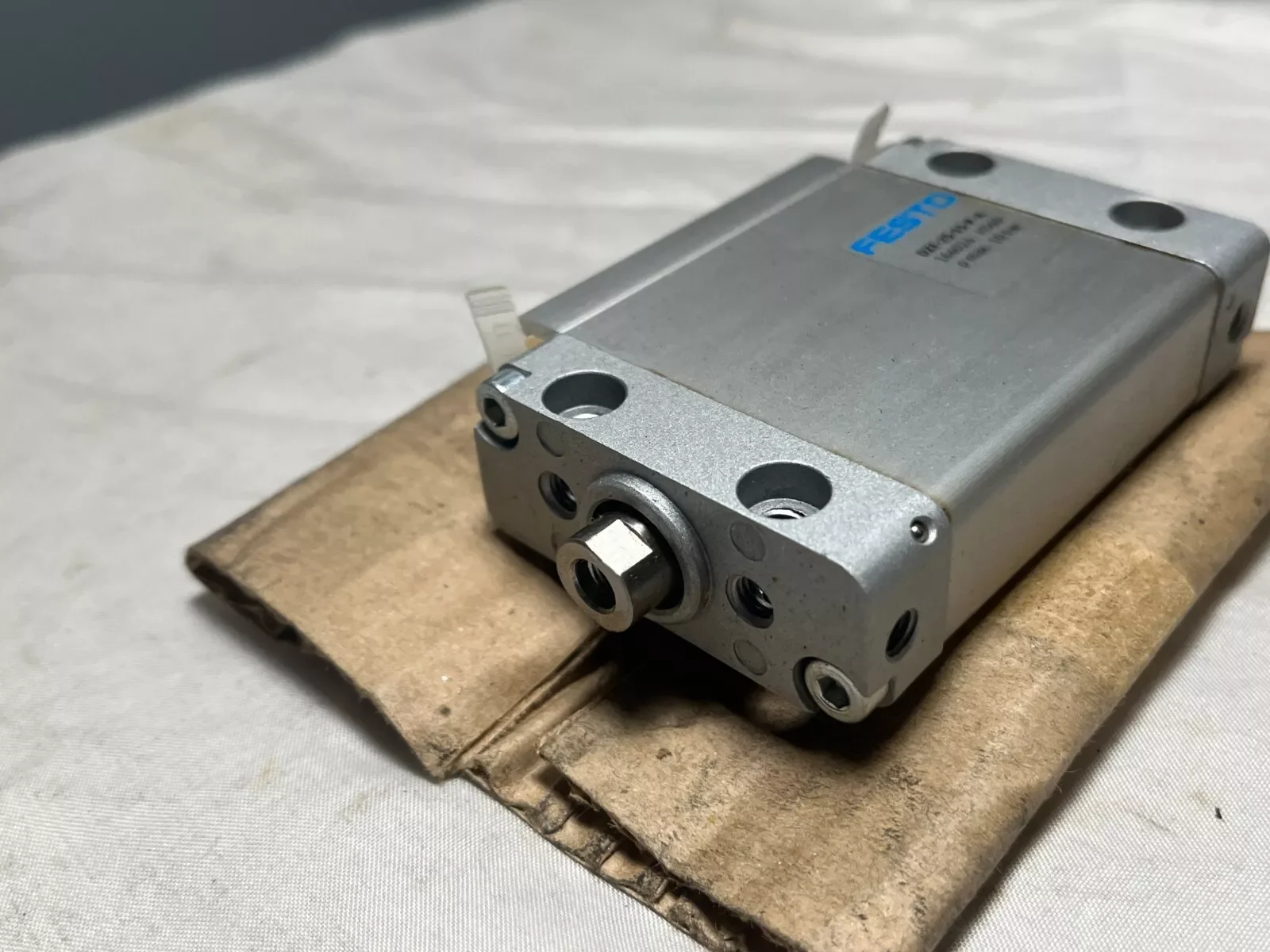

Product Introduction: DZF-25-15-P-A 164024


Model Number: DZF-25-15-P-A 164024


Product Type: Flat Cylinder


Key Specifications:



  • Piston Diameter: 25 mm

  • Stroke Length: 15 mm (Note: The exact stroke length mentioned in the model number may vary; however, '15' is included in the model for reference to similar configurations. Always confirm with official documentation.)

  • Working Mode: Double Acting

  • Buffering: Elastic buffering rings/pads on both ends

  • Material: Aluminum housing with smooth finish, high-alloy steel piston rod, and NBRTPE-U (PU) seals


Features & Benefits:



  1. Position Sensing: Suitable for position sensing applications.

  2. Elastic Buffering: Terminal positions feature elastic buffering rings, providing smooth and controlled stopping.

  3. Versatile Mounting Options: Offers multiple installation options, including options with or without additional mounting components.

  4. Corrosion Resistance: Designed with materials that provide moderate corrosion resistance (CRC 2).

  5. High Durability: Constructed with high-quality materials to ensure long-term reliability and durability.

  6. Compact Design: The flat design allows for efficient use of space in automation systems.


Operating Conditions:



  • Working Pressure: Typically ranges from 1 to 10 bar.

  • Working Medium: Compressed air conforming to ISO 8573-1:2010.

  • Ambient Temperature: Suitable for operation within a temperature range of -20 to 80 °C.


Technical Data (Approximate, Based on Similar Models):



  • Theoretical Force at 6 bar:

    • Forward Stroke: Approximately 295 N

    • Return Stroke: Slightly less than the forward stroke (specific value may vary)



  • Maximum Angular Offset of Piston Rod: +/- 1 degree.


Accessories & Options:



  • Various installation kits, such as cylinder mounting brackets, flange mounting kits, and double ear mounting kits.

  • Pneumatic connections, including quick-connect fittings and threaded connectors.

  • Sensors and switches, such as proximity sensors and magnetic switches, for position detection.





































Model NumberDZF-25-15-P-A 164024
ConditionNew and Original
Lead Time3-7 Working days
warranty3months-1year
ServiceGood-after Service
PaymentL/C,PAYPAL,D/A,WESTERN UNIO,T/T,D/P
Shipping TermDHLUPSTNTFedExAramex or EMS
QualityHigh
