Full Automatic Gypsum Board Production Line Full Automatic Low Price Gypsum Board Production Line
$700,000.00-3,000,000.00
Good designed concrete mould for columns prefab concrete fence for sale in Pakistan
- Category: >>>
- Supplier: Henan Victory Industrial Co. Ltd.
Share on (1601276918366):
Product Overview
Description
Main Products
Product Overview

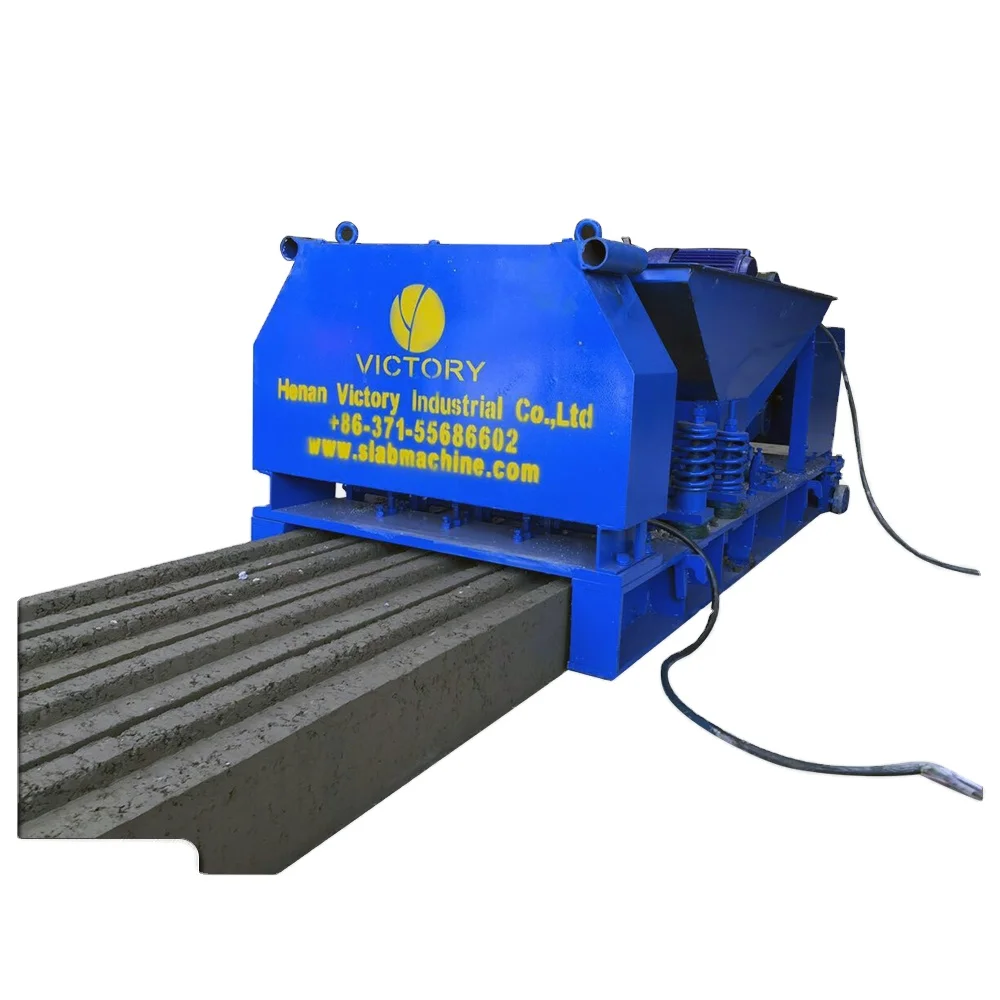

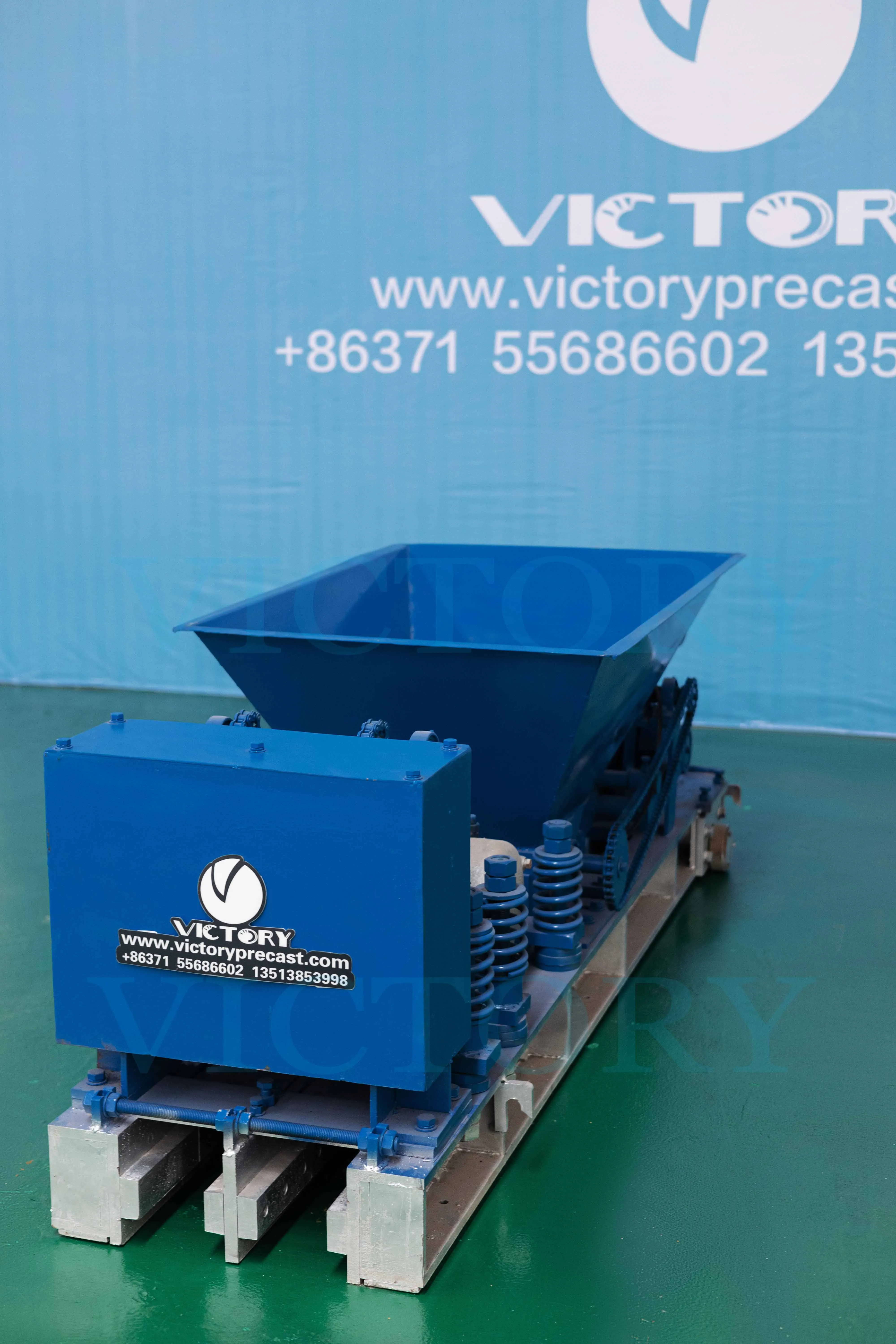

Precast Concrete machine for making fence wall posts
The concrete h beam machine is a new type of prestressed concrete mechanical equipment. It is a machine for producing concrete posts for concrete fence wall or boundary wall.
The machine can produce hollow, solid, reinforced, and non-reinforced concrete vertical posts or columns. This machine works on the principle of slip former and vibrating. Depending on the sizes of concrete columns, it can produce 2-4 rows of H beams or columns
The machine can produce hollow, solid, reinforced, and non-reinforced concrete vertical posts or columns. This machine works on the principle of slip former and vibrating. Depending on the sizes of concrete columns, it can produce 2-4 rows of H beams or columns
FEATURES AT A GLANCE
Features
The equipment has many obvious features such as reasonable structure, convenient maintenance, flexible operation, low energy
consumption, and high production efficiency. It is also equipped with a lifting walking mechanism, which is flexible to move and
easy to disassemble. It is ideal and energy-saving production equipment to make concrete H posts.

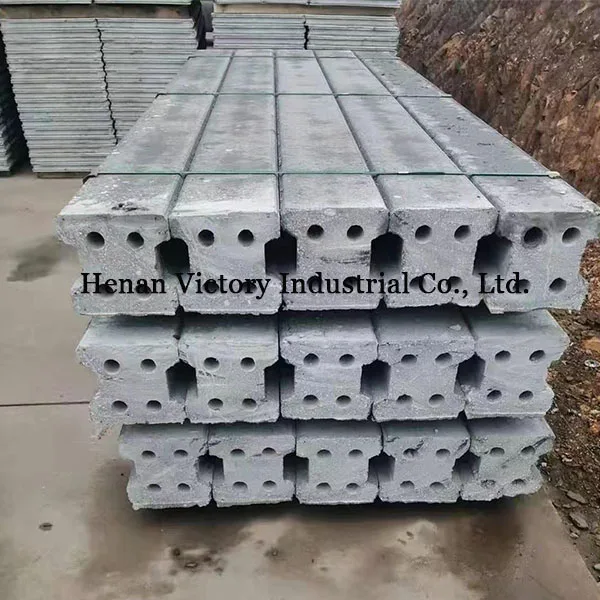

About the Finished Products of H beam

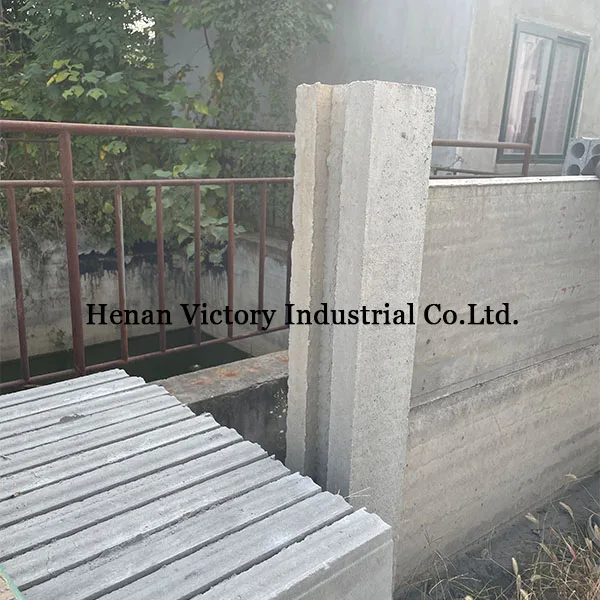

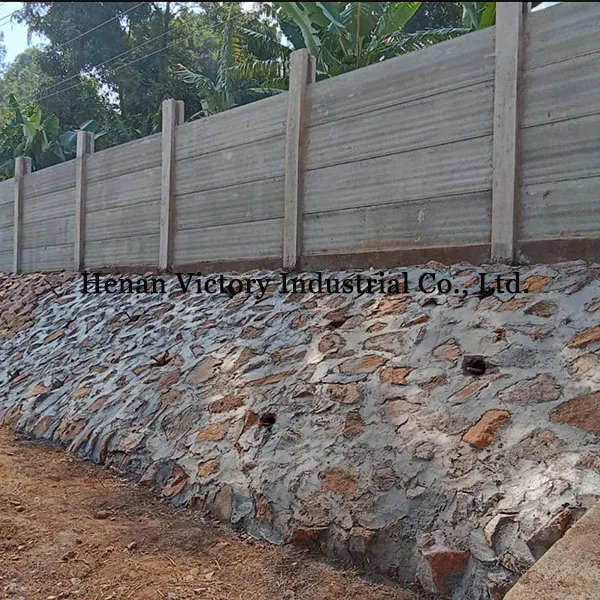

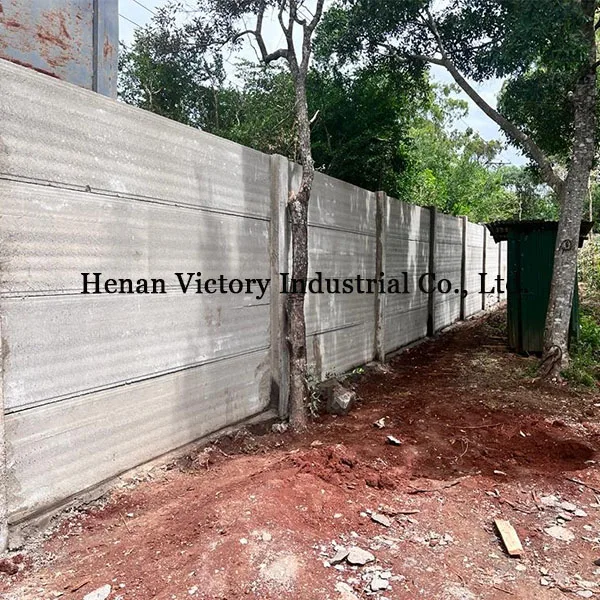

The H beam or columns are mainly used for supporting the wall panels in the structure of the concrete boundary wall. We can design
the concrete h column machine o make the different sizes (thickness×width ) of the H beams or columns to fit the different
thickness of wall panels. Please refer to below sizes of H columns and its matching wall panels
consumption, and high production efficiency. It is also equipped with a lifting walking mechanism, which is flexible to move and
easy to disassemble. It is ideal and energy-saving production equipment to make concrete H posts.
About the Finished Products of H beam
The H beam or columns are mainly used for supporting the wall panels in the structure of the concrete boundary wall. We can design
the concrete h column machine o make the different sizes (thickness×width ) of the H beams or columns to fit the different
thickness of wall panels. Please refer to below sizes of H columns and its matching wall panels
Matching H-pillars and fences
H beams or columns are mainly used to support wall panels in concrete wall structures. We can design concrete H-pillar machines to make H-pillars of different sizes (thickness × width) to accommodate wall panels of different thicknesses. Please refer to the table below for the dimensions of H-pillars and supporting wall panels.
1. H-column (150×150mm), supporting 50mm thick wall panels. Size 50×300m or 50×600mm
2. H column (180×180mm), supporting 75 or 80mm thickness wall panel size 75*600 or 80*600
3. H pillar （200×200mm), supporting 100mm thick wall panel size 100*600mm
4. H pillar （300*300mm）， pillars are matched with 150*600 wall
Additionally, we can custom size H-pillar machines to fit your wall panels
H beams or columns are mainly used to support wall panels in concrete wall structures. We can design concrete H-pillar machines to make H-pillars of different sizes (thickness × width) to accommodate wall panels of different thicknesses. Please refer to the table below for the dimensions of H-pillars and supporting wall panels.
1. H-column (150×150mm), supporting 50mm thick wall panels. Size 50×300m or 50×600mm
2. H column (180×180mm), supporting 75 or 80mm thickness wall panel size 75*600 or 80*600
3. H pillar （200×200mm), supporting 100mm thick wall panel size 100*600mm
4. H pillar （300*300mm）， pillars are matched with 150*600 wall
Additionally, we can custom size H-pillar machines to fit your wall panels
Machine name | Section sizes | Forming Speed | Hole diameter | No. of reinforcement |
Column machine | (150×150) | 1,3-1,5m/min | Φ30(Or solid) | 4 or as your requirement |
Column machine | (180×180) | 1,3-1,5m/min | Φ30(Or solid) | 4 or as your requirement |
Column machine | (250×250) | 1,3-1,5m/min | Φ30(Or solid) | 4 or as your requirement |
Column machine | (300×300） | 1,3-1,5m/min | Φ30(Or solid) | 4 or as your requirement |
