Indoor Use Mobile Spider Crane Crawler 3 Ton Hydraulic Spider Crane 360 Degree Construction Track 5 Ton Spider Crane
- Category: >>>
- Supplier: Jining Tonlita Machinery Co. Ltd.Jining Ltd.
Share on (1601276921601):
Product Overview
Description

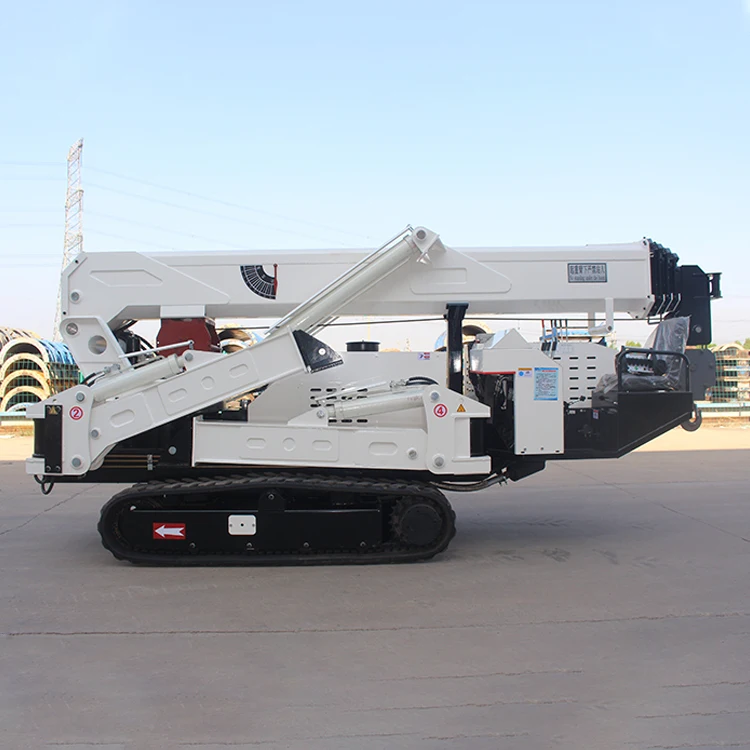

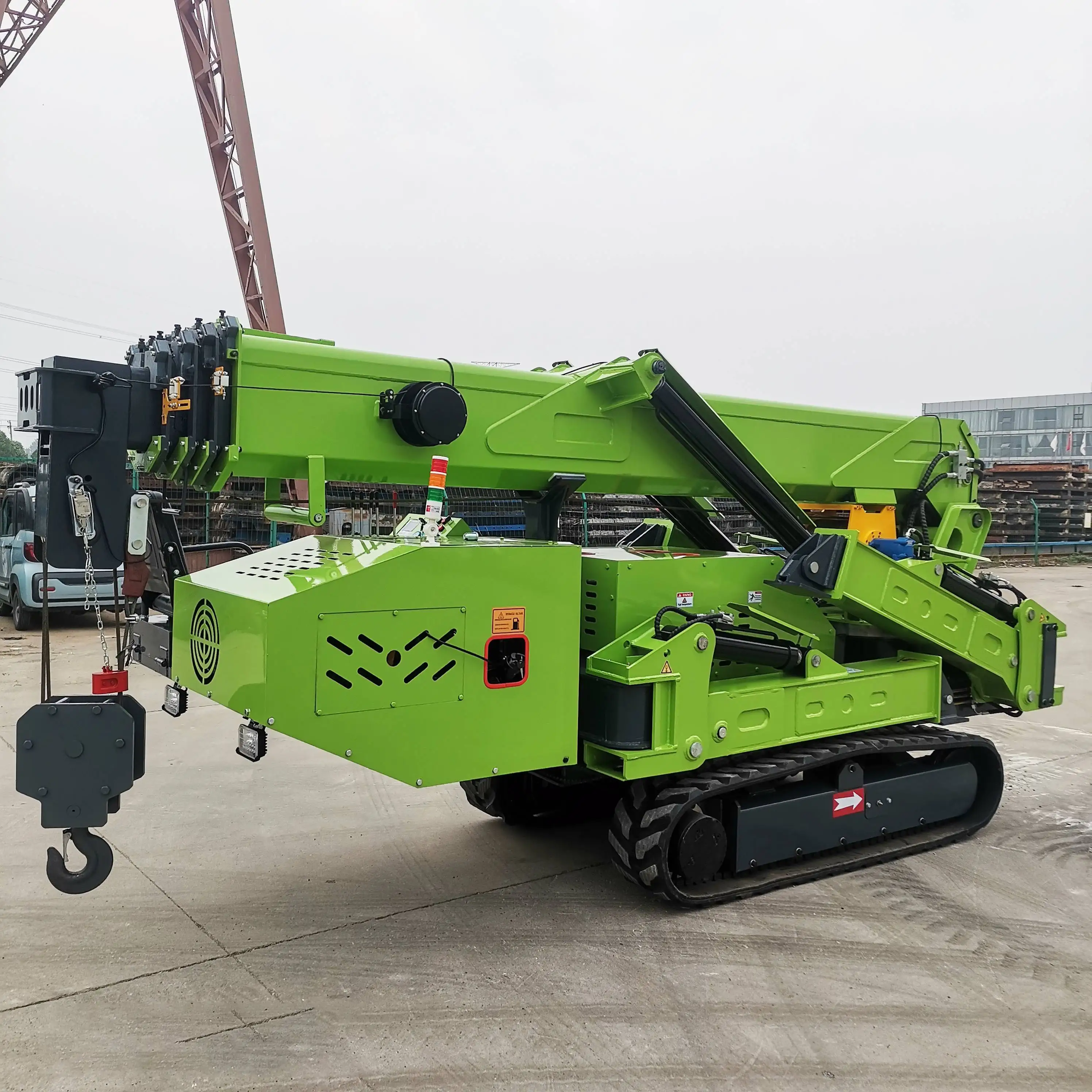

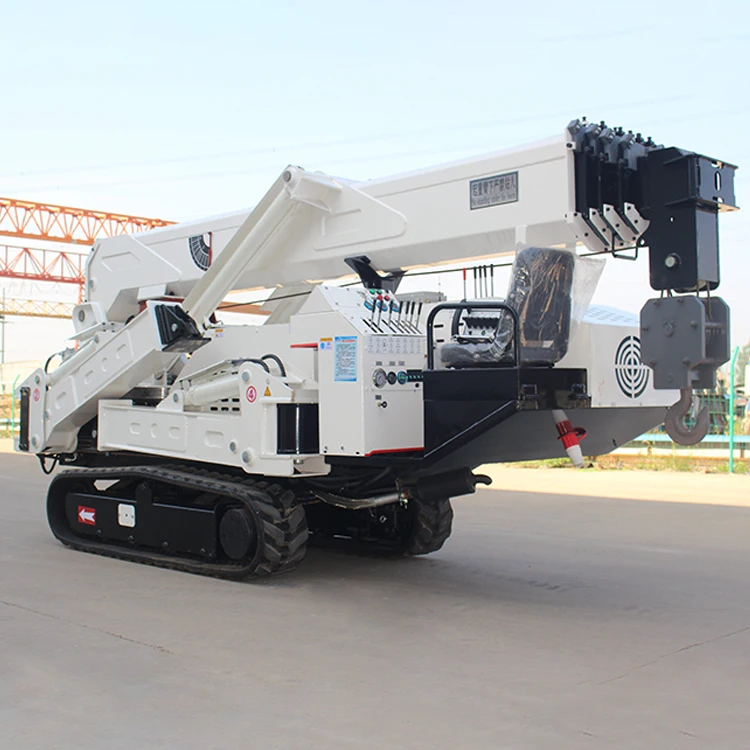

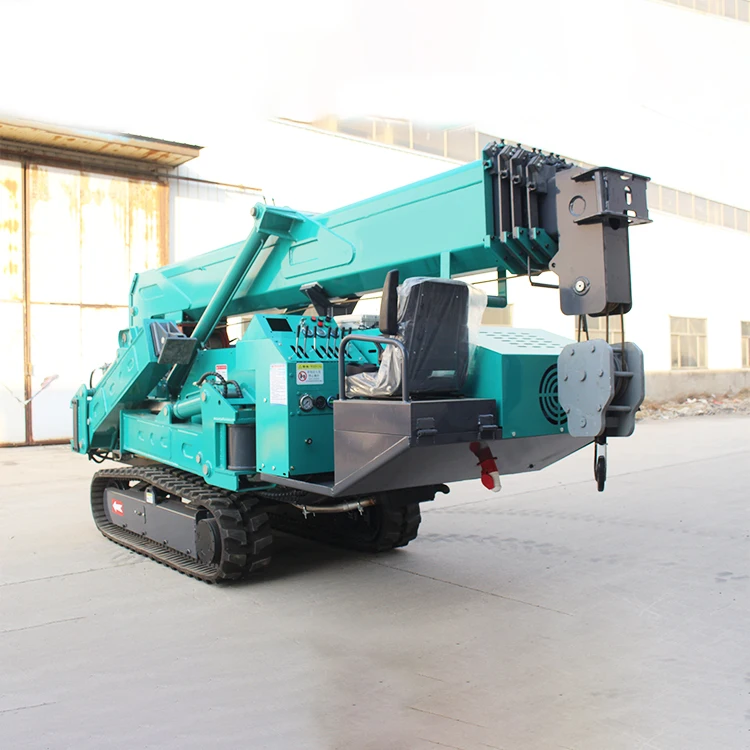

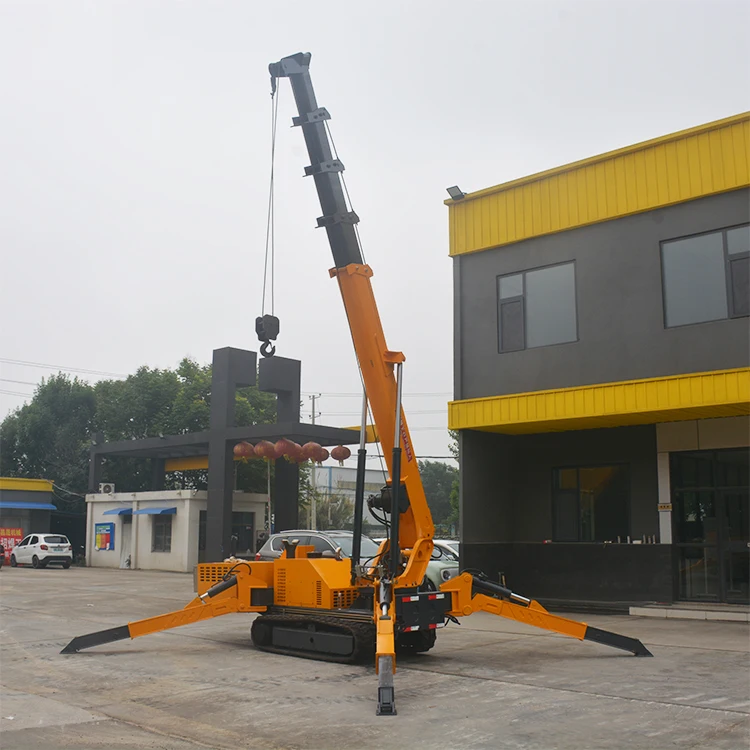

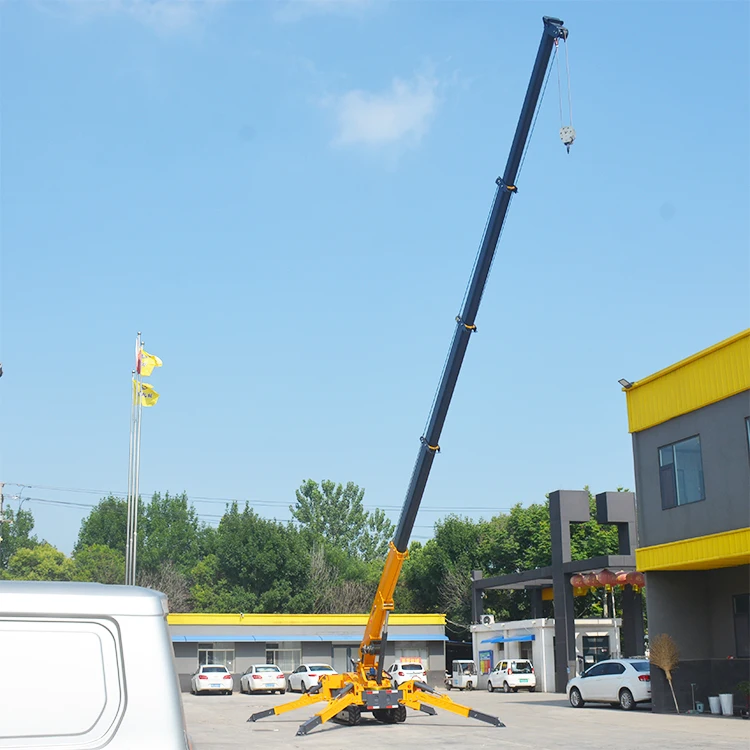

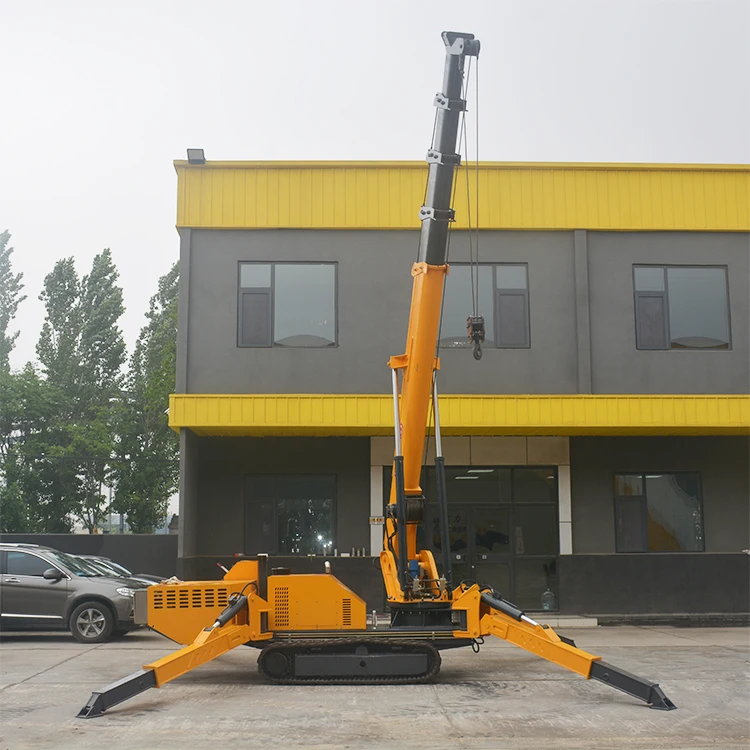

Tonlita Spider Crane:
1. Two energy sources can be switched, equipped with diesel engine and motor at the same time.2. CE certificate is approved

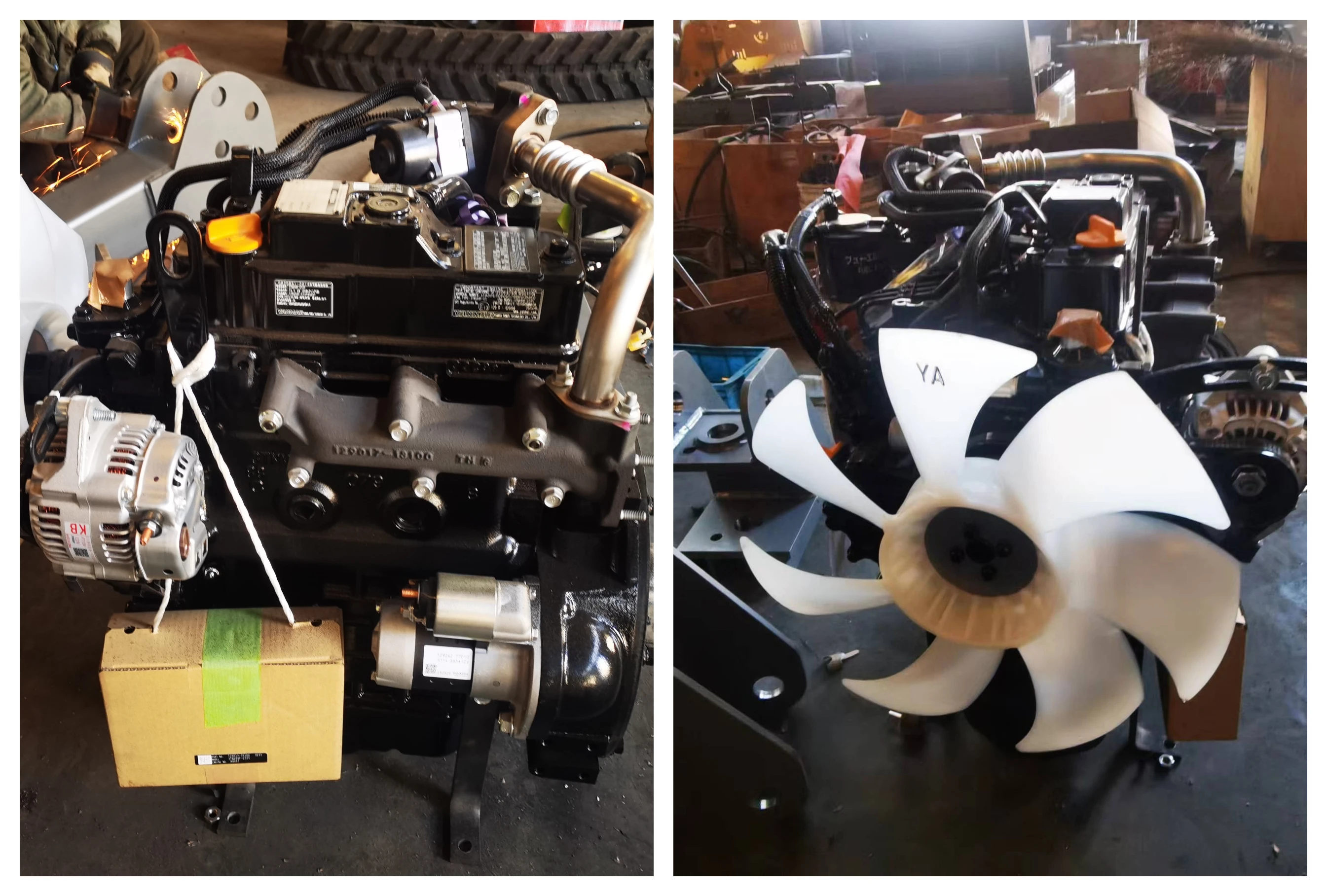

3. Yanmar Euro V and EPA engines are optional.
4. Lithium battery pure electric models are optional.
5. Lifting height, leg length, color, logo, etc. can be customized.
Advantage:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
Product Paramenters
Model | 5t | ||

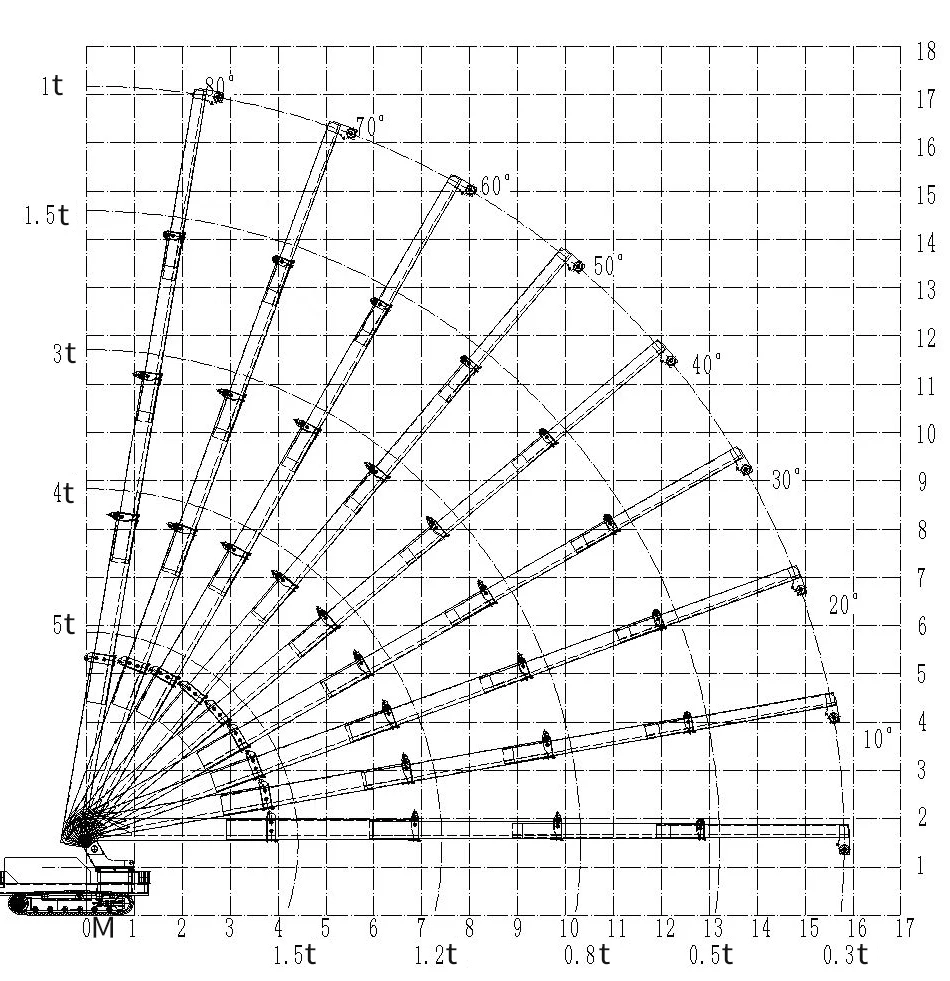

Max working radius | 14m×0.5t | ||
Max ground lifting height | 16m*0.9t | ||

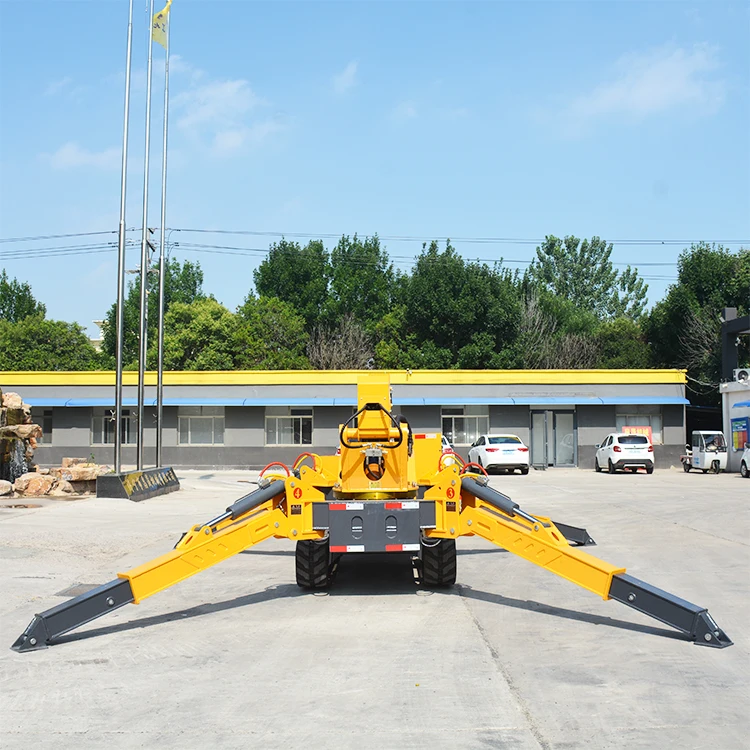

Outrigger | Operating type | Manual unscrewing + hydraulic automatic support (two legs) | |
Max extended dimensions (mm) | Left and right (7800) front and rear (3600) | ||
Walking system | Walking type | hydraulic motor drive | |
Walking speed | 0-2.5km/h | ||
Grade ability | 20°(36%) | ||
Engine | Brand | Yunnei | |
Starting method | Electric | ||
Start performance | -5°C~40°C | ||
Engine | Diesel | ||
Battery capacity | 12v 45AH | ||
Operating system | Operating type | Manual operation, manual walking + remote control (optional) | |
Operating feature | Comai hydraulic system (optional) | ||
Standard configuration | Diesel engine and electric motor (dual power) | ||
Whole vehicle size | 4500*1450*2100mm | ||
Weight | 6400kg | ||

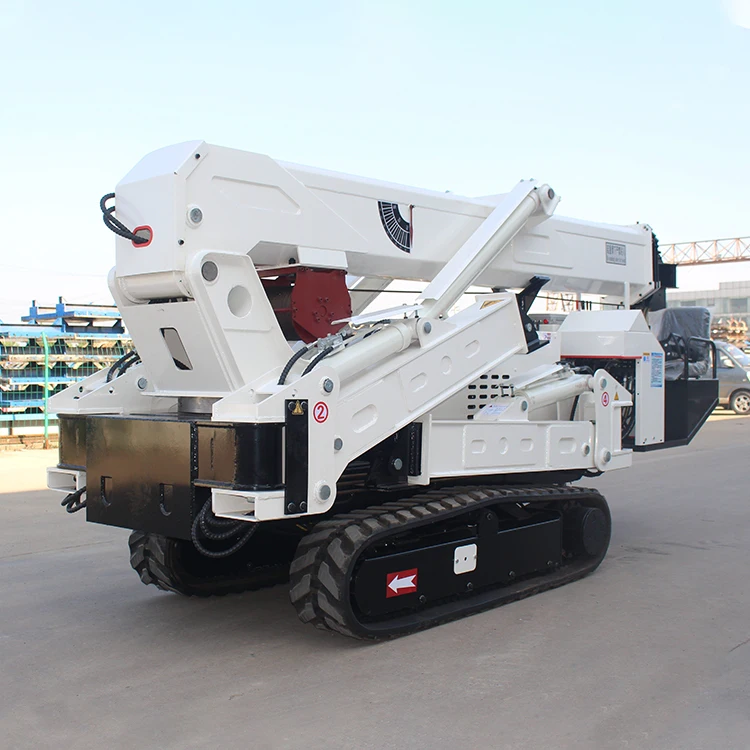

Products Details
Every detail is customized for you, colors, logo, engine...
safe load indicator, remote control, CE EPA Tier 4 engine can be optional

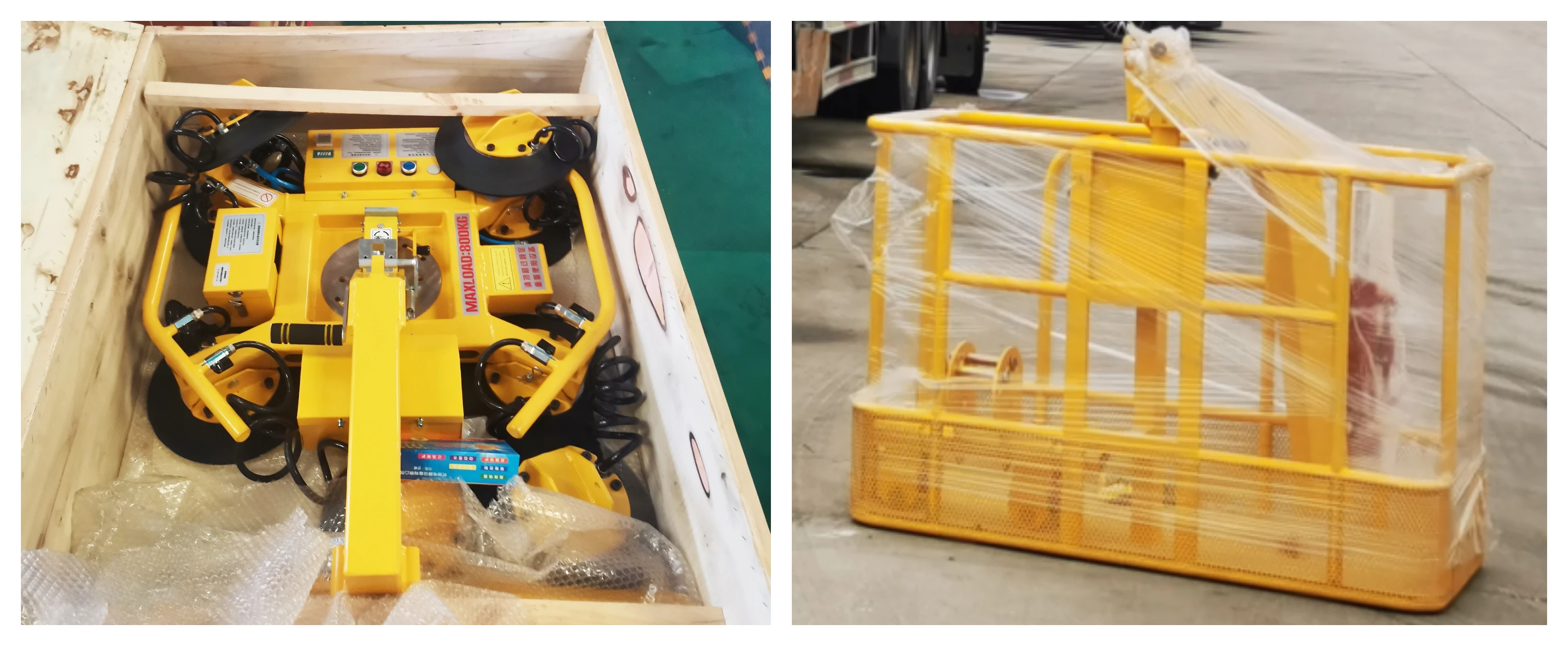

Vacuum glass lifter and hanging basket can be optional
Recommend Products
TSC800 Spider crane with lift capaciry 8000kg.
Standard machine with lift height 18000mm, option fly jib or auxiliary jib, increases the lift height to 20400mm or more.
TSC300 Spider crane with lift capaciry 2950kg.
Standard machine with lift height 9500mm, option fly jib or auxiliary jib, increases the lift height to 11900mm.
TSC120 Spider crane with lift capaciry 1200kg.
Standard machine with lift height 6800mm, option fly jib or auxiliary jib, increases the lift height to 9200mm.
TSC500 Spider crane with lift capaciry 5000kg.
Standard machine with lift height 17000mm, option fly jib or auxiliary jib, increases the lift height to 17400mm or more.
Applications
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm section adopts avU-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
