Micro 375mm Slurry Balance tunnel boring machine pile drivers or trenchless piping constructions
- Category: >>>
- Supplier: Realtop Heavy Industry Co. Ltd.
Share on (1601276962263):
Product Overview
Description
Product Description

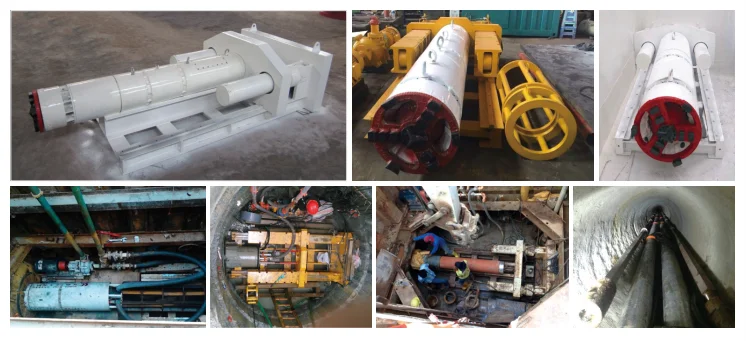

The micro slurry balance pipe jacking machine is applied to the construction of municipal micro pipelines (sewage, water
supply, power cable pipe, communication cable pipe, natural gas pipe, etc.). The pipe materials are usually concrete pipe,
steel pipe and ceramic pipe. It is suitable for construction under the different geological conditions such as soil, sand soil,
pebbles and gravel with small particle size. The jacking distance of the straight line is not more than 200m. It completes soil
cutting, propulsion, continuous slag discharge and other operations by slurry balance method, to complete the safe, efficient
and high-quality trenchless laying of micro-pipelines, can better control land subsidence.
Specification
Note: Following parameters can be adjusted based on clients needs, rated pressure of hydraulic system is 31.5Mpa.
Customer-built is available.
| item | pipe jacking machine |
| Core Components | Bearing, Gearbox, PLC, engine |
| Place of Origin | China |
| - | Hunan |
| Weight | 9kg |
| Warranty | 1 Year |
| Brand Name | REALTOP |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
Torque (KN·M) | 5.7 |
Machine Diam O.D.*L (mm) | 530*2800 |
Cutterhead Power (KW) | 4*1 |
Revolution (r/min) | 0-7 |
Steering cylinders (KN*st*set) | 60*16*2 |
Hydraulic Unit (KW) | 0.85 |
| Slurry Line Diam.(mm) | 65 |
| Shaft Dimension(mm) | 2000*1800 |
| Power Source(Hz/V) | 50/400 |
Note:Above parameters can be adjusted based on clients needs.
Selling Point
1.Experience With Trenchless pipe jacking technology: REALTOP's microtunneling machine is designed for a wide range of applications including sewage, tunnels, and coal mine projects. Our micro tubular jacking machine works with various types of pipes including concrete, steel, HDPE, and offers efficient management of clay, soil, silt, and coal mine soil conditions.
2.Advanced Torque Management System: The micro tunnel boring machine boasts a powerful torque of 34KNM, allowing it to efficiently handle various soil types and heavy-duty applications. Our microtunneling systems can be customized to provide an optimal balance between performance and efficiency.
3.High-Quality Components Marine components and Bassement parts: REALTOP's micro jacking machine is built-to-last with a one-year warranty on core components including PLC, Engine, Bearing, and Gearbox. These state-of-the-art components ensure that our coating machine performs consistently and reliably in various environmental conditions.
4.Comprehensive After-sales Technical Support: We are dedicated to supporting our customers' success. Our after-sales service offers expert engineers to remotely service machinery when needed, saving valuable time and resources.
5.One-week delivery, free maintenance, customer training: REALTOP's microtunneling machine is marked as a 'Hot Product 2019' and comes with a one-week delivery, free maintenance, and customer training package. Our prompt, efficient service ensures a smooth and enjoyable user experience.
Company Introduction
Realtop Heavy Industry Technology Co., Ltd is located in Changsha, the capital of Hunan Province with the reputation of '
the capital of world engineering machinery '. It is a high-tech enterprise specializing in the manufacture of trenchless pipe
jacking, shield and TBM full-face tunneling system equipment. The company integrates R & D, manufacturing, sales, after
sales, overall solutions and engineering construction services.
Since established in 2009, Realtop Heavy Industry has been mainly committed to exploring overseas markets, the
cumulative number of exported pipe jacking machines ranks among the top in the world. It provides first-class system
equipment for major underground engineering contractors in China, Hong Kong and Southeast Asia. Our design of
customized product and effective after-sales service - aiming to unconditionally solve customers' issues in time, enabled us
always win more opportunities in the same stage competition and be rewarded back with customers' high recognition and
continuous referral.
'Benchmarking world-class and constantly surpassing itself ', Realtop Heavy Industry welcomes all customers and
friends in trenchless field to carry out technical communication with a confident and open mind, and jointly discusses the
optimal solution for underground construction full of unknown and uncertain factors.
FAQ
1. who are we?
We are based in Hunan, China, start from 2009,sell to Southeast Asia(60.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Western Europe(3.00%),Southern Europe(3.00%),Northern Europe(3.00%),Africa(3.00%),Mid East(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Trenchless Equipment, Pile Hammer, Concrete Equipment, Mechanical Parts
4. why should you buy from us not from other suppliers?
-
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken: English,Chinese
