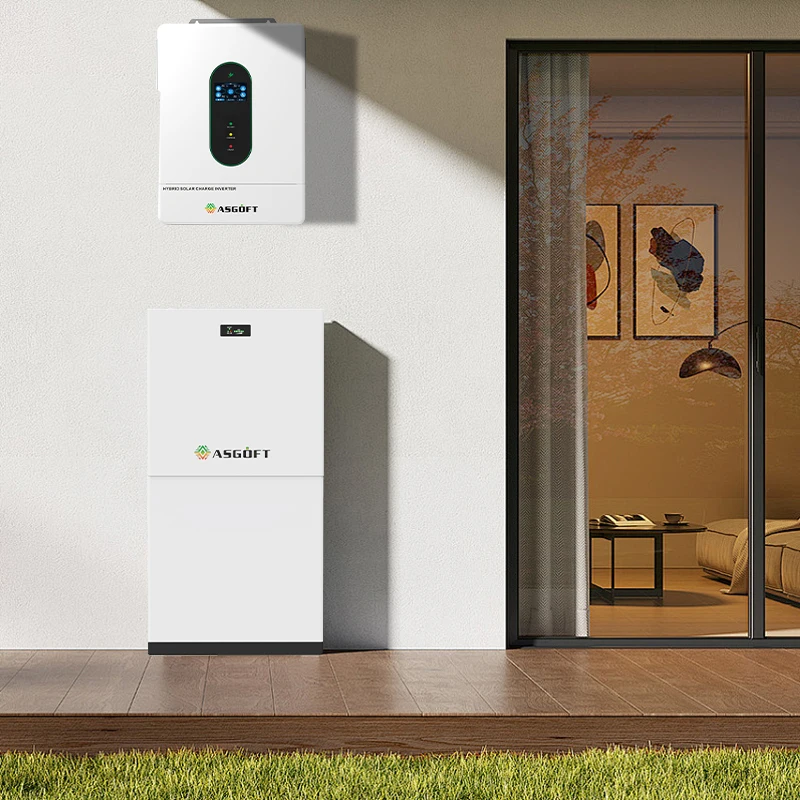

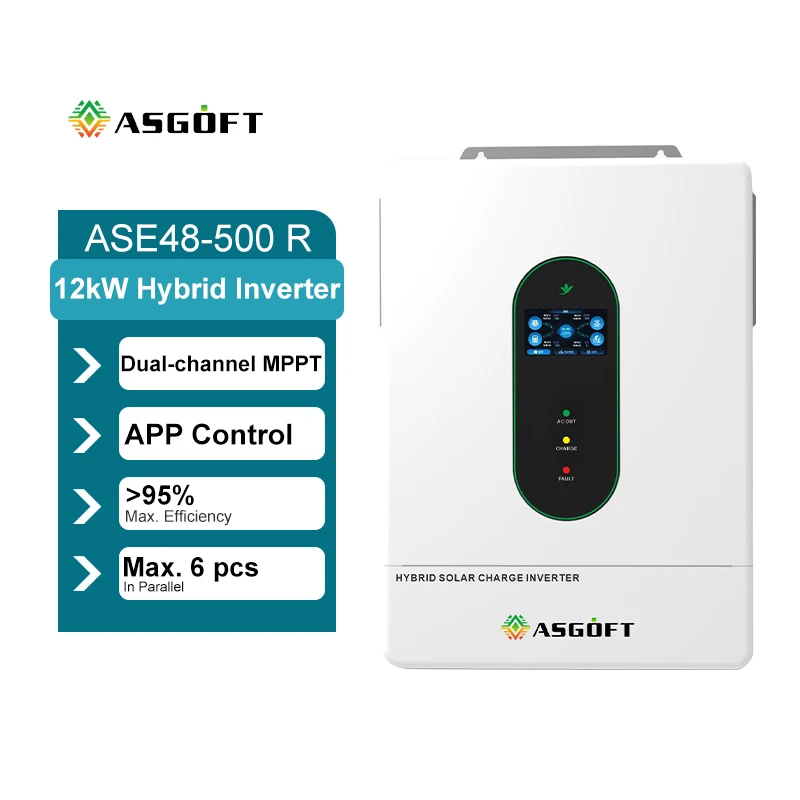

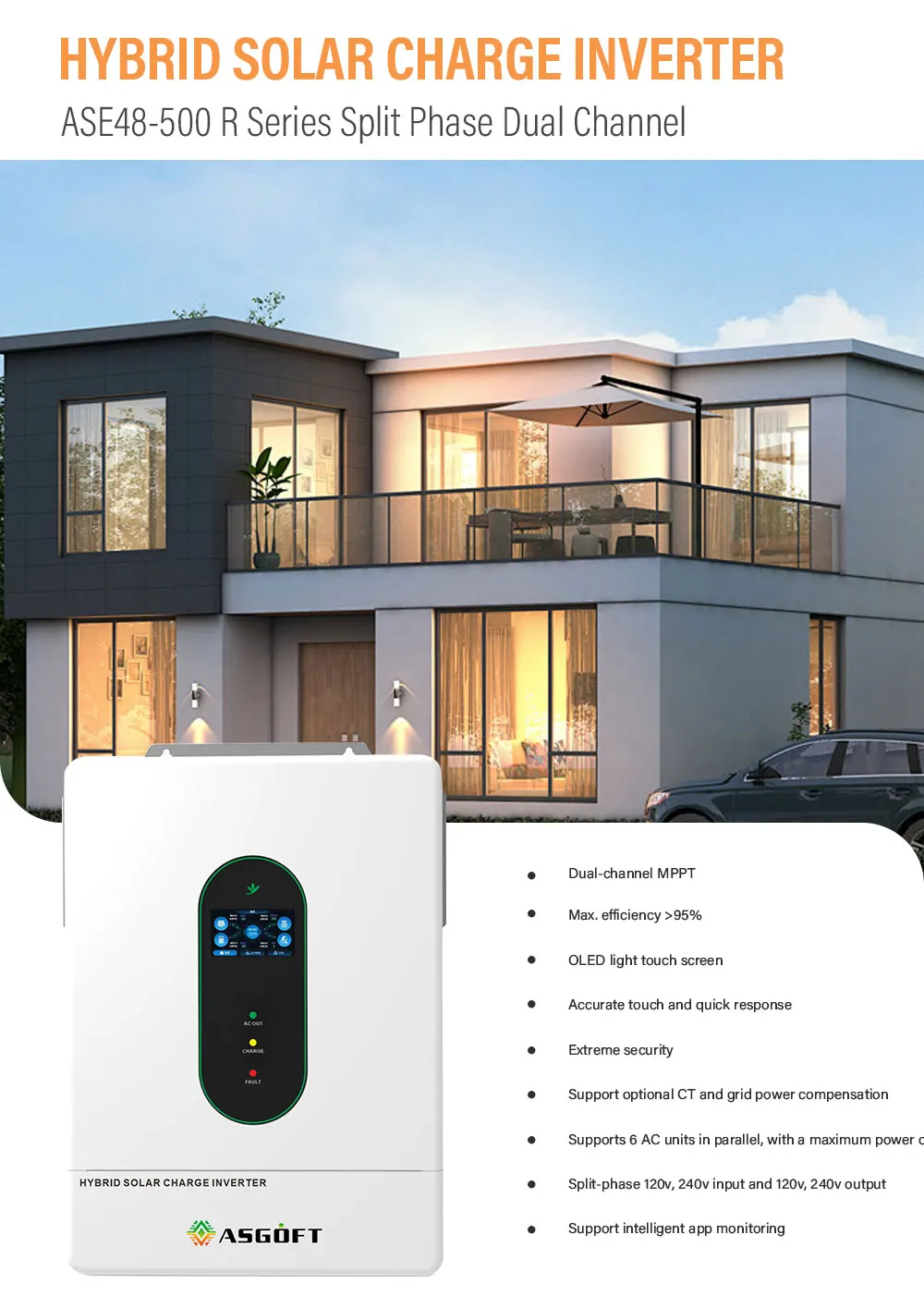

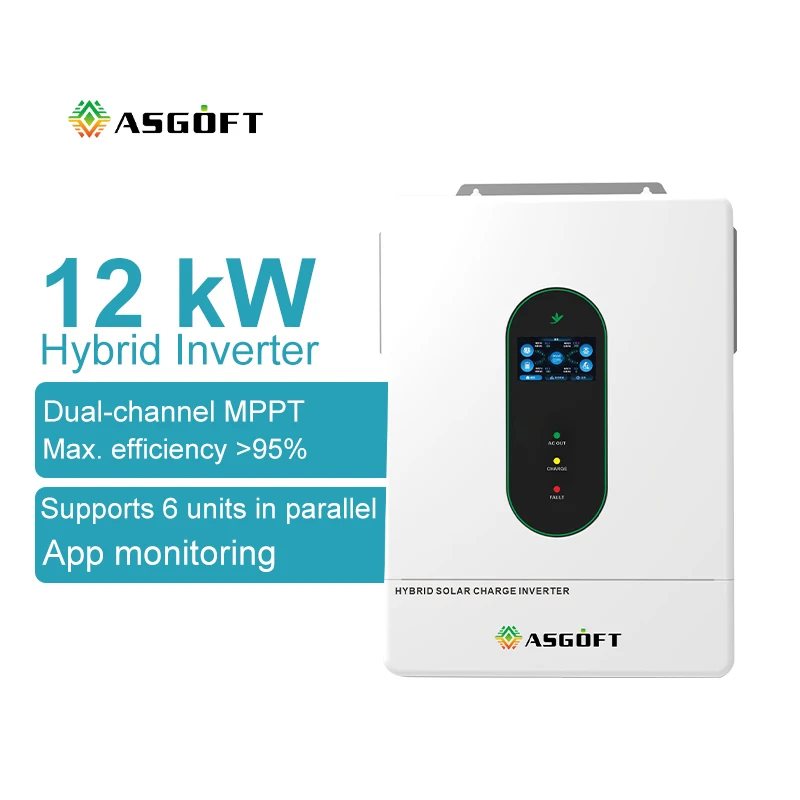

Asgoft split phase EU warehouse 220/230/240V Pure Sine Wave Hybrid System with MPPT 12kw 10kw 8kw solar inverter Smart on grid
- Category: >>>
- Supplier: Guangdong Asgoft New Energy Co. Ltd.
Share on (1601276974414):
Product Overview
Description
Our products have overseas warehouses in Germany
Welcome OEM/ODM Orders
Product Paramenters
Model | ASE48100M200-500R | |
Parallel mode (function reserved) | 280Ah | |
Allow quantity | 1~6 | |
Mains mode | 3800Wh | |
Nominal input voltage | 120(L1/N, L2/N)/240Vac(L1/L2) | |
Input phase voltage range | (85Vac~140Vac)±2% | |
Frequency | 50Hz/60Hz （Auto detection) | |
Frequency range | 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz); | |
Max. efficiency | >95% | |
Conversion time (bypass and inverter) | 10ms (typical) | |
Max. bypass phase overload current | 2P，63A/63A(L1/L2) | |
Inverter mode | 90-280V AC+3V (APLMode)170-280V AC+3V (UPS Mode) | |
Output voltage waveform | Pure sine wave | |
Nominal output power（VA）/（W） | Split phase: 10000VA/10000W Single phase:7200VA/7200W (limited by the wiring terminals) | |
Power factor | 1 | |
Nominal output voltage (Vac) | 120Vac (L1/N, L2/N)/240Vac(L1/L2) | |
Output frequency range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | |
Max. efficiency | >91% | |
Overload protection | (102% < load <110%) ±5%: report error and turn off the output after 5 minutes;(110% < load < 125%) ± 5%: report error and turn off the output after 10 seconds;Load >125% ±5%: report error and turn off the output after 5 seconds; | |
Peak power | Split phase: 15000VA Single phase: 15000VA | |
Loaded motor capability | 5HP | |
Nominal battery input voltage | 51.2V (Minimum starting voltage 44V) | |
Battery voltage range | 40.0Vdc~58.6Vdc±0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen) | |
Save power mode | Load≤25W enter power-saving mode | |
Mains charge | 100V DC | |
Battery type | Lead acid or lithium battery | |
Max. charge current (configurable) | 120A | |
Charge voltage range | 40 –58.6Vdc | |
Solar charge | Air cooling | |
Max. PV open circuit voltage | 500Vdc | |
PV operate voltage range | 90Vdc~500Vdc | |
MPPT voltage range | 90Vdc~450Vdc | |
Battery voltage range | 40-58.6Vdc | |
Max. PV input power/current | 6000W×2/22A×2 | |
Charge current range (configurable) | 200A | |
Max. hybrid charge current（PV+AC） | ||
Max. hybrid charge current (configurable) | 0-220A | |
Certification | ||
Safety certification | UL STD.1741 | |
EMC certification level | FCC part15, CLASS B | |
Operate temperature range | -10°C to 55°C(>45°C derating) | |
Storage temperature range | -25°C ~ 60°C | |
Noise | ≤60dB | |
Humidity range | 5% to 95%（Conformal coating protection） | |
Cooling | Forced air cooling, variable speed of fan | |
communicate | USB/RS485(/WiFi/GPRS)/ Dry node control | |
Dimensions（L*W*D） | 620*450*132 | |
Weight（kg） | 23.8 | |
Company Profile
Our Exhibition
Certifications

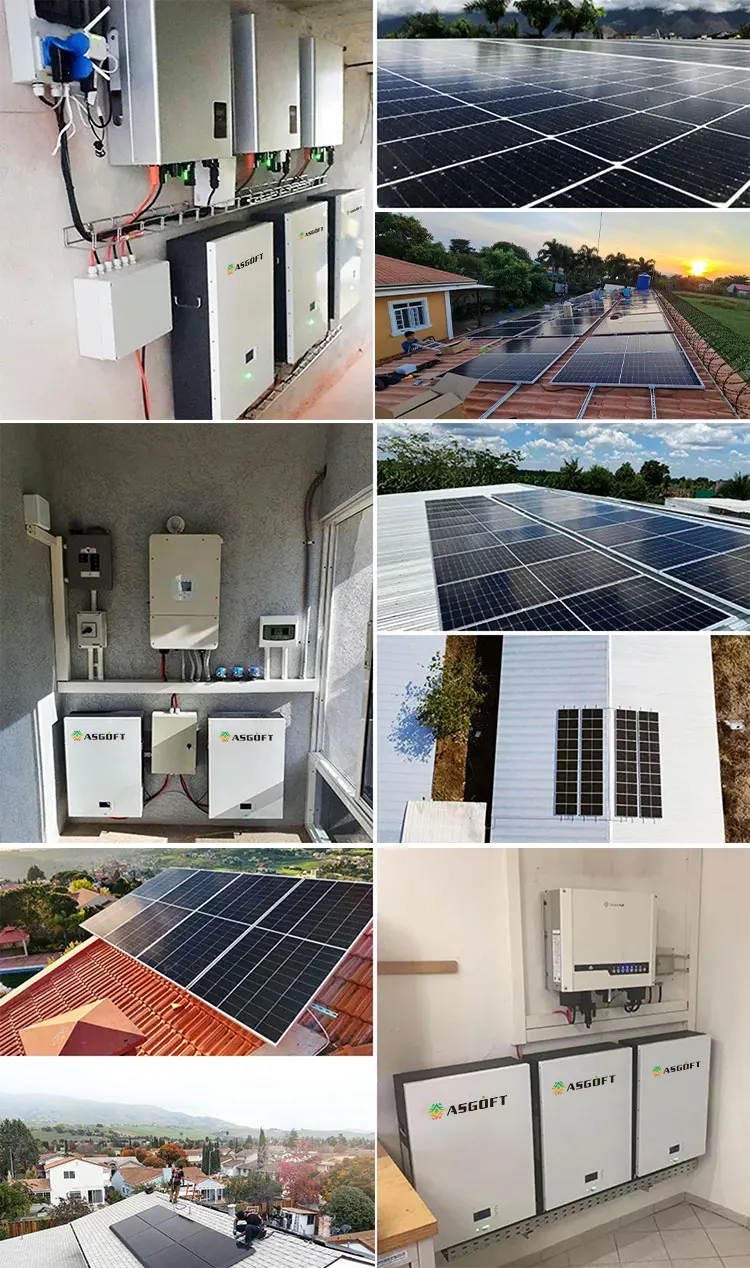

Customer Project
Logistics Transportation
FAQ
Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.
Q2: How long is the warranty on the product?
A2: We provide 2-year warranty service for free, and we can also provide 10-year warranty service if you need it.
Q3: How do you ensure product quality?
A3: All of our products undergo rigorous testing before leaving the factory, and the defective rate is less than 0.2%
Q4: Can I buy one sample for testing?
A4: Sure, Support sample testing
Q5: How to solve technical problems?
A5: We have professional engineers to provide you with free after-sales service consultation 24 hours a day, so that your problems can be easily solved.
Q6: How long is the product delivery time?
A6: Sample:2-3 working days
Q2: How long is the warranty on the product?
A2: We provide 2-year warranty service for free, and we can also provide 10-year warranty service if you need it.
Q3: How do you ensure product quality?
A3: All of our products undergo rigorous testing before leaving the factory, and the defective rate is less than 0.2%
Q4: Can I buy one sample for testing?
A4: Sure, Support sample testing
Q5: How to solve technical problems?
A5: We have professional engineers to provide you with free after-sales service consultation 24 hours a day, so that your problems can be easily solved.
Q6: How long is the product delivery time?
A6: Sample:2-3 working days
Order:within 3-15 working days depending on the order quantities
OEM order:7-25 working days after confirming the sample
Q7: Why choose us?
A7: Reliable-- The full series of products have been approved with CE, UN, RoHS, MSDS, etc.
Advantage-- Custom service: BMS function increasing, High Voltage/High Current adjusting, Inverter-Battery Commissioning,
Warehouse and local service team in Europe.
Professional-- 8years of experience in Lithium Batteries, comprising the design, manufacturing, testing and application.
Q7: Why choose us?
A7: Reliable-- The full series of products have been approved with CE, UN, RoHS, MSDS, etc.
Advantage-- Custom service: BMS function increasing, High Voltage/High Current adjusting, Inverter-Battery Commissioning,
Warehouse and local service team in Europe.
Professional-- 8years of experience in Lithium Batteries, comprising the design, manufacturing, testing and application.
