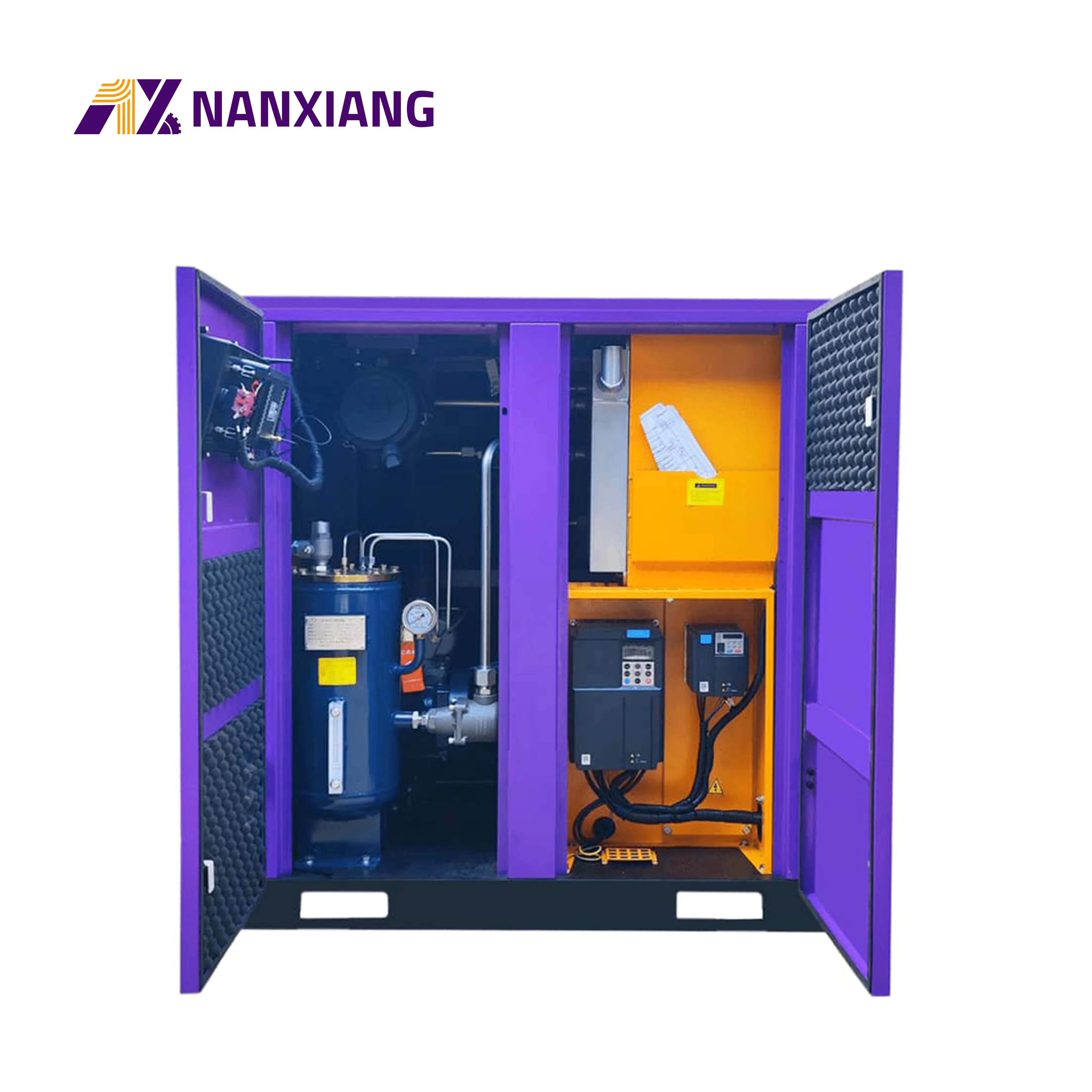

Low Price Electric 37kw 50hp Rotary Screw Air Compressor 240cfm Energy Saving Vsd Screw Air Compressor With Ghh Air End
- Category: >>>
- Supplier: Jiangxi Nanxiang Air Compressor Co. Ltd.
Share on (1601276984409):
Product Overview
Description
Product Details
Mode | NXG-37V |
Free Air Delivery(m³/min) | 4.6-6.8 |
Motor Power(kw/hp) | 37 / 50 |
Starting Mode | Variable frequency |
Working pressure(bar) | 7-13 |
Type of Cooling | Air cooling/Water cooling |
Dimension(mm) | 1450*960*1470 |
Weight(kg) | 720 |
Air Outlet Pipe Diameter(inch) | DN40 |
ABOUT THIS ITEM:

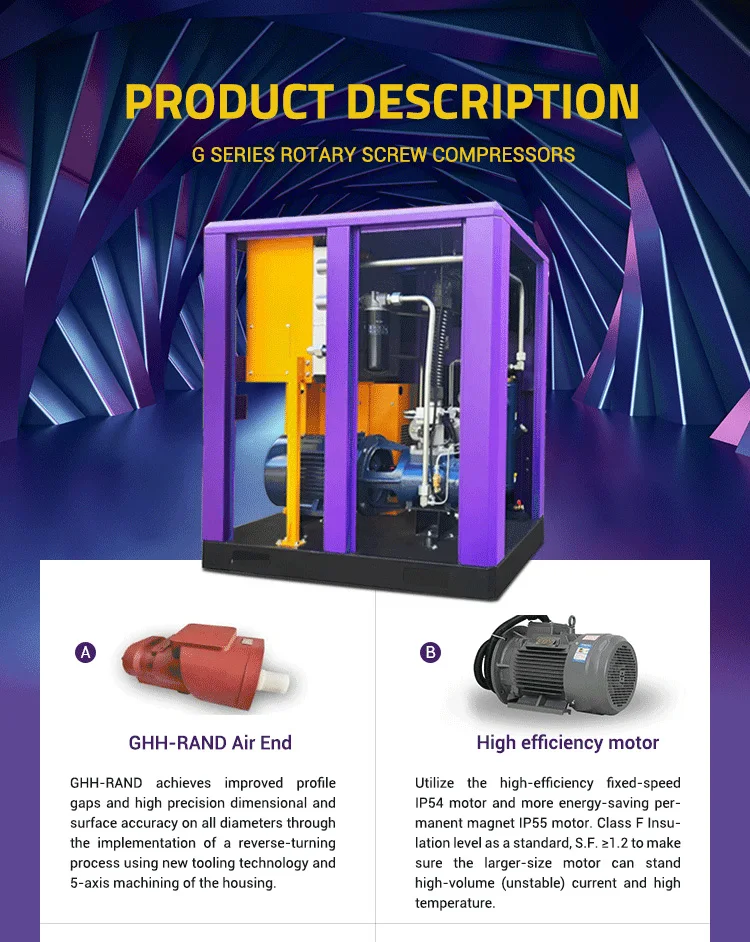

● HH-RAND Air end, imported technology with higher precision;
● Premium IP54 IE3 asynchronous motors & Super Premium IP55 IE4 motors

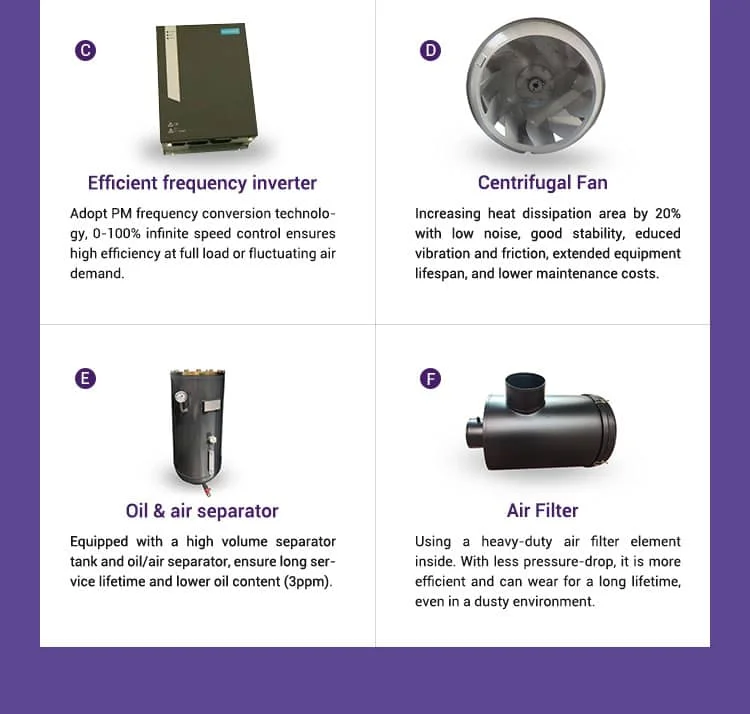

● Divided-type inverter MD-500 from INOVANCE；
● Double VSD system；
● 8000 hours of synthetic lubricating oil；
● IOT inside the PLC system；
● Schneider contactor；
● SKF bearings;
● Produce more free air delivery and have a longer service lifetime；
● Thermostat valve and differential pressure sensor are equipped；
● Premium IP54 IE3 asynchronous motors & Super Premium IP55 IE4 motors
● Divided-type inverter MD-500 from INOVANCE；
● Double VSD system；
● 8000 hours of synthetic lubricating oil；
● IOT inside the PLC system；
● Schneider contactor；
● SKF bearings;
● Produce more free air delivery and have a longer service lifetime；
● Thermostat valve and differential pressure sensor are equipped；

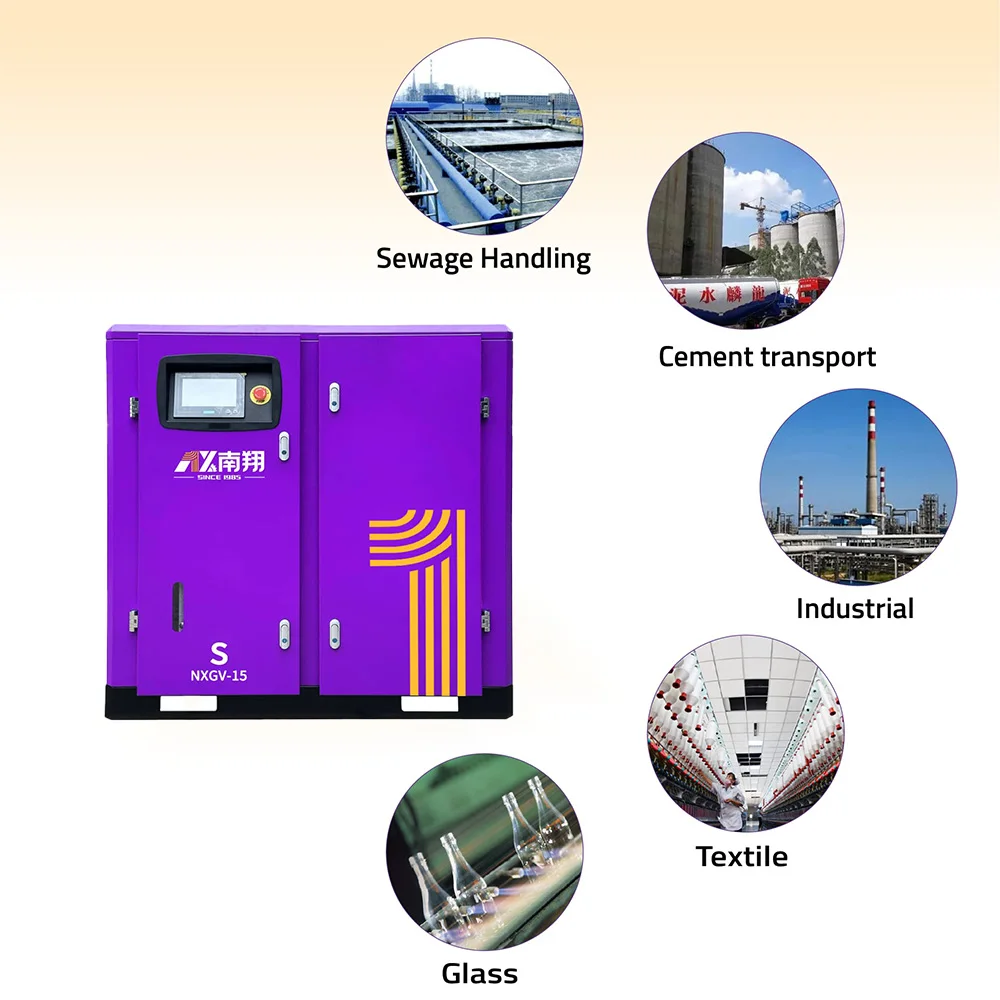

Wide Applications
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage, Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage, Shops, Advertising Company, etc.
Our Services
Pre sale:
1. Professional technical personnel, 24*7 online services
2. Customize your compressor based on your specs
After sales:
1. Before shipping each machine, we will test it out
2. Free maintenance parts within 1 year
3. Warranty of the air end for 5-10 years
4. Customizable languages
1. Professional technical personnel, 24*7 online services
2. Customize your compressor based on your specs
After sales:
1. Before shipping each machine, we will test it out
2. Free maintenance parts within 1 year
3. Warranty of the air end for 5-10 years
4. Customizable languages
Product Parameters
Model | Power (kW/HP) | Rated pressure (bar) | Lubricating Oil Volume (L) | Air Flow & Outlet (m³/min) | Dimensions (mm) | Weight (kg) | Air Outlet Pipe Diameter |
NXG-7.5V | 7.5 / 10 | 7-13 | 7 | 0.8-1.2 | 940*650*830 | 165 | DN15 |
NXG-11V | 11 / 15 | 7-13 | 12 | 1.1-1.7 | 1180*800*1210 | 370 | DN20 |
NXG-15V | 15 / 20 | 7-13 | 12 | 1.6-2.5 | 1180*800*1210 | 382 | DN20 |
NXG-18V | 18 / 25 | 7-13 | 18 | 2.0-3.1 | 1300*910*1290 | 520 | DN25 |
NXG-22V | 22 / 30 | 7-13 | 20 | 2.32-3.66 | 1300*910*1290 | 520 | DN25 |
NXG-30V | 30 / 40 | 7-13 | 20 | 3.7-5.9 | 1450*960*1470 | 580 | DN40 |
NXG-37V | 37 / 50 | 7-13 | 20 | 4.6-6.8 | 1450*960*1470 | 720 | DN40 |
NXG-45V | 45 / 60 | 7-13 | 20 | 5.6-8.9 | 1450*960*1470 | 760 | DN40 |
NXG-55V | 55 / 75 | 7-13 | 45 | 7.4-11.2 | 1800*1250*1670 | 1480 | DN50 |
NXG-75V | 75 / 100 | 7-13 | 45 | 9.8-14.5 | 1800*1250*1670 | 1680 | DN50 |
NXG-90V | 90 / 120 | 7-13 | 65 | 11.92-17.95 | 1800*1250*1670 | 1880 | DN50 |
NXG-110V | 110 / 150 | 7-13 | 80 | 13.63-21 | 2560*1650*1900 | 2400 | DN80 |
NXG-132V | 132 / 175 | 7-13 | 88 | 16.04-24.65 | 2560*1650*1900 | 2700 | DN100 |
NXG-160V | 160 / 215 | 7-13 | 100 | 18.89-30.7 | 2560*1650*1900 | 2900 | DN100 |
NXG-185V | 185 / 250 | 7-13 | 120 | 23.2-37 | 3450*2000*2150 | 3600 | DN100-16 |
NXG-200V | 200 / 270 | 7-13 | 120 | 26.0-41.5 | 3450*2000*2140 | 3750 | DN100-16 |
NXG-220V | 220 / 300 | 7-13 | 120 | 30.3-45.6 | 4000*2280*2250 | 3900 | DN125-16 |
NXG-250V | 250 / 335 | 7-13 | 160 | 32.5-50.2 | 4000*2280*2250 | 4150 | DN125-16 |
NXG-315V | 315 / 420 | 7-13 | 160 | 45.18-63.0 | 4000*2280*2250 | 4800 | DN125-16 |
NXG-355V | 355 / 475 | 7-13 | 180 | 47.97-67.5 | 4500*2280*2250 | 5200 | DN125-16 |
Note:
Standard voltage is 380V/50HZ/3P, other voltages are available for customization.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs. So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delighted to serve you. Welcome to consult.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs. So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delighted to serve you. Welcome to consult.
Production Process
Company Profile
About Us

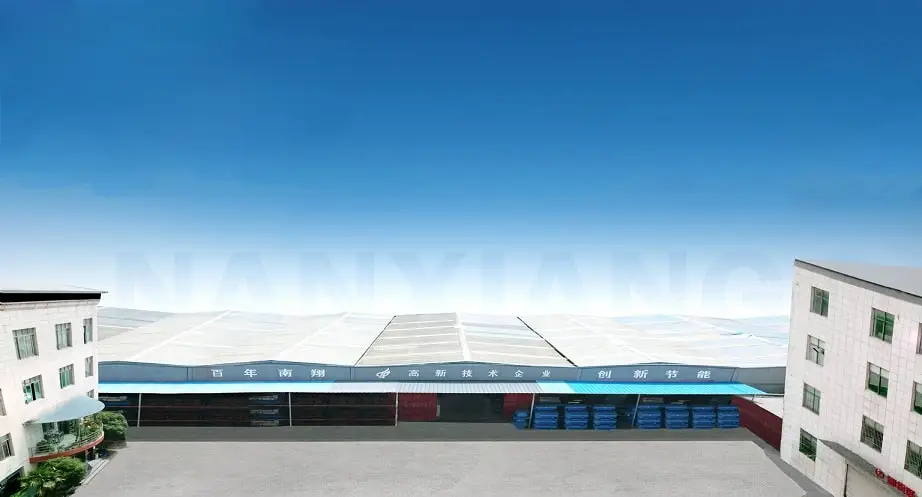

Jiangxi Nanxiang Air Compressor, restructured from state-owned enterprise ( Nanchang Air Compressor Factory), is one of the earliest Chinese manufacturers specializing in air compressors. As a certified supplier of China National Nuclear Corporation (CNNC), Nanxiang focus on the production of high-quality air compressors. The product range include permanent magnet variable speed screw air compressors, oil-free air compressors, centrifugal compressors, etc. all products are certified by ISO & CE.
Our Team
Nanxiang team comprises seasoned experts in fluid machinery, with extensive experience in energy-efficient engineering design and supply chain management.
FAQ
Q1: Why Choose us?
A: Our products are all qualified by CE & ISO 9001. Our company introduces the advanced technology of German screw machine, adhering to the German industrial design concept and rigorous manufacturing process, specializing in screw compressor design, production and sales enterprises.
Q2: Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
Q3: Can you do OEM and ODM?
A: Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
Q4: Which shipping way can you provide?
A: We can provide shipping by sea, by air , by express and etc. according to customer requirements.
Q5: How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
Q6: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2. Prepare and Well-trained engineers available to overseas service within one year.
3. Worldwide agents and after service available.
A: Our products are all qualified by CE & ISO 9001. Our company introduces the advanced technology of German screw machine, adhering to the German industrial design concept and rigorous manufacturing process, specializing in screw compressor design, production and sales enterprises.
Q2: Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
Q3: Can you do OEM and ODM?
A: Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
Q4: Which shipping way can you provide?
A: We can provide shipping by sea, by air , by express and etc. according to customer requirements.
Q5: How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
Q6: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2. Prepare and Well-trained engineers available to overseas service within one year.
3. Worldwide agents and after service available.
