Product Overview

Description





WELCOME TO AND-GLOBAL
AND-GLOBAL offers the same price to all: the budget price possible. Whether you’re a geek trying to find the latest new electronics,or a common shopper looking to get hold of the latest network products for your home, office or outdoor use,www.and-global.com provides light-speed service and best wireless or wired network solutions.
Our professional quality control system ensures our products are all original and not copy units while maintaining the highest of standards. Our technical team would give perfect network solution for our entire customers focusing every detail.


We serve customers from virtually every country in the world, and our goal is to be able to serve everyone worldwide.


PCB ASSEMBLY SERVICES
From prototyping to volume production Select PCB provides a broad range of printed circuit board assembly and manufacturing services. Select PCB assembly services include designing, prototyping, new product introduction (NPI), supply chain management,and assembling a wide range of printed circuit boards. In addition Select PCB provides BGA reworking, conformal coating, IC programming, X-ray inspection, in-circuit testing (ICT), automated optical inspection, cable and wire harness assembly, Box Build assembly, and many more. The PCB assemblies that we manufacture follow all the necessary industry standards, and are RoHS compliant.

As a part of our PCB assembly services, we also provide prototype assemblies, which help you get a clear picture of the final assembly. This will also help in getting rid of the errors in designing at an earlier stage, thus reducing the overall manufacturing costs.



            CAPABILITIES
》Quickturn Prototypes
》Full Turnkey Solution
》Semi-turnkey material handling solution
》Consignment
》Large Volume Production
》Thru-Hole Technology
》Material Management Solutions
》Medical Device Production
》BGA and Micro BGA Technology
》Design for Manufacturability
》3D Printing of Prototypes
》ROHS Compliance (Lead-Free Process)
》Flex & Rigid Flex Assembly
》Mechanical Assembly/Sub Assembly/System
》Assembly /Programming/Testing


 How Do We Get Started
PCB Lead Time
100 < QTY < 1000✔1. Send Gerber file and BOM file to us
✔ 2. Professional purchasing team will quote within 24 hours
✔ 3. Confirm the purchase order and arrange payment
✔ 4. Arrange bare PCB and BOM parts procurement
✔ 5. PCBA factory data review and internal review
✔ 6. Incoming material inspection, professional IQC engineers will check the BOM one by one
✔ 7. For order production, after the bare PCB and BOM are prepared, the assembly will
be completed in2-5 days, depending on the order volume
✔ 8. Inspection (manual visual inspection, AOI, X-Ray, final inspection)
✔ 9. Global shipping, delivered worldwide by air or sea in the fastest 2 days
✔ 10. Customer feedback
✔ 11. Complete the order
QTY < 50
7Days
2 Days
50 < QTY < 100
10 Days
5 Days
100 < QTY < 1000
12 Days
7 Days
1000 < QTY < 10K
17 Days
9 Days


A Leading Provider Of Fully Turnkey PCB Assembly Services IN China




Capabilities Of Turnkey PCB Assembly
Capability
Standard
Certifications
ISO 9001: 2015, ISO14001, 2015, IPC, UL, Reach, ROHS3485:2016
Lead Time
1-5 Days, As per the scheduled period
Parts procurement
Full Turnkey, Partial Turnkey, and Kitted
Assembly Types
Surface Mount (SMT), Through-hole, Mixed Technology. Single and double-sided SMT/PTH
Stencils
Laser cut stainless steel and Nano-coating
Components
Passive components smallest size 01005, Fine pitch components smallest size 8 Mils pitch
Component packaging
Reels, Cut Tape, Tube, and lose parts
Inspection
X-ray analysis, AOl, and Microscope to 20X
Solder Type
Leaded and Lead- free/ RoHS compliant
Assembly Surface mount connectors
Yes
Wave Soldering
Yes
PCB Finish
HASL Electrolytic gold, Electroless gold, Electroless silver, Immersion gold, Immersion gold, Immersion tin, and OSP
Panelized PCB
Tab routed, Breakaway tabs, V-scored and Routed +V scored
Rework
BGA removal and replacement station, SMT IR rework station, and Through-hole reworks station.




◊PCB Services


PCB Manufacturing
PCBCart offers full-feature PCB production services with high reliability to be totally compatible with your requirement.Business covers rigid FR4 PCBs, HDI PCBs, FPC, Aluminum PCBs, Rogers PCBs, etc.
Learn More
* Expanded manufacturing capabilities
* Rigorous quality control options
* Value-added options: FREE DFM and more
* Online quote and order system
PCB Assembly
Covering PCB fabrication, parts sourcing, SMT and/or THT assembly, PCBCart’s one-stop turnkey PCBA services can be flexibly combined to meet your project’s scope, quality, schedule and budget needs. Learn More
* 01005, 0201, 0.4mm pitch BGA
* AOI, X-ray, FAI, Flying probe
* Certified components sourcing
* Box build assembly, IC programming

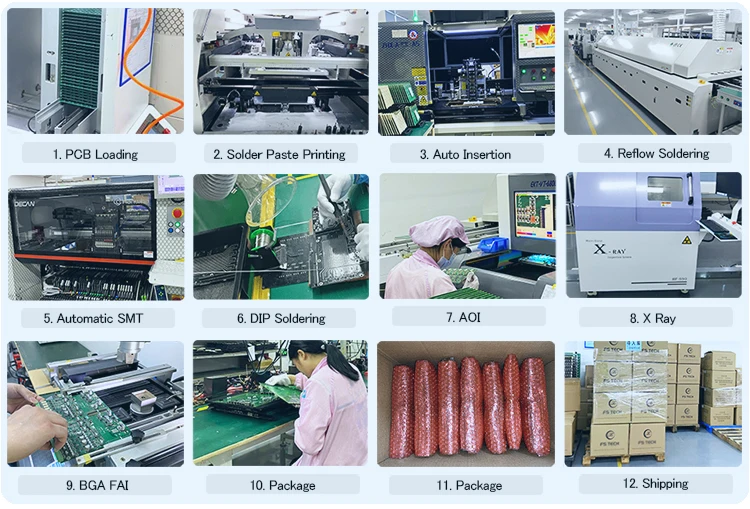

PCB Assembly Production Process
