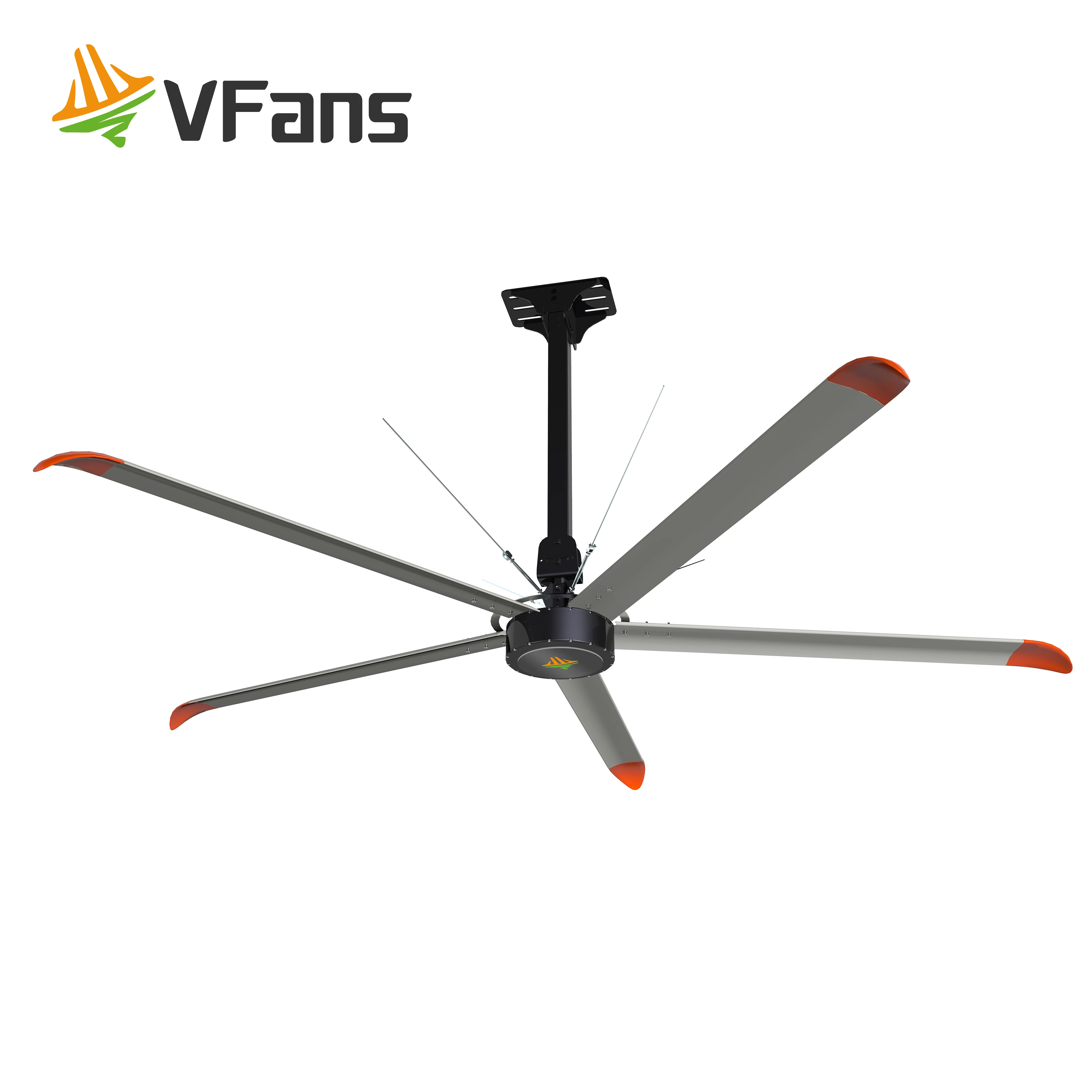

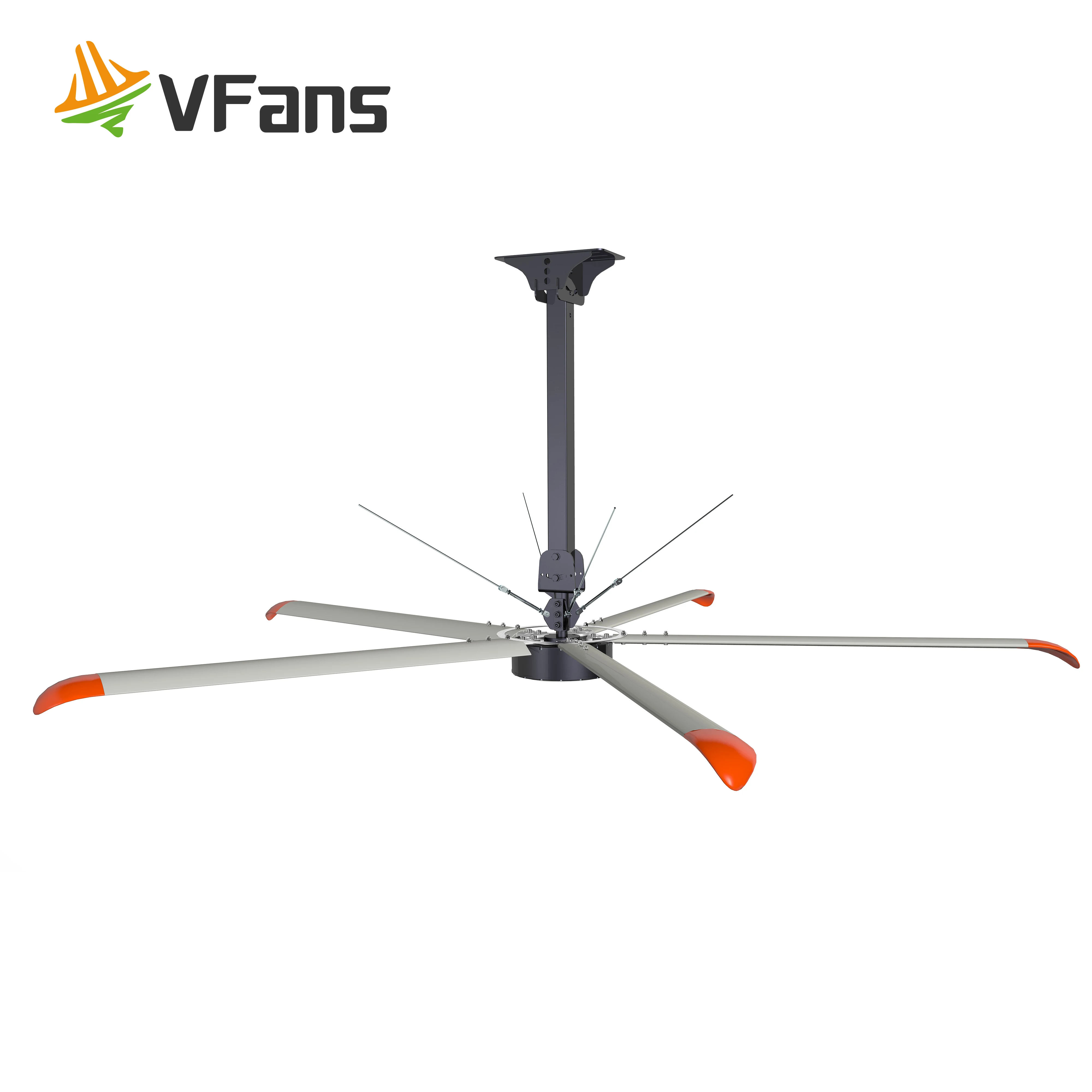

Industrial 11 17ft ceiling fan 5 Aluminum Blades 220v ceiling fan for School canteen
- Category: >>>
- Supplier: Guangdong Aikerong Technology Co. Ltd.
Share on (1601277006891):
Product Overview
Description

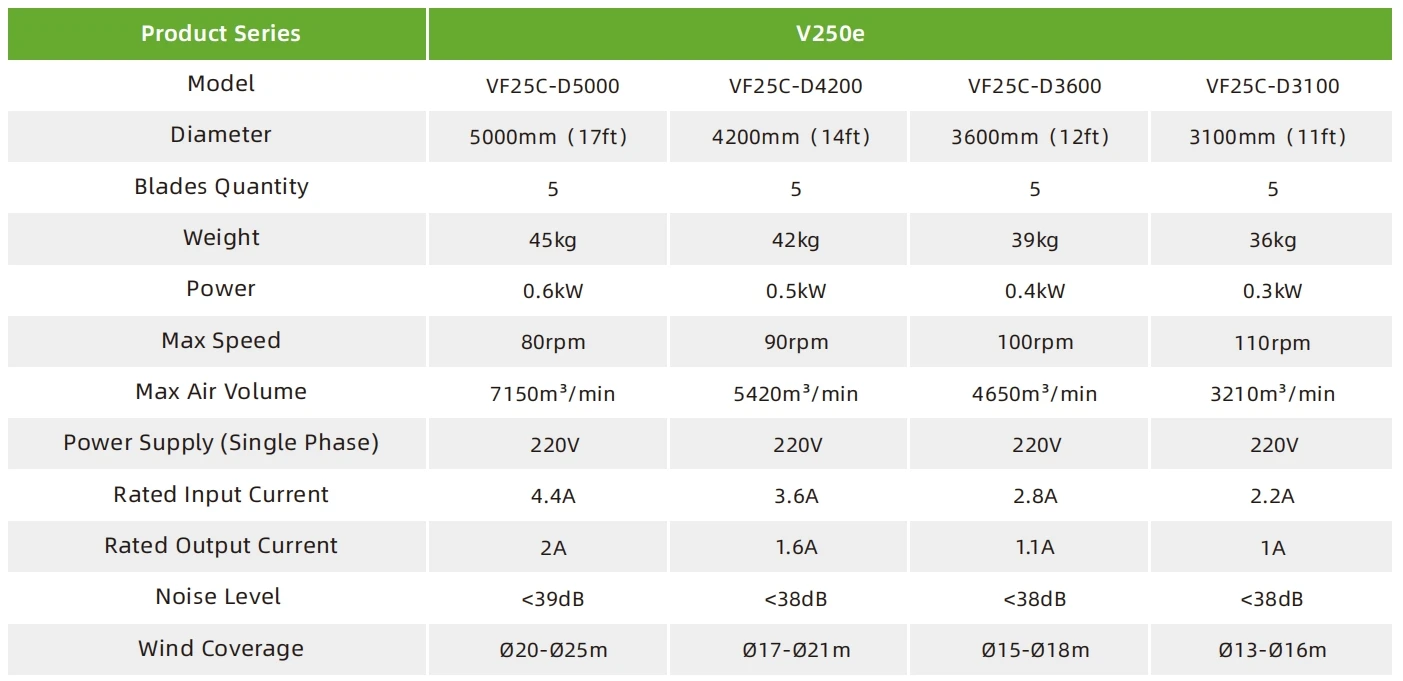

Product Paramenters
Details Images

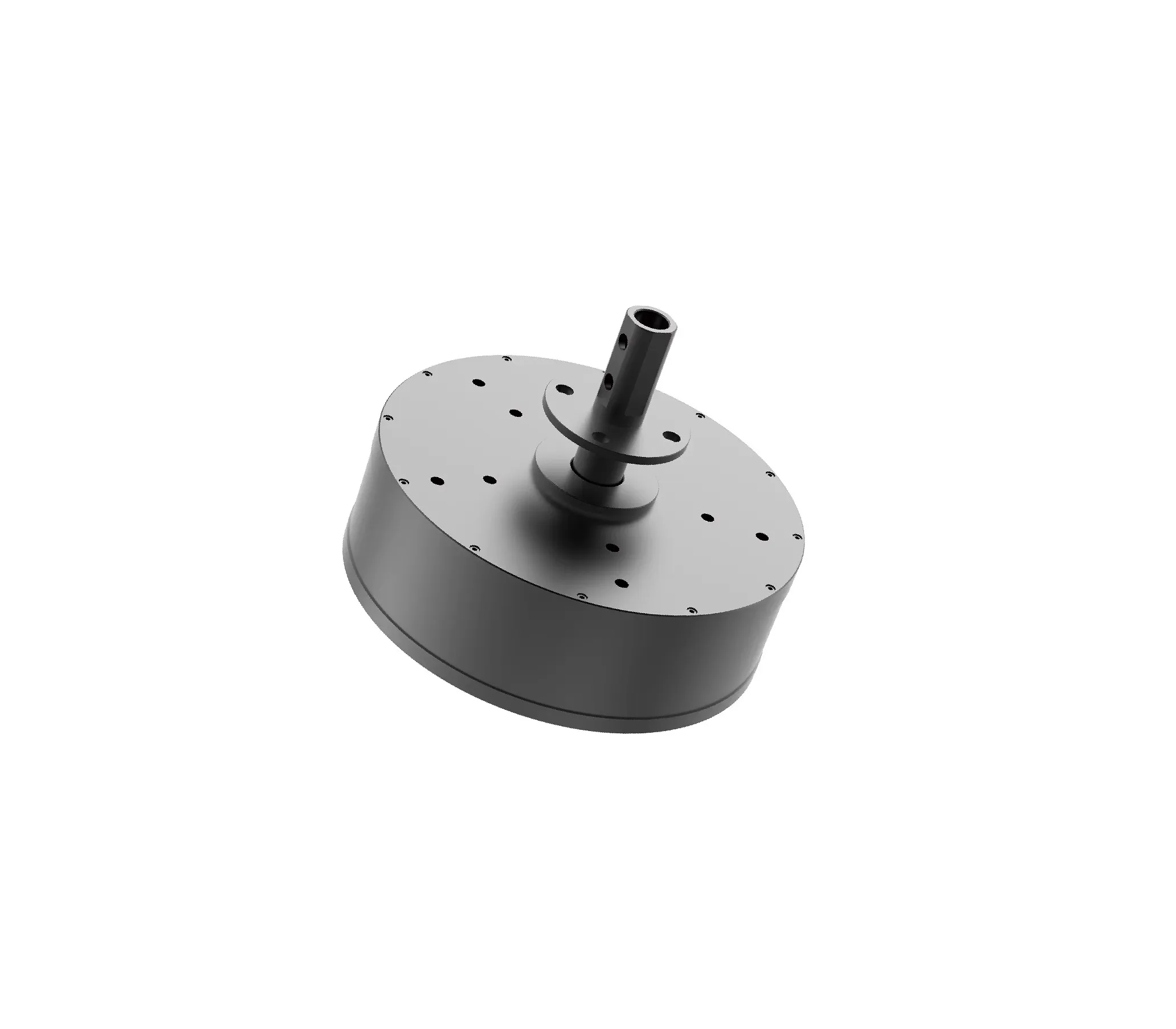

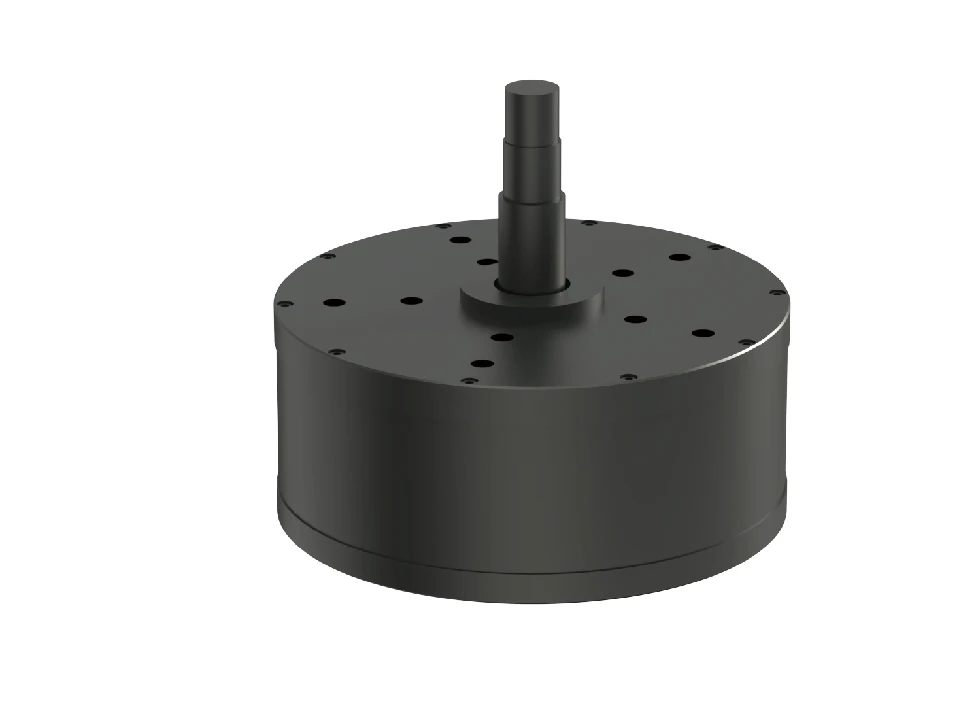

01 Drive system
· External rotor permanent magnet synchronous motor (PMSM)
· Triple-layer nickel plating, corrosion-
resistant, high thermo-stability magnetic steel, with a temperature resistant of 120℃
· High quality temprature and pressure resistant enameled copper wire, with a temperature resistance of 180℃
· Ultra efficient silicon steel sheet with high magnetic induction and low iron loss
· Motor with IP53, insulation grade F
· Motor winding vacuum impregnation and vacuum sealing technology, thermal conductivity, insulation, long service life, motor temperature rise < 65K
· Direct drive structure, long service life, maintenance free, energy-saving and environmentally friendly
`

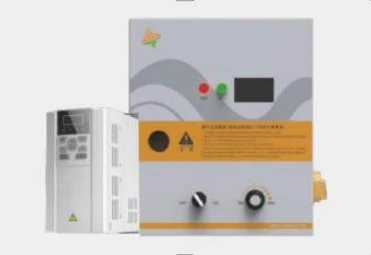

02 Control system
· Special integrated controller, easy to operate, durable and reliable
· Controller and motor are matched automatically by self- learning, automatic initial position detection
· The fan starts and stops smoothly and gently, effectively eliminating motor noise and vibration
· Multiple safety detection protection of the controller, automatic shutdown in distress, effectively prevent accidents
03 Fan blade system
· The fan blades are integrally extruded by an aviation grade aluminum magnesium alloy 2000T extruder, and the surface is anodized for corrosion resistance
· Wing shaped cross-section, with a main wall thickness of 2.5mm and a main reinforcing rib wall thickness of 3.1mm; also with 11 built-in reinforcing ribs, has a high strength
· The plug-in board is made of high-strength steel plate with a yield strength that ≥900Mpa, and is installed in an embedded
manner
manner

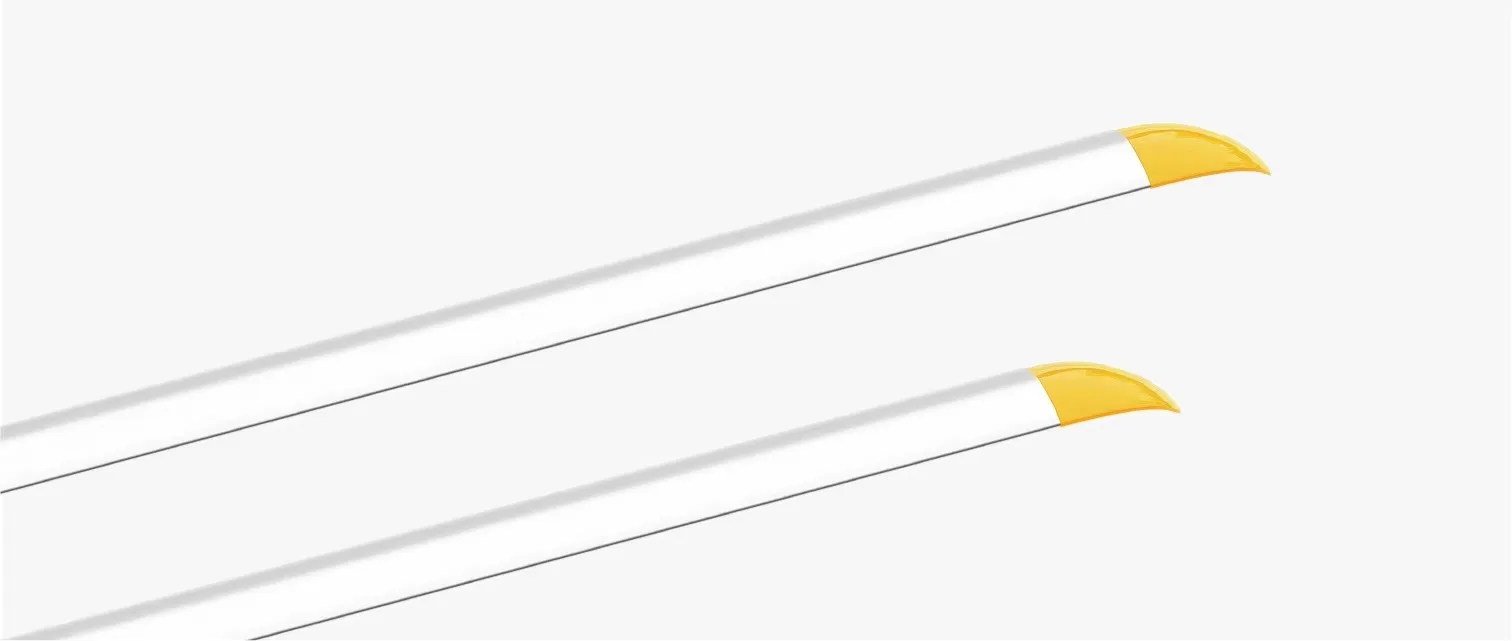

· Biomimetic tail wing has been awarded a national utility model patent as it aggregates the wind and brings better wind effect

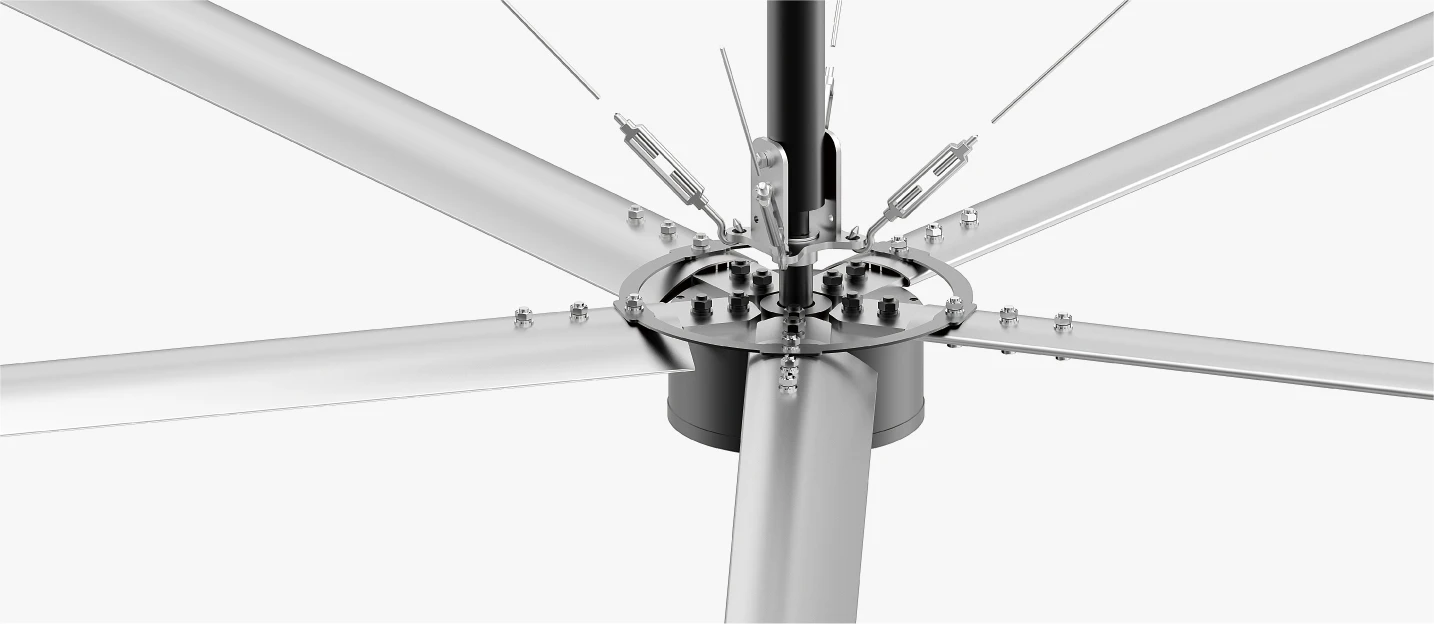

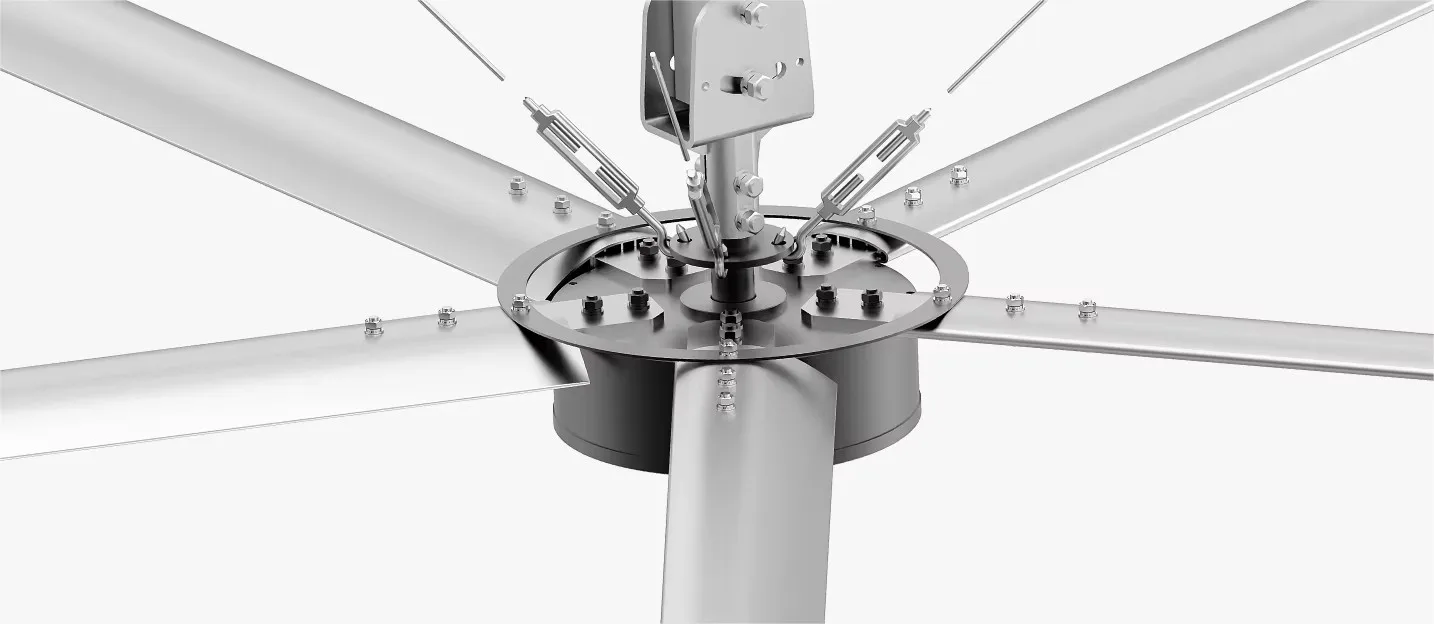

04 Safety system
· National utility model patent, the motor is integrated with lifting ring, a steel wire rope directly hangs the motor body to prevent
accidental motor falling
accidental motor falling
· The hanger is made of high-strength steel and has a frame structure with high strength
· The steel wire rope wraps around the main lifting beam and extends from the suspension rod to the motor hanger, protecting the overall structure
· Four 304 stainless steel wire ropes for traction and fixation,with good strength and corrosion resistance
· All fastening pieces are high-strength grade 12.9 screws with nickel plating treatment on the surface, which hasexcellent rust prevention effect
· All fasteners are added with specialized adhesive to prevent screws from loosening

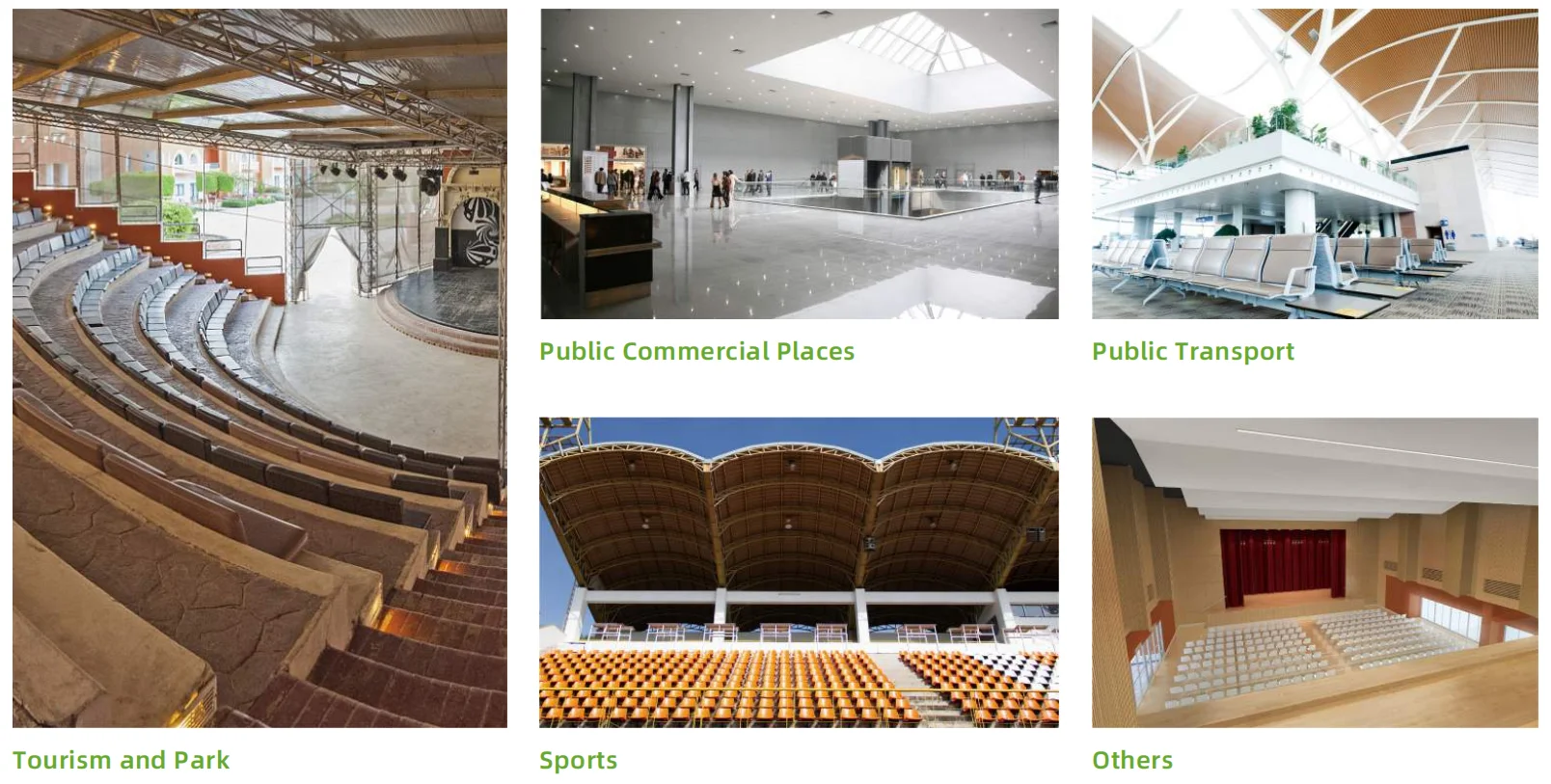

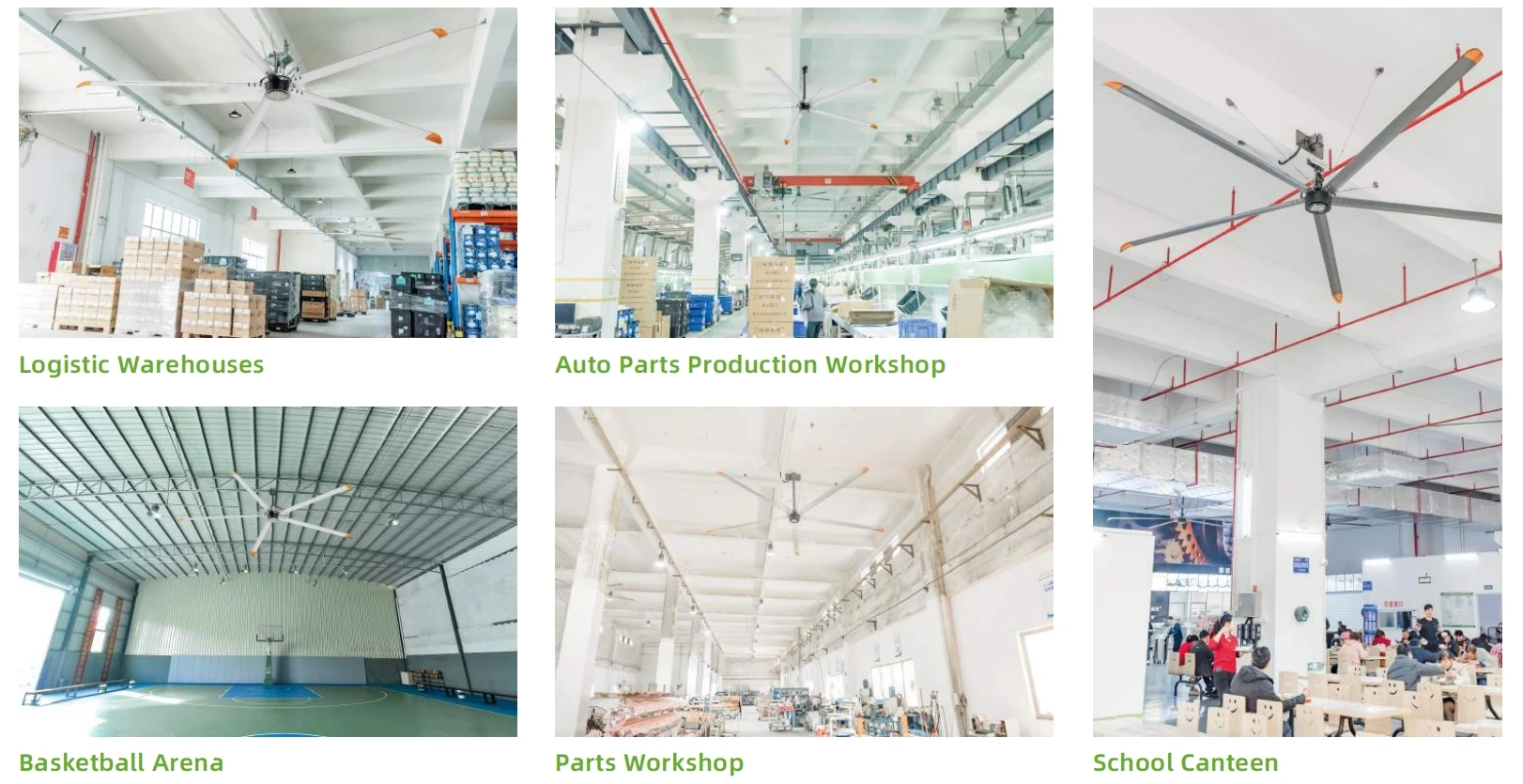

Application Area
Installation cases
Certifications
HONOR AND QUALIFICATION
Formerly known as Foshan Shunde Yongfeng Electromechanical Equipment Co., Ltd., the company built its first factory in 1993 and moved to Cuishanhu District in 2014. The new production base covers an area of 33 acres, while having over 70,000m factory buildings. Yongfeng is a high-tech enterprise who has passed ISO9001:2015, ISO14001:2015 management system, OHSAS18001 occupational health and safety management system, CQC、CE product certification system and so on.
