DR370A is specialized in measuring the thickness of coatings such as paint or three anti paint on the surface of PCB boards
- Category: >>>
- Supplier: Guangzhou Dongru Electronic Technology Co. Ltd.
Share on (1601277007263):
Product Overview
Description
Product Overview

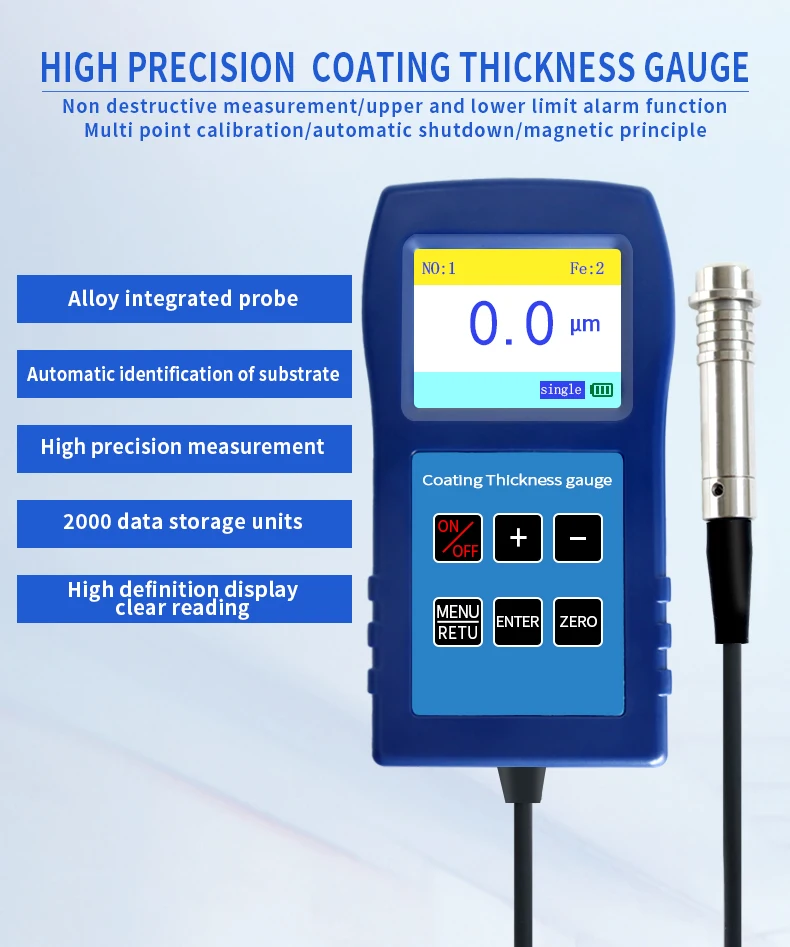

Coating Thickness Gauge

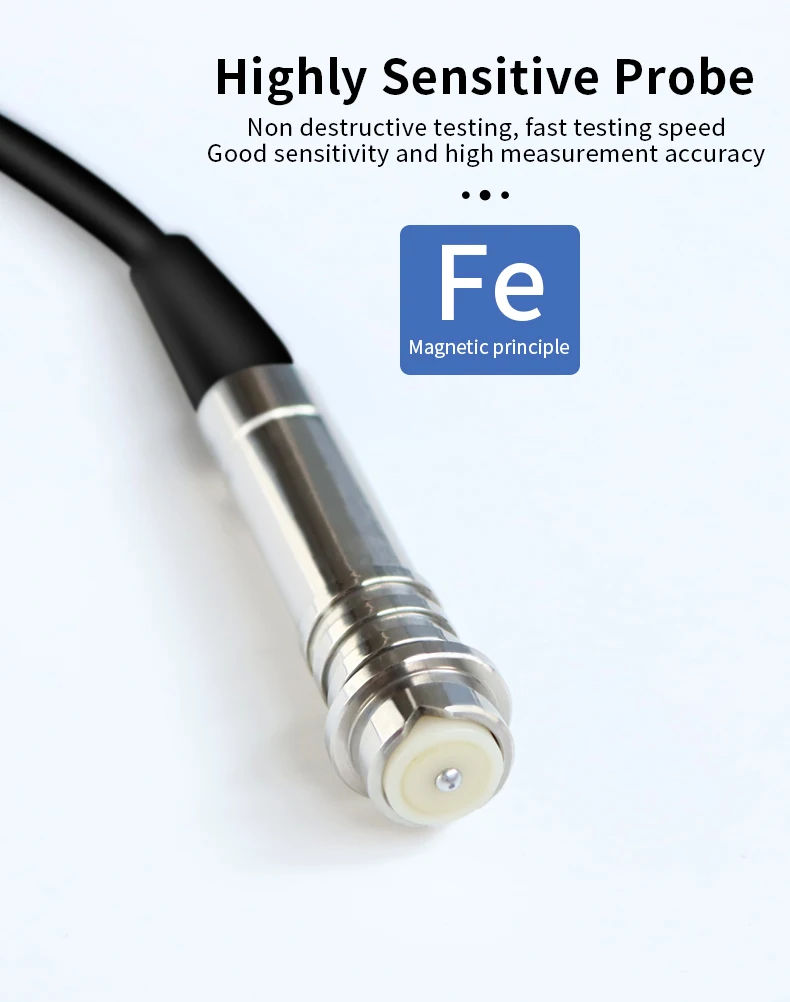

DR360 coating thickness gauge is a professional non-destructive testing instrument used to measure the thickness of nonmagnetic coatings and coatings on the surface of magnetic metal materials such as steel. Use the principle of magnetic induction measurement for fast non-destructive measurements.

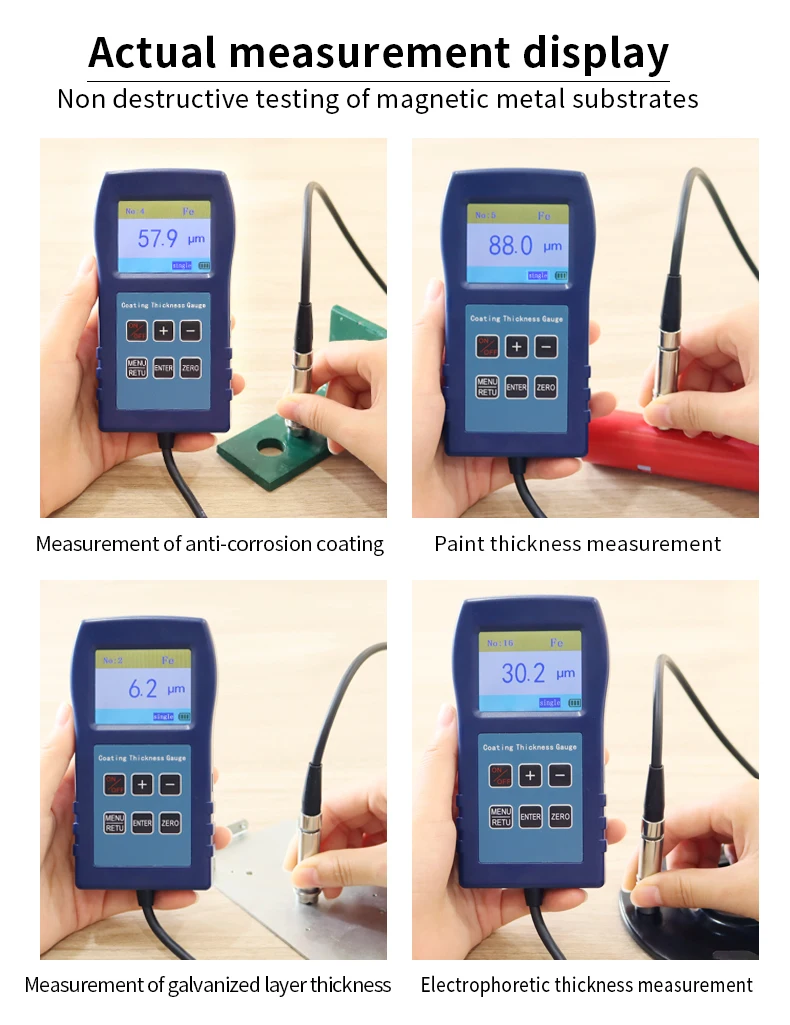

Magnetic thickness measurement method can be used to measure the thickness of non-magnetic coating on magnetic metal substrate (such as steel and iron) without damage (such as zinc plating, chromium, Gu, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coating, anti-corrosion and fireproof coating, etc.). Application: Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.

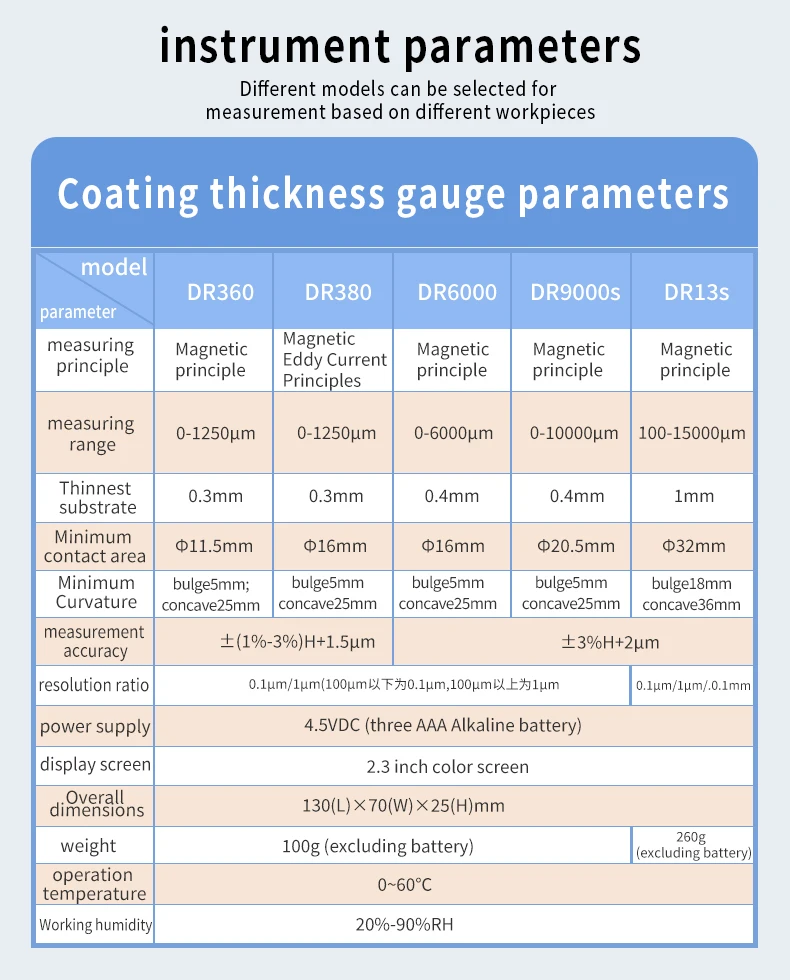

PRODUCT SPECIFICATIONS
Measuring range | 0-1250μm |
Minimum contact area | Φ11.5mm |
Measurement accuracy | ±(1%-3%)H＋1.5μm |
Thinnest substrate | 0.3mm |
Minimum Curvature | Convex 5mm; concave 25mm |
Resolving power | 0.1μm /1μm |
power source | three alkaline batteries |
Size | 130（L）×70（W）×25（H）mm |

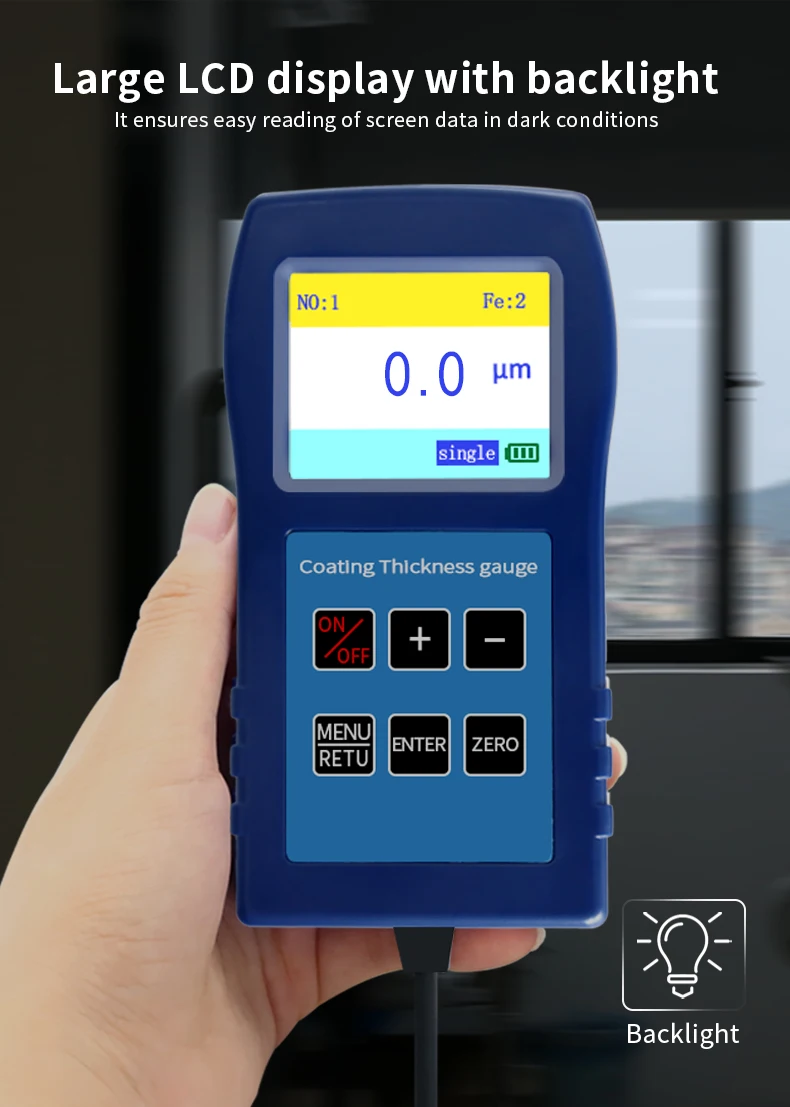

Display | 2.3 inch color screen |
Weight | 100g |
Using environment | 0℃-60℃and 20%RH—90%RH,not strong magnetic place. |

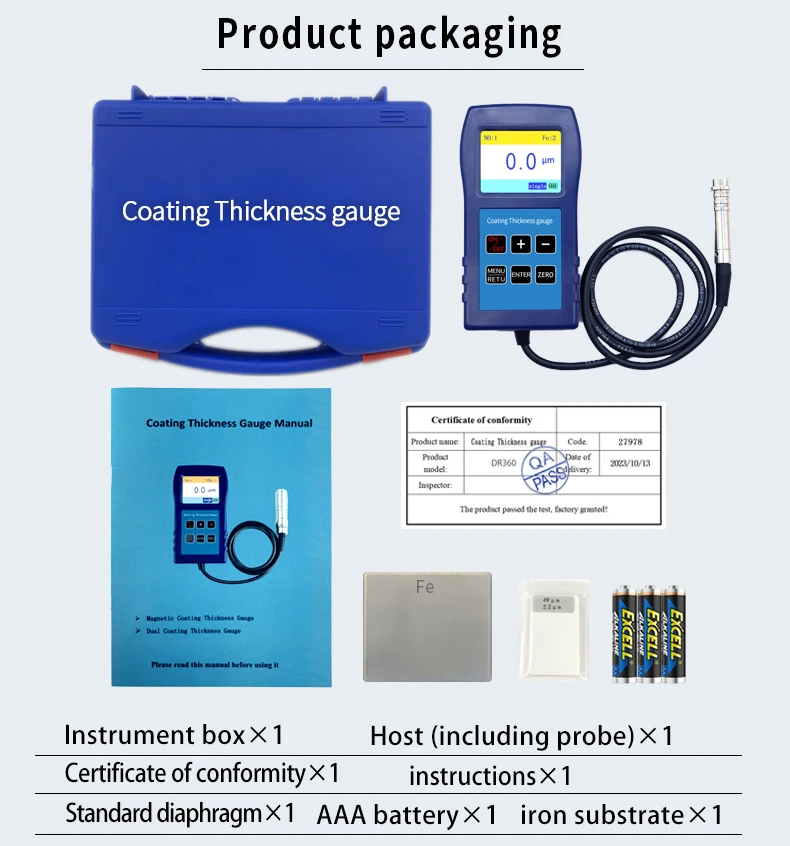

Product packaging
Company Profile
Certifications
FAQ
Q1：Are you a factory or trading company?
A1：We are a factory
Q1：MOQ?
A1：We don't have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.
Q1：Can I add my logo on the machine?
A1：Yes,OEM is available for us.But you should send us the Trademark authorization letter.
Q1：Do you have inspection procedures for these machine?
A1：100% self-inspection before packing
Q1：Payment Method?
A1：L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.
Q1：Shipping?
A1：
a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Guang zhou
d. By domestic logistics to your forwarder. (2-3days)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Guang zhou
d. By domestic logistics to your forwarder. (2-3days)
