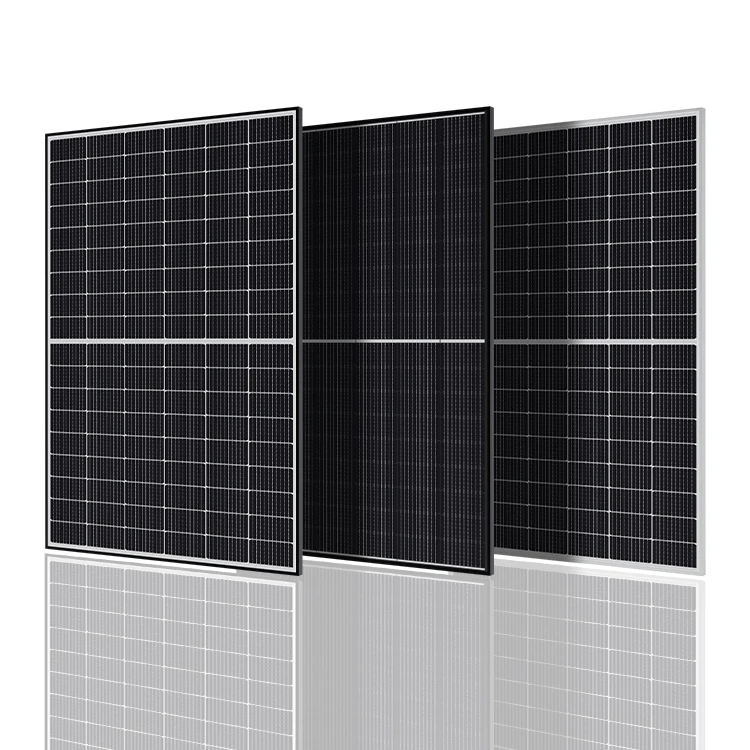

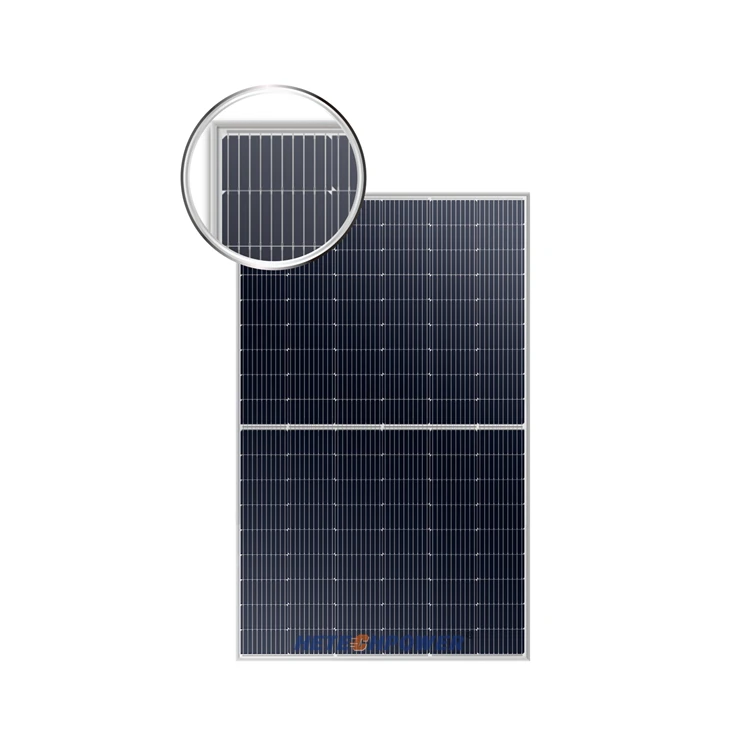

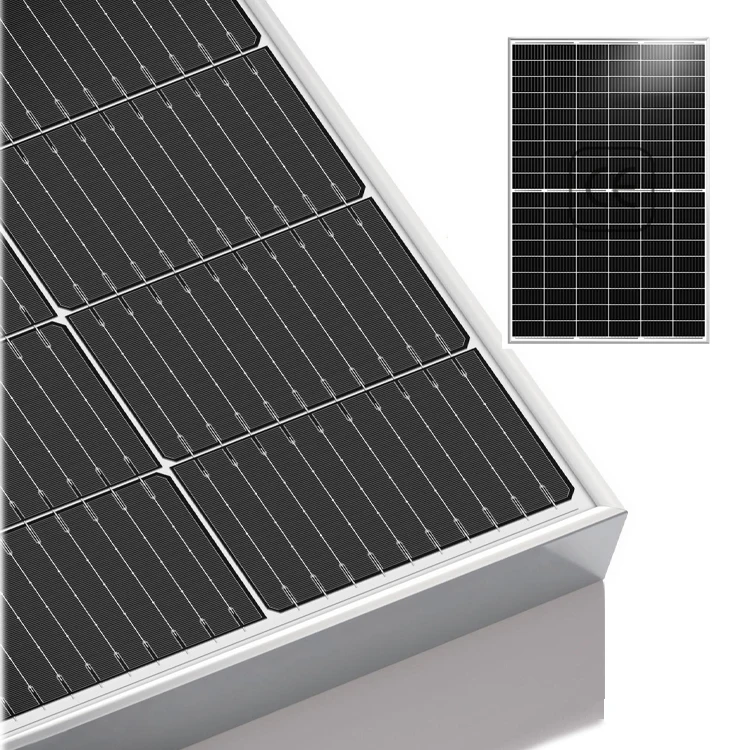

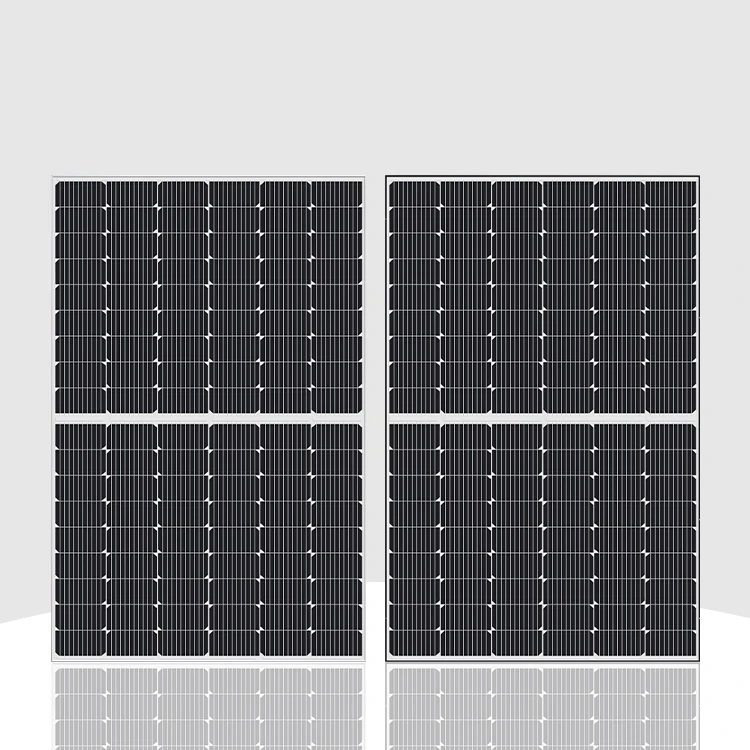

420w Most Efficient Solar Panels For Sale In Eu Warehouse 420w Cell Solar Panel Industrial Europe Solar Panel 420w
- Category: >>>
- Supplier: Zhengzhou Hetai Energy Co. Ltd.
Share on (1601277025568):
Product Overview
Description
Europe Warehouse Solar Panels 550W Photovoltaic Panel 560W 570W Black Monocrystalline Pv Module 540W 550W 550 Watt Solar Panel
Product Description

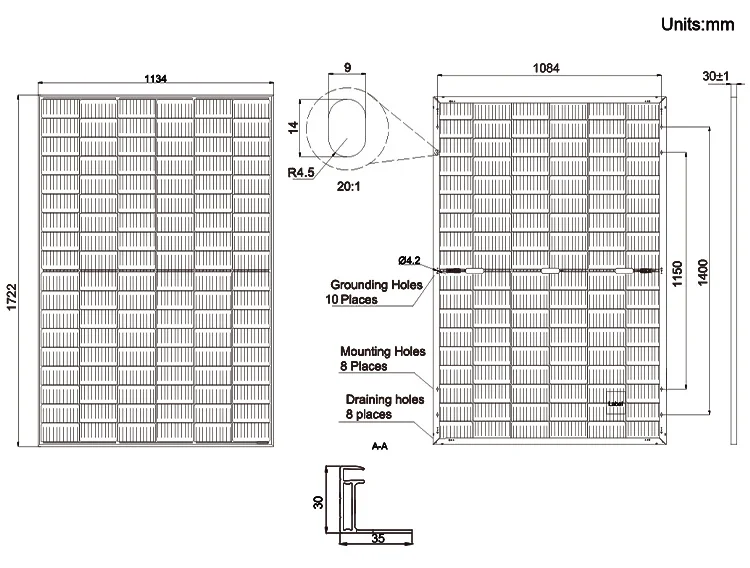

Structural Parameters | ||
Cells | 108pcs 182x91mm Monocrystalline solar cells | |
Module Dimension | 1722x1134x35mm(LxWxH) | |
Module Weight | 22.5kg | |
Frame | Anodized aluminum profile | |
Junction Box | Rated current:25A,IP68,TUV | |
Cable | Length Negative 400mm/Positive 300mm | |
Connector | Compatible with MC4 | |
STC | ||||||||||
Maximum Power (Pmax) | 410W | 415W | 420W | 425W | 430W | |||||
Maximum Power Voltage (Vmp) | 31.45V | 31.61V | 31.80V | 32.01V | 32.21V | |||||
Maximum Power Current (Imp) | 13.04A | 13.13A | 13.21A | 13.28A | 13.36A | |||||
Open-circuit Voltage (Voc) | 37.32V | 37.45V | 37.58V | 37.70V | 37.83V | |||||
Short-circuit Current (Isc) | 13.95A | 14.02A | 14.10A | 14.18A | 14.25A | |||||
STC | Irradiance 1000W/m2,cell temperature 25℃，AM1.5G | |||||||||
Operating Conditions | ||
Maximum system voltage | 1000/1500V DC | |
Temperature range | -40°C-+85°C | |
Series fuse rating | 25A | |
NOTC | 45±2°C | |
Isc temperature coefficient | (-0.033±0.001)%/°C | |
Voc temperature coefficient | (-0.29±0.01)%/°C | |
Pmax temperature coefficient | (-0.39±0.01)%/°C | |

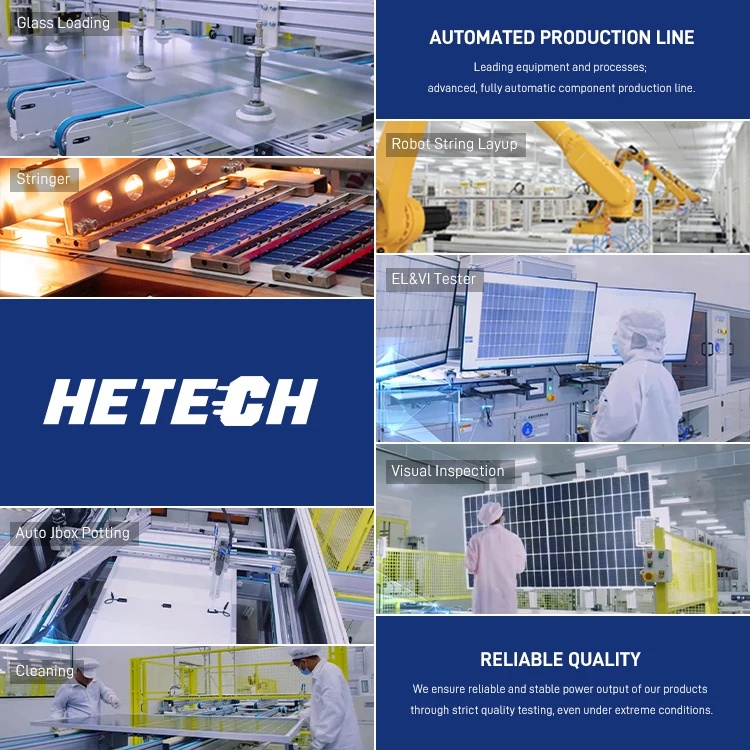

Company Profile
Certificate

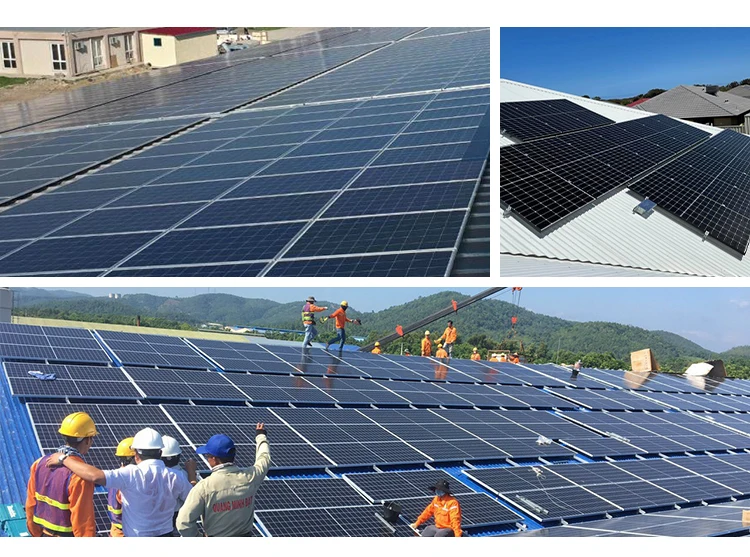

Application
Packing & Delivery

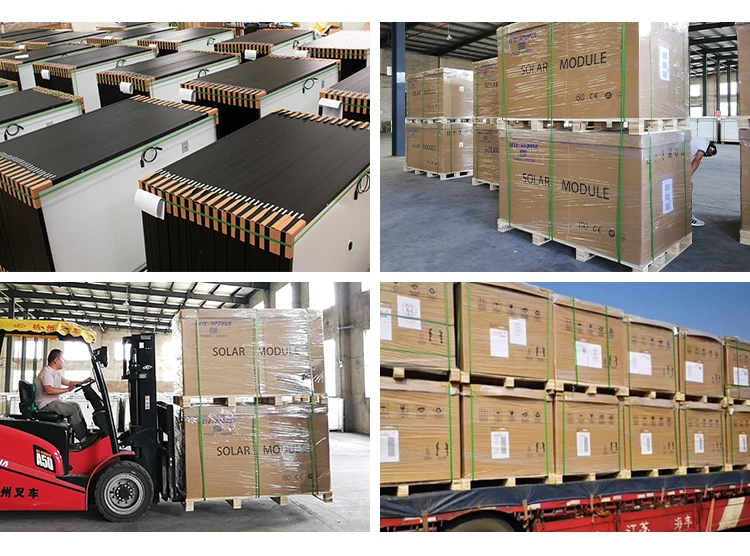

Packing
Normally packing: 1pc/2pcs/3pcs/10pcs/25pcs per carton
Individual packing requirement is acceptable.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss. It takes about 7~15 working days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.
We will find the most suitable and safe mode of transportation,don't worry about package damage or loss. It takes about 7~15 working days to worldwide.
Please note us your contact details include your phone number for easy contacting from shipping company officer.
Shipping Methods | Arrive AT | Delivery From |
By Sea | Sea Port You Want | Any port in China |
By Air | Air Port You want | Any port in China |
By Railway | Your Door | Any station in China |
By Express | Your Door | Zhengzhou |
Payment
T/T , L/C, Western Union, Money Gram Paypal.

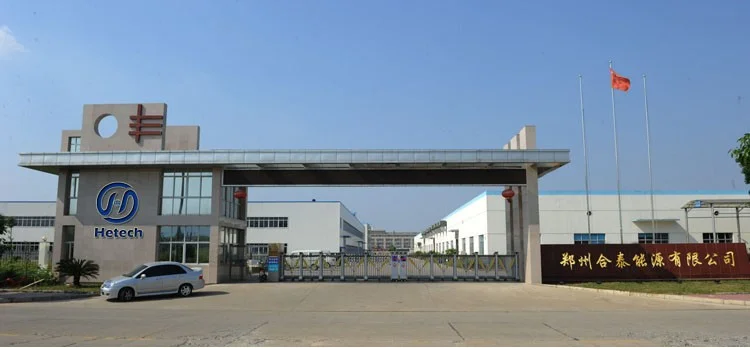

About Us
Why Choose Hetech Energy?
1.We have professional photovoltaic partners in 30+ countries.
2.Overseas warehouses in EU to provide more convenient and efficient services.
3.Complete certifications and competitive prices.
4.Won five-star praise from 100% customers.
Contact us for more information and look forward to cooperating with you!
2.Overseas warehouses in EU to provide more convenient and efficient services.
3.Complete certifications and competitive prices.
4.Won five-star praise from 100% customers.
Contact us for more information and look forward to cooperating with you!
