Hot selling electric low resistance tape Copper Nickel Constantan 6J11 Strip
Constantan 6J11 Strip
Constantan 6J11 is a copper-nickel alloy with approximately 11% nickel content, known for its stable electrical resistivity and excellent corrosion resistance. It is commonly used in precision electrical components such as resistors, thermocouples, and strain gauges. The alloy’s consistent performance in temperature and its durability in corrosive environments make it suitable for a wide range of electronic and industrial applications.
Applications:
It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.
Size:
Cold Drawing Wire: DIA 0.08-7.5mm
Hot Rolled Rod / Bar: DIA 8.0mm-50.0mm
Cold Rolled Ribbon/Strip: (0.05mm-0.35mm) *(0.5-6.0)mm
Hot Rolled Strip: (0.5mm-2.5mm) *(5-180.0)mm
Standard: GB/T 1234-95
Certification: ISO9001, SGS, ROHS
Constantan 6J11 is a copper-nickel alloy with approximately 11% nickel content, known for its stable electrical resistivity and excellent corrosion resistance. It is commonly used in precision electrical components such as resistors, thermocouples, and strain gauges. The alloy’s consistent performance in temperature and its durability in corrosive environments make it suitable for a wide range of electronic and industrial applications.
Applications:
It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.
Size:
Cold Drawing Wire: DIA 0.08-7.5mm
Hot Rolled Rod / Bar: DIA 8.0mm-50.0mm
Cold Rolled Ribbon/Strip: (0.05mm-0.35mm) *(0.5-6.0)mm
Hot Rolled Strip: (0.5mm-2.5mm) *(5-180.0)mm
Standard: GB/T 1234-95
Certification: ISO9001, SGS, ROHS

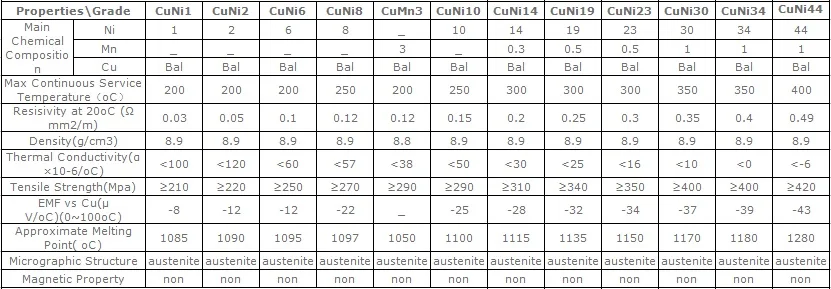

Specification
Type | Electrical resistivity (20degree Ω mm²/m) | temperature coefficient of resistance (10^6/degree) | Density g/cm3 | Max. temperature (°c) | Melting point (°c) |
CuNi1 | 0.03 | <1000 | 8.9 | 200 | 1085 |
CuNi2 | 0.05 | <1200 | 8.9 | 200 | 1090 |
CuNi6 | 0.10 | <600 | 8.9 | 220 | 1095 |
CuNi8 | 0.12 | <570 | 8.9 | 250 | 1097 |
CuNi10 | 0.15 | <500 | 8.9 | 250 | 1100 |
CuNi14 | 0.20 | <380 | 8.9 | 300 | 1115 |
CuNi19 | 0.25 | <250 | 8.9 | 300 | 1135 |
CuNi23 | 0.30 | <160 | 8.9 | 300 | 1150 |
CuNi30 | 0.35 | <100 | 8.9 | 350 | 1170 |
CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
CuNi40 | 0.48 | ±40 | 8.9 | 400 | 1200 |
CuNi44 | 0.50 | <-6 | 8.9 | 400 | 1200 |
0,071 | 0,085 | 0,091 | 4,318 | 17 | 700 |
0,080 | 0,095 | 0,101 | 3,401 | 17 | 850 |
