Price:$4,800.00

Quantity:


Product Overview

Description



Products Description




The boiler adopts chain grate, under the grate along the width of the direction of two-way air inlet, each side of the front and rear of a number of air chambers, each air chamber inlet is equipped with air volume adjustment door above the grate for the boiler hearth, the furnace jaws are surrounded by water-cooled walls. The flue gas passes through the coal economizer, multi-tube dust collector, desulfurization and denitrification device, and finally the standard flue gas is discharged into the atmosphere through the flue gas.

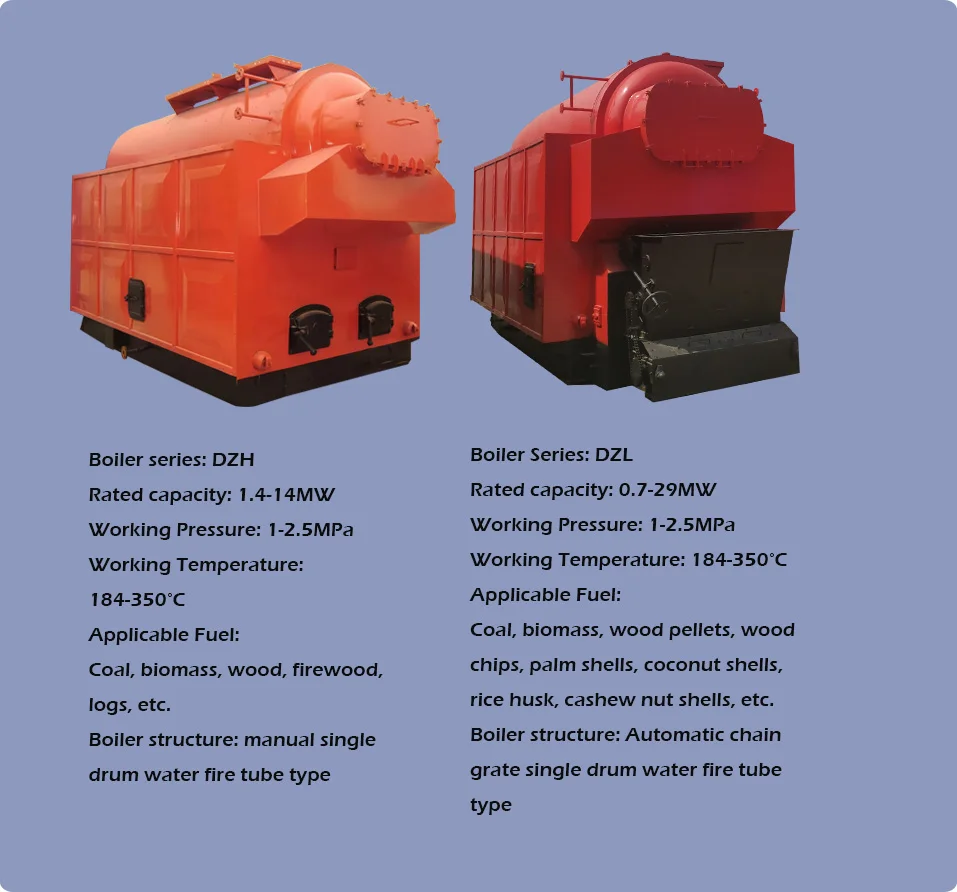

Product Classification




Product Parameter

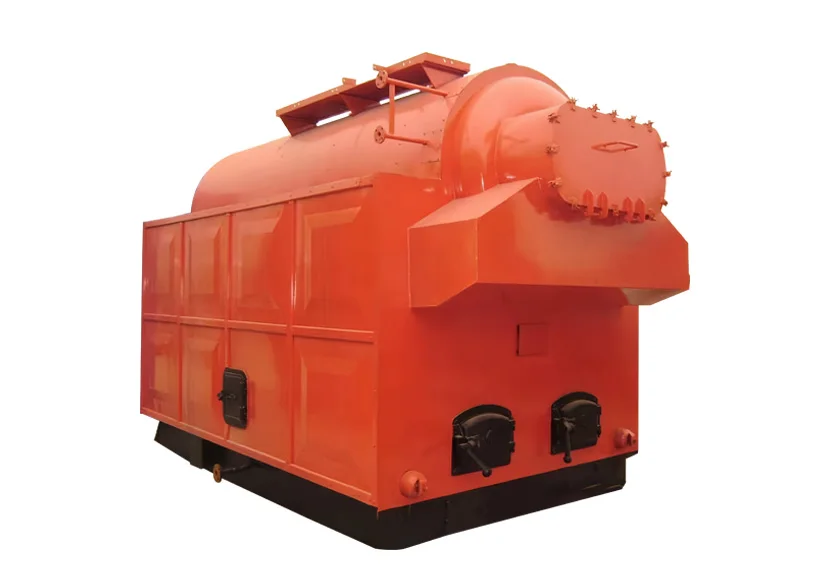

DZH Biomass Boiler
Item/Model
 DZH1-0.7-SCI
DZH1-1.25-SCI
DZH2-1.0-SCI
DZH2-1.25-SCI
DZH4-1.0-SCI
DZH4-1.25-SCI
Rated evaporation capacity t/h
1
1
2
2
4
4
Rated working pressure MPa
0.7
1.25
1
1.25
1
1.25
Feed water temperature ℃
20
20
20
20
20
20
Rated steam temperature ℃
171
193
184
193
184
193
Body heat exchange area ㎡
25.7
25.7
51
51
78.8
78.8
Coal economizer heat transfer area m
26.16
26.16
26.16
26.16
78.48
78.48
Design Fuel
sCl
sCl
sCl
sCl
sCl
sCl
Design thermal efficiency%
83.27
81.54
84.59
84.38
82.82
80.83
Exhaust temperature ℃
132.9
148.2
139.7
144.5
139.4
149.8
Transportation size
4.1x2.2x3.0
5.1x2.25x3.05
5.05x2.5x3.2
5.05x2.5x3.2
5.5x2.75x3.355
5.5x2.8x3.4
Maximum transportation weight t
9
9.61
12.5
13
14.3
14.8
Main steam valve specification
DN50
DN50
DN80
DN80
DN100
DN80
Specification of feed water valve
DN40
DN40
DN40
DN40
DN40
DN40
Number of discharge valve specifications
DN40x6
DN40
DN40
DN40
DN40
DN40
Number of safety valves
DN40
DN40
DN50x2
DN50x2
DN50x2
DN50x2
Total installed capacity kw
7.3
9.6
16.2
17
31.5
/


DZL Biomass Boiler
Item/Model
DZL2-1.0-SCl
DZL2-1.25-SCl
DZL4-1.0-SCl
DZL4-1.25-SCl
DZL4-1.6-SCl
DZL8-1.25-SCl
DZL8-1.6-SCl
Rated evaporation capacity t/h
2
2
4
4
4
8
8
Rated working pressure MPa
1.0
1.25
1.0
1.25
1.6
1.25
1.6
Feed water temperature ℃
20
20
20
20
20
20
20
Rated steam temperature ℃
184
193
184
193
204
193
204
Effective area of grate m³
3.42
3.42
5.19
5.19
5.19
8.8
8.8
Applicable Fuel
sC
sC
sC
sC
sC
sC
sC
Exhaust temperature ℃
143
144.1
146.3
150.6
132.4
136.4
161.8
Design thermal efficiency%
84.8
84.52
83.8
83.81
84.72
84.48
82.36
Fuel consumption kg/h
391
394
780
785
776
1518
1585


Product advantages

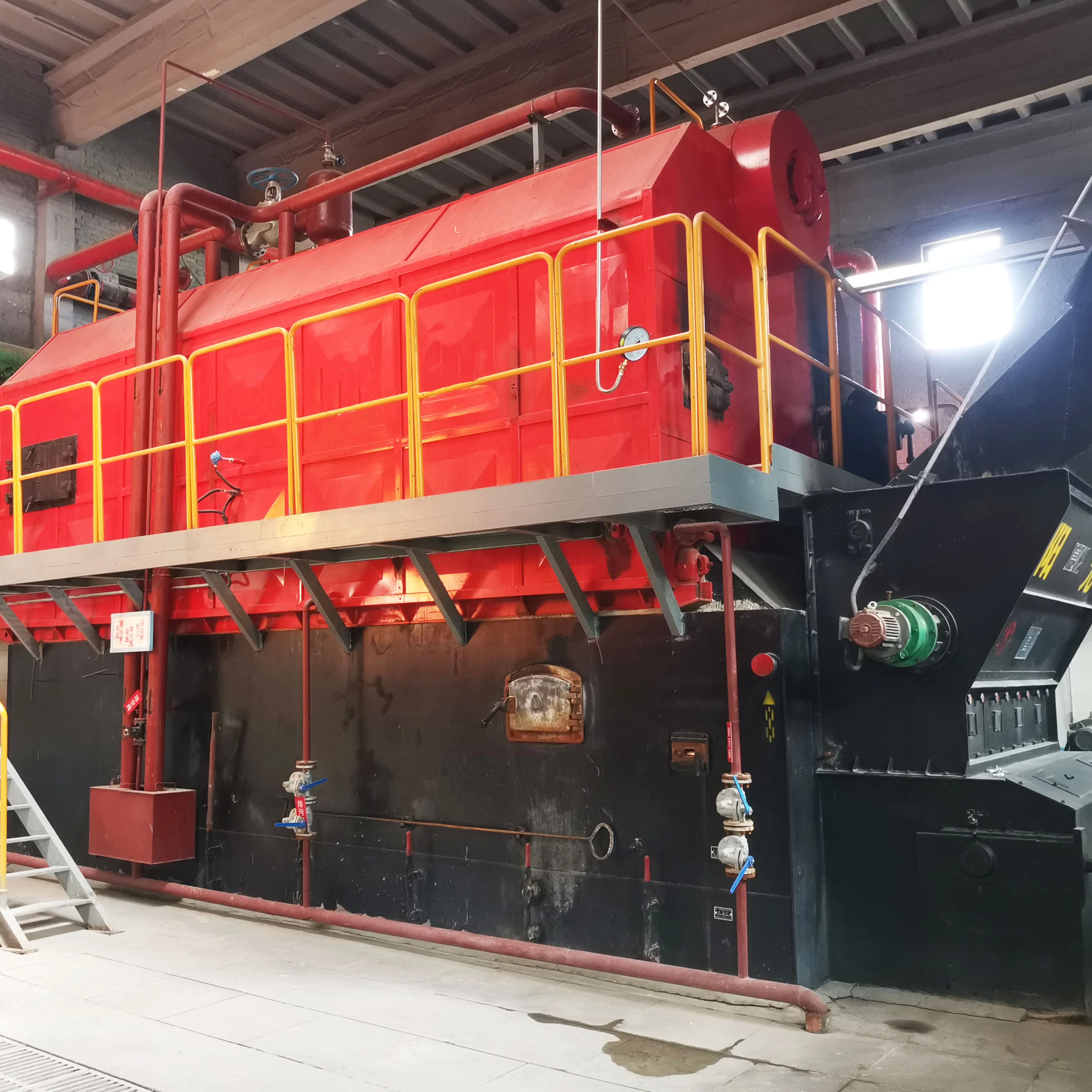

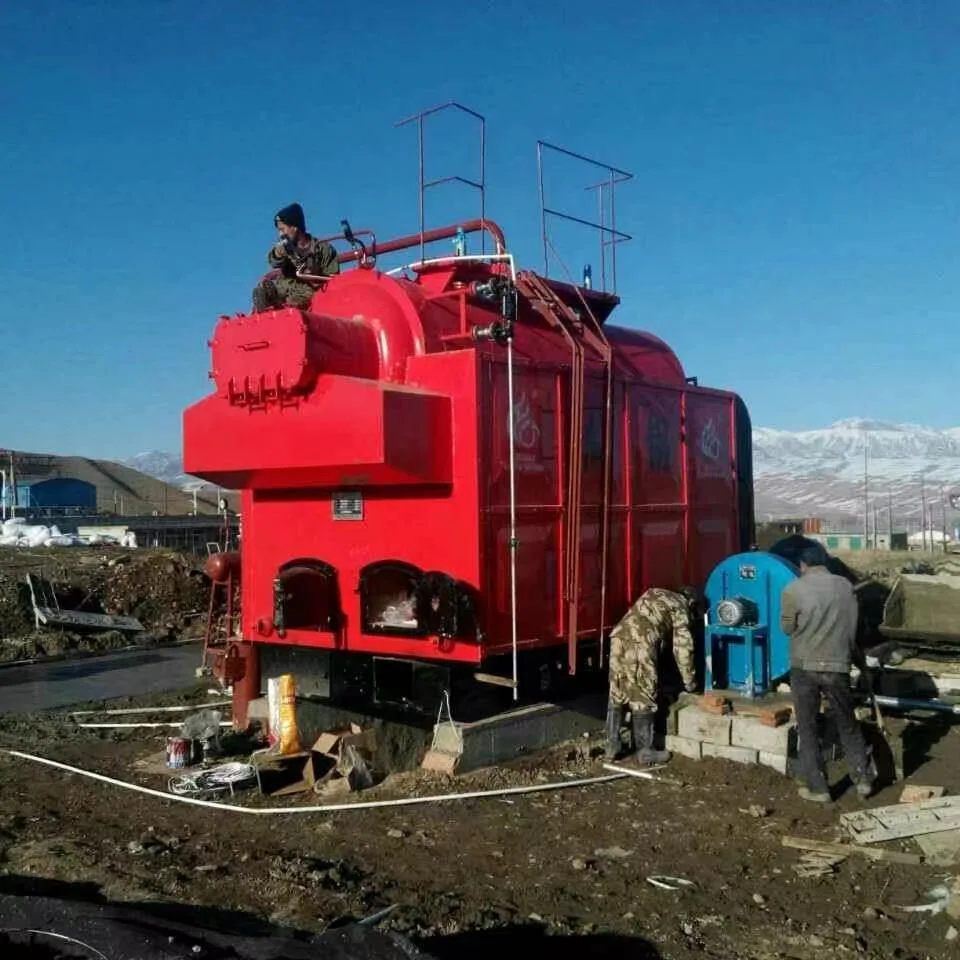

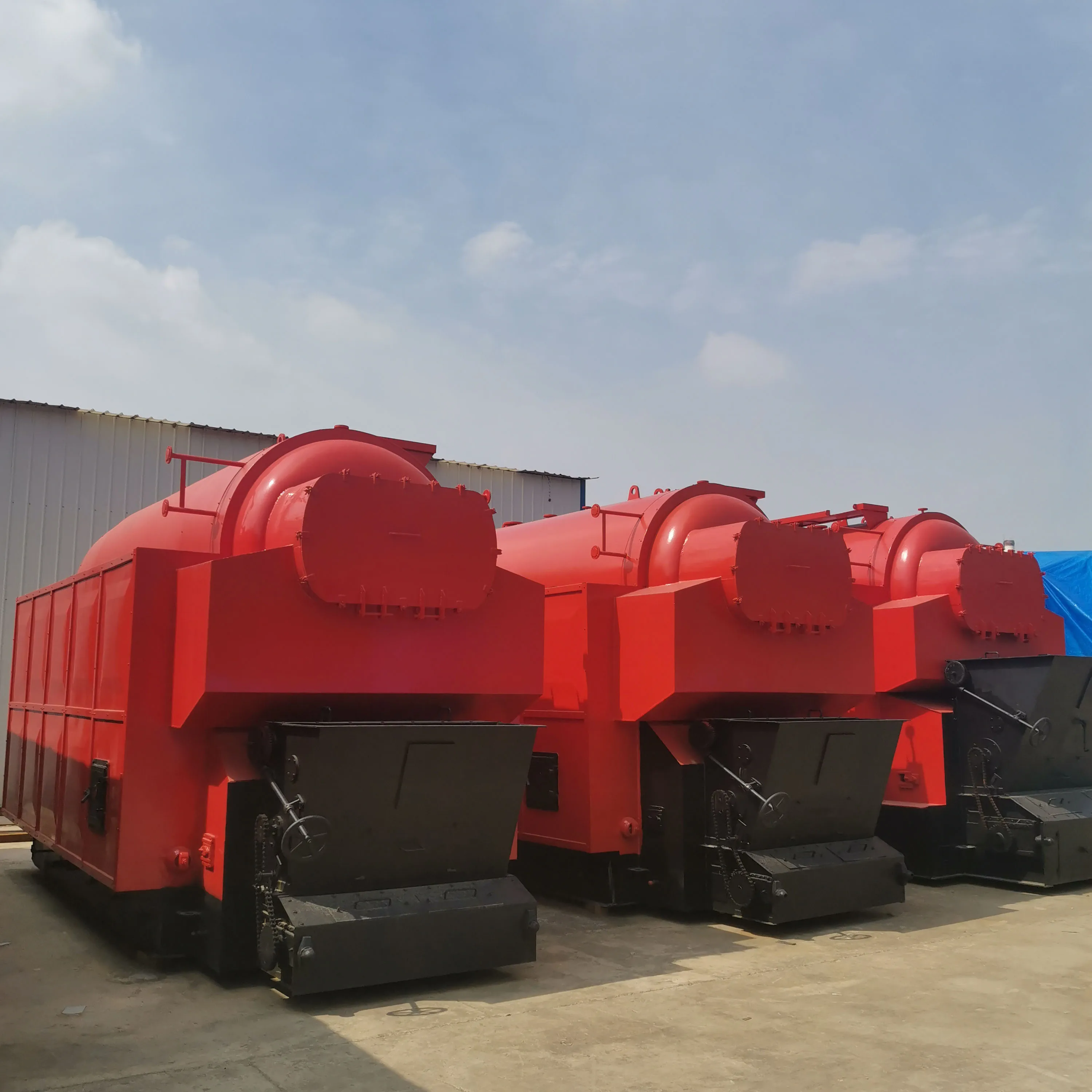

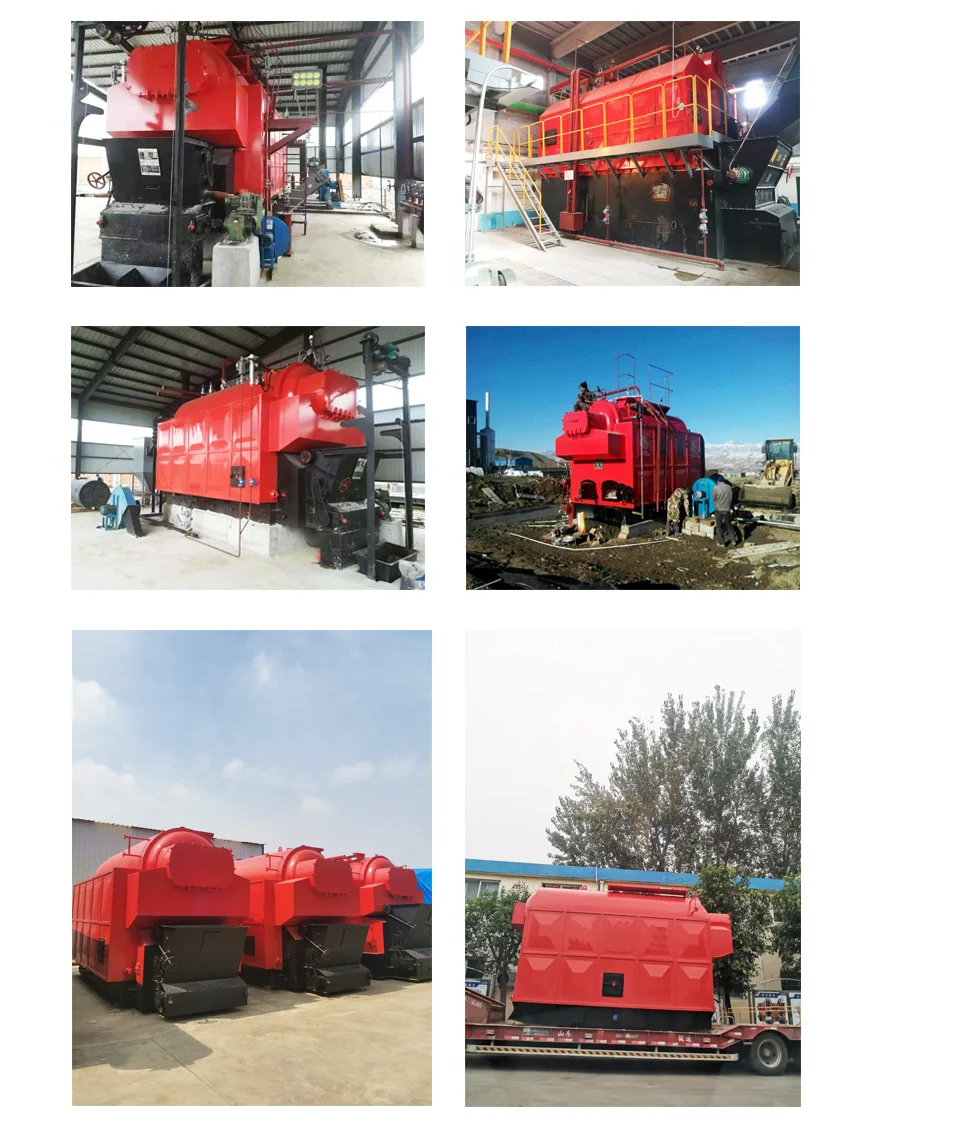

Product Show




◆Adopting arch pipe and spiral pipe, the cylinder adopts quasi-elastomer, canceling the tensioning part of pipe plate, the stress is reduced, and the inner pipe of pipe plate is changed from double return to single return, solving the problem of pipe plate cracking.
◆ In the bottom part of the drum, the boiler tube bottom is canceled, the water accumulation area at the bottom of the drum is eliminated, the sludge is not easy to be deposited, the cooling effect in the high temperature area of the drum is good, and the drum is prevented from rotating at the bottom of the drum.
◆ Heat transfer effect is obtained by high efficient heat transfer spiral tube, which improves the heating efficiency of the boiler.
◆ The water circulation is convenient, the structure of pressurized parts is reasonable, and the water quality is safe for operation.
◆ The combustion equipment is quick loading grill, the combustion equipment is constructed and installed in the factory and can be directly installed on the foundation after transportation to the site.
