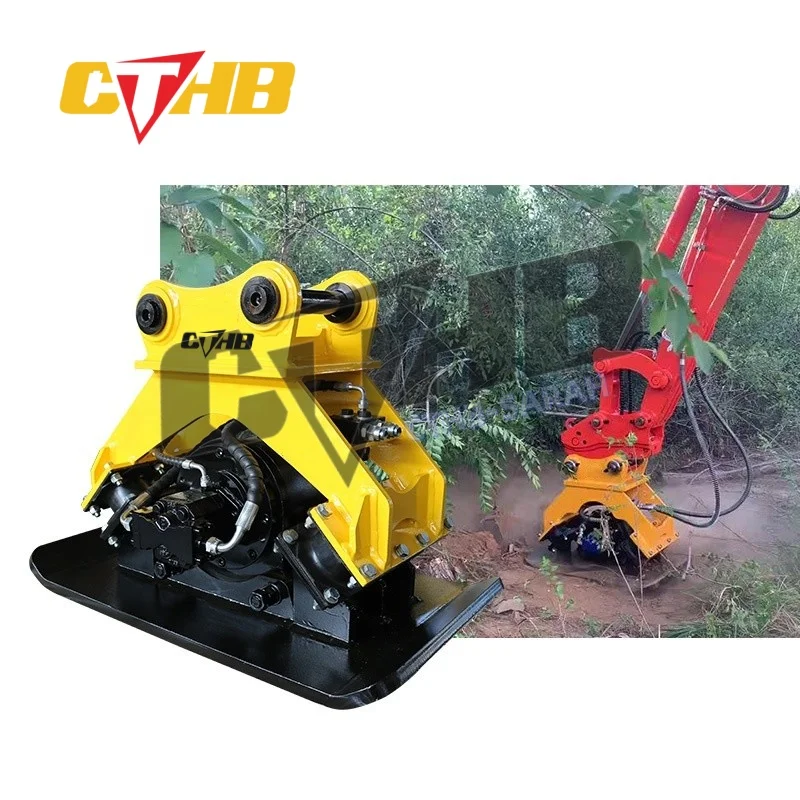

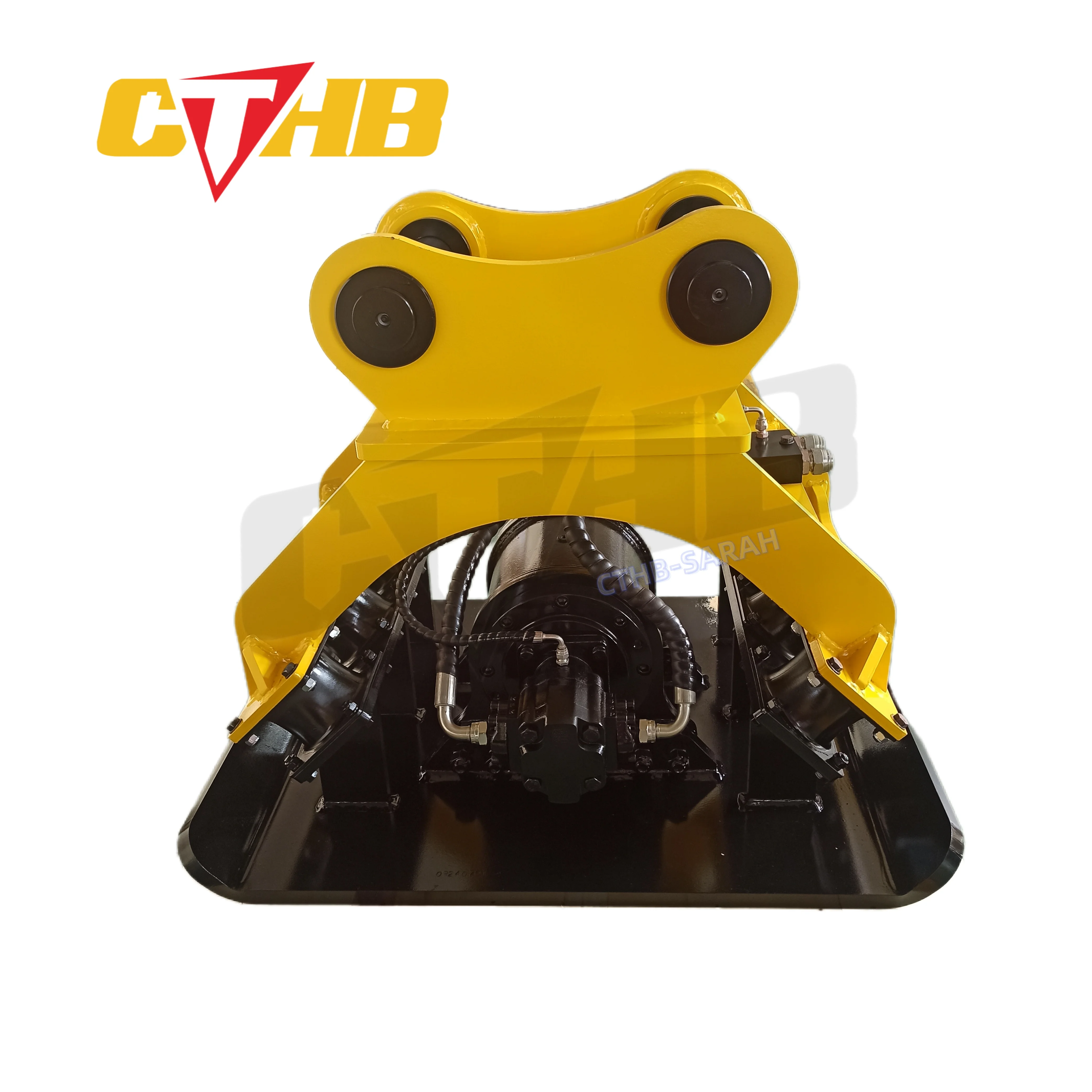

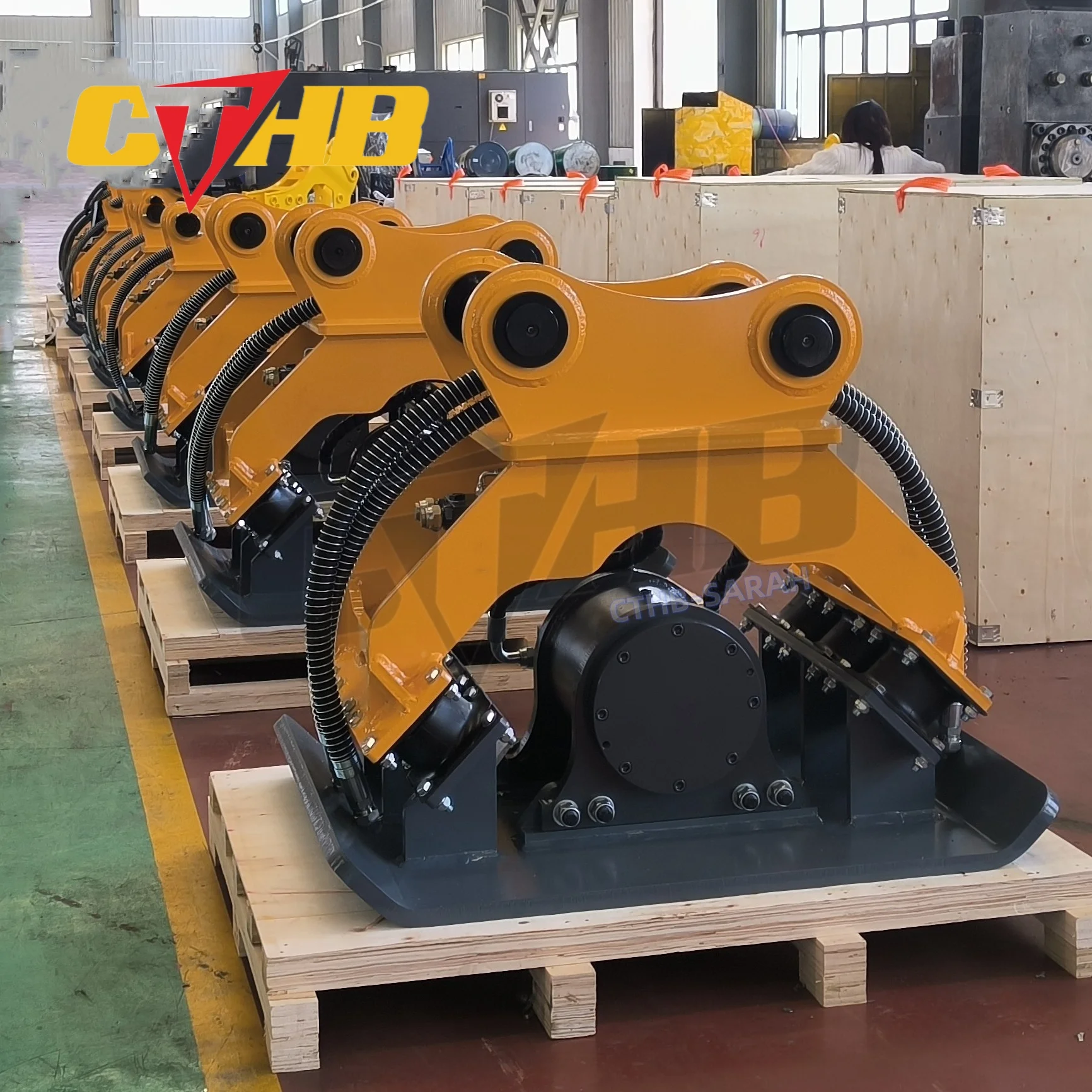

Excavator Soil Vibrating Plate Compactor







Factory introduce

Our factory is founded in the year 2015. We began with design, production and sale of heavy-duty hammer.





CTHB plate compactor application

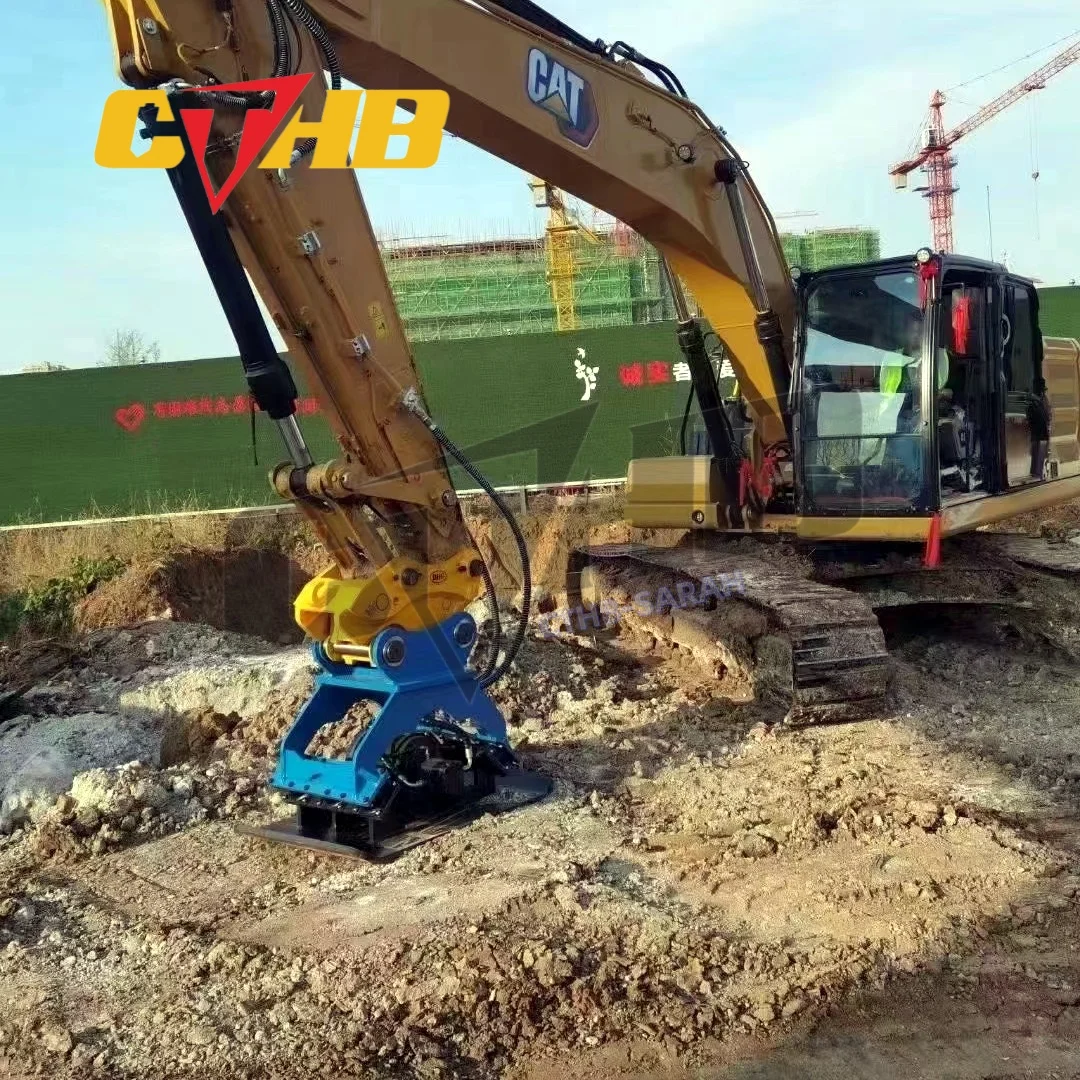

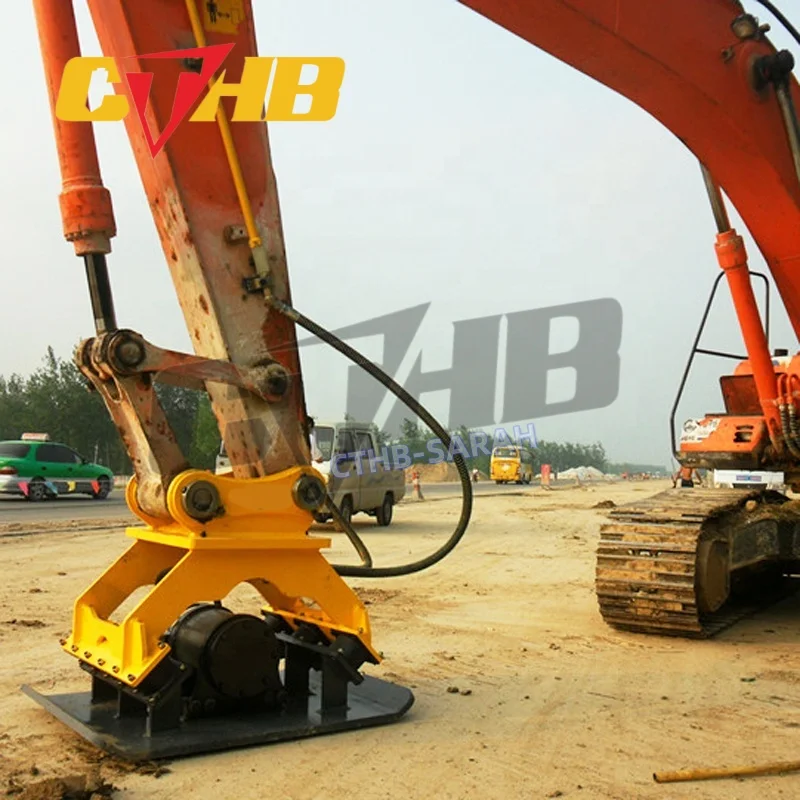

Plate vibrating compactor is not only widely used in foundation treatment of construction projects and compaction of road projects, also suitable for the compaction of bulk materials such as clay soil, sand and gravel.

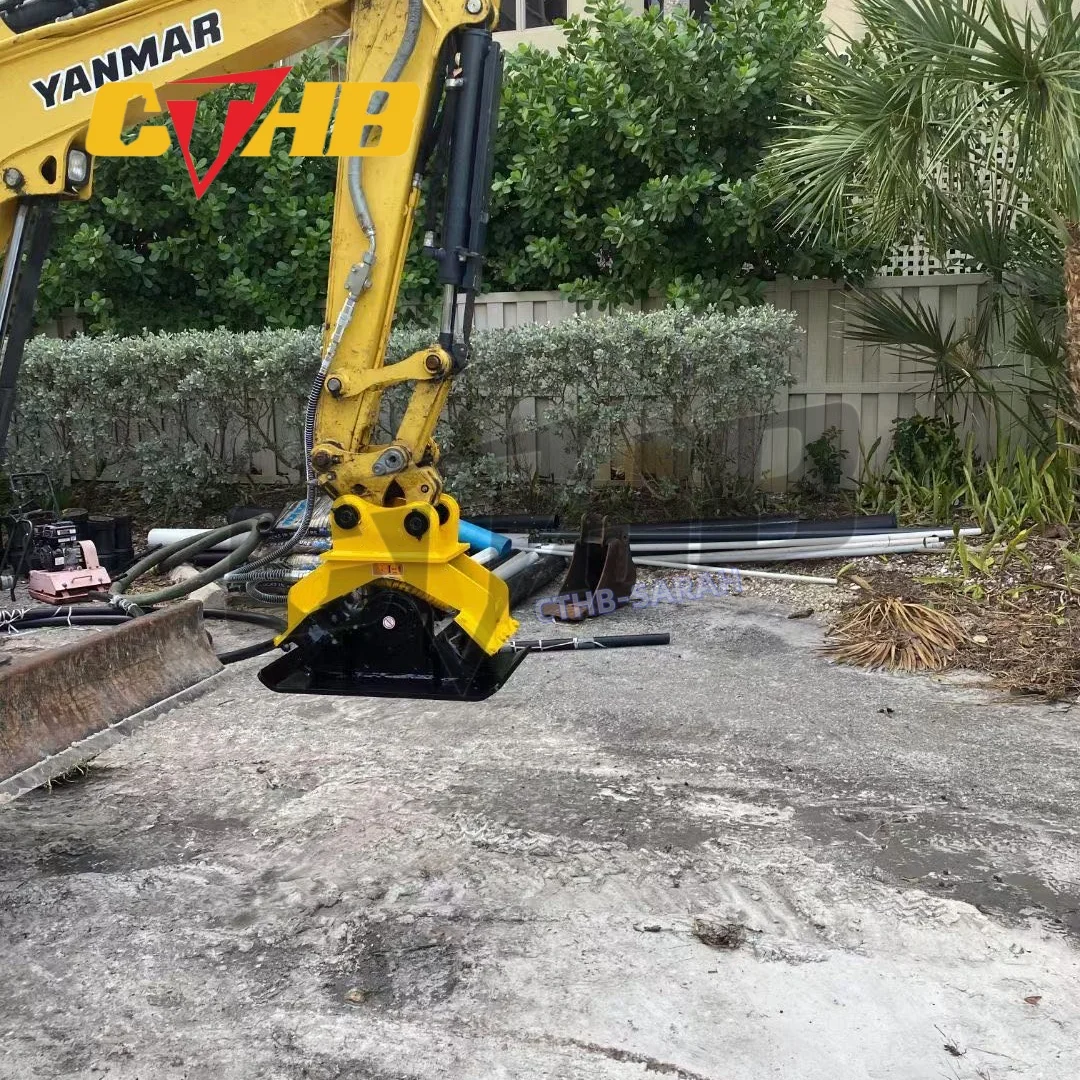

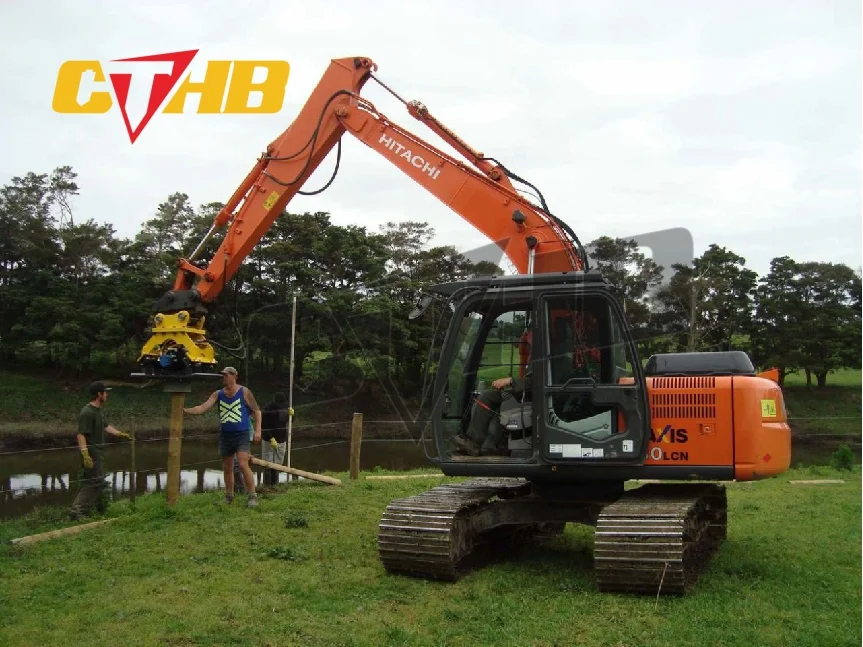

Some customers also use the compactor for fencing works like driving the pile into the dirt, also providing a very efficient help.

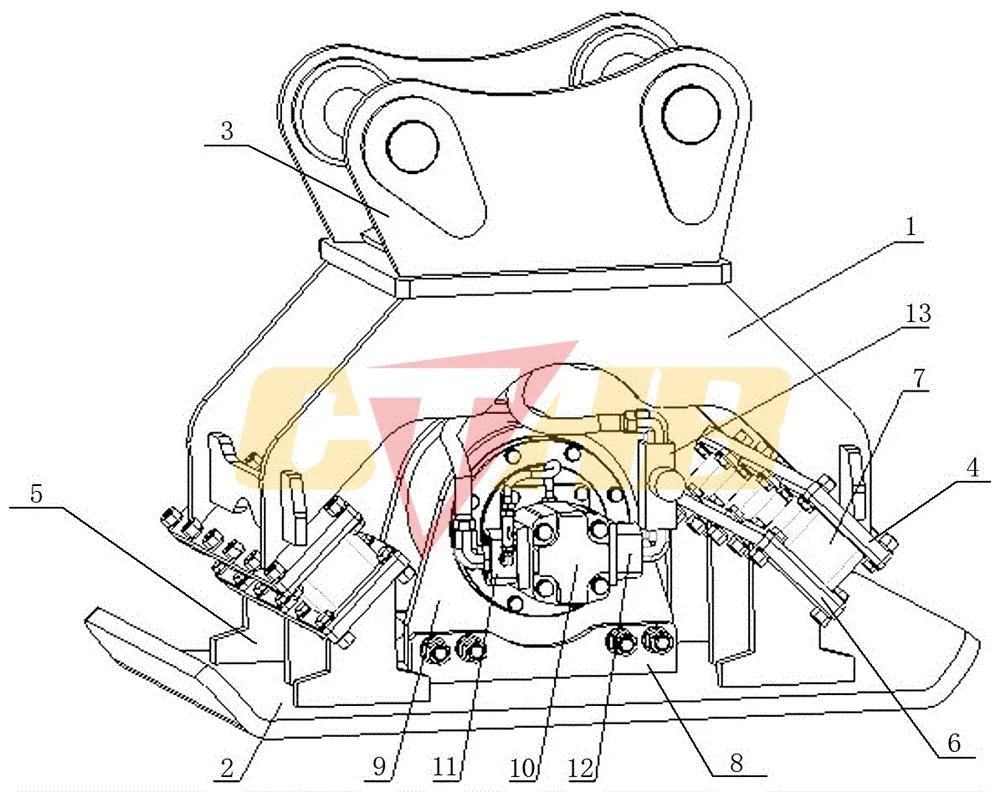

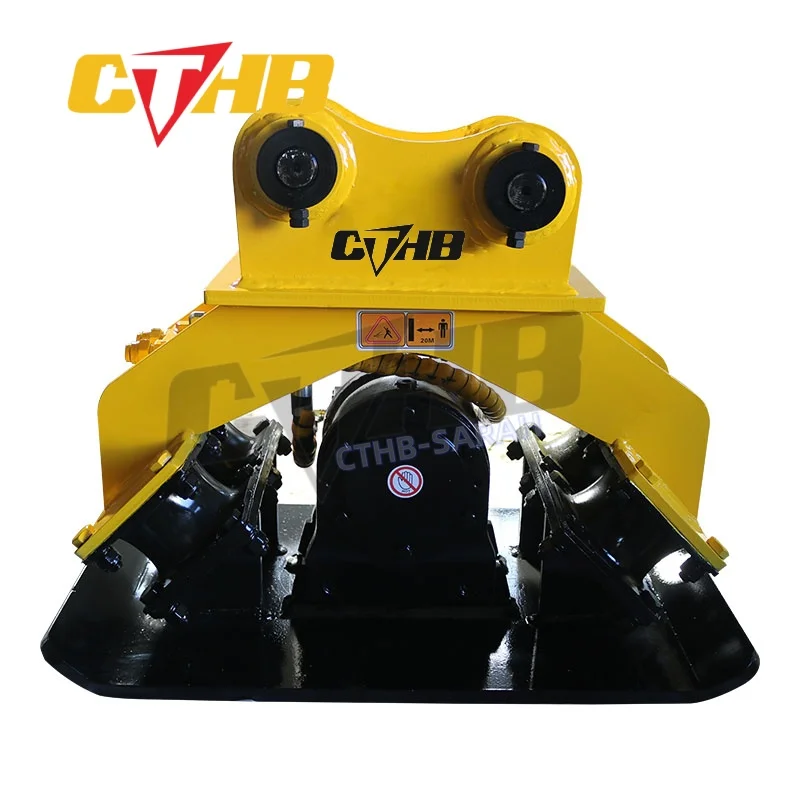

CTHB plate compactor structure



1&4&5&6. Bracket

2. Plate

3. Adapter

7. Damping blocks

8. Motor barrel base

9. Motor barrel

10. Hydraulic motor

11&12. Flange

13. Diverter valve





CTHB plate compactor features and advantages (Numbers refer to the above structural diagram

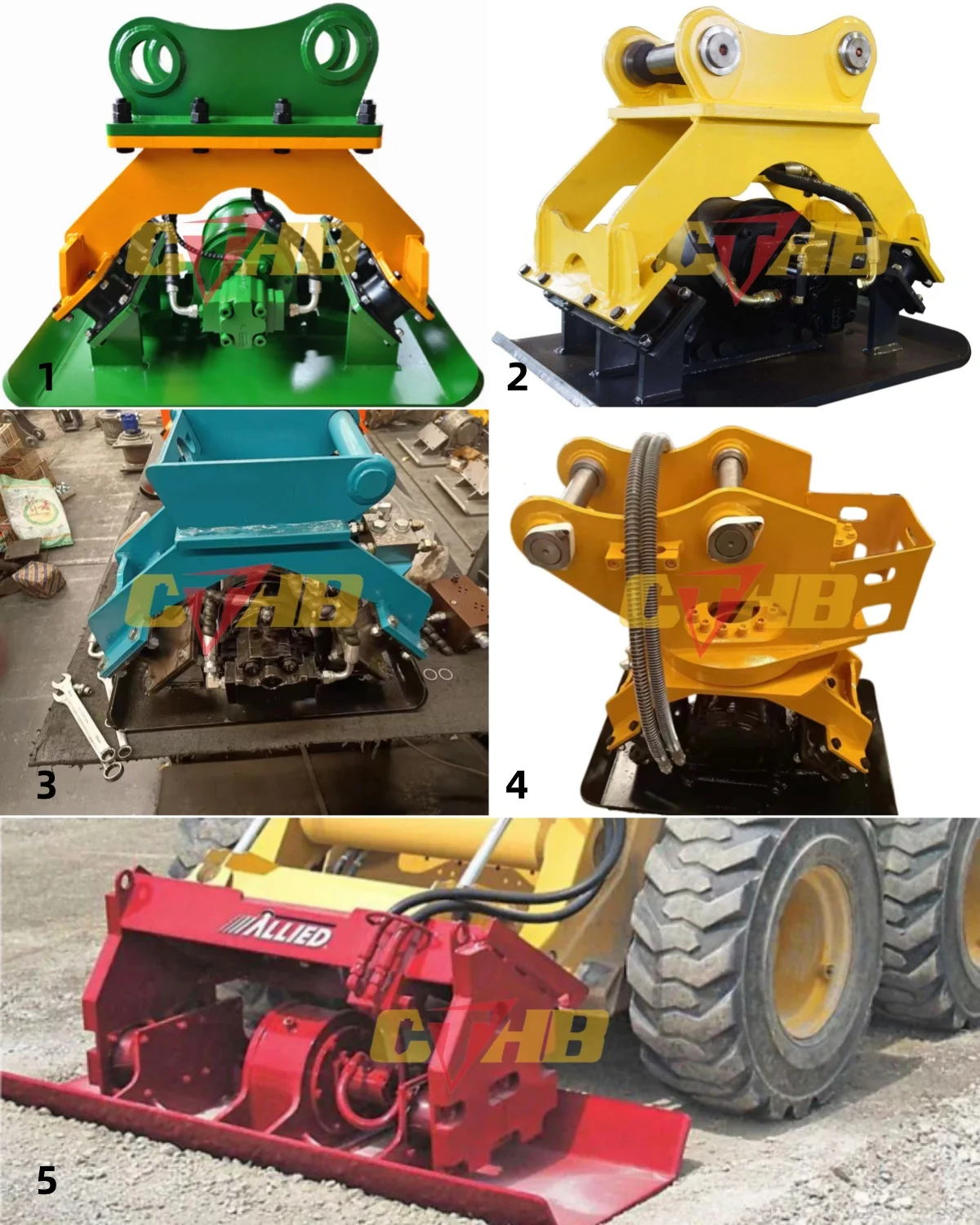

[3] There are five types of adapters to choose:

Number 1: Split type

Number 2: Fixed type

Number 3: MS type

Number 4: 360 degree rotating type

Number 5: Skid steer type

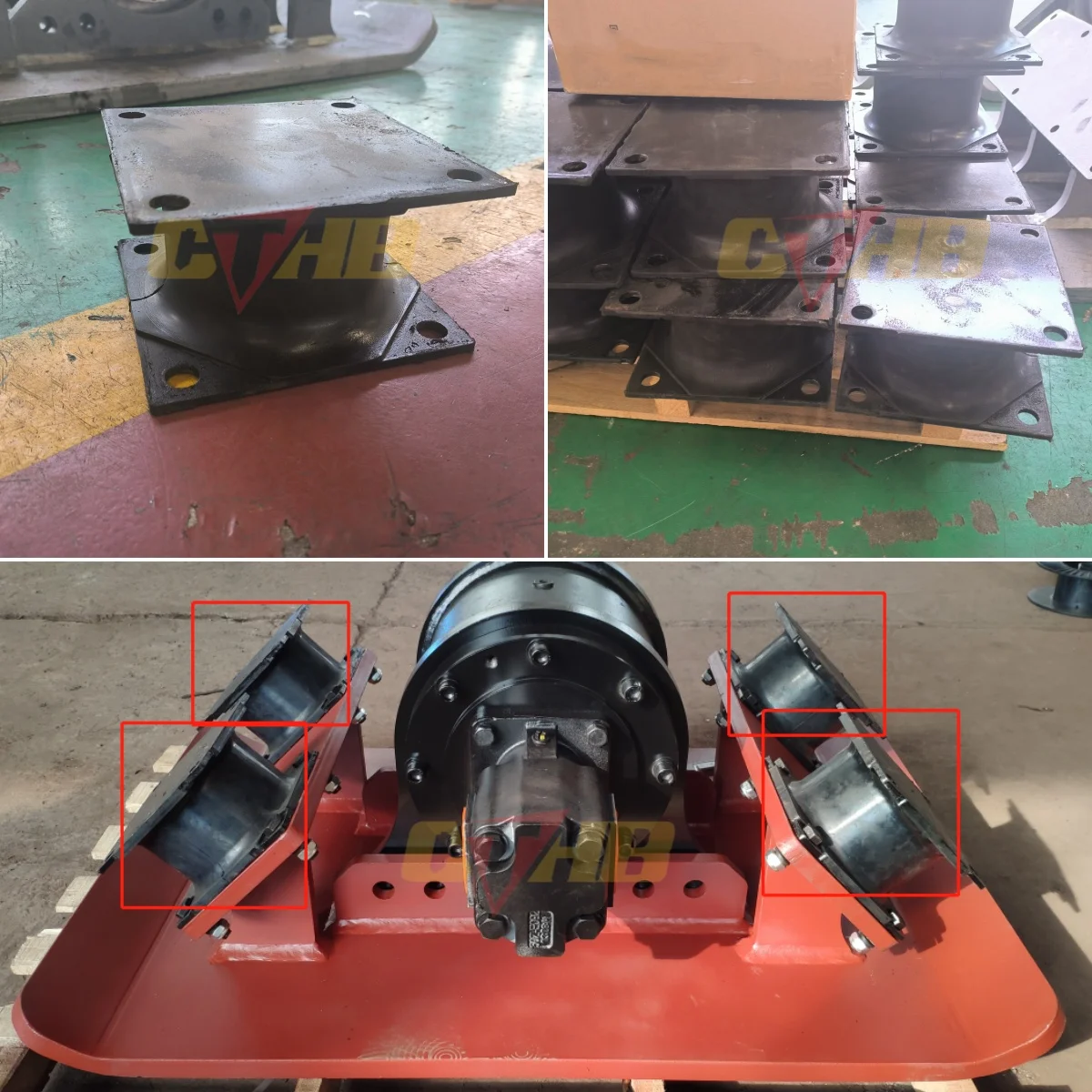

[7] Damping block plays the role of buffering and shock-absorbing, it's a easy-worn spare part.

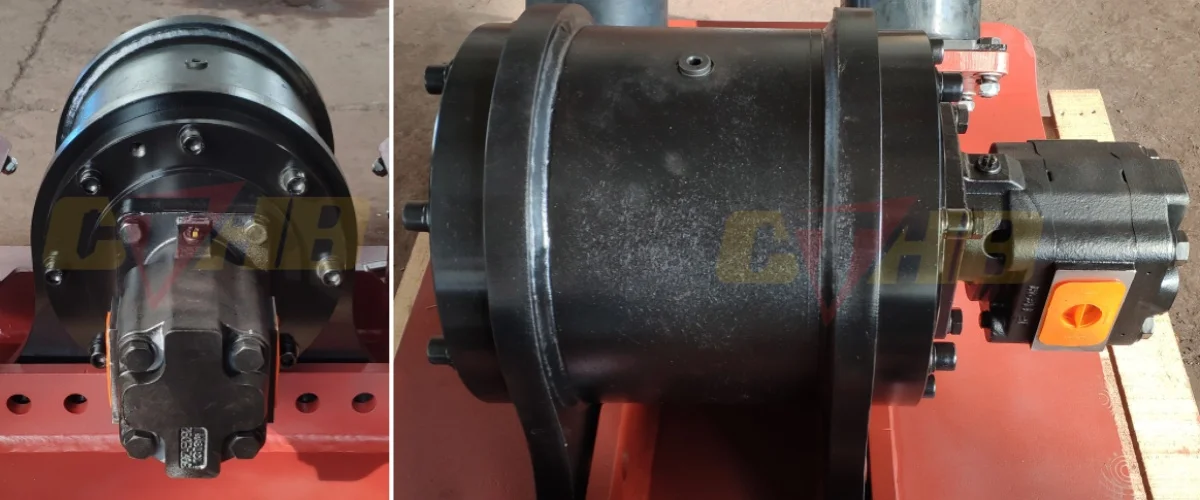

[9] The motor barrel is equipped with bearings and acentric shafts inside, driven by the hydraulic motor rotating to generate acentric force.

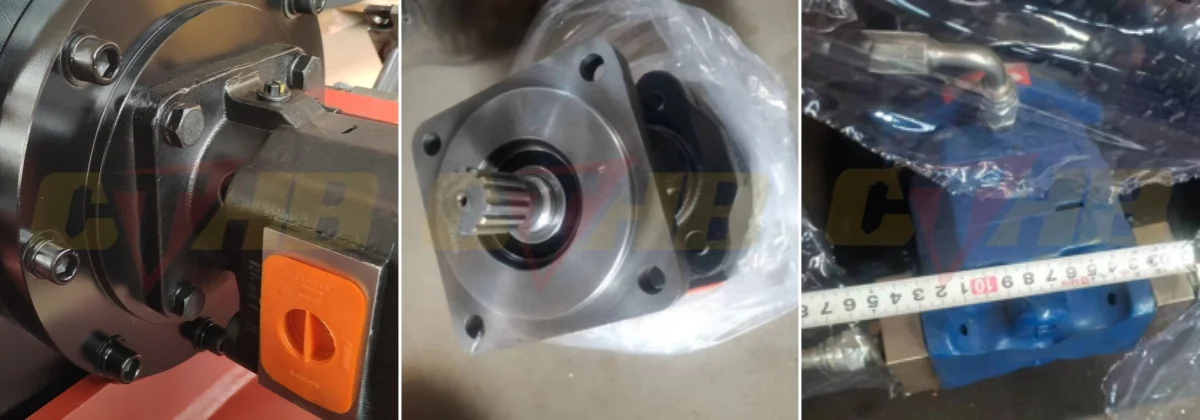

[10] The hydraulic motor brand is PERMCO, from America.

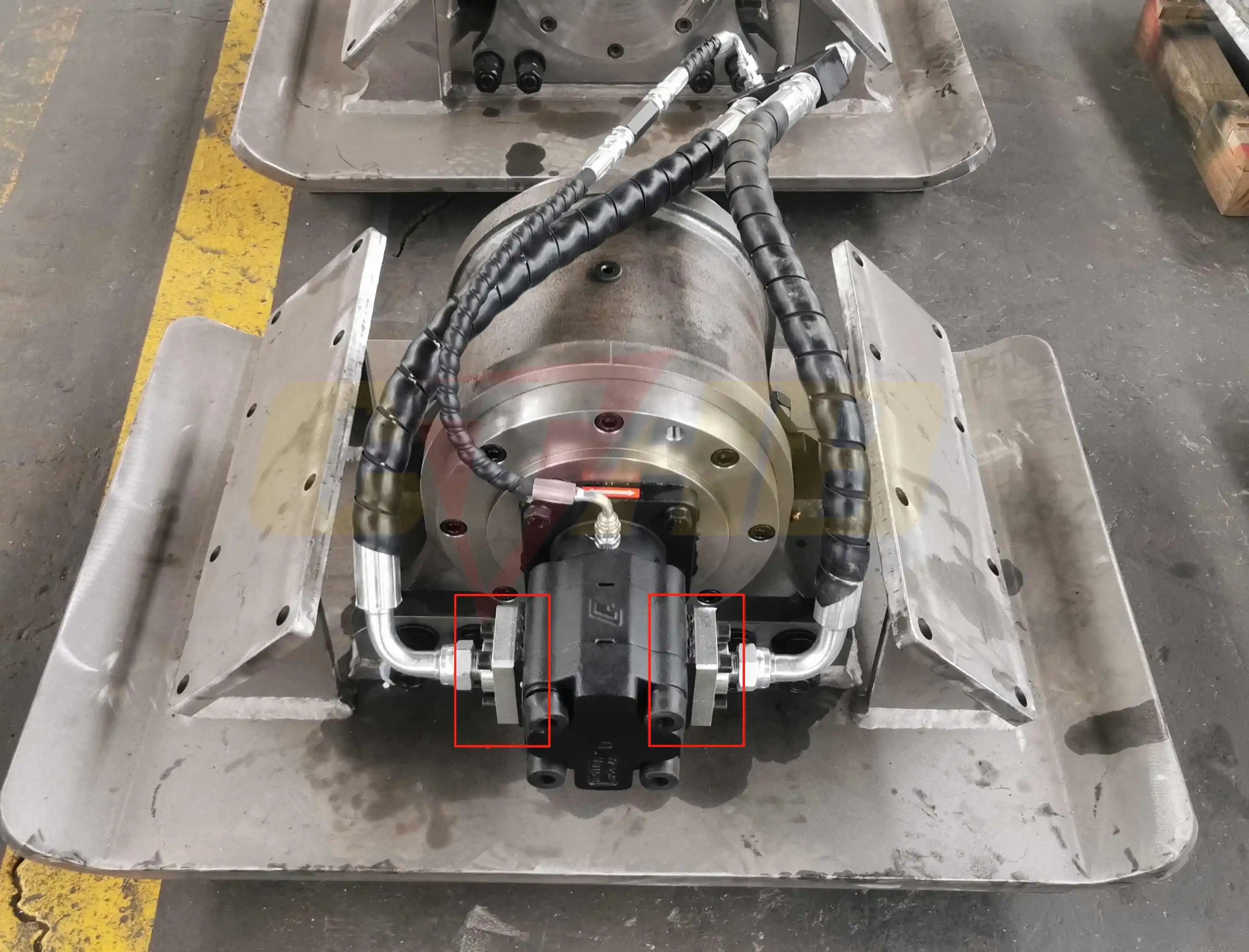

[11&12] The flange is designed to connect the oil hoses with the hydraulic motor, in order to protect the screw holes in the hydraulic motor. Without the flanges, the oil hoses will directly connect with the motor, screw holes are easy to be worn out during long time vibrating works, changing a new motor will cost high. Only changing the flanges will definately reduce the cost.

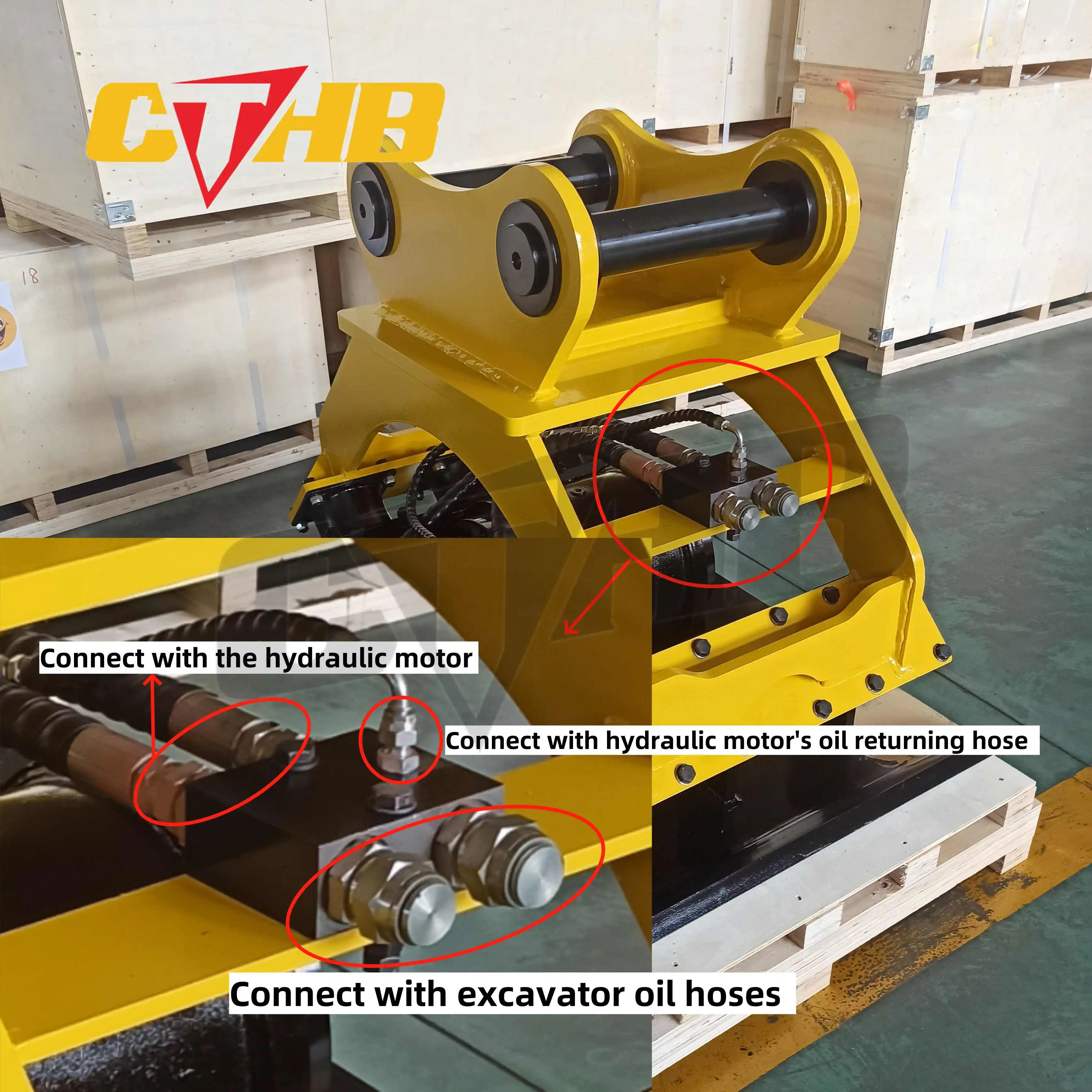

[13] There are five hose connection part on the diverter valve.

One is for the hydraulic motor oil returning hose (the thin hose), two connect with the hydraulic motor, two connect with the excavator oil hoses.





CTHB plate compactor parameter



Parameter	Unit	HC100	HC400	HC600	HC800	HC1000
Suitable Carrier Weight	ton	1--5	6--10	11--19	20-28	29-40
Height	mm	600	750	930	1000	1100
Width	mm	415	550	700	900	900
Impulse Force	ton	3	4	10	15	15
Vibration Frequency	r/min	2000	2000	2000	2200	2200
Oil Flow	l/min	30-60	45-85	85-105	120-170	120-170
Operating pressure	kg/cm2	100-130	100-130	100-150	150-200	150-200
Bottom measurement	mm	800*420	900*550	1160*700	1350*900	1500*1000
Weight	kg	110	300	500	900	1050
