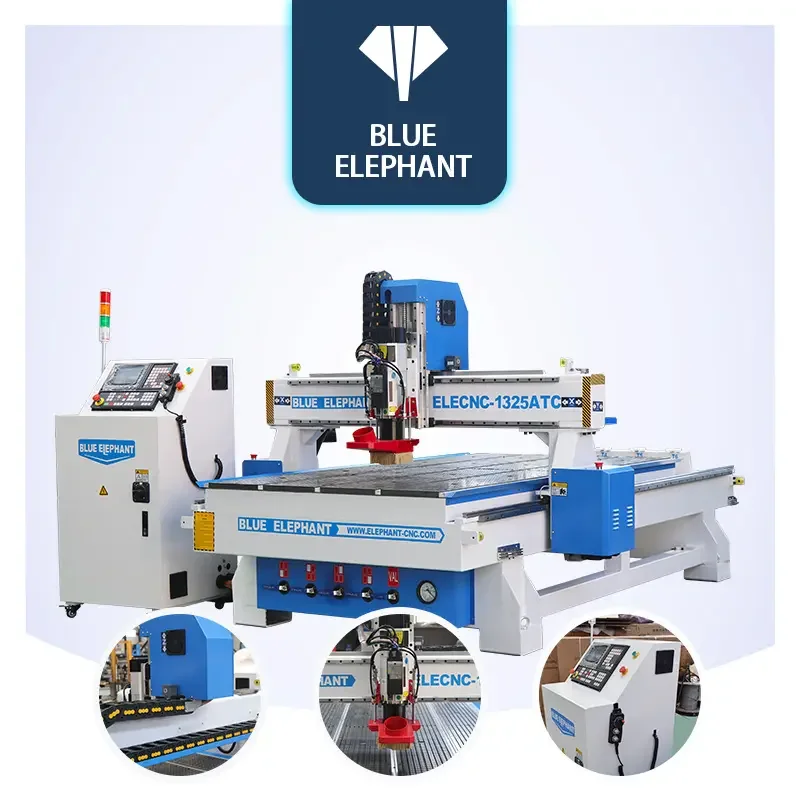

Wholesale personalized cnc woodworking 1325 1530 3 axis 4 axis wood CNC router with automatic tool changer in Germany
- Category: >>>
- Supplier: Shandong Blue Elephant Cnc Machinery Co. Ltd.
Share on (1601277085592):
Product Overview
Description
Products Description
Wholesale personalized cnc woodworking 1325 1530 3 axis 4 axis wood CNC router with automatic tool changer in Germany
Features:
* Adopting the linear automatic tool change mode, which has fast tool change speed and high processing efficiency.
* Equipped with independent control cabinet, it is more convenient in terms of operation and maintenance.
* With 9kw air-cooled spindle, the spindle speed is fast and the cutting ability of the work piece is strong.
* Adopting international imported brand parts, which guarantees the longest service life of the machine.
* Equipped with independent control cabinet, it is more convenient in terms of operation and maintenance.
* With 9kw air-cooled spindle, the spindle speed is fast and the cutting ability of the work piece is strong.
* Adopting international imported brand parts, which guarantees the longest service life of the machine.
Product Paramenters

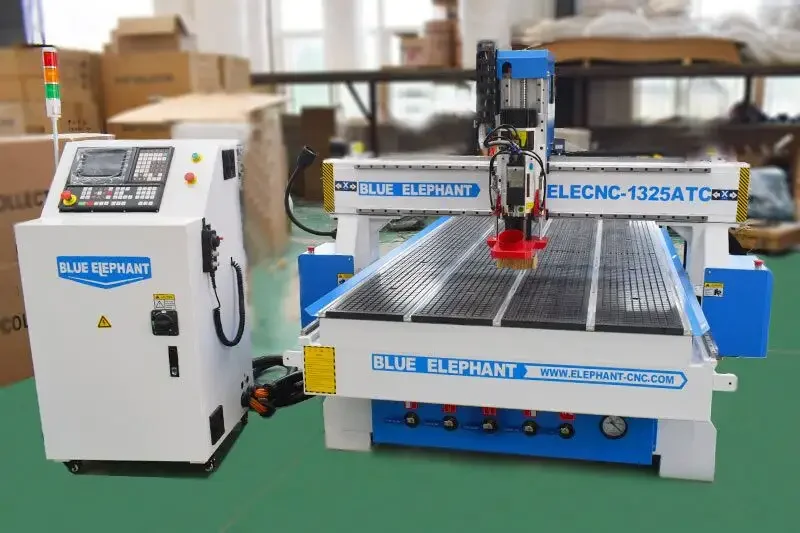

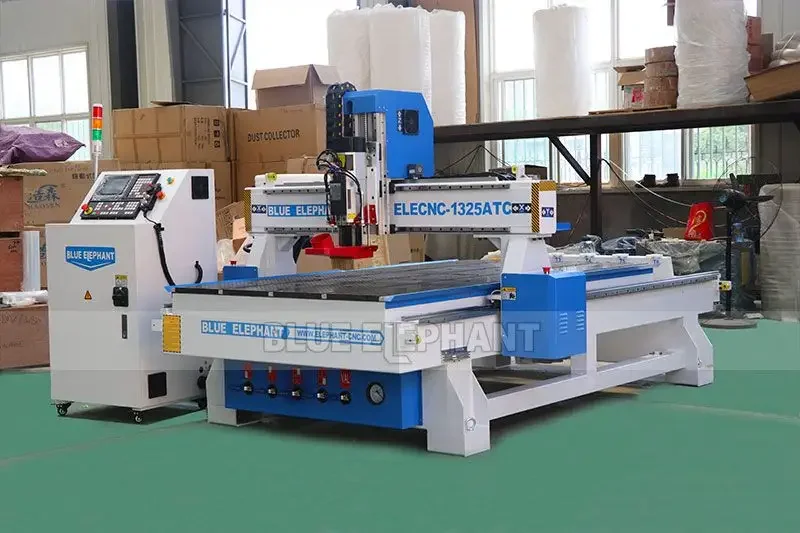

Model | ELECNC-1325ATC | |
Working area | 1300*2500*200mm | |
Spindle | 9KW ATC HQD air-cooled spindle | |
Control system | Taiwan LNC with MPG handle wheel | |
Motor and driver | 850W Leadshine servo motor and 1KW Servo driver | |
Working Table | Aluminum T-slot &vacuum table | |
Working Table | Aluminum T-slot &vacuum table | |
Limit switch | Japan OMRON limit switch | |
Lubrication system | 1.5L Auto oil lubrication system | |
Voltage | 380V 3phase 60HZ | |
Vacuum pump | 7.5KW vacuum pump, two stage ,air-cooled , two impeller | |
X,Y,Z Transmission | Taiwan J &T Helical rack and gear box , 1.25M , Taiwan PMI #25 RailTaiwan PMI #25 Linear Bearing& Taiwan TBI Ball Screw #2505 | |
Cable | Shanghai Cardiff cable,CE ,UL certification | |

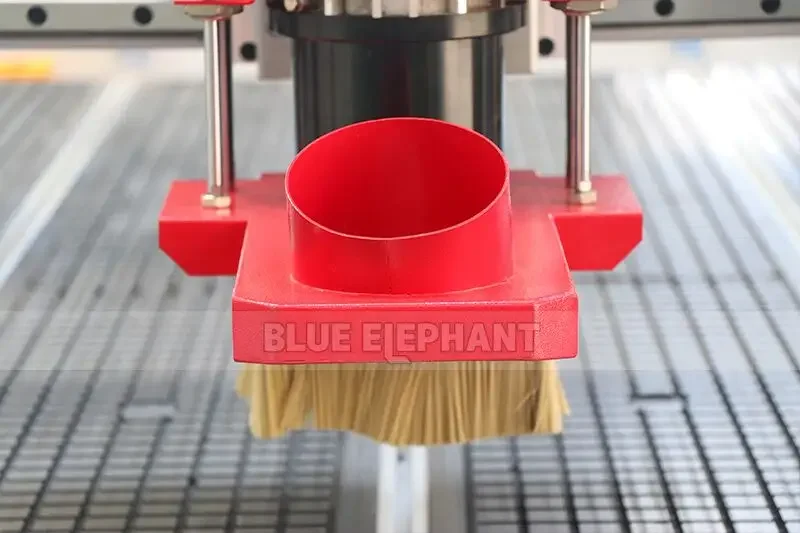

Dust collector | Complete 1.5KW new type dust collector , CE certification , the vacuum suction is same as 4KW old type | |
Tool sensor | Auto tool sensor | |
PS:All the working area and specifications can be customized according to your requests. | ||
Product Detalis
Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the
spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production effnciency is higher.
spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production effnciency is higher.

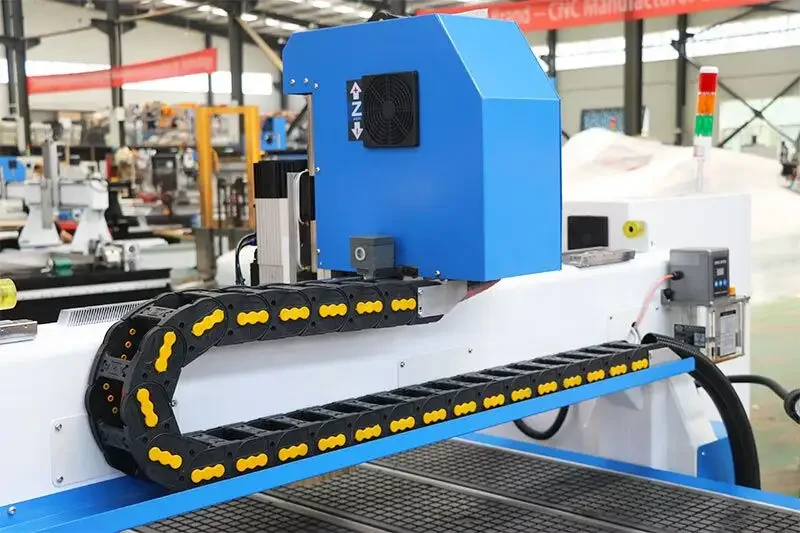

CNC Head
ATC CNC router selects Italian HSD air-cooled spindle, power: 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.
Control system
The control system of CNC router adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis,4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the itelligence of the device.
Driving system
World-class servo motor and driving system ensures machine to run with fast speed and low noise.
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
Safety system
ATC CNC router has the unique safety protection system and provides external
emergency stop function for equipment
users. This function can effectively pro-
tect the personal safety of the equip-
ment users, meet the European safetyCE
standards, and is very popular among
users.
emergency stop function for equipment
users. This function can effectively pro-
tect the personal safety of the equip-
ment users, meet the European safetyCE
standards, and is very popular among
users.
Recommend Products
Sample & Application
Customer Feedback
Company Information
Exhibition
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
