Promotion Hot 16channels /32channels Mpeg4/H.264 sd cvbs encoder to ip converter for IPTV cable tv headend system COL5116A

Product Overview

Description

                       16channels/32channels Mpeg4/H.264 sd encoder







                             Skype:colable3   Wechat/wasp:86-18982050255



Outline

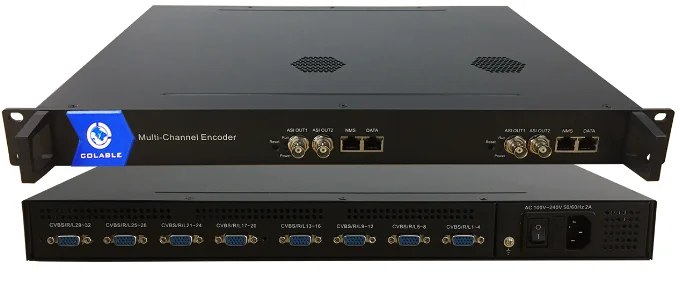

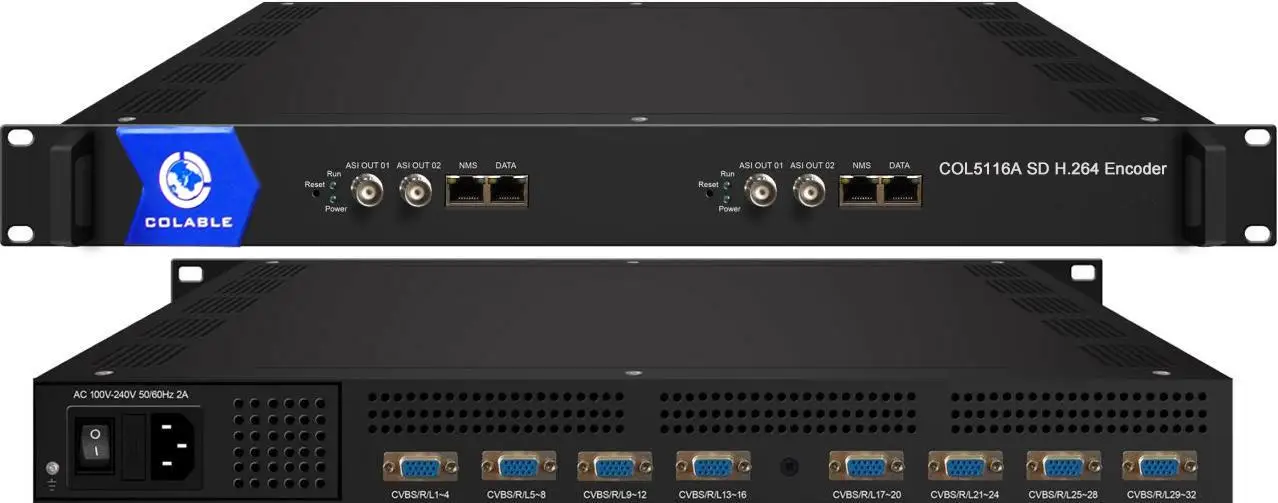

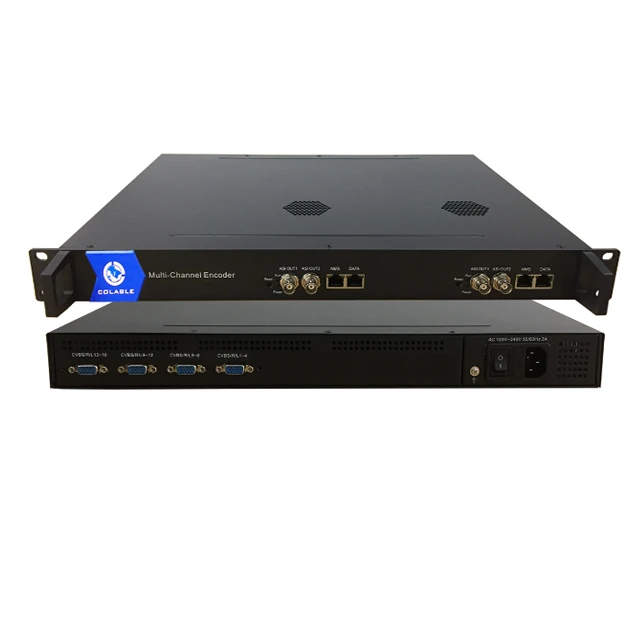

COL5116A SD H.264 16/32CH Encoder is our latest professional SD audio & video encoding and multiplexing device  with powerful functionality. It adopts the slot structure with one device supporting maximum 2 *COL5116A modules. Each module can support 16 channels and work standalone. It is equipped with 16/32 CVBS channels input. It can multiplex the 16/32 encoded TS to generate a MPTS and 16/32 SPTS output through GE output port and one MPTS output through 2 ASI output ports. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.





Features

ü 16/32×CVBS video inputs with MPEG4 AVC/H.264 Video encoding

ü Supports PAL and NTSC SD video formats

ü Support MPEG1 Layer II Audio encoding and support audio gain adjustment

ü Support 1 MPTS out through 2 ASI output ports

ü Support IP output over UDP and RTP

ü Support Null PKT Filter(only for MPTS, SPTS output without Null PKT)

ü Real-time effective encoding output bit-rate monitoring

ü Control via web management, and easy updates via web

ü Modular design,1U chassis support up to 2 modules

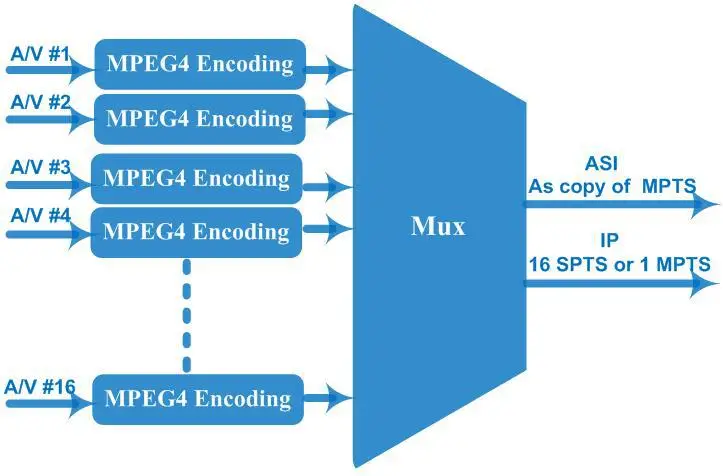

Principle Chart (per daughter module)



Technical Specification



Input	16/32 CVBS inputs , DB15-To-RCA interface
Video	Resolution	720×576i, 720×480i,
	Encoding	MPEG4 AVC/H.264(HP/MP/BP)
	Bit-rate	1Mbps~5Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IPP (P frame is adjustable)
Audio	Encoding	MPEG-1 Layer 2
	Sampling rate	48KHz
	Resolution	24-bit
	Audio Gain	0-255 adjustable
	Bit-rate	64/128/192/224/256/320/384Kbps each channel
Stream output	IP (1*MPTS and 16/32*SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast and unicast)
	1 MPTS output through 2 ASI output ports (one for back up), BNC interface
System function	Network management (WEB)
	English language
	Ethernet software upgrade
Miscellaneous	Dimension(W×L×H)		482mm×328mm×44mm
	Environment		0~45℃(work);-20~80℃(Storage)
	Power requirements		AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

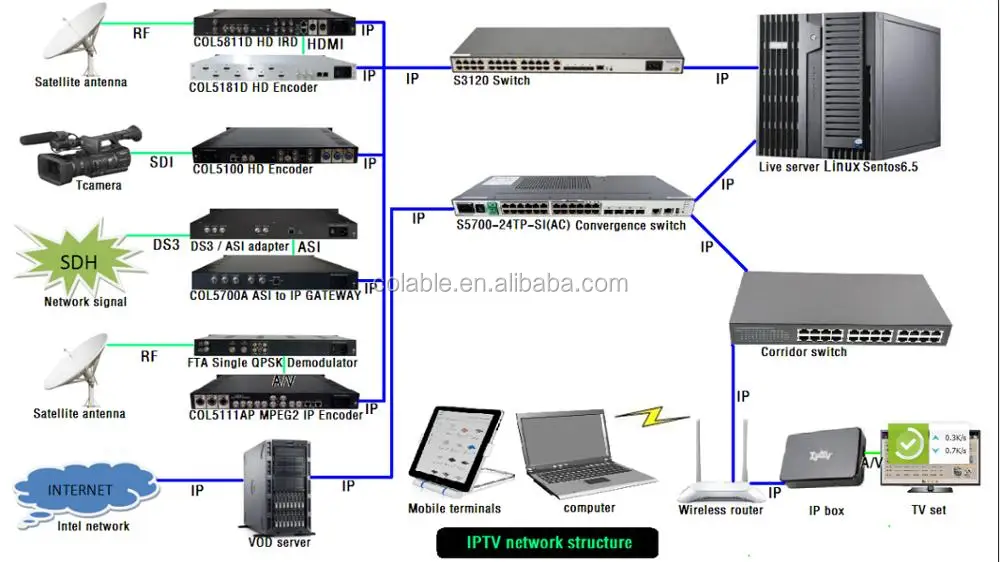

hd/sd iptv encoders in some TV Systems Solutions for reference









 For more info, please feel free to contact us,  skype:colable3  ^_^
