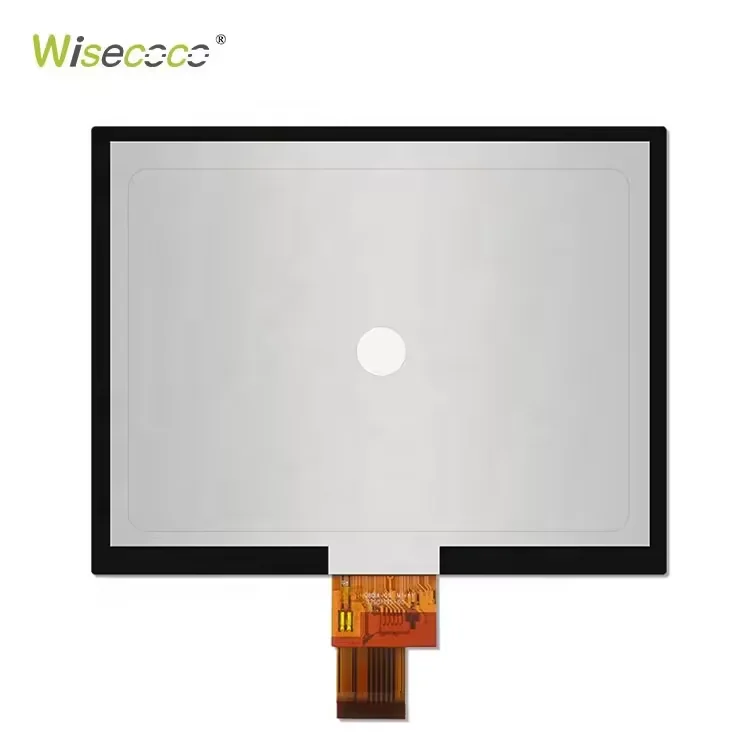

Custom Size Shape Touch 7 8 10.1 15.6 Inch USB Capacitive Touch Screen Panel For Industrial Smart Home
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (1601277089401):
Product Overview
Description
Product Description

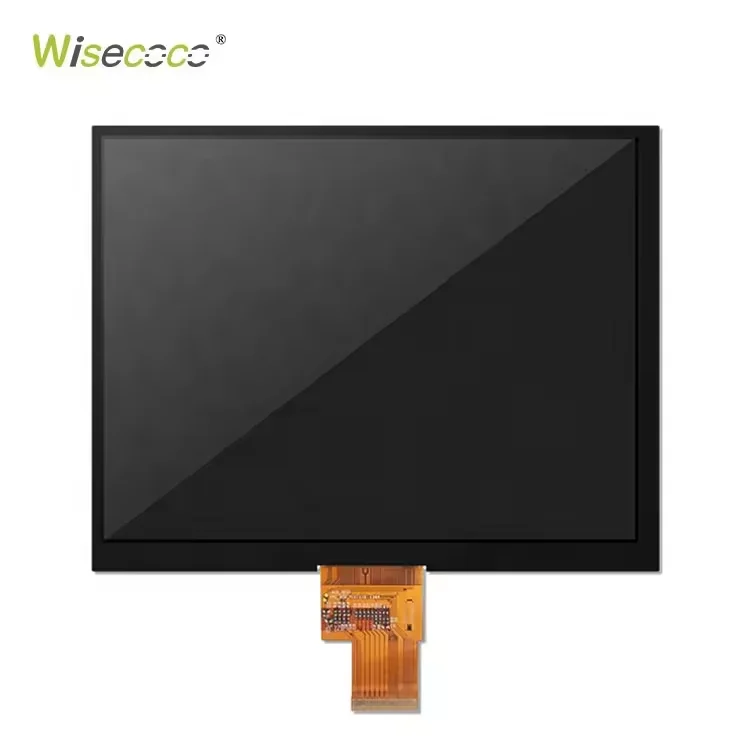

350 Cd/m2 high contrast lcd 1024x768 ips 8 inch lcd screen 8" display module controller for monitor kiosk
General Features | |||
Diagonal Size | 8 inch | Type | a-Si TFT-LCD, LCM |
Pixel Format | 1024(RGB)*768 , XGA | Configuration | RGB Vertical Stripe |

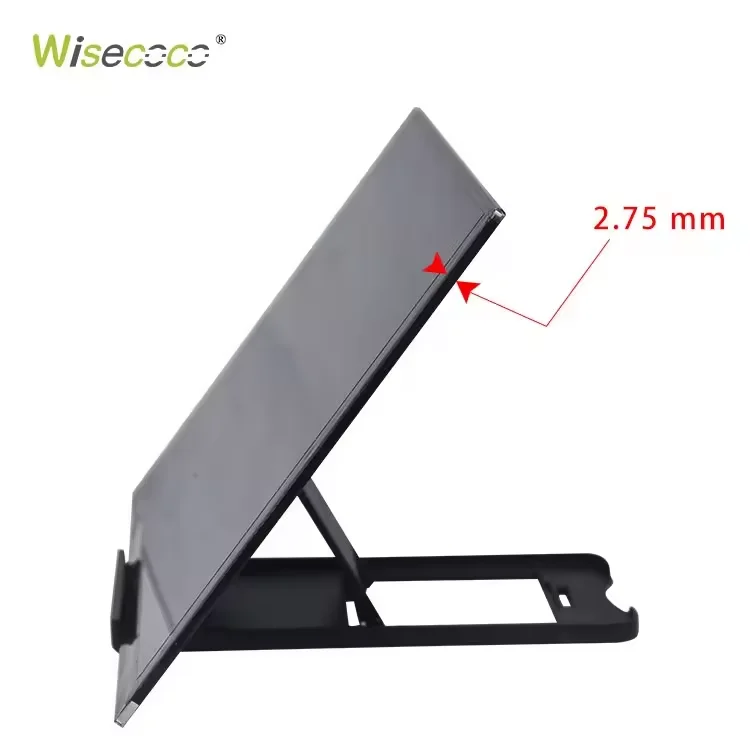

Active Area | 162.048(W)*0121.536(H) mm | Outline Dim. | 174(W)*136(H)*2.75(D) mm |
Bezel Area | - | Treatment | Hard coating |
Luminance | 350 Cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR>10) | Operating Mode | IPS, Normally Black, Transmissive |
Support Color | 262K/16.7M 50% (CIE1931) | Light Source | 3S11P WLED , 20K hours , Without Driver |
Weight | 120g | Designed For | Pad&Tablet |
Frame Rate | 60Hz | Touch Panel | Optional |

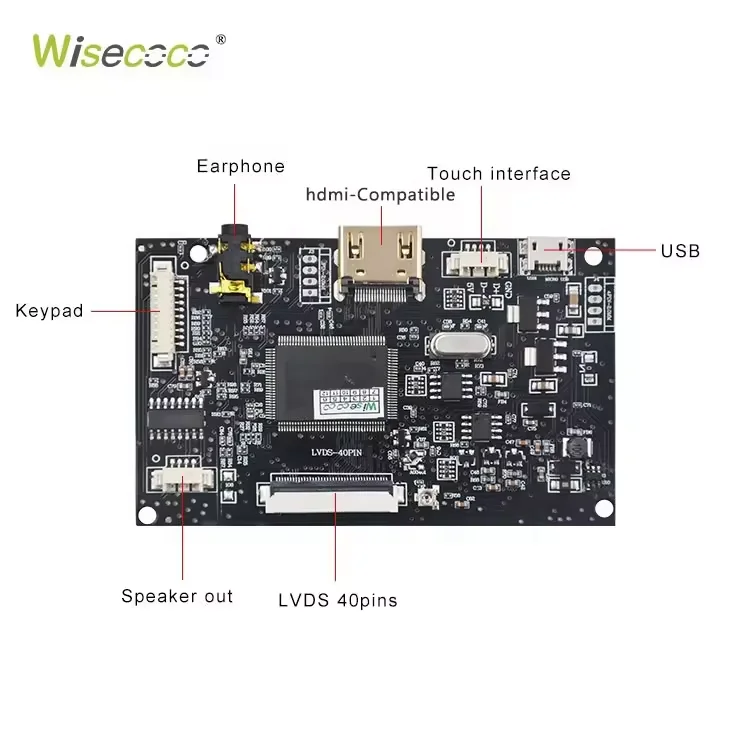

Interface Type | LVDS (1 ch, 6/8-bit) , FPC , 40 pins | ||
Power Supply | 3.3/10.0/18.9/-7.8V (Typ.)(VCC/AVDD/VGH/VGL) | ||
Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C | ||
