Mining Mineral Processing Plant Price Gold Copper Molybdenum Ore Flotation Machine
- Category: >>>
- Supplier: Shicheng Gaoxuan Bearing Bush Co. Ltd.
Share on (1601277111112):
Product Overview
Description
Product Description
High Recovery Gold/Silver/Copper Flotation Separator Ore Dressing Production Line Flotation Cell 2000TPD Sand Flotation Machine
Shicheng Gaoxuan Bearing Bush Co., Ltd. is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.

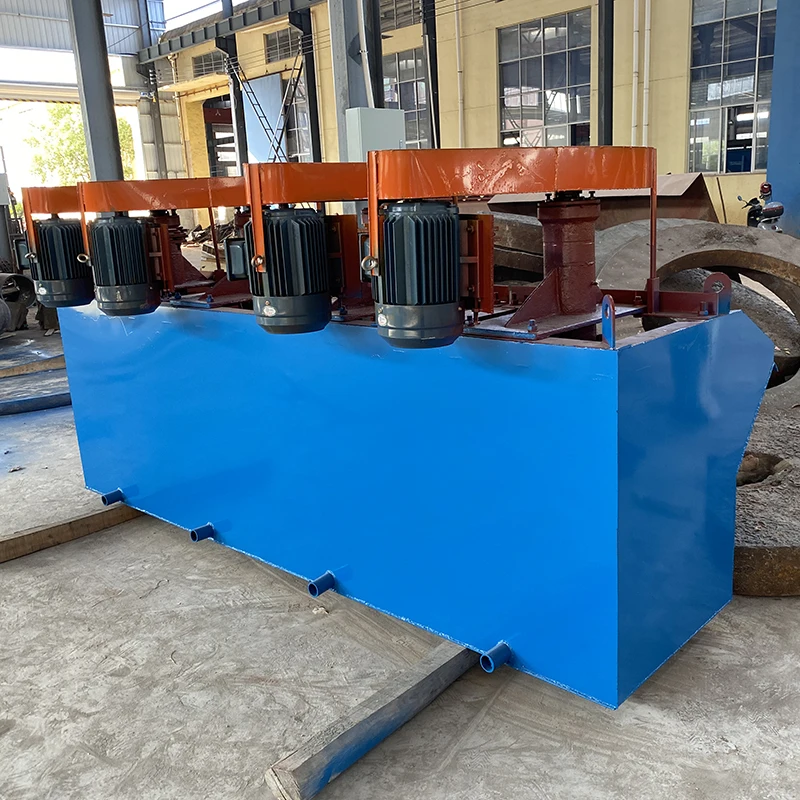

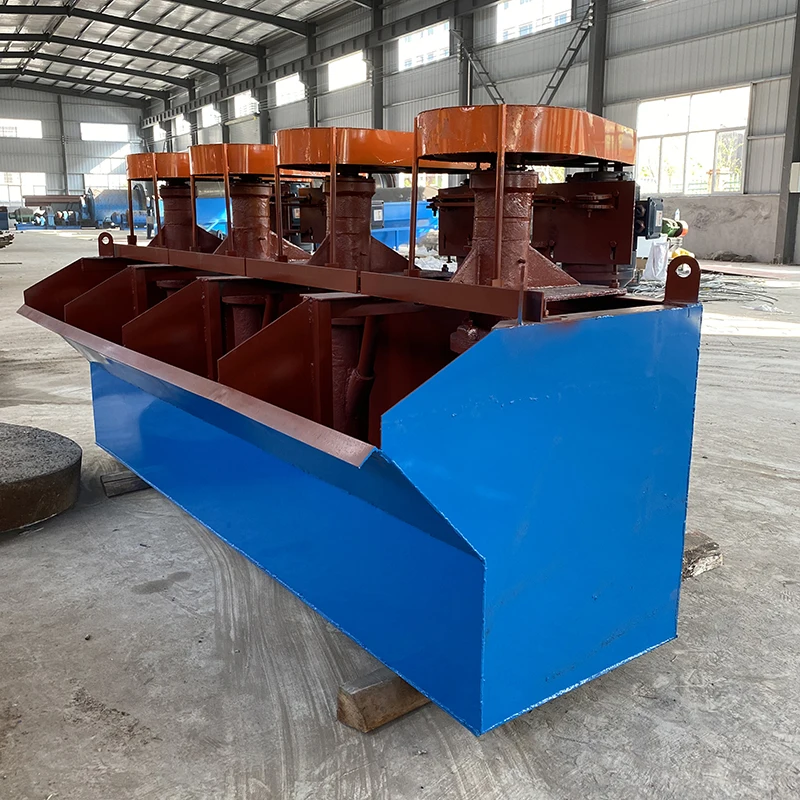

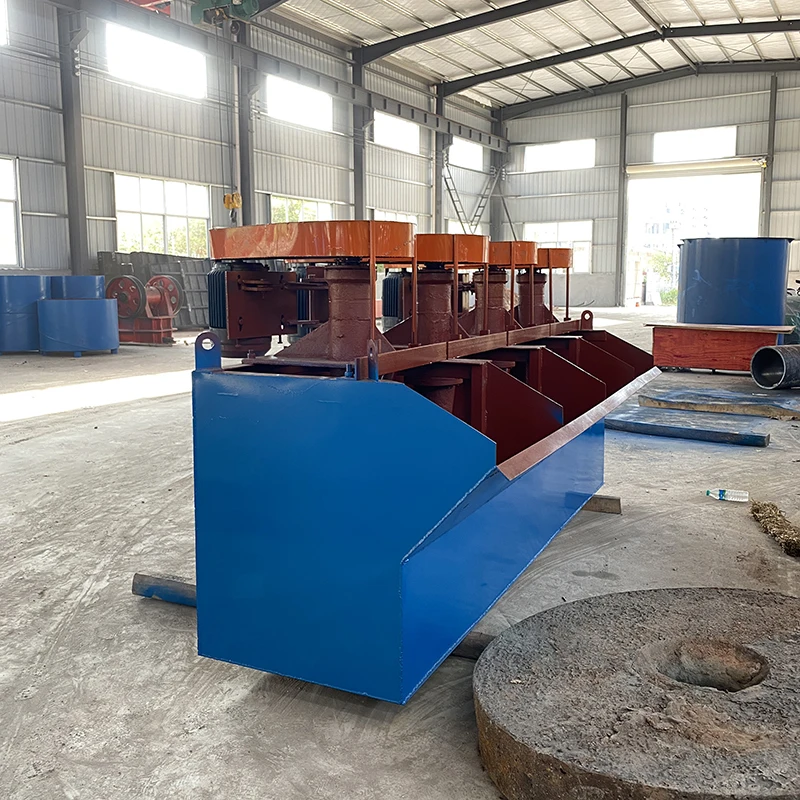

Copper Ore Flotation Separator Introduction
XJK-1, XJK-2, XJK-4 are four cells and six cells as the basic cell. Two cells of the XJK-1 and XJK-2 as the motor body.
XJK-3A,4A,5A and 6A are two cells, four cells and six cells as the basic cell. XJK-11 is one cell, two cells and four cells as the
basic cell and combining some cells for the roughing, scavenging and cleaning concentration.
Working Principle

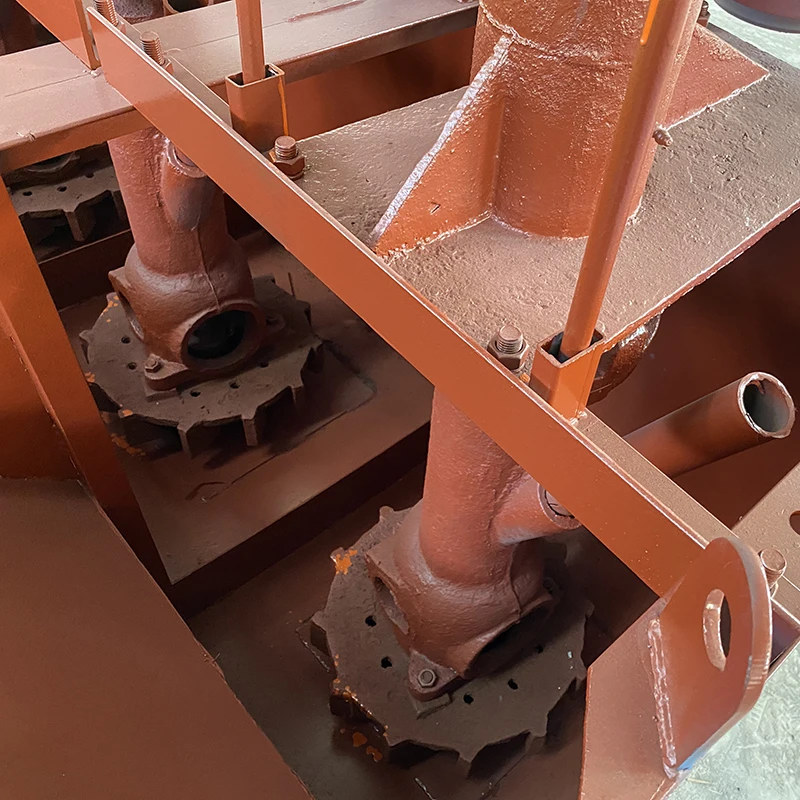

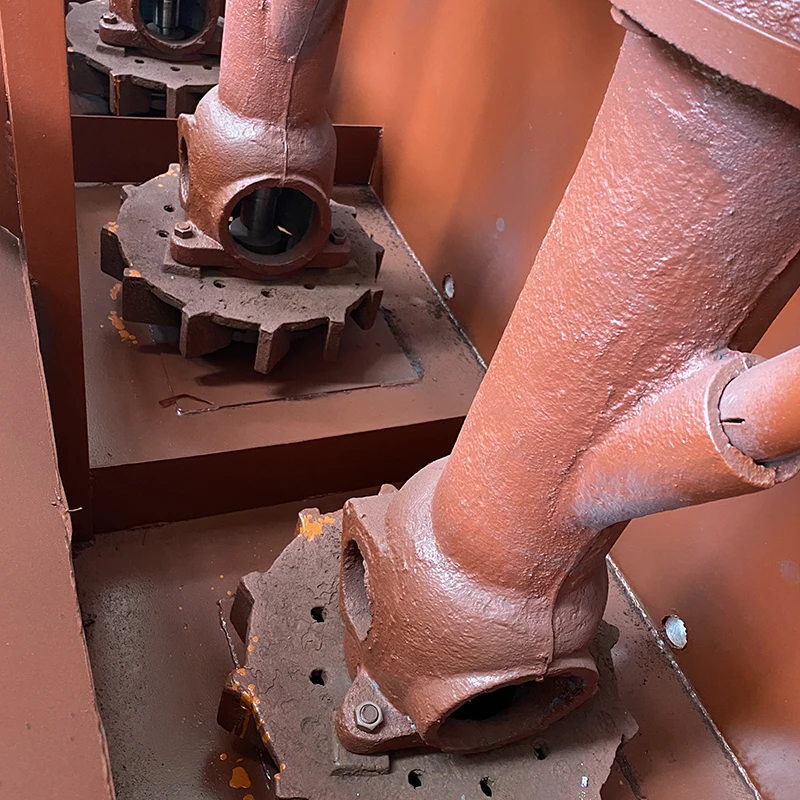

The motor drives belt pulleys to make the impeller moving by triangle belt. One is to mix the air and pulp sufficient, the other
side is to agitate the pulp with chemical reagents as well as thinning the bubbles. The ore particles stick on the bubbles by the
chemical reagents and float to the surface of the pulp and then become the forth and scraped by the scrapper.When the flotation
machine is working, the inlet ore pipe feed the pulp to the center of the cover and then swi out the pulp by the revolving
impeller of the centrifugal force. Meanwhile, there is a negative pressure zone in the space of the impeller and cover so air can
be inhaled from the air inlet pipe automatically. The strong agitation of the impeller mixes the pulp and air sufficient and then
be made to many small bubbles. The bubbles go up to the forth and be scrapped out to be forth product.
Widely Applications
It is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous
metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex
composition ore, using this series flotation machine can get better separation effect.
XJK-1, XJK-2, XJK-4 are four cells and six cells as the basic cell. Two cells of the XJK-1 and XJK-2 as the motor body.
XJK-3A,4A,5A and 6A are two cells, four cells and six cells as the basic cell. XJK-11 is one cell, two cells and four cells as the
basic cell and combining some cells for the roughing, scavenging and cleaning concentration.
Working Principle
The motor drives belt pulleys to make the impeller moving by triangle belt. One is to mix the air and pulp sufficient, the other
side is to agitate the pulp with chemical reagents as well as thinning the bubbles. The ore particles stick on the bubbles by the
chemical reagents and float to the surface of the pulp and then become the forth and scraped by the scrapper.When the flotation
machine is working, the inlet ore pipe feed the pulp to the center of the cover and then swi out the pulp by the revolving
impeller of the centrifugal force. Meanwhile, there is a negative pressure zone in the space of the impeller and cover so air can
be inhaled from the air inlet pipe automatically. The strong agitation of the impeller mixes the pulp and air sufficient and then
be made to many small bubbles. The bubbles go up to the forth and be scrapped out to be forth product.
Widely Applications
It is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous
metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex
composition ore, using this series flotation machine can get better separation effect.
Specification
Type | Specification model | Effective cubage (m³) | Processing capcity (m³/min) | Main shaft loam board | ||||||
Power (kw) | Rotate speed (r/min) | Rotate speed (r/min) | Power (kw) | |||||||
XJK Series | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | |||
XJK-0.62 | 0.62 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | ||||
XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | ||||
XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | ||||
XJK-5.8 | 5.8 | 1.1-2.9 | 22 | 240 | 25 | 1.5 | ||||
SF Series | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | |||
SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | ||||
SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | ||||
SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | ||||
SF-4 | 4 | 2.0-4 | 15 | 220 | 25 | 1.5 | ||||
SF-8 | 8 | 4.0-8 | 30 | 191 | 25 | 1.5 | ||||
SF-16 | 16 | 5.0-16 | 30 | 191 | 25 | 1.5 | ||||
SF-20 | 20 | 5.0-20 | 45 | 186 | 25 | 1.5 | ||||

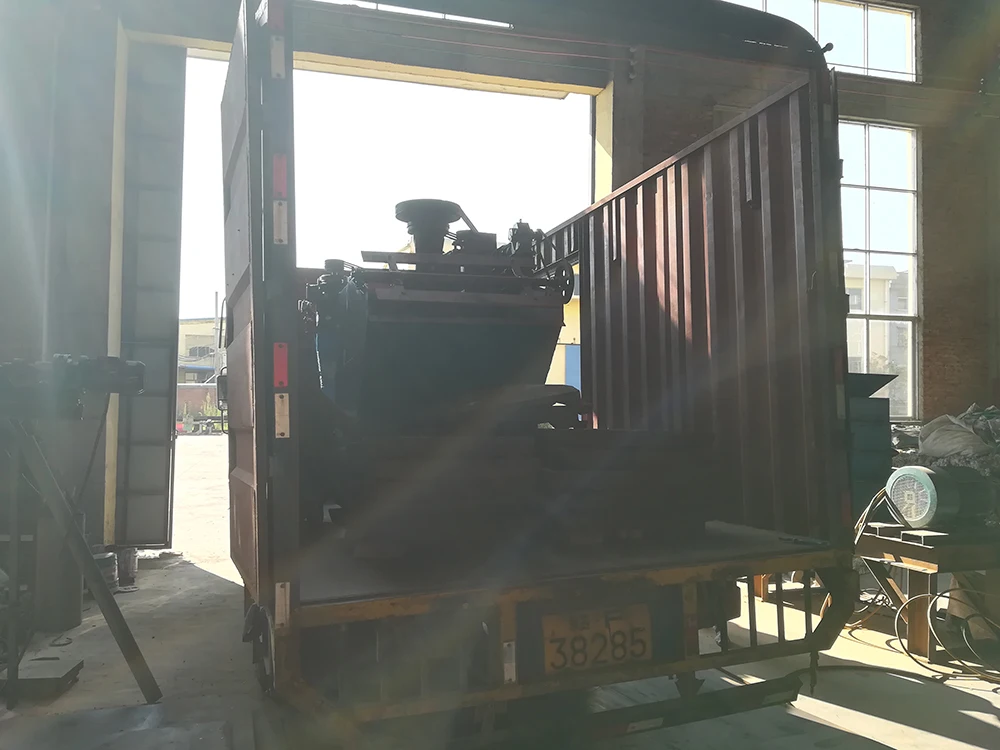

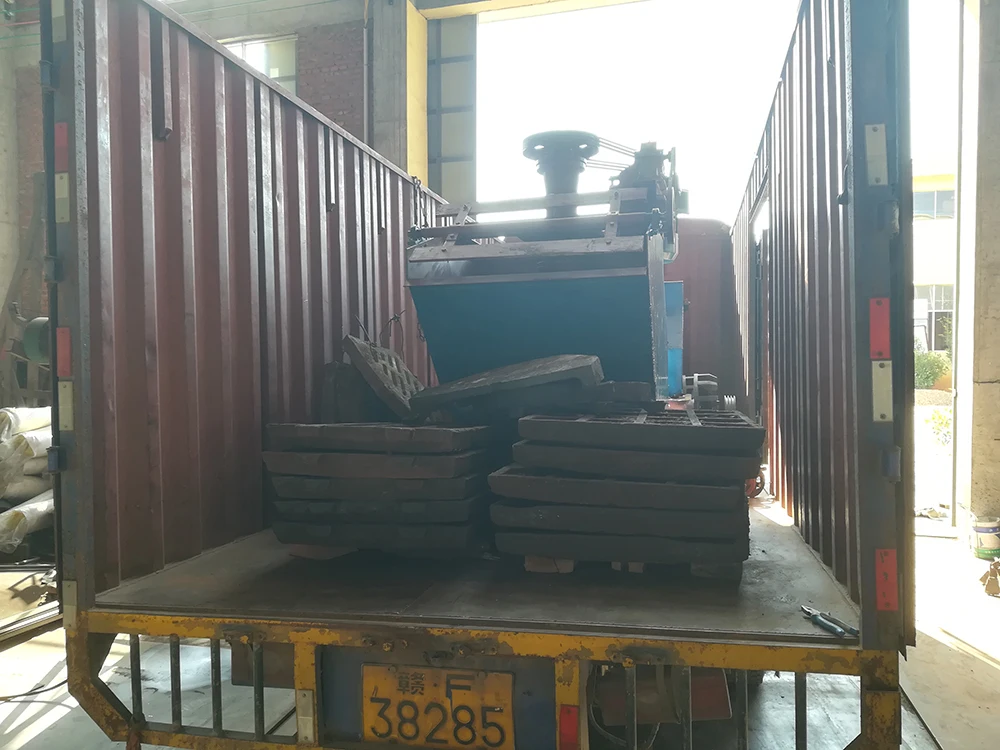

Packing & Delivery
Company Profile
Shicheng Gaoxuan Bearing Bush Co.,Ltd established in 1958 with a subsidiary corporation named Jiangxi Changyi Mining Machinery factory,located in Ganjiang River source and Wuyi mountain,is a professional supplier in producing and sale kinds of bearing bushes and mining equipments.This factory covers an area of 26000 square meters with a total fixed asset of USD3,000,000 and owns more than 200 sets of mechanical processing machines and 50 technical personnels,with an annual production ability for USD10,000,000.It's one net point of cooperation of the orginal China Equipment General Company of Ministry of Chemical Industry,as well as a fixed cooperation company of Huadong Fittings of Ministry of Metallurgy.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.
Customer Photos
Exhibition
FAQ
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit
