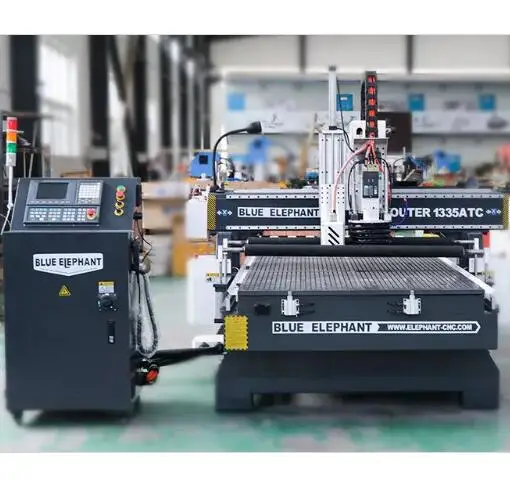

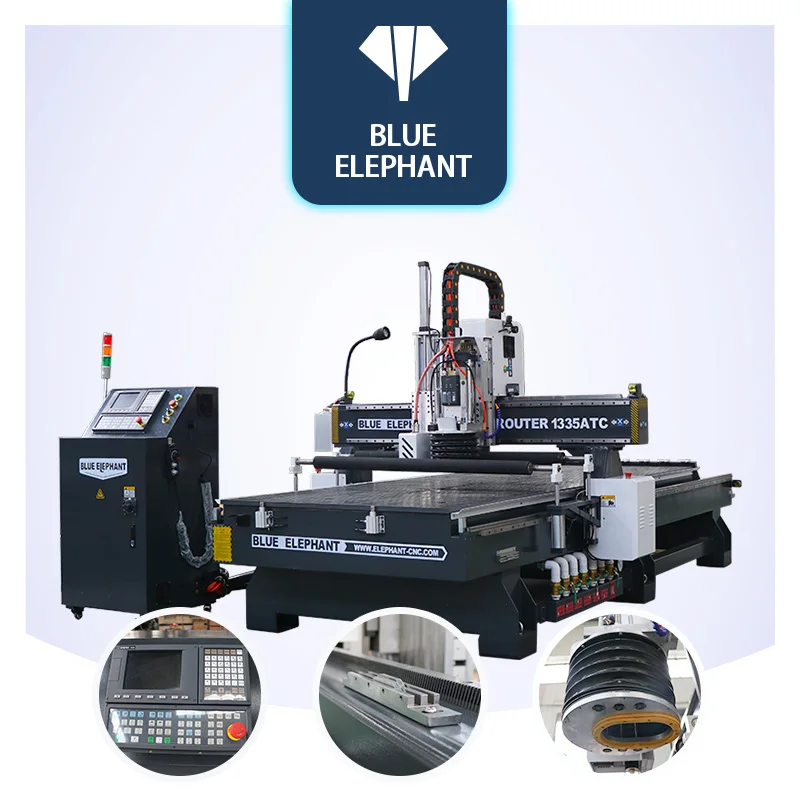

Factory Price 1335 ATC CNC Router machine with air cooling spindle for kitchen cabinet door making
This machine is a CNC wood engraving machine with a linear type auto tool changer. It can greatly improve the production efficiency. That is why the ATC wood engraving machine is so popular among the customers. Moreover, this machine adopts imported components, which ensures a long service life of the machine, thus reduceing your purchase costs. If you have a processing need for mass production, ATC CNC router will be a good choice for you.

1. Linear type auto tool changer changes 8 sets of tools automatically without manual operation, which greatly improves processing efficiency.
2. With an automatic lubrication system, it is easy to operate and maintain.
3. Adopting famous-brand and high-quality parts and components, the machine has a long service life and stable performance.
4. The new type thicker and bigger heavy-duty machine structure makes the machine operate more stably.


Product Paramenters


Model
ELECNC1335ATC
X,Y axis travel
1300x3500mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc.
Spindle
9KW ATC HQD air-cooled spindle
Inverter
11KW
Tool magazine
6pcs linear tool storage
Control system
Taiwan LNC with MPG handle wheel
Motor and driver
850W Leadshine servo motor and 1KW Servo driver
Switch
Japan OMRON
Working Table
Aluminum T-slot &vacuum table
limit switch
Japan OMRON limit switch
Lubrication system
1.5L Auto oil lubrication system
Voltage
380V 3phase 60HZ
Vacuum pump
7.5KW vacuum pump, two stage ,air-cooled , two impeller
X,Y,Z Transmission
Taiwan J &T Helical rack and gear box , 1.25M ,
Taiwan PMI #25 RailTaiwan PMI #25 Linear Bearing& Taiwan TBI Ball Screw #2505
Cable
Shanghai Cardiff cable,CE ,UL certification
Dust collector
Complete 1.5KW new type dust collector , CE certification , the vacuum suction is same as 4KW old type
Tool sensor
Auto tool sensor


Recommend Products




Product Detalis


Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the
spindle or on the side of the gantry. This carousel tool change method has the feature of faster tool change speed, so the production effnciency is higher.
CNC Head
ATC CNC router selects Italian HSD air-cooled spindle, power: 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.


Control system
The control system of CNC router adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis,4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the itelligence of the device.
Driving system
World-class servo motor and driving system ensures machine to run with fast speed and low noise.


Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
Safety system
ATC CNC router has the unique safety protection system and provides external emergency stop function for equipment users. This function can effectively pro-
tect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among
users.


Customer Feedback






Sample & Application








Company Information










Exhibition






FAQ


1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
