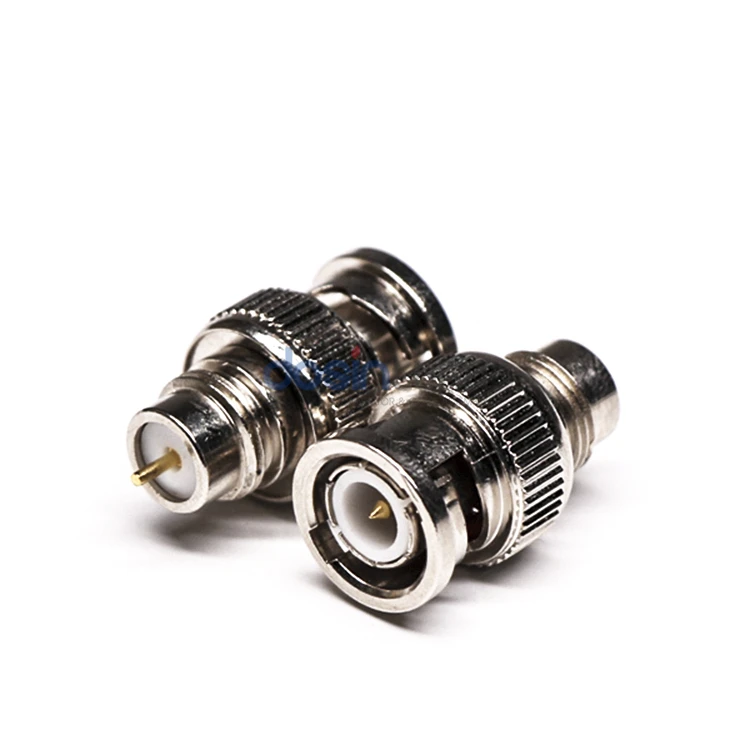

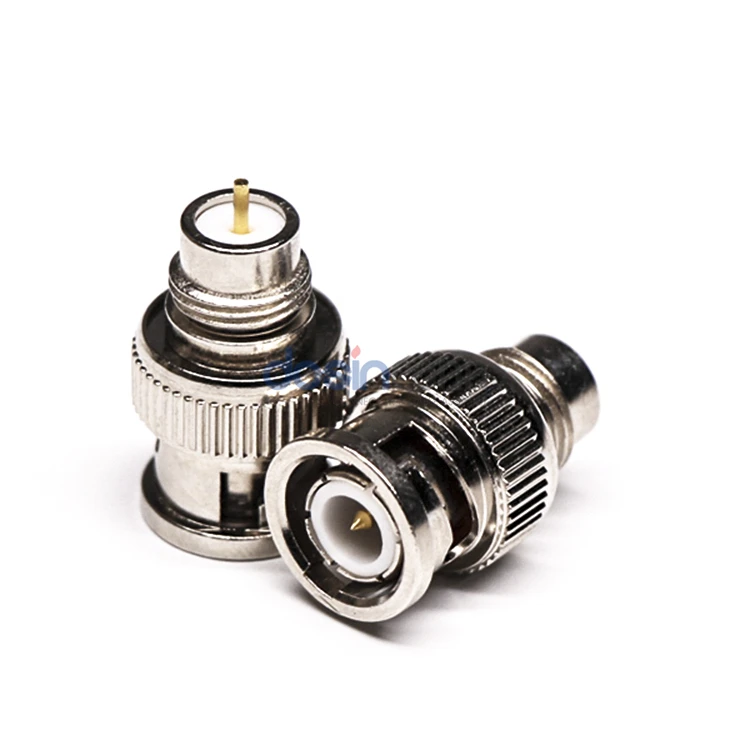

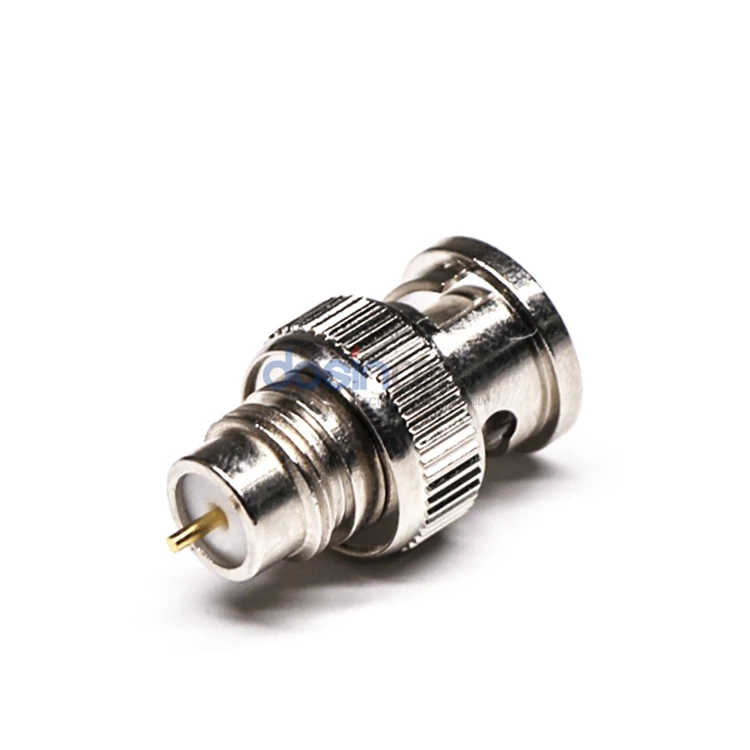

BNC Straight Plug Male Connector Manufacturer 50ohm Nickel Copper Stainless Steel RF BNC Connector
- Category: >>>
- Supplier: Dongguan Dosin Precision Industry Co. Ltd.
Share on (1601277169403):
Product Overview
Description
Product Description
BNC(Bayonet-Neil Concealment) connector derives its name from the surnames of the type N inventor Paul Neil and type C inventor Carl Concealment-the “bayonet” refers to the styles of locking mechanism employed by this series.
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High cost-effective with good quality.
- Easy quick connect and disconnect coupling;
- High cost-effective with good quality.
BNC Connector Technical Datasheet | ||||
Electrical Characteristics | Impedance | 50 ohm or 75 ohm | ||
Frequency Range | 0-4 GHz | |||
VSWR (Voltage Standing Wave Ratio) | Straight type ≤ 1.22/3GHz, R/A type ≤ 1.30/3GHz | |||
Dielectric Withstanding Voltage | 1500 V rms | |||
Working Voltage | 500 V rms | |||
Center Contact Resistance | ≤ 1.5 mΩ (Milliohms max.) | |||
Outer Contact Resistance | ≤ 2.0 mΩ (Milliohms max.) | |||
Insultation Resistance | ≥5 × 10³ mΩ (Milliohms min.) | |||
Mechanical Characteristics | Coupling | Bayonet | ||
Contact Retention | 6 lbs min | |||
Mating Durability | ≥500 cycles | |||
Environmental Characteristics | Temperature Range | Teflon -55℃~+155℃ / POM -40℃~+60℃ | ||
Coupling Nut Retention | 100 lbs. min | |||
Vibration | MIL-STD-202 Meth. 204 | |||
Corrosion Resistance | MIL-STD-202 Meth. 101 | |||
Related Products
Applications
Application Scenarios
The BNC was originally designed for military use and has gained wide acceptance in video and RF applications to 2 GHz. The BNC uses a slotted outer conductor and some plastic dielectric on each gender connector. This dielectric causes increasing losses at higher frequencies. Above 4 GHz, the slots may radiate signals, so the connector is usable, but not necessarily stable up to about 11 GHz. Both 50 ohm and 75 ohm versions are available. The BNC connector is used for signal connections such as:
● Analog and serial digital interface video signals
● Radio antennas
● Aerospace electronics (avionics)
● Nuclear instrumentation
● Test equipment.
● Test equipment.
The BNC connector is used for composite video on commercial video devices. Consumer electronics devices with RCA connector jacks can be used with BNC-only commercial video equipment by inserting an adapter. BNC connectors were commonly used on 10base2 thin Ethernet network cables and network cards. BNC connections can also be found in recording studios. Digital recording equipment uses the connection for synchronization of various components via the transmission of word clock timing signals.

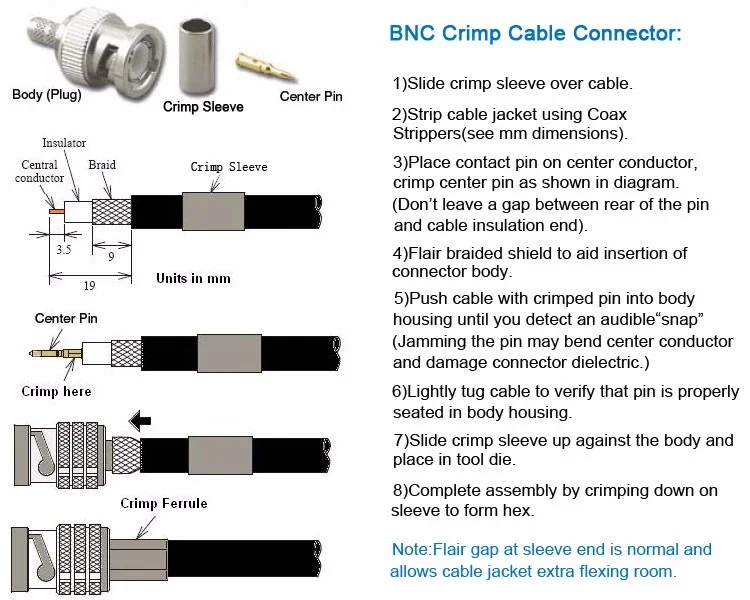

Typically the male connector is fitted to a cable, and the female to a panel on equipment. Cable connectors are often designed to be fitted by crimping using a special power or manual tool. Wire strippers which strip outer jacket, shield braid, and inner dielectric to the correct lengths in one operation are used.
Our Factory
Dongguan Dosin Hardware
Electronics Co., Ltd.
Electronics Co., Ltd.
Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005, and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, antenna series and other custom made connectors.
We offer an extensive range of interconnect solutions for applications in telecom, security surveillance, automotive, healthcare, military and aerospace industries.
We offer an extensive range of interconnect solutions for applications in telecom, security surveillance, automotive, healthcare, military and aerospace industries.
Stamping Workshop
Insert Metal Plate between the top and bottom mold, and then apply pressure to cut the plate. Ideal for mass production as high production capacity with only one die mold.
Die casting Workshop
Forcing the molten metal under high pressure into a mold cavity. In DOSIN, this workshop is main for die casting moulding to make Zinc Alloy or Aluminium Alloy parts.
Injection Moulding Workshop
Injection moulding requires to transfer the polymeric material in powder or granule form from a feed hopper to a heated barrel. And then the plastic melted and injected into a mould. This process is automated, so the production capacity is high.
Lathe Turning
Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators (like Teflon). No mould required for this process. The production capactity limited by products' structure and quantity of machine.
Customer Reviews
Packing & Delivery
Delivery:
We help you find the best transport mode based on your quantity, schedule and freight budget.
Our Main transportation mode including DHL, UPS, TNT, FedEx, EMS, etc.
Payment:
We accept payment via TT, L/C, Western Union, Paypal and so on.
FAQ
1. Manufacturer or trader?
We have been owning a factory since established in 2005. The factory keeps developing as our business grows larger.
We have been owning a factory since established in 2005. The factory keeps developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 200pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Normally our MOQ is 200pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. Renhotec always care what you care!
5. What's the warranty?
One year, 12 months.
