GL Factory wholesale 3/4IN DC 3 24V Normally Open/Close Miniature Solenoid Valves Induction Latching Bistable Wifi Water Valve
- Category: >>>
- Supplier: Zhuhai Goldenland M & E Co. Ltd.
Share on (1601277177828):
Product Overview
Description

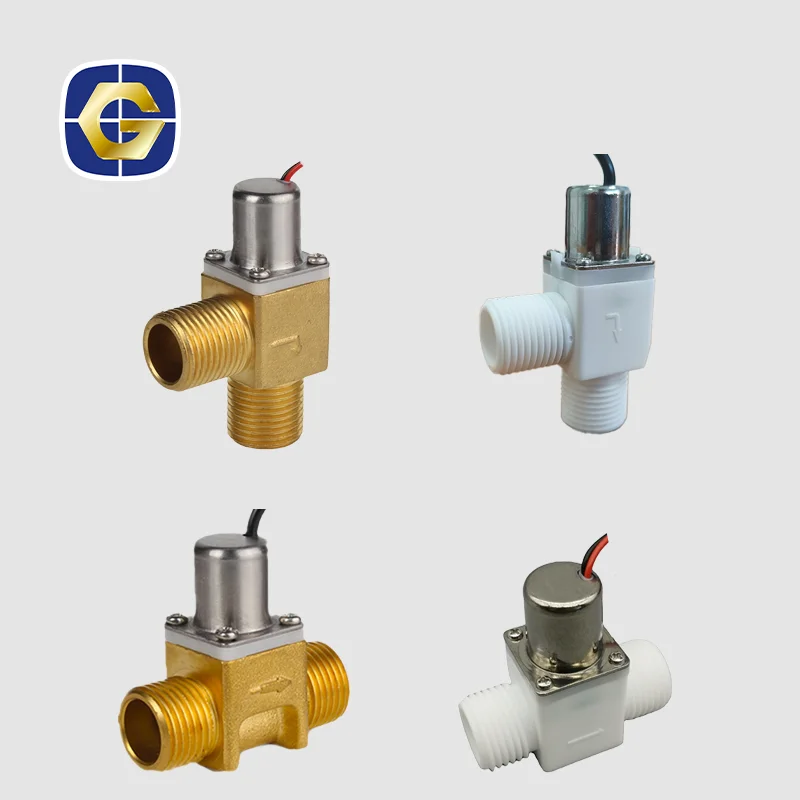

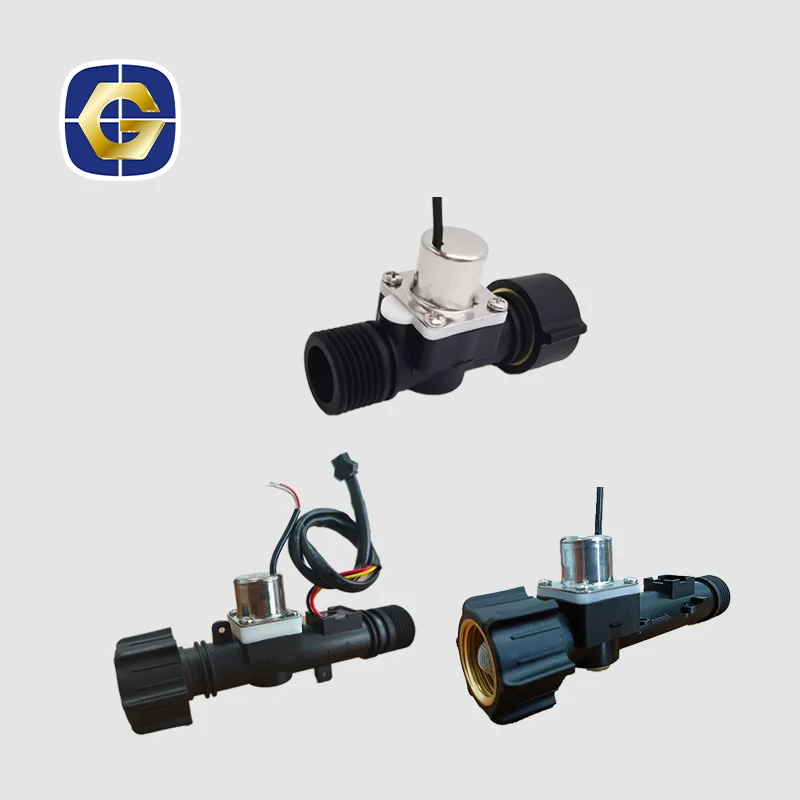

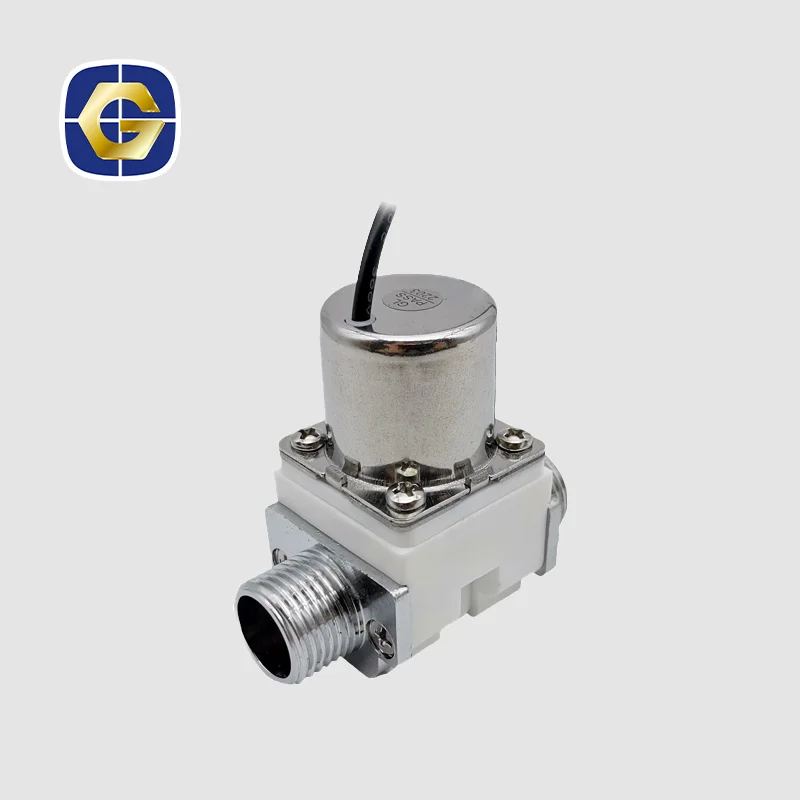

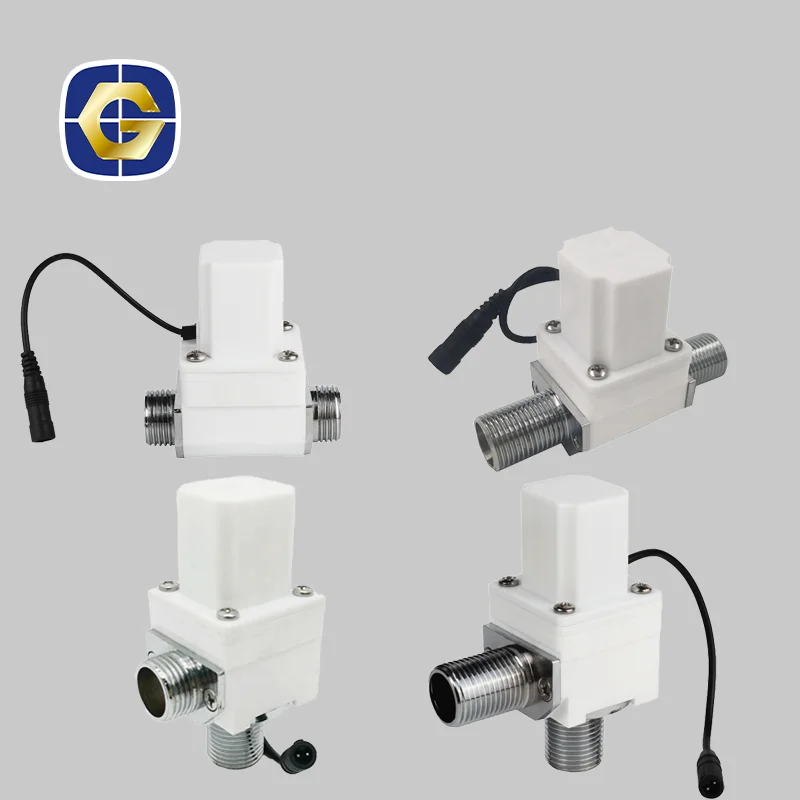

1.Product view

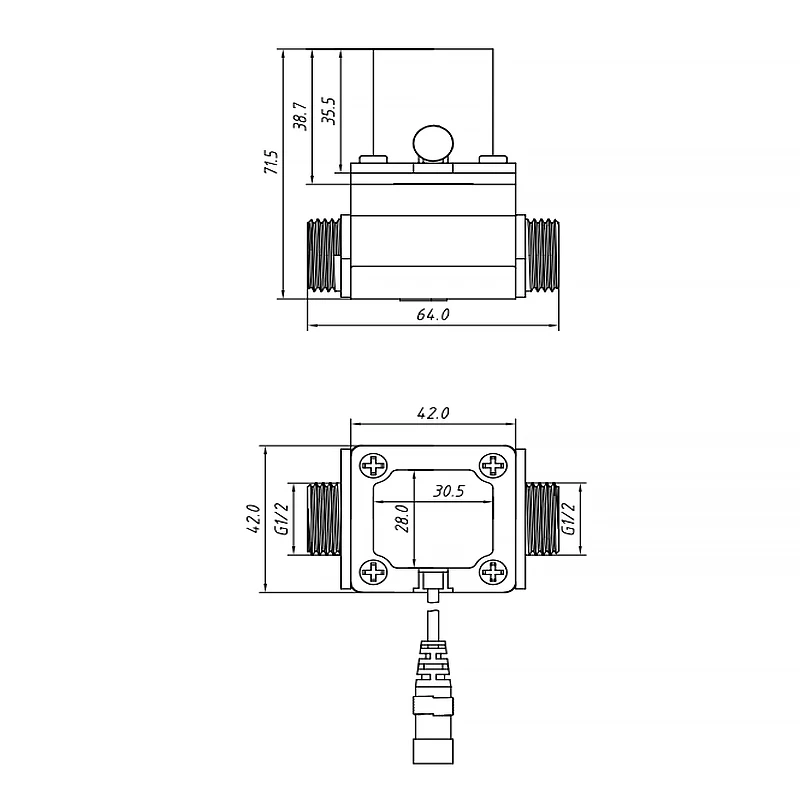

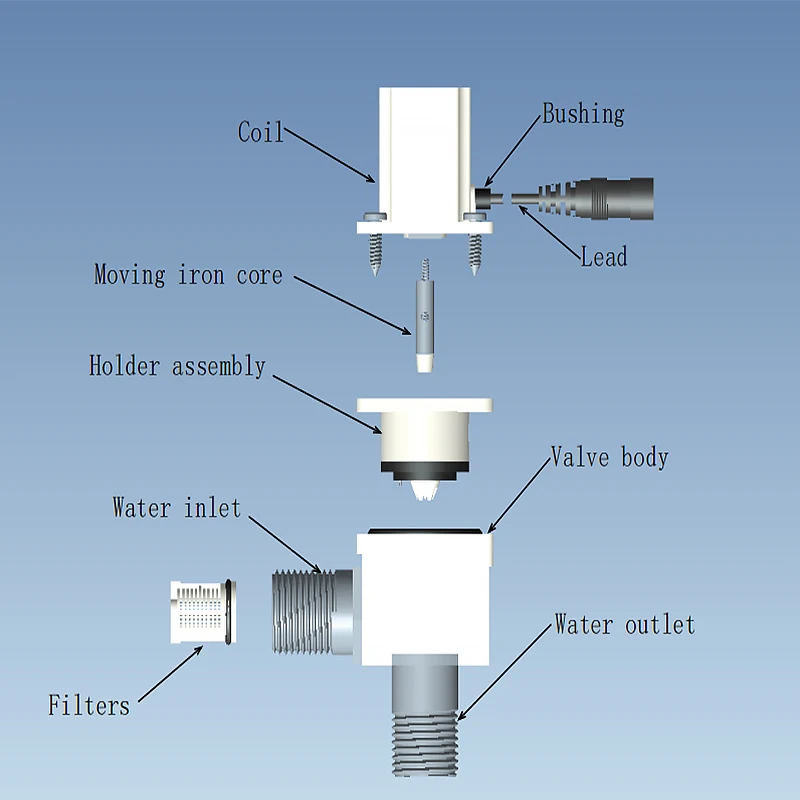

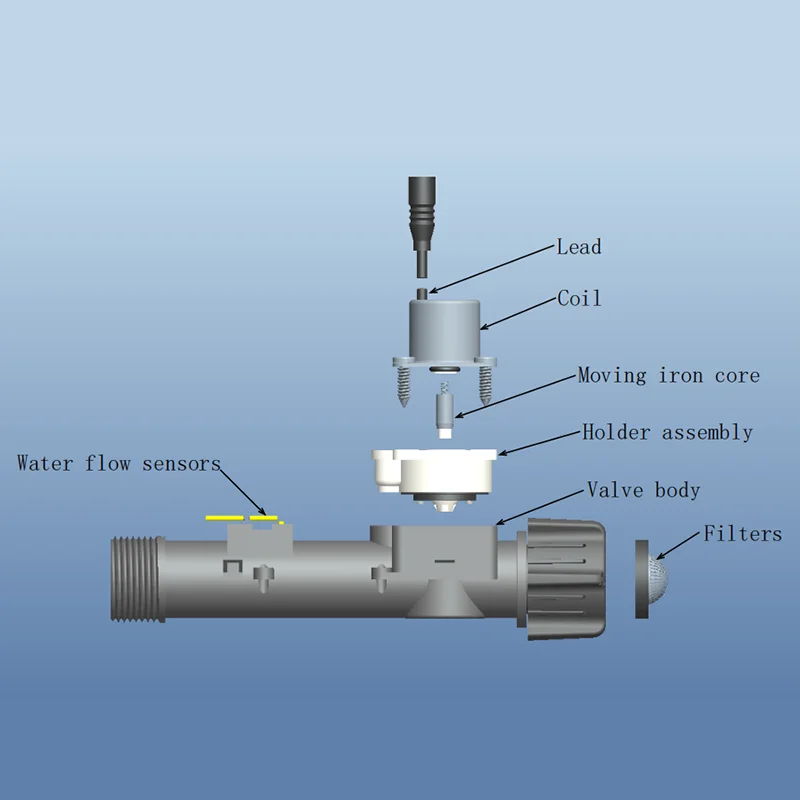

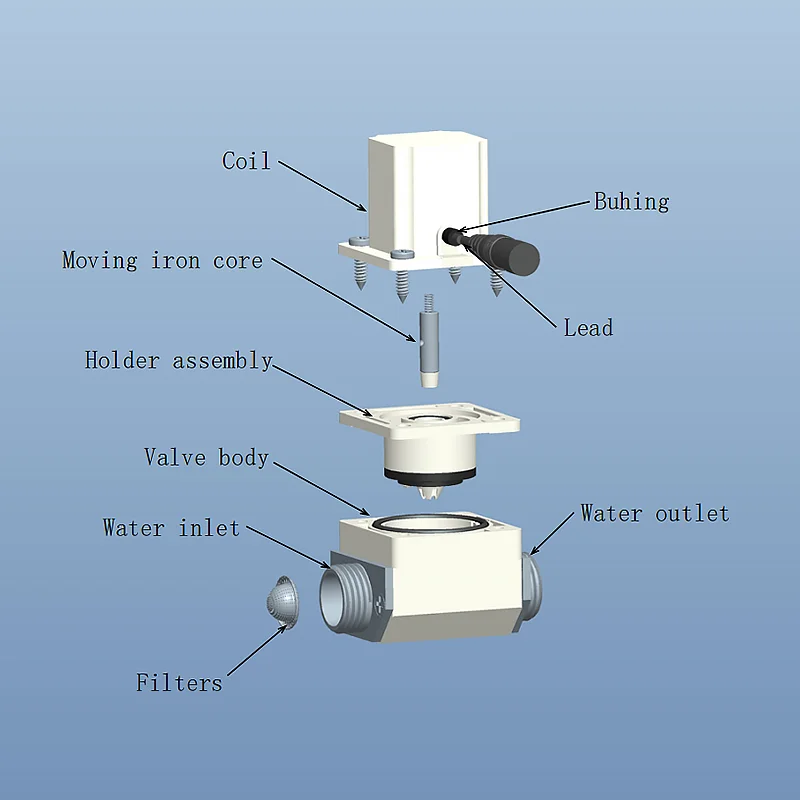

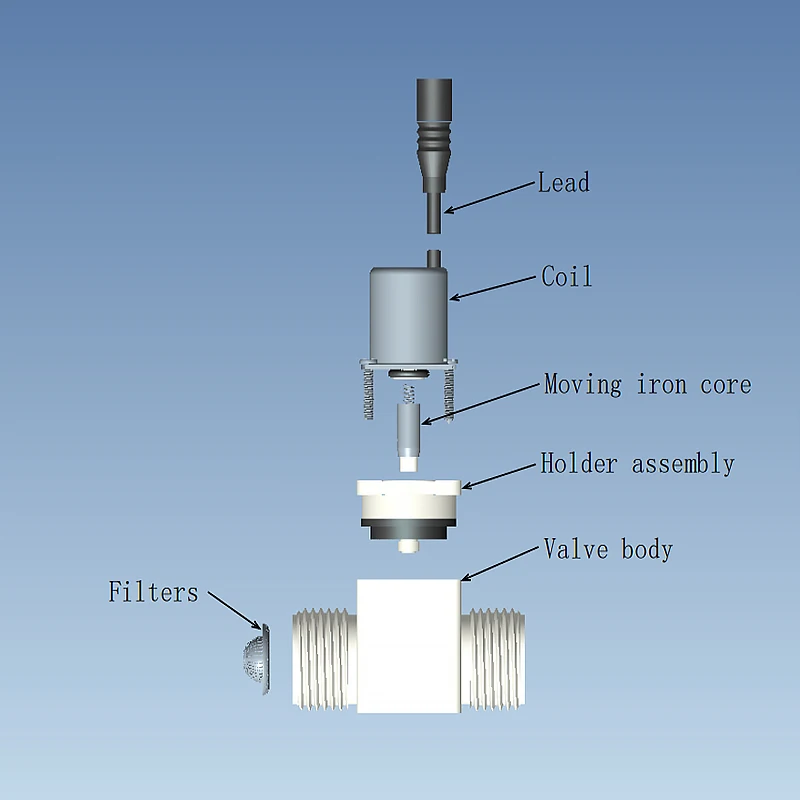

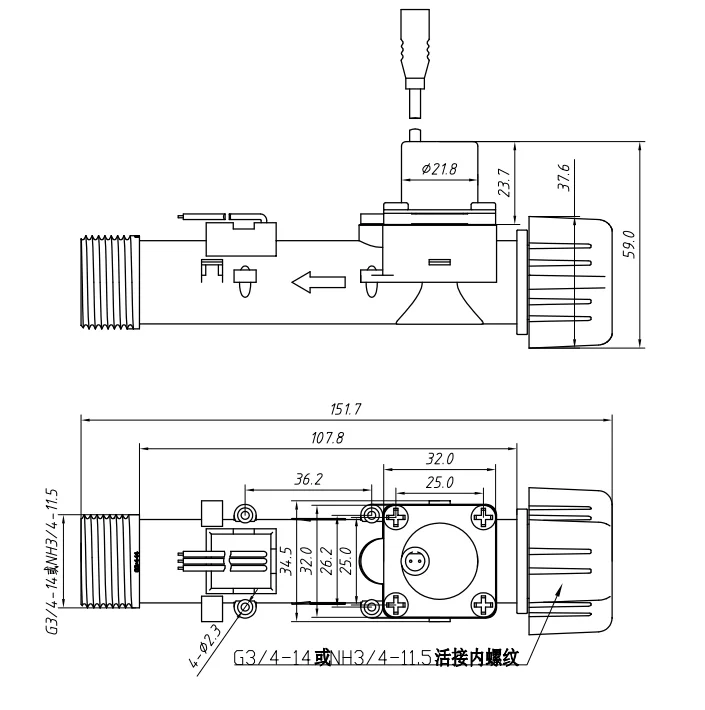

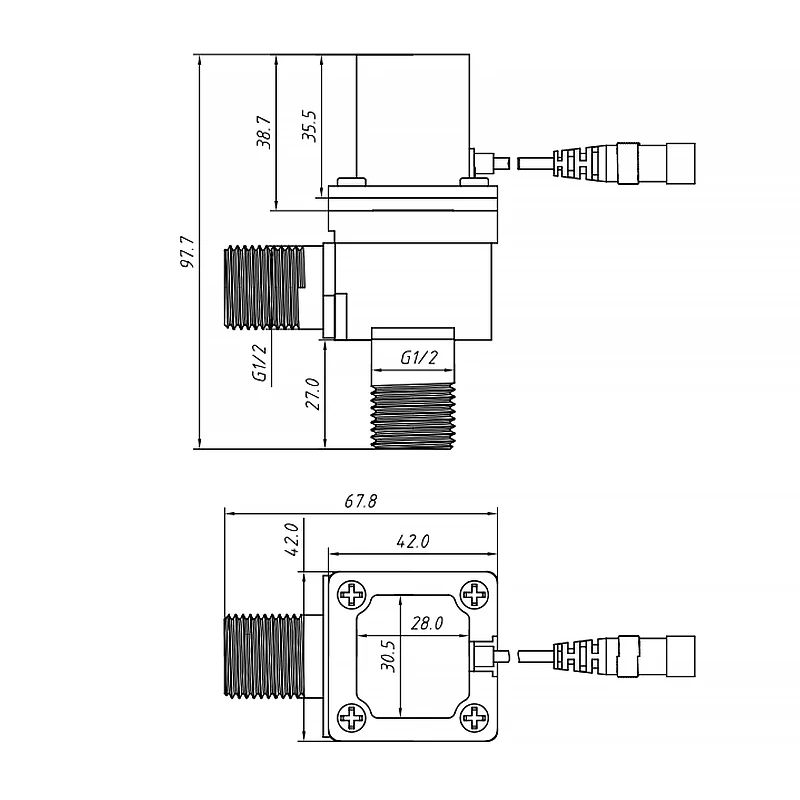

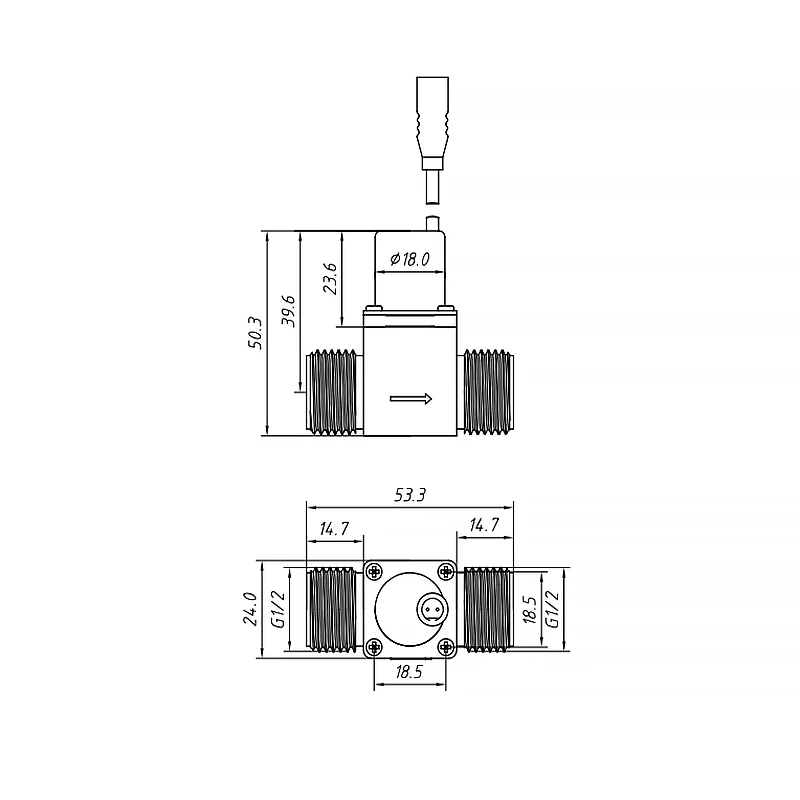

2.Split graph and dimensions
3.Normal technical characteristics and parameters
Place of Origin | Guangdong, China |
Switch mode | DC pulse |
Service Life Test | A million times |
Pulse width | ≥20ms |
voltage | 3V-24V |
Operating pressure | 0.02Mpa-0.8Mpa |
Media temperature | 1-75℃ |
Temp of working environment | 1℃~+60℃ |
Humidity of working environment | 35%~90RH(NO condensation state) |
Permissible limiting pressure(water) | ≤1.2MPa |
Storage temp | －5%~+80℃(NO freezing state) |
Storage humidity | 25%--95% RH(No condensation state) |
4.The relationship between pressure and flow
Water pressure （Mpa) | 0.02 | 0.05 | 0.1 | 0.2 | 0.3 |
Average flow rate（L/min) | 0 | 7 | 14 | 21 | 24 |
Water pressure （Mpa) | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
Average flow rate（L/min) | 27 | 30 | 32 | 33 | 34 |

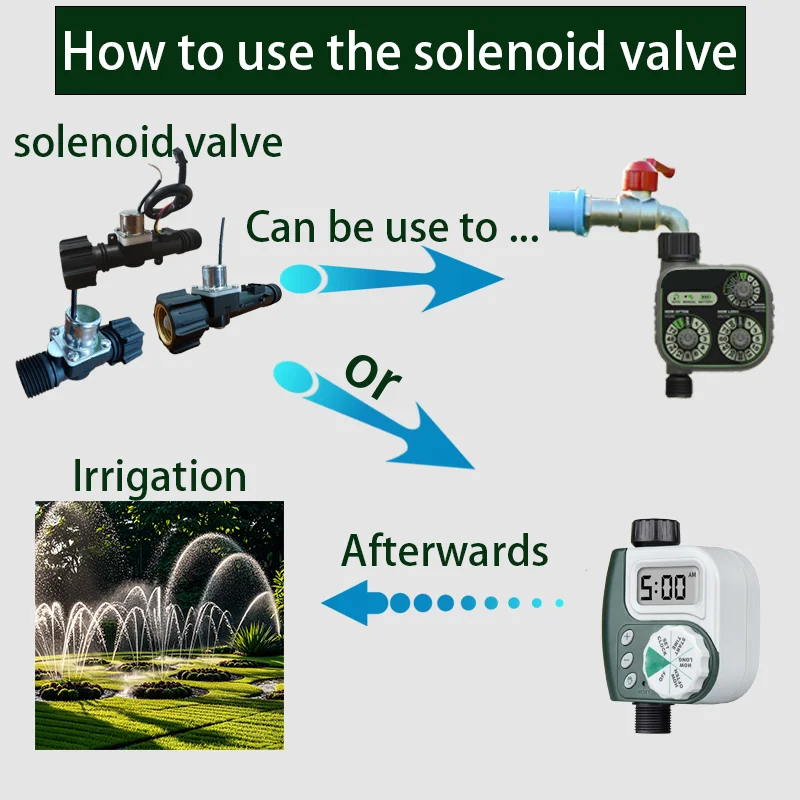

5.Aplication fields

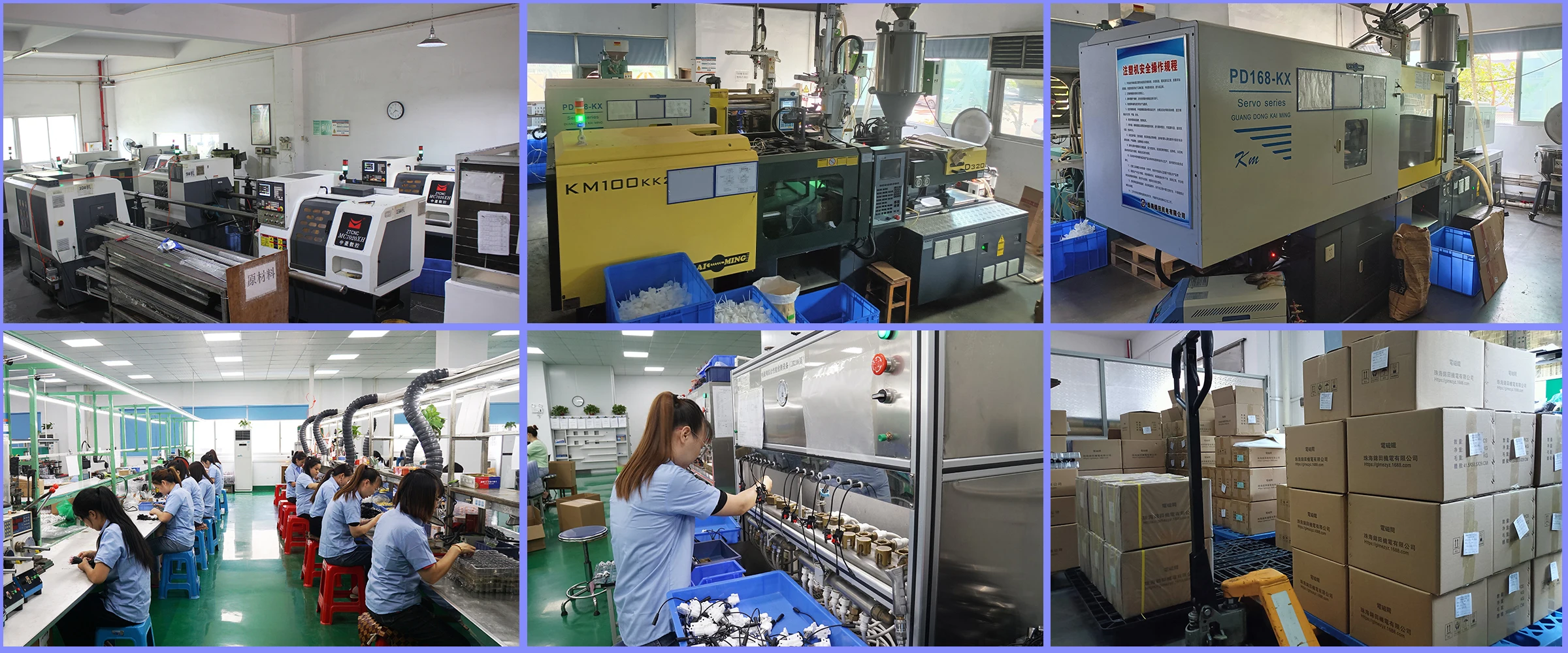

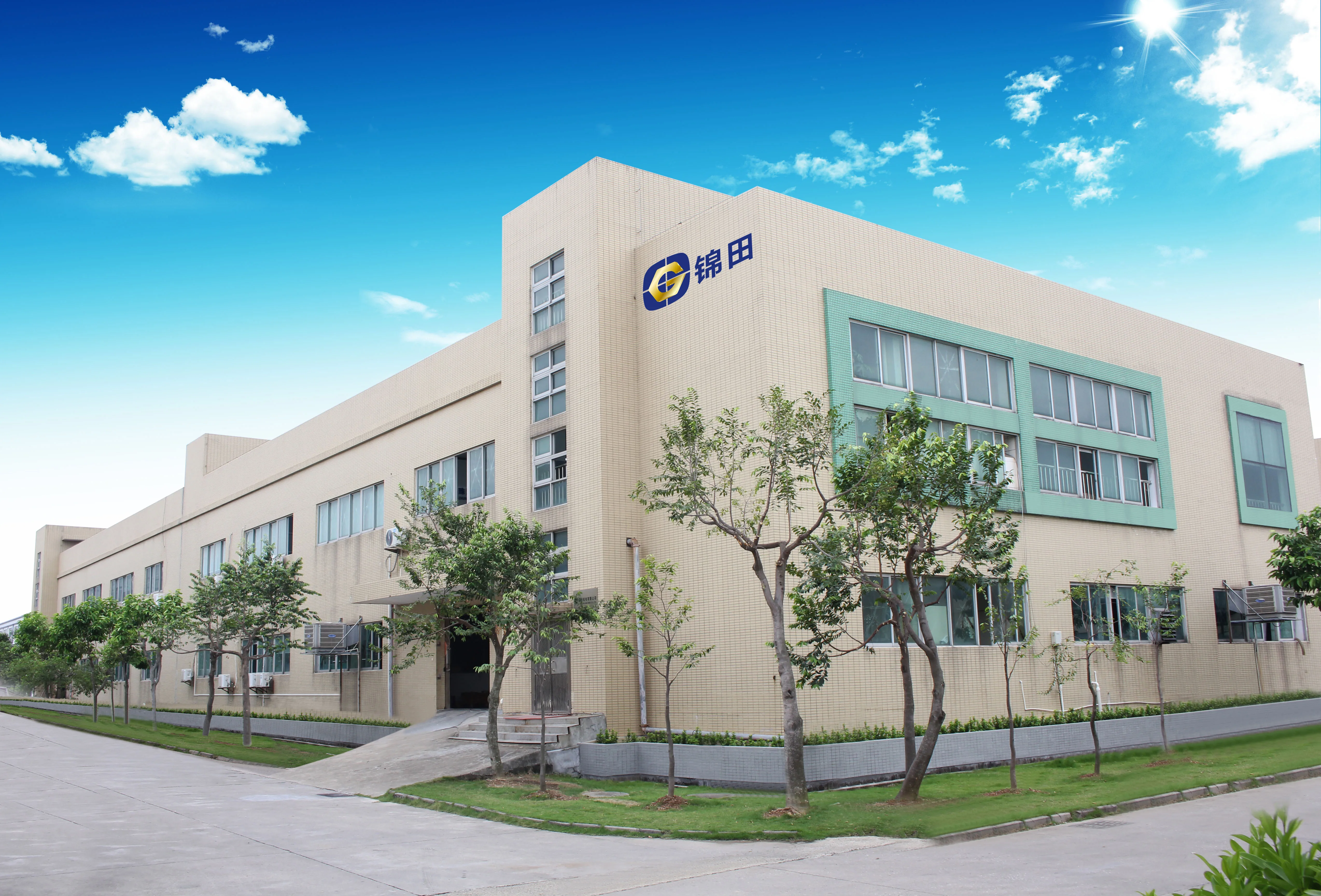

6.Company introduction
Zhuhai Goldenland M & E Co., Ltd. was established in 2003, is a professional engaged in solenoid valve, electromagnet and other products development, production and management of science and technology enterprises. The company has worked intensively in the solenoid valve and electromagnet industry for more than 20 years, achieved technology transformation, and the brand has been widely recognized by the industry.
On the basis of professional and technological innovation, we constantly invest funds to update equipment, introduce CNC machining centers, automatic assembly machines, etc. In order to ensure product quality, a product laboratory and testing center have been established, and a series of professional equipment and testing processes have been developed. The service life of the solenoid valve can reach 1 million times. The company has passed ISO9001 international quality system certification, ROHS certification, CE certification, and the monthly output can reach 300,000.
The company develops in the entrepreneurship, stands out in the competition, to improve quality, develop new products as the driving force for development, meet customer needs, adhere to provide customers with the best solution, service society, win-win cooperation.
On the basis of professional and technological innovation, we constantly invest funds to update equipment, introduce CNC machining centers, automatic assembly machines, etc. In order to ensure product quality, a product laboratory and testing center have been established, and a series of professional equipment and testing processes have been developed. The service life of the solenoid valve can reach 1 million times. The company has passed ISO9001 international quality system certification, ROHS certification, CE certification, and the monthly output can reach 300,000.
The company develops in the entrepreneurship, stands out in the competition, to improve quality, develop new products as the driving force for development, meet customer needs, adhere to provide customers with the best solution, service society, win-win cooperation.
7.Credential
8.Packing and shipping
9.FAQ
10.Other commodity types
