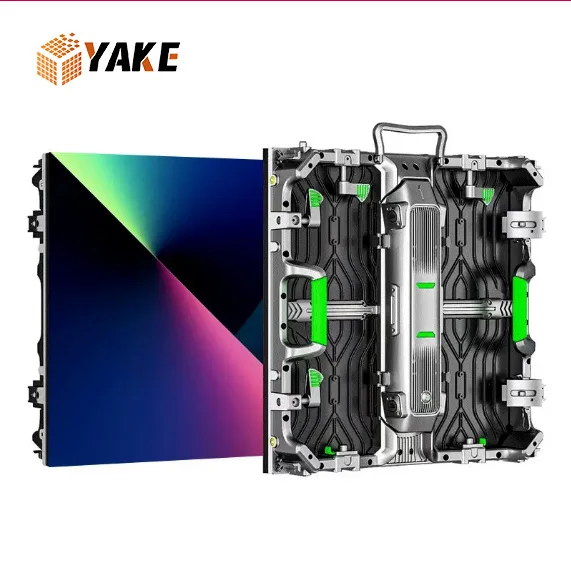

Yake stage rental Led Display pantalla Led Screen 500x1000mm 500x500mm Video Wall Outdoor Led Screen Indoor For Event Exhibition
- Category: >>>
- Supplier: Shenzhen Yake LED Tech Co. LimitedShenzhen Limited
Share on (1601277191173):
Product Overview
Description
Product Description
Parameters
Indoor LED Display Specification | ||||||||
Pixel Pitch | 1.5625mm | 1.95mm | 3.91mm | 4.81mm | ||||
Led Module Size | 250 x 250mm | 250 x 250mm | 250 x 250mm | 250x250mm | ||||
Led Panel Size | 500 x 500mm/ 500x1000mm | 500 x 500mm/ 500x1000mm | 500 x 500mm/ 500x1000mm | 500 x 500mm/ 500x1000mm | ||||
Led Panel Weight | 7KG/13KG | 7KG/13KG | 7KG/13KG | 7KG/13KG | ||||
Refresh Rate | 7680Hz | 3840Hz | 3840Hz | 3840Hz | ||||
Drive Method | 1/40 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan | ||||
Brightness | 1000nits | 1000nits | 1200nits | 1200nits | ||||
Power Supply | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | ||||
Receiving Card | Novastar / Huidu | Novastar / Huidu | Novastar / Huidu | Novastar / Huidu | ||||
Max Power Consumption | 690W/㎡ | 690W/㎡ | 690W/㎡ | 690W/㎡ | ||||
Working Temperature | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | ||||
Best Viewing Distance | >1.5m | >3m | >4m | >5m | ||||
Best Viewing Angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | ||||
Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | ||||
Working System | Windows | Windows | Windows | Windows | ||||
Outdoor LED Display Specification | ||||||||
Pixel Pitch | 2.6mm | 2.976mm | 3.91mm | 4.81mm | ||||
Led Module Size | 250 x 250mm | 250 x 250mm | 250 x 250mm | 250 x 250mm | ||||
Led Panel Size | 500 x 500mm/ 500x1000mm | 500 x 500mm/ 500x1000mm | 500 x 500mm/ 500x1000mm | 500 x 500mm/ 500x1000mm | ||||
Led Panel Weight | 7KG/13KG | 7KG/13KG | 7KG/13KG | 7KG/13KG | ||||
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | ||||
Drive Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan | ||||
Brightness | 4500nits | 4500nits | 5000nits | 5000nits | ||||
Power Supply | Chuanglian/ G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | Chuanglian/G-energy/ MeanWell | Chuanglian/ G-energy/ MeanWell | ||||
Receiving Card | Novastar / Huidu | Novastar / Huidu | Novastar / Huidu | Novastar / Huidu | ||||
Max Power Consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ | ||||
Working Temperature | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | ||||
Best Viewing Distance | >2.6m | >3m | >4m | >5m | ||||
Best Viewing Angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | ||||
Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | ||||
Waterproof Function | Front IP64/Back IP54 | Front IP64/Back IP54 | Front IP64/Back IP54 | Front IP64/Back IP54 | ||||
Working System | Windows | Windows | Windows | Windows | ||||

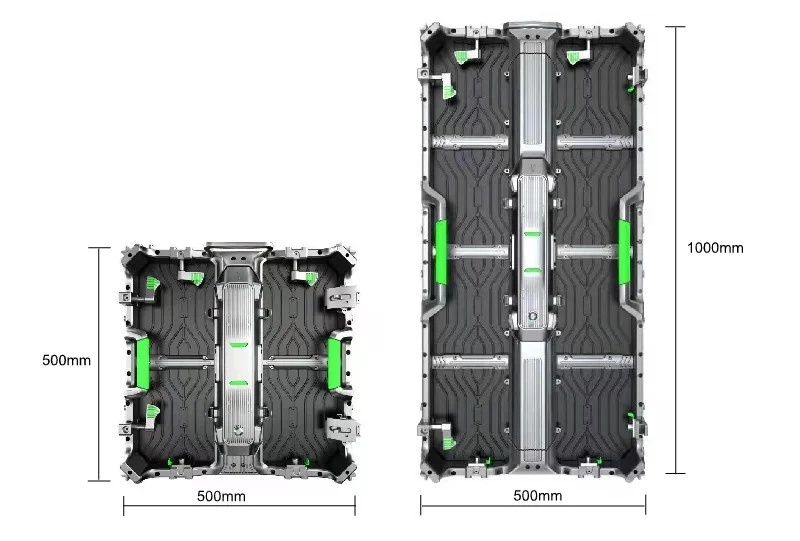

Slim design
CA-H series LED display cabinet 500*500mm/500*1000mm standard cabinet size, Ultra-Light die-casting aluminum.
ultra-thin thickness with 80mm. For easy transport and Portable
ultra-thin thickness with 80mm. For easy transport and Portable

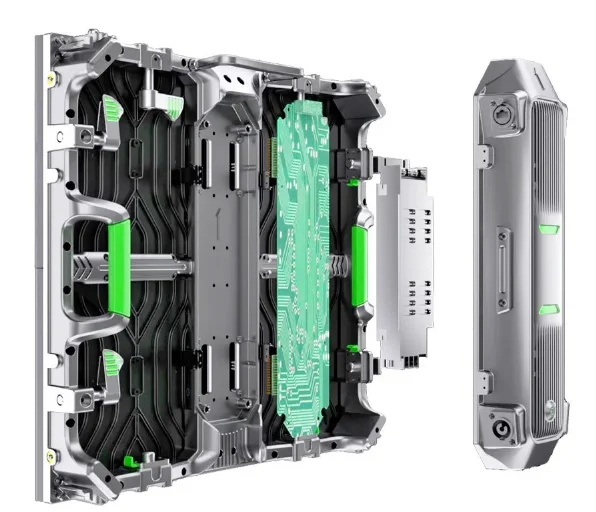

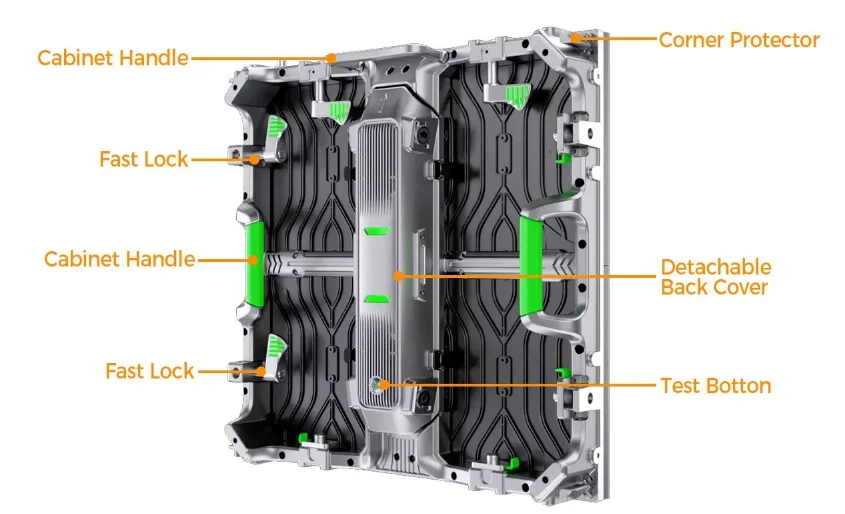

Perfect Cabinet Design
Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock,
magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more
magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

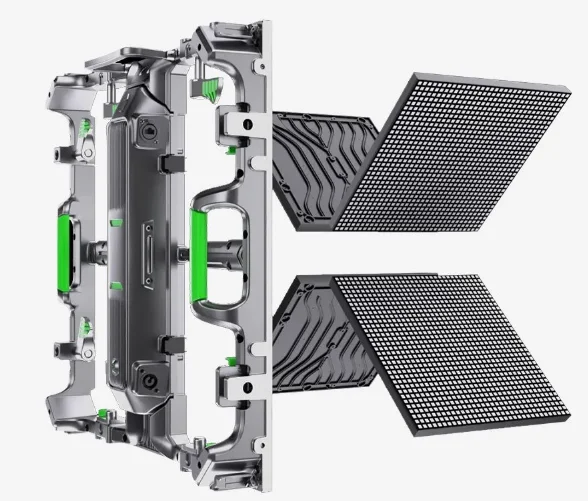

Front and Rear Service Design
CA-H series LED display cabinet 500×500 Rental LED Screen Display adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.
Detachable Back Cover
Hard Connection Design with detachable Power box and HUB Board, High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assamble and disassamble of back cover.
Quick Mounting of Buckles for assamble and disassamble of back cover.

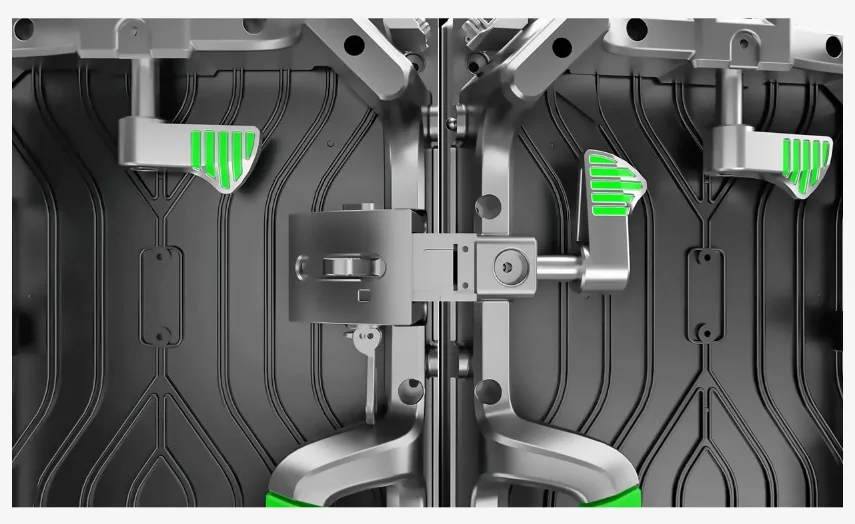

High Precision Curve Lock
Adopt high-precision curve lock design (-10° to +10°), rotation control, more accurate,
easy to use, and quickly adjust the degree of curve.
easy to use, and quickly adjust the degree of curve.

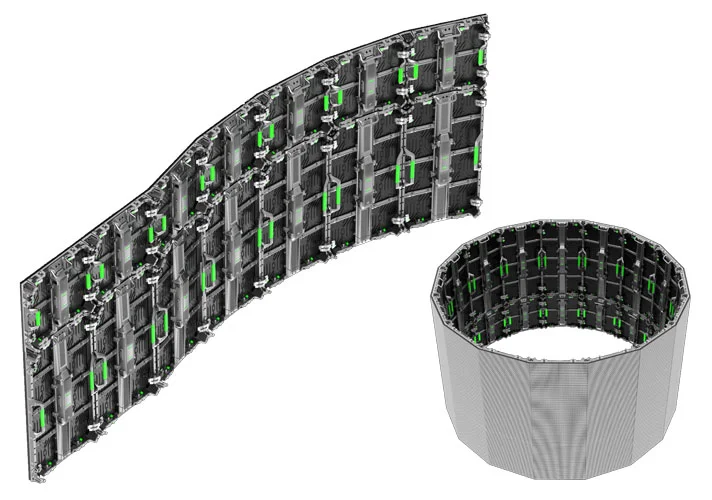

Curved Installation
In order to meet the various aspects of the LED screen field. NG500/1000 series led display design for Curved Installation.
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Corner Protector
The LED screen has four corners to prevent damage to the LED,Transportation, installation, operation,
disassembly and assembly are more secure and easy to use.
disassembly and assembly are more secure and easy to use.
Lightweight and Thin
CA-H series LED display cabinet weighs 7KG/pc, easy to operate: one person to install, disassemble and maintain.
IP65 Dustproof And Waterproof
The CA-H series LED display outdoor cabinet supports IP65 dustproof and waterproof,
it can resists severe weather conditions during outdoor activities.And die-cast aluminum is corrosion resistant.
it can resists severe weather conditions during outdoor activities.And die-cast aluminum is corrosion resistant.
Title goes here.

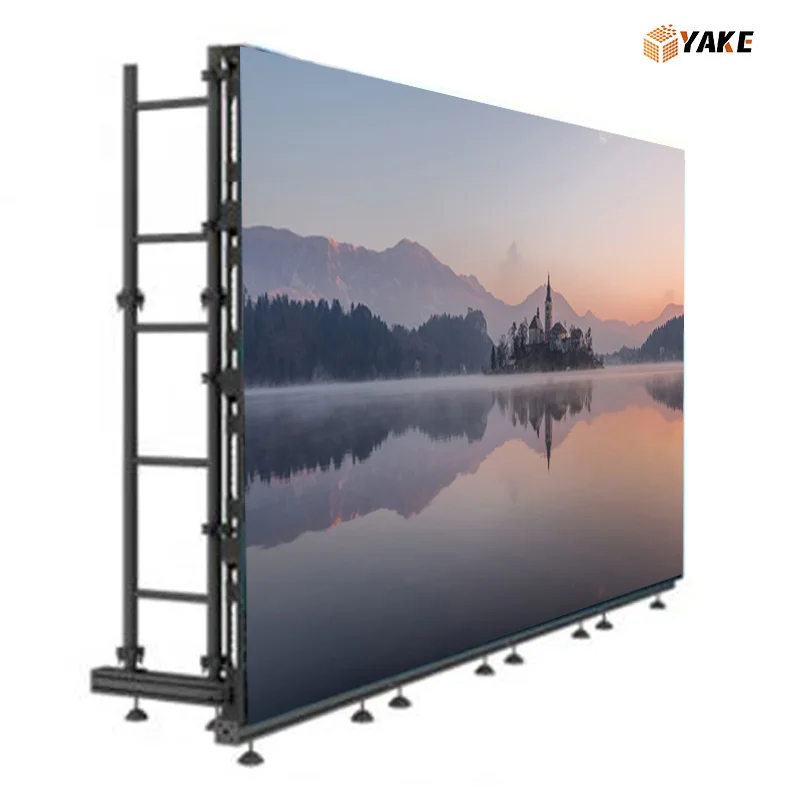

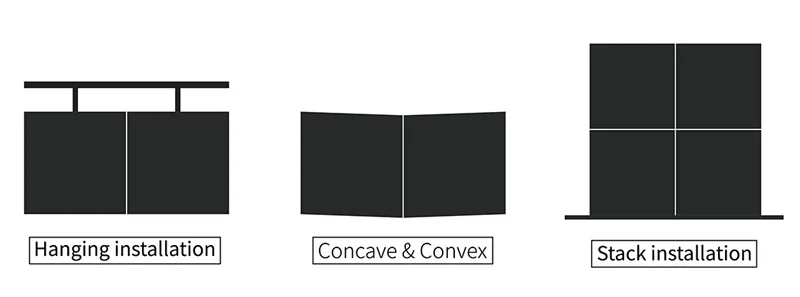

Support 3 installation ways of cabinet with hanging installation, concave& convex installation, stack installation.

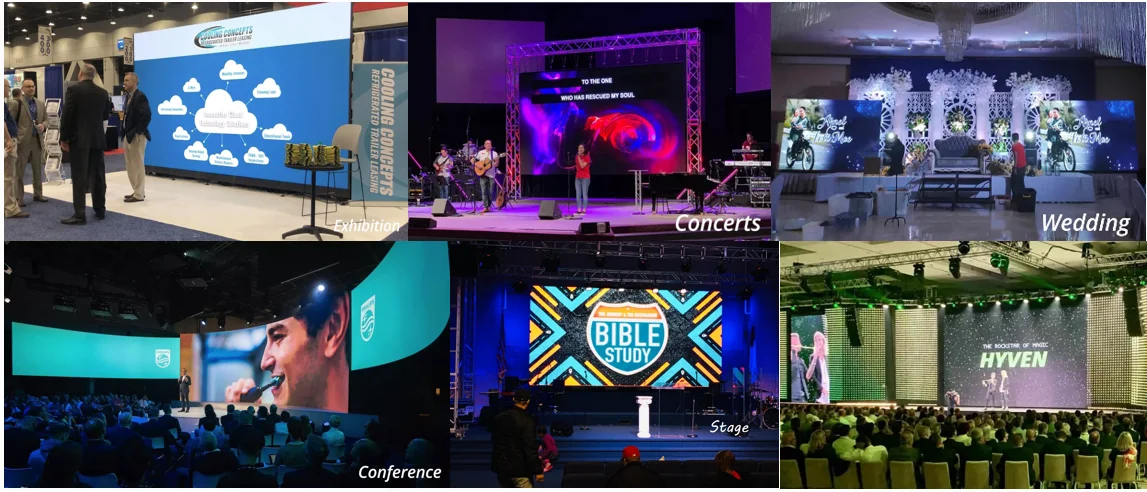

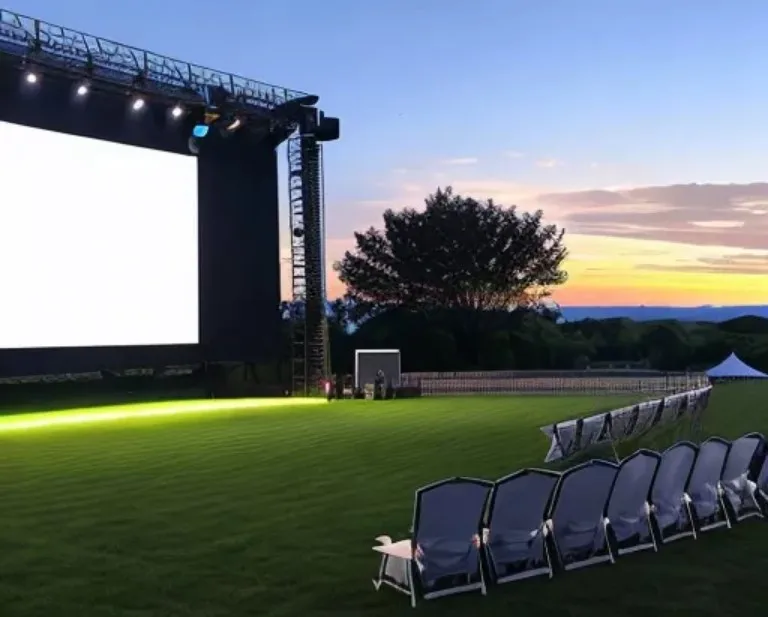

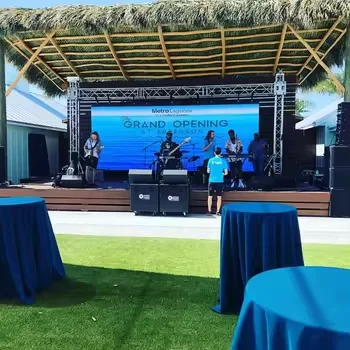

Applications
Package & Delivery
72 hours aging test
We strictly conduct a 72-hour aging test on each screen before packaging to ensure that each of our LED lamps is working properly.
Flight cases package
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Delivery
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

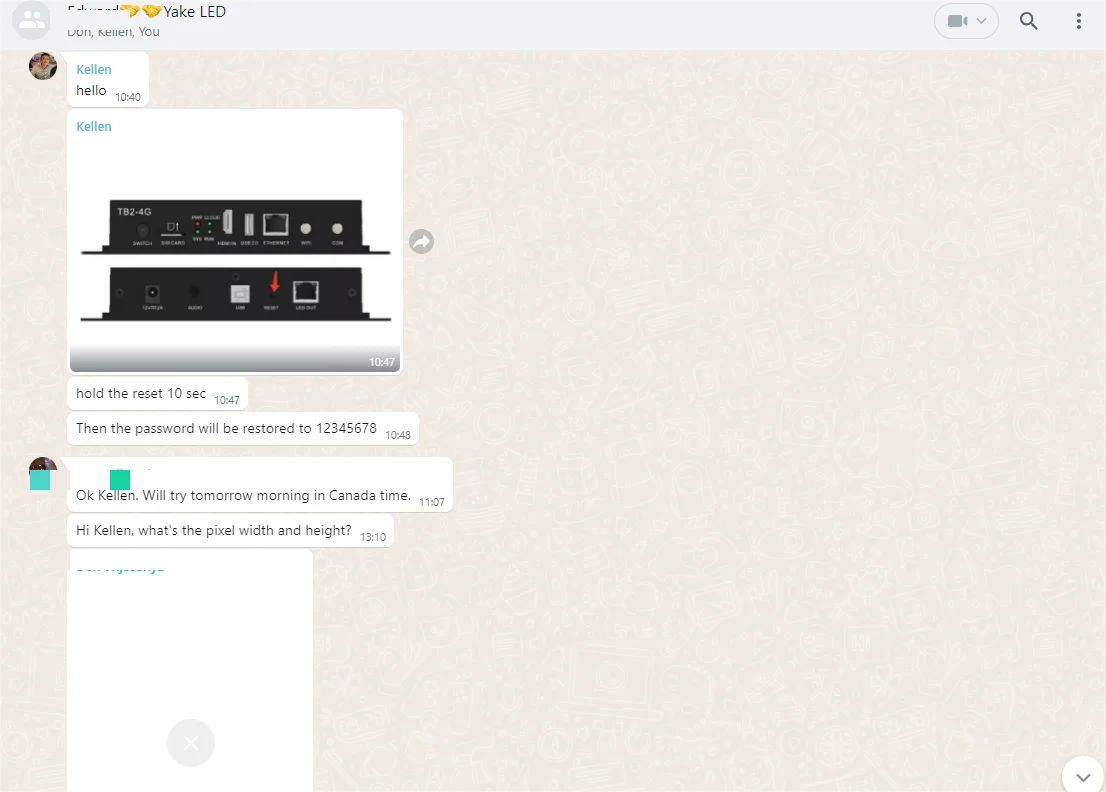

Professional after-sales technical support
After you receive the screen, we will have one-on-one professional engineers responsible for providing you with timely technical support. Our engineers can communicate in English.
Why Choose us

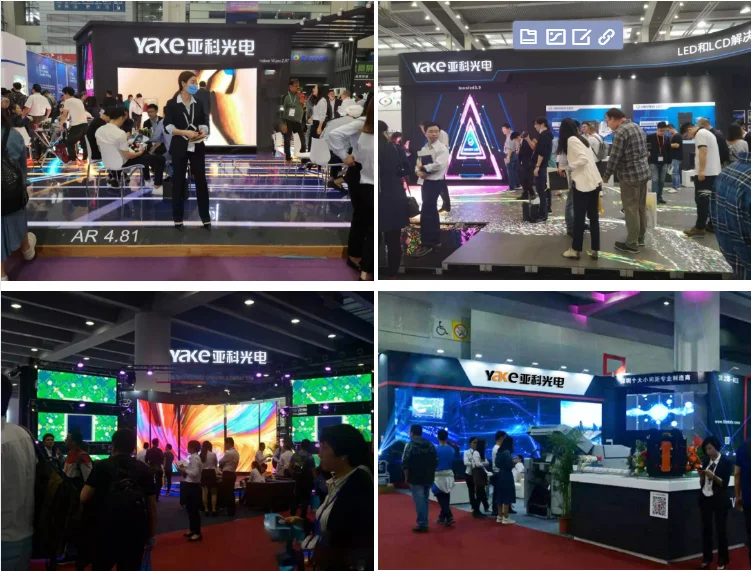

Exhibitions

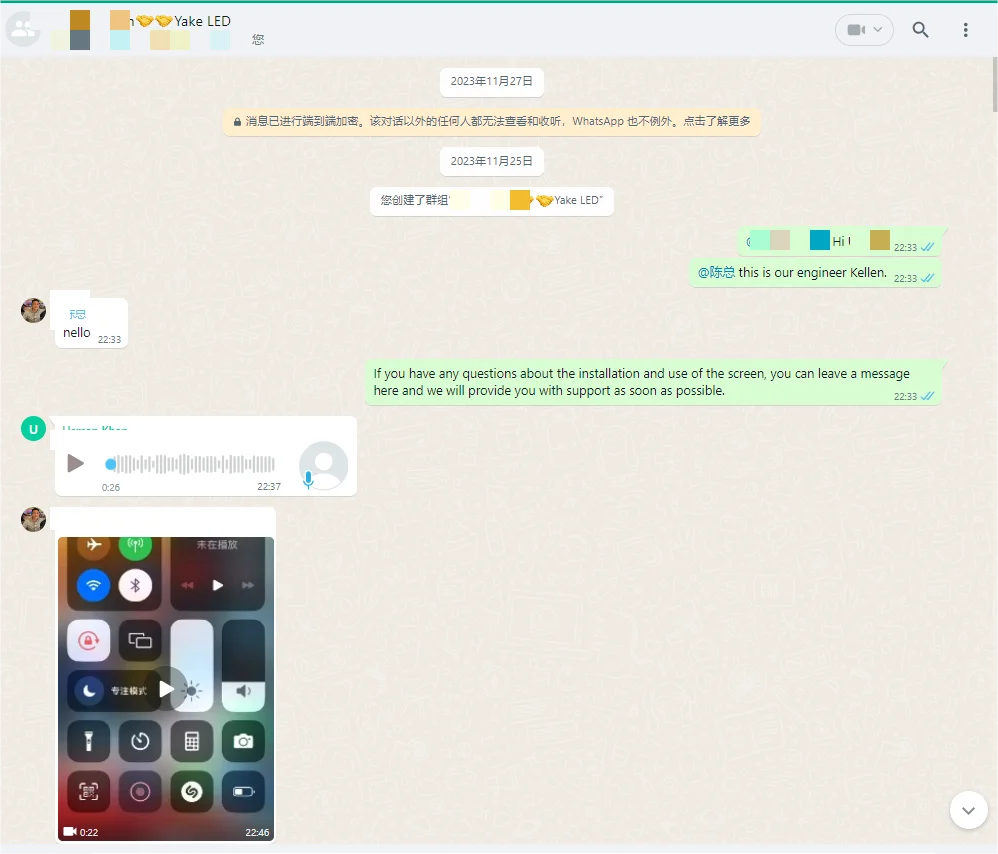

Interaction with Clients
Clients‘ Visiting

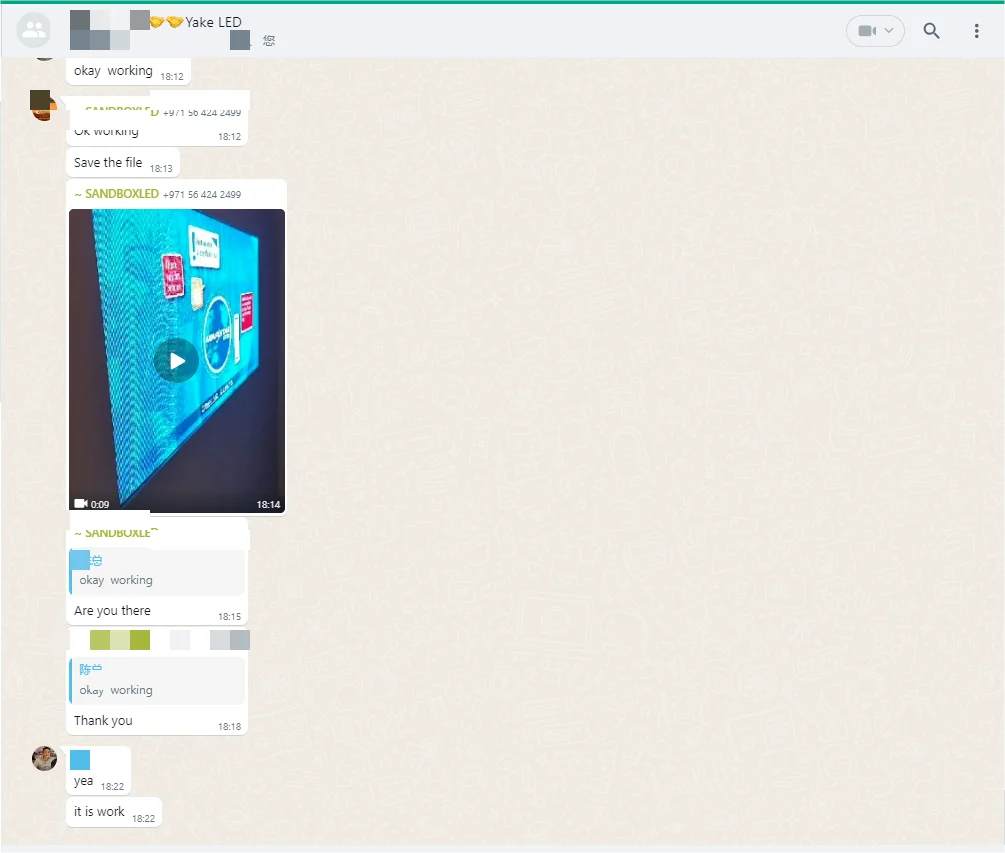

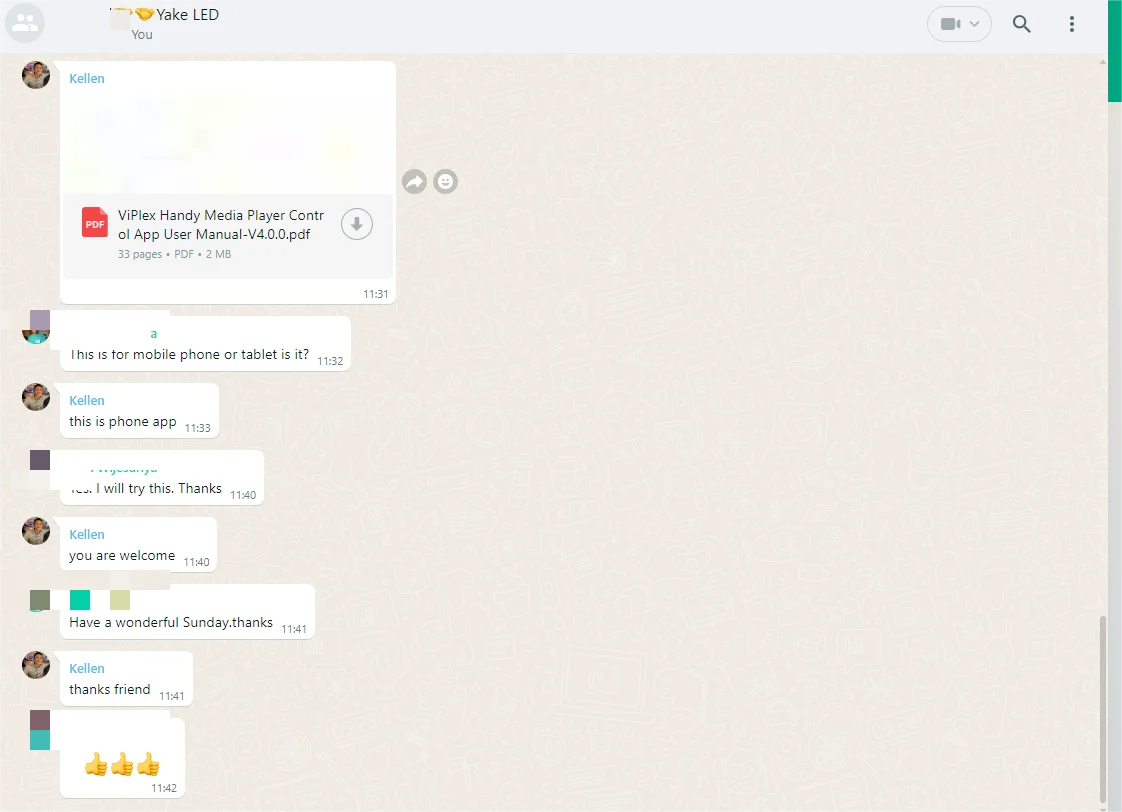

Reviews from Purchased Clients
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q6:How about your Warranty Term?
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
