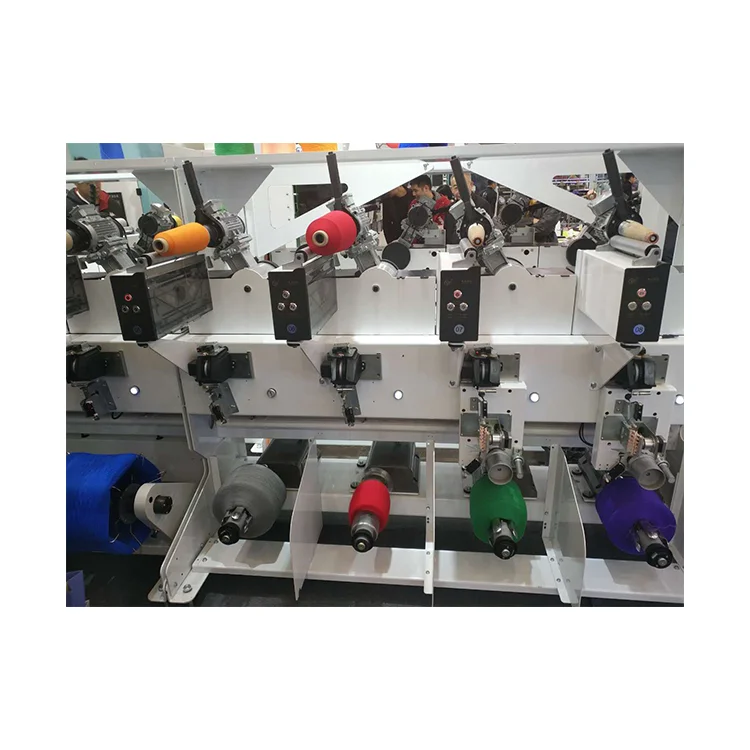

KC212A Intelligent electric sewing thread tension meter cone yarn winding machine
- Category: >>>
- Supplier: Zhejiang Kaicheng Intelligent Machinery Co. Ltd.
Share on (1601277286573):
Product Overview
Description
Pls scan to add my WSAP
Pls scan to add my wechat
//www.chinakaicheng.com www.kaichengtex.com
Product Description
bobbin winder automatic yarn cone winding machine Intelligent Electronic Yarn Guide KC212
Application: Applied for soft winding, rewinding, hard winding, hank or cone yarn initiative unwinding,Yarn Types: FDY yarns, DTY yarns, ATY yarns, sewing threads, bonded threads, embroidery threads, viscose yarn / rayon yarns, spun polyesters yarns, cotton yarns, BCF yarns, wool yarns, acrylic yarns, blended yarns, fancy yarns and threads etc
Features
① High performance servo motor yarn guide, linear speed can up to 800m/min, even reach 1100m/min, Improve production efficiency
and reduce cost;
② Adopt comprehensive intelligent control technology, All parameters related to yarn quality can be adjustable at will . e.g.
Winding shape length, edge Angle, edge width, soft edge density, package shape cross Angle, winding tension, etc;
③Adopting intelligent tension system, active unwinding device and automatic tracking overfeed system, ensure uniform density of
winding shape;
④Whole machine with beautiful appearance, low noise, low power consumption and The human-machine interface is optimized , the
control is more reasonable.

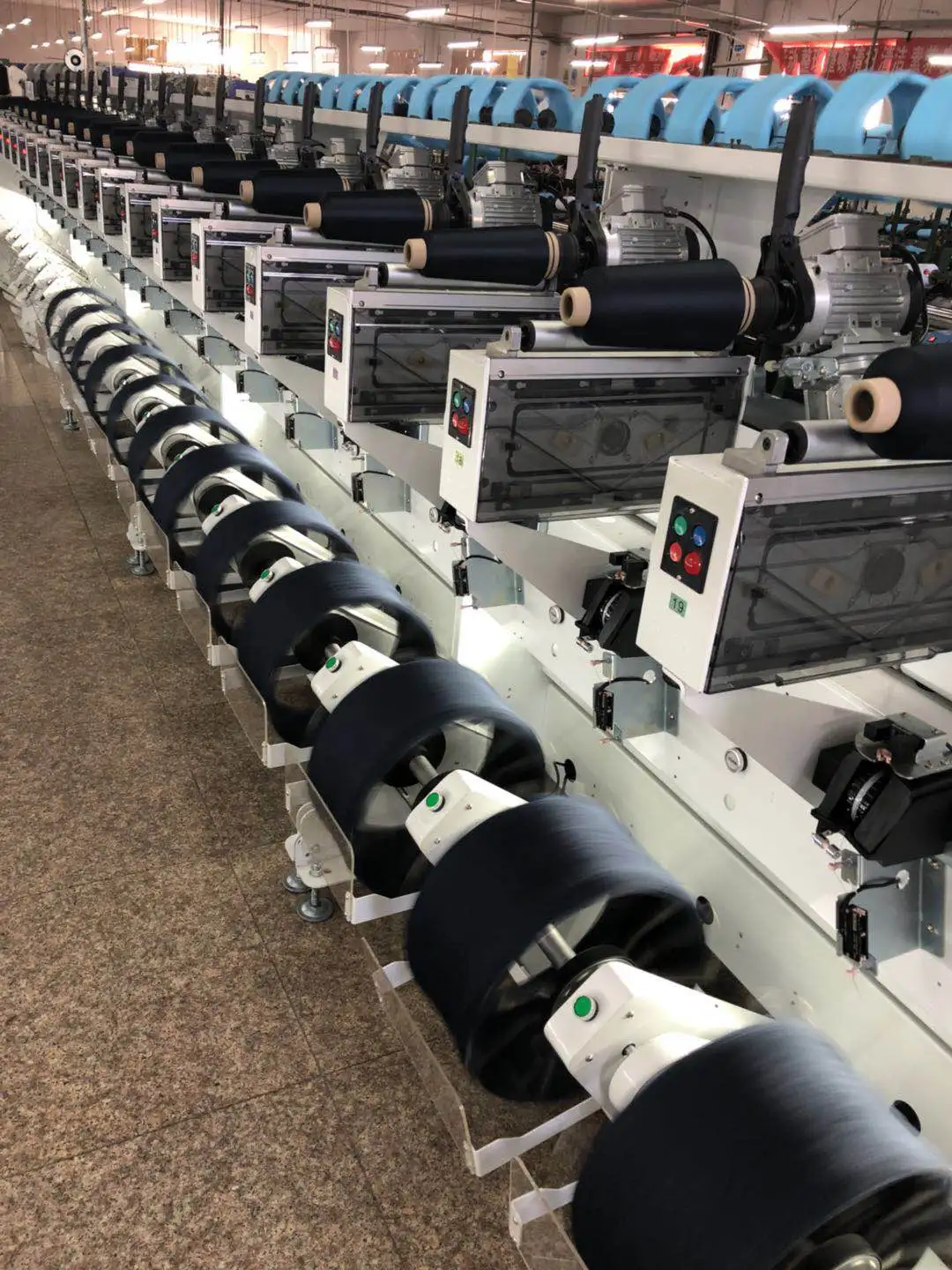

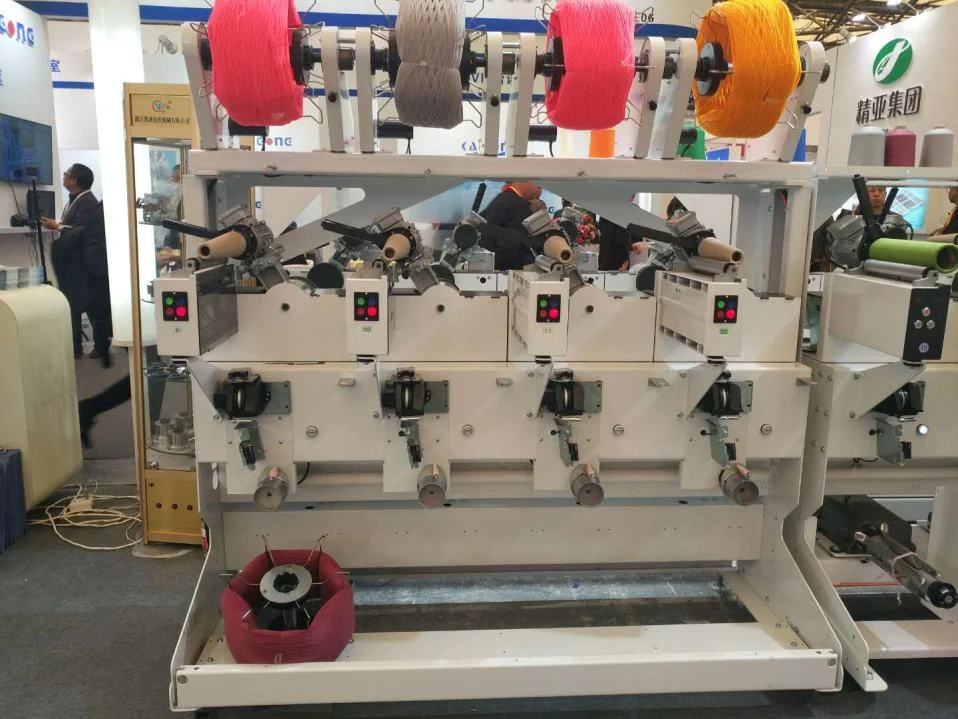

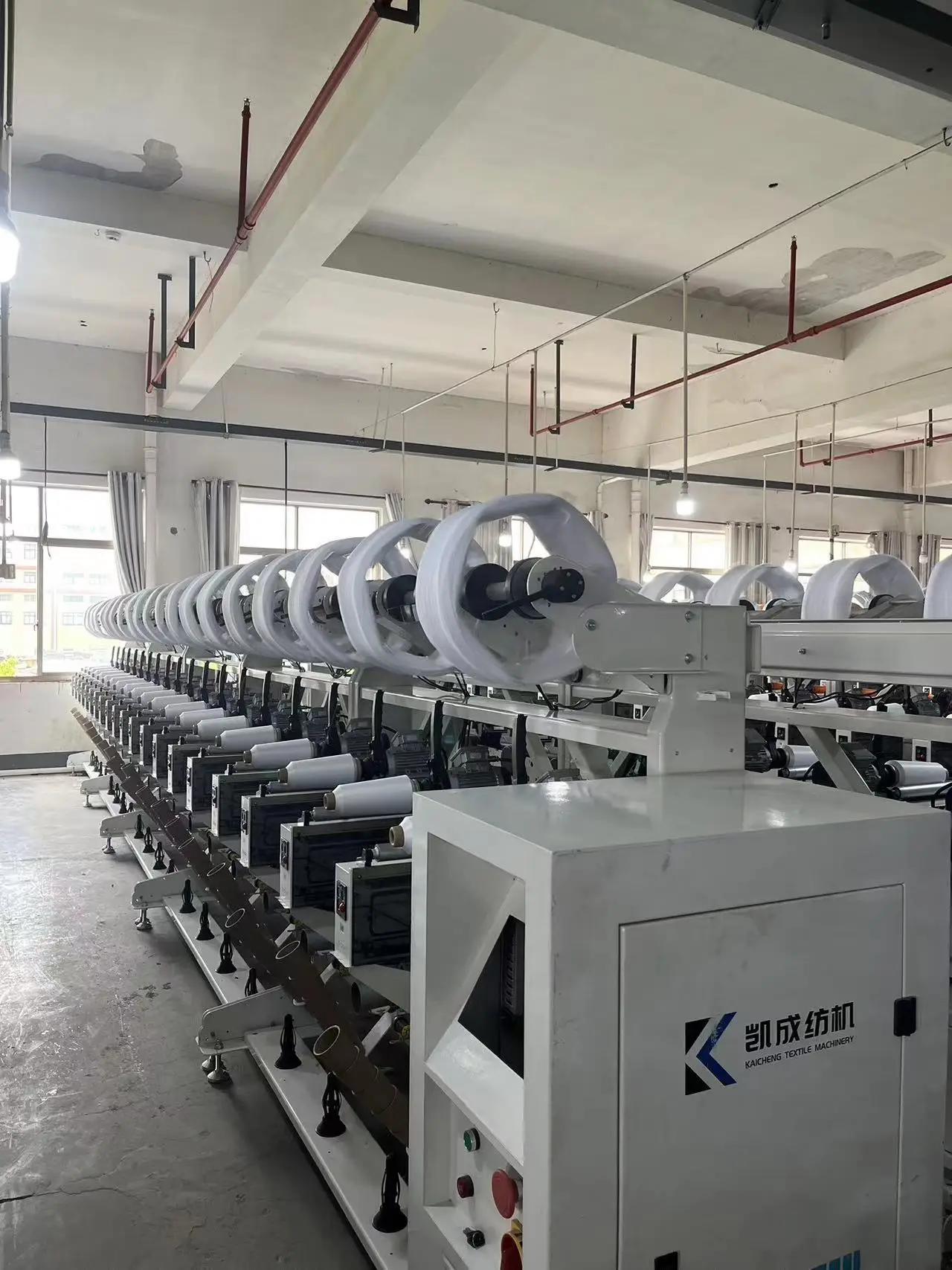

KC212A hank to cone winder
yarn path from bottom to packaging bobbin:
overfeeding roller --> electronic tension sensor-->Oil device-->yarn breaking sensor--> traverse units--> packaging adaptor.
overfeeding roller --> electronic tension sensor-->Oil device-->yarn breaking sensor--> traverse units--> packaging adaptor.

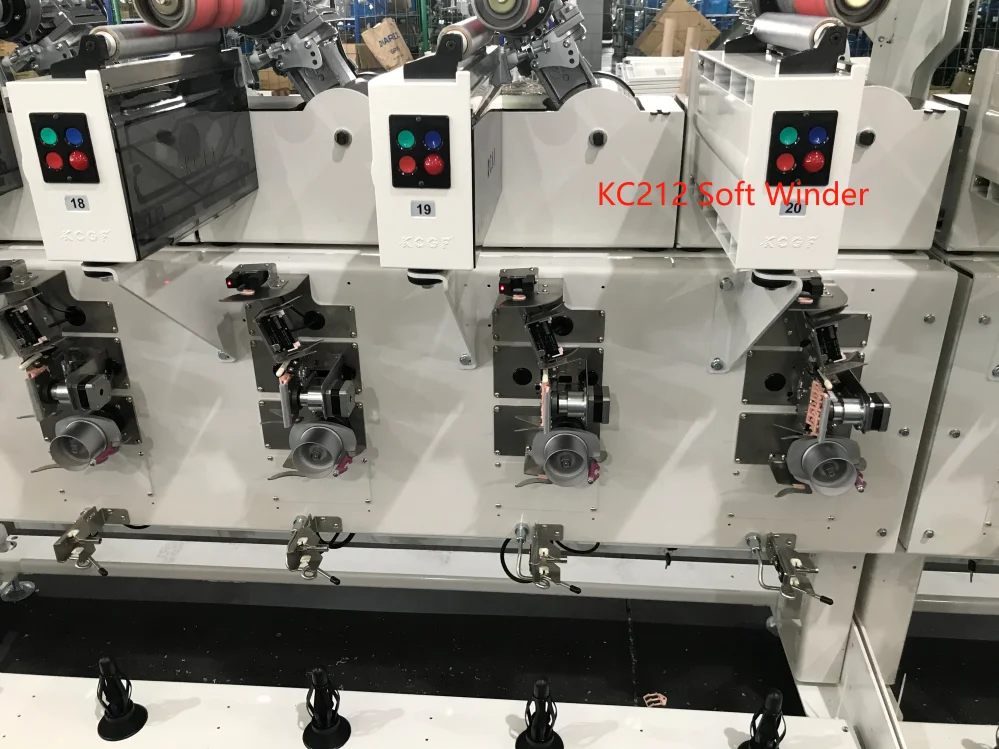

KC212 soft winder / soft winding machine
yarn path from bottom to packaging bobbin:
yarn guides with ceramic-overfeeding roller-electronic tension gate-tension sensor-yarn breaking sensor- traverse units- packaging
adaptor
yarn path from bottom to packaging bobbin:
yarn guides with ceramic-overfeeding roller-electronic tension gate-tension sensor-yarn breaking sensor- traverse units- packaging
adaptor

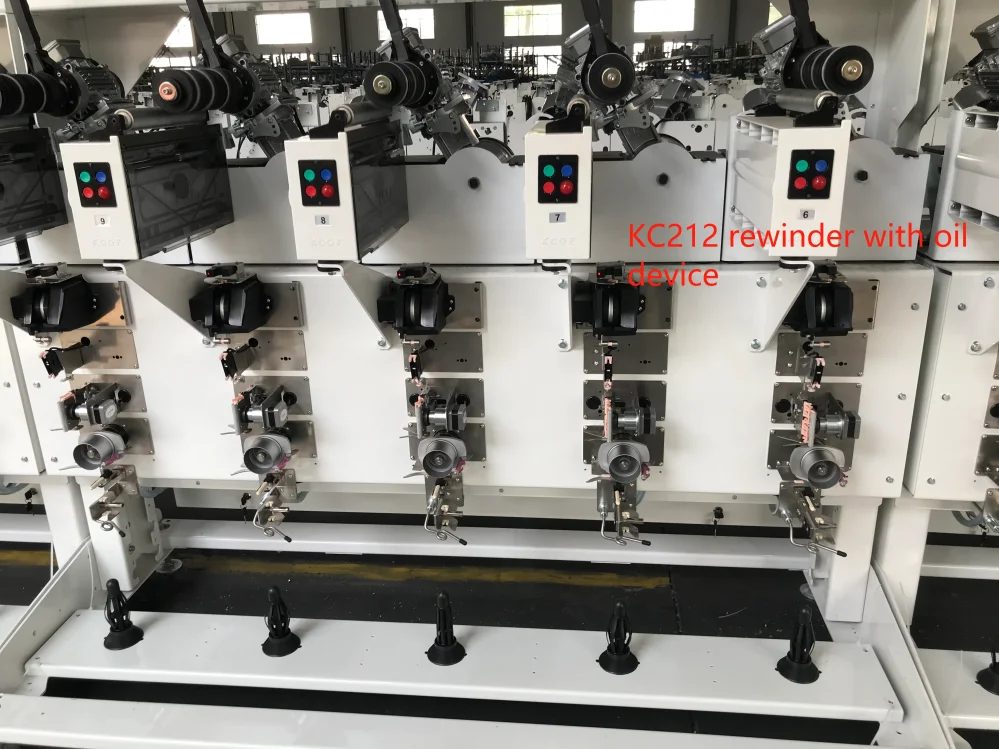

KC212 rewinder /Tight winding machine
yarn path from bottom to packaging bobbin:
yarn guides with ceramic -->overfeeding roller --> electronic tension gate-->tension sensor-->Oil device-->yarn breaking sensor-->
traverse units--> packaging adaptor
yarn path from bottom to packaging bobbin:
yarn guides with ceramic -->overfeeding roller --> electronic tension gate-->tension sensor-->Oil device-->yarn breaking sensor-->
traverse units--> packaging adaptor
Essential Spare Part
Control Board for winding machine / winder machine
Programmed &Produced By Kaicheng Machinery itself
Control Board for winding machine / winder machine
Programmed &Produced By Kaicheng Machinery itself
Essential Spare Part
Tension Sensor Programmed &Produced By Kaicheng Machinery itself
Tension Sensor Programmed &Produced By Kaicheng Machinery itself
Essential Spare Part
traverse motor
Programmed &Produced By Kaicheng Machinery itself
Programmed &Produced By Kaicheng Machinery itself
Essential Spare Part
Yarn Breaking Sensor
Programmed &Produced By Kaicheng Machinery itself
Programmed &Produced By Kaicheng Machinery itself
Essential Spare Part
Yarn Guide Motor
Supplied By Kaicheng Itself
Supplied By Kaicheng Itself
Essential Spare Part
Yarn Guide with different Diameter: 1.0mm/1.6mm/2.0mm/3.4mm Max
Steel Wires: Imported Quality
Steel Wires: Imported Quality
Essential Spare Part
Traverse Assembly Unit
Produced By Kaicheng Machinery itself
Produced By Kaicheng Machinery itself
Essential Spare Part
Angle Sensor
Programmed &Produced By Kaicheng Machinery itself
Programmed &Produced By Kaicheng Machinery itself
Technology Parameter
Machine structure | Single size, single layer 4n, 48 spindles/set (It can be changed according to actual needs) |
Spindle gauge | 440mm (It can be changed according to actual needs) |
Type of winding | Digital or precision winding |
Linear speed | Up to 1100m/min (depend on the process parameters) |
Type of tension | Electronic tension and initiative unwinding |
Take-up tubes | Cylindrical or cone |
Traverse length | 130mm~250mm (It can be changed according to actual needs) |
Package shape | Straight edge or incline edge shape (The angle can be adjustable) |
Rated power | 400W/spindle |
Actual consumption | 25-50% of rated power (depend on the process parameters) |
Dimensions
TYPE 1: SOFT WINDER / REWINDER KC212 CONE TO CONE WINDER
Machine head Size : L755*W810*H1467mm
Machine Body---One section of 5 spindles: L1812*W810*H1467mm
Overall measure includes machine head: L22500mm×W810mm×H1480mm for one set 60 spindles
Machine head Size : L755*W810*H1467mm
Machine Body---One section of 5 spindles: L1812*W810*H1467mm
Overall measure includes machine head: L22500mm×W810mm×H1480mm for one set 60 spindles
TYPE 2: Machine Size KC212A: HANK TO CONE WINDER
--- KC212A: Machine head Dimensions : Length 755mm*Width 810mm * Height1467mm
One section(= 4 spindles): Length1780mm* Width:810mm *Height :1380mm
Standard machine type (48 spindles) overall measure: length22115mm×width810mm×height1467mm includes machine head
--- KC212A: Machine head Dimensions : Length 755mm*Width 810mm * Height1467mm
One section(= 4 spindles): Length1780mm* Width:810mm *Height :1380mm
Standard machine type (48 spindles) overall measure: length22115mm×width810mm×height1467mm includes machine head
