BX-6M series
Product Description
The new BX-6M series is fully upgraded, based on a powerful hardware platform, and the BX-6MT network is highly adaptable. Widely used in a variety of small area LED bar screen and LED cluster display system. Product on-board Ethernet network interface and USB interface, network communication support single direct connection, Ethernet connection, cross-Internet connection; U disk super reading, U disk extension line ≤15m stable transmission, support U disk download and play files.
The product load index and display effect have been greatly improved, the function is richer, and the series is more complete. Products support high refresh rate, high gray level, support animation, video clips smooth playback.
The product load index and display effect have been greatly improved, the function is richer, and the series is more complete. Products support high refresh rate, high gray level, support animation, video clips smooth playback.
The subtitle movement of the product is super smooth, with rich subtitle playback effects, multi-choice font styles, and colorful border effects.
Key Features
● Three primary colors are supported. Support intelligent tracing point, easy to adapt a variety of special modules and full-color modules;
● All series support English and Chinese voice broadcast function to meet the project voice needs;
● All series support wifi wireless communication, to meet the needs of mobile APP control;
● The whole series supports 4G wireless communication to meet the needs of cloud platform information release and terminal equipment management;
● A full range of environmental monitoring functions;
● All series support cross screen, T screen function;
● The 6K series has multiple sets of built-in Chinese and English character libraries, supporting nearly 20 language libraries around the world;
● The 6E series supports ultra-long, ultra-high and ultra-large load: length ≤8192 points, height ≤1024 points, maximum pixel number 4096K;
● The 6K series and 6E series support multiple sets of dynamic regions and real-time information updates;
● The whole series supports Mongolian, Hebrew, Arabic and other arbitrary typesetting rules, and easily realizes horizontal vertical row.
● All series support English and Chinese voice broadcast function to meet the project voice needs;
● All series support wifi wireless communication, to meet the needs of mobile APP control;
● The whole series supports 4G wireless communication to meet the needs of cloud platform information release and terminal equipment management;
● A full range of environmental monitoring functions;
● All series support cross screen, T screen function;
● The 6K series has multiple sets of built-in Chinese and English character libraries, supporting nearly 20 language libraries around the world;
● The 6E series supports ultra-long, ultra-high and ultra-large load: length ≤8192 points, height ≤1024 points, maximum pixel number 4096K;
● The 6K series and 6E series support multiple sets of dynamic regions and real-time information updates;
● The motion speed of the whole series of pictures can be adjusted arbitrarily, and the motion of the picture is super smooth. 6E series limit band load screen movement speed of more than 240 points/second;
● The 6X series supports MODBUS industrial bus, which greatly enhances the ability of LED display in industrial equipment supporting and industrial field applications;
● The full range of products support IP configuration and modification in the system, support IP group Settings, automatically detect MAC conflict and IP conflict;
● A full range of products, regardless of model, to achieve U disk program wildcard upload;
● A full range of products, regardless of model, to achieve U disk program wildcard upload;
● The whole series supports Mongolian, Hebrew, Arabic and other arbitrary typesetting rules, and easily realizes horizontal vertical row.
Parameter specification
Technical parameters | ||

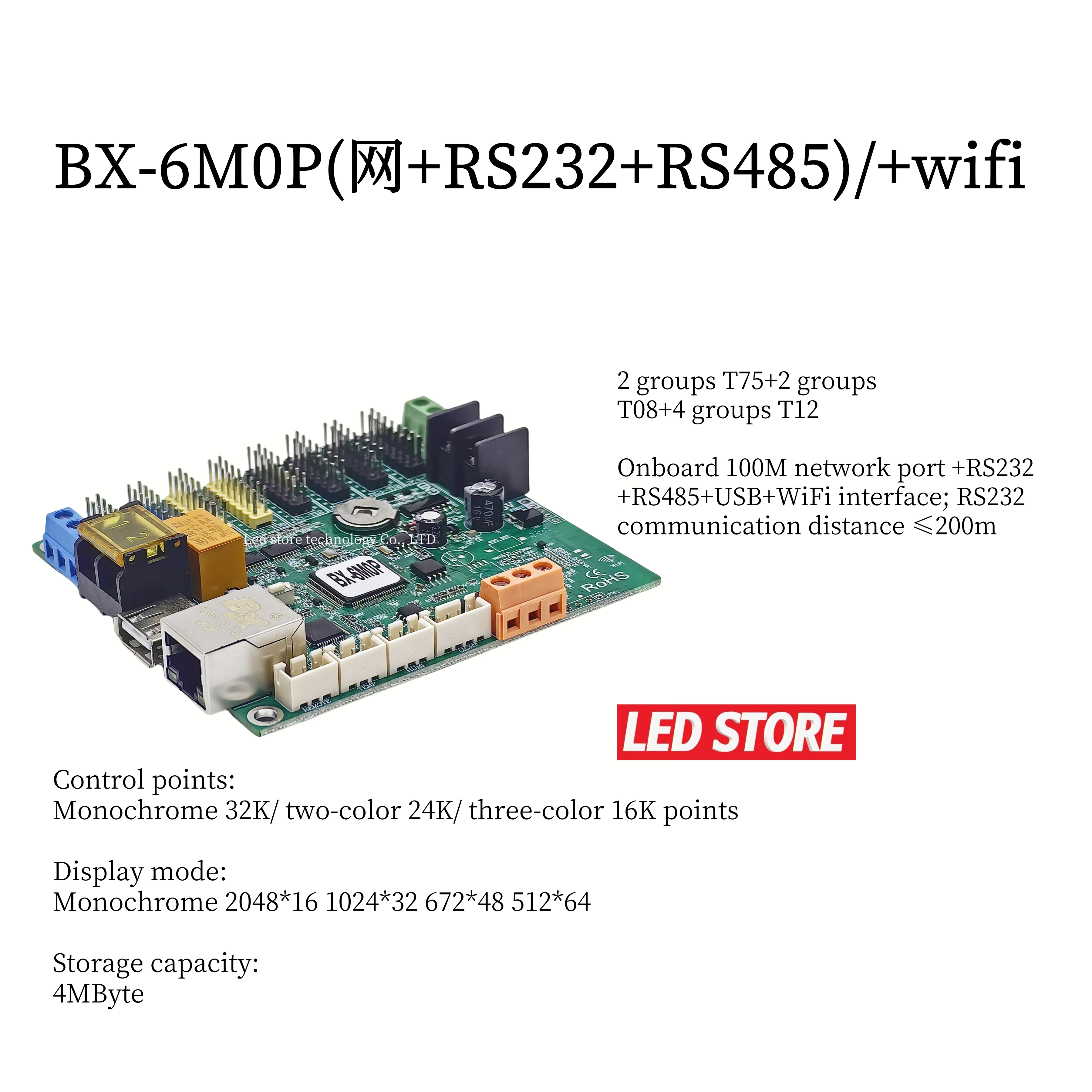

Control size | Single color 32K：2048*16、1024*32、512*64 | |
Dual color 24K：1536*16、768*32、384*64 | ||
Tri color 16K : 1024*16、512*32、256*64、128*128 | ||
Storage | 4MByte | |
Software function | ||
Softawre function | group sending/multi-program edit/multi-area display/multi-lanuage version； | |
Program quantity | Support 128 programs | |
Area quantity | Each program maximum support 8 areas | |
Area type | Weather/Image&text//subtitle/animation /lunar/ time/dial/timer/sensor areas | |
Border | Program shine border /Area shine border | |
Clock | Lunar /Dial/ Chinese and English clock/timer (all support multi-groups) | |
Display effect | ||
Moving smoothness | No cross lines when moving to the left, and will not shake when lower the moving speed. | |
the brightness will not be lower when move left in a long screen; | ||
Program stability | Support adjusting moving speed; high refresh rate, stable running on screen; | |
Module compatibility | ||
Module | Support all kinds of single/dual/tri color modules | |
Column driver IC | PWM Support 74HC595,SM16188,common constant current chip, double latch chip and other mainstream LED drive chip Not support all PWM chip | |
Row decoding IC | Support 74HC138 row decoding/none decoding module,not support other row decoding IC,infuture will support | |
Scan mode | Support smart scan,support any kinds of scan mode from static to 1/32 | |
Module empty spot | Support any empty spot | |
RGB signal | Support RGB signaldefinition | |
Interfaces | ||

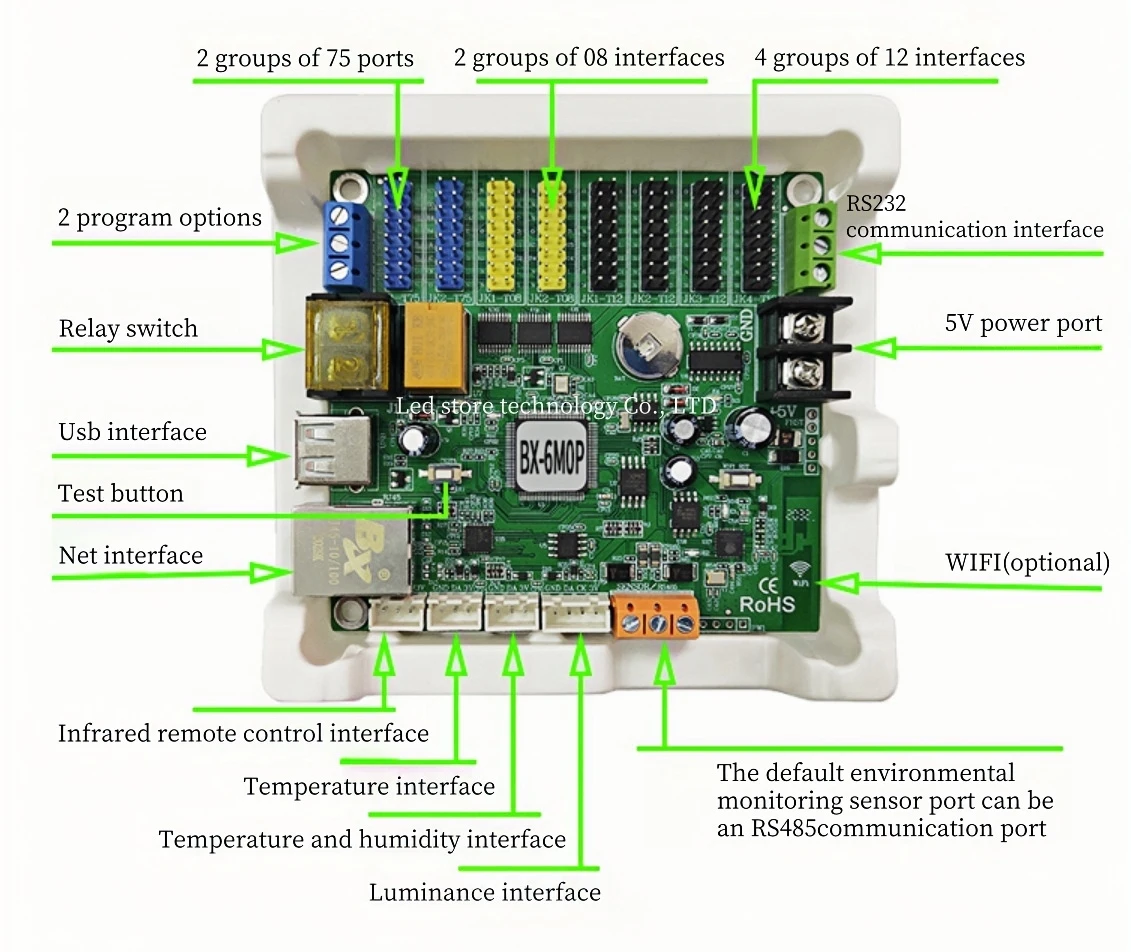

Interface | 2 group T75+2 Group T08+4 group T12 | |
Communication | Ethernet port +USB port is standard | |
Sensor | IR / brightness/temperaure/temp&humidity sensor socket on board | |
Important functions | ||
Remote | Support select program/lock screen/brightness adjustment/power on & off/screen test | |
Sensor | Support temperature/temp&huidity/brightness sensor | |
Brightness adjust | 16 grade brightness, support manual /timing/auto adjust mode | |
Remote switch | Support auto timing switch,software/remote switch | |
Weather report | Support China & overseas weather report | |
Program group sending | Support program self-adaption | |
Parameters fast match | Support save and read-back the screen parameters | |
Any layout | Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make vertical font | |
System update and maintenance | ||
Platform update | iLEDCloud and iLEDSys update online | |
Firmware update | Support firmware update online,cost efficient | |
Secondary development | ||
SDK | Support static area secondary development ,supply the c# 、java 、VB、C++ development tools | |
Electricity parameters | ||
Working voltage | 5V（3.5V～6V wide working voltage ） | |
Max power | ≤2W | |
Working temperature | -40℃～80℃ | |
Terminal management and auto control | ||
Network communication | Support LAN and internet | |
Program update | Support USB ,support 100M network program sending | |
Display control | Support timing display | |
Manage device | PC,Android (IOS can’t support now) | |
Remote control | Auto adjust brightness ,auto switch screen ,system parameters setup,program display control ,update program sending | |
Auto adjust brightness | Support auto adjust the brightness according to different time or ambient brightness | |
Timing switch | Setup by management system | |
Software | LedshowTW(PC software） | |
Support cloud management：iLEDCloud、 iLEDSys（enterprise version/setup separately） | ||

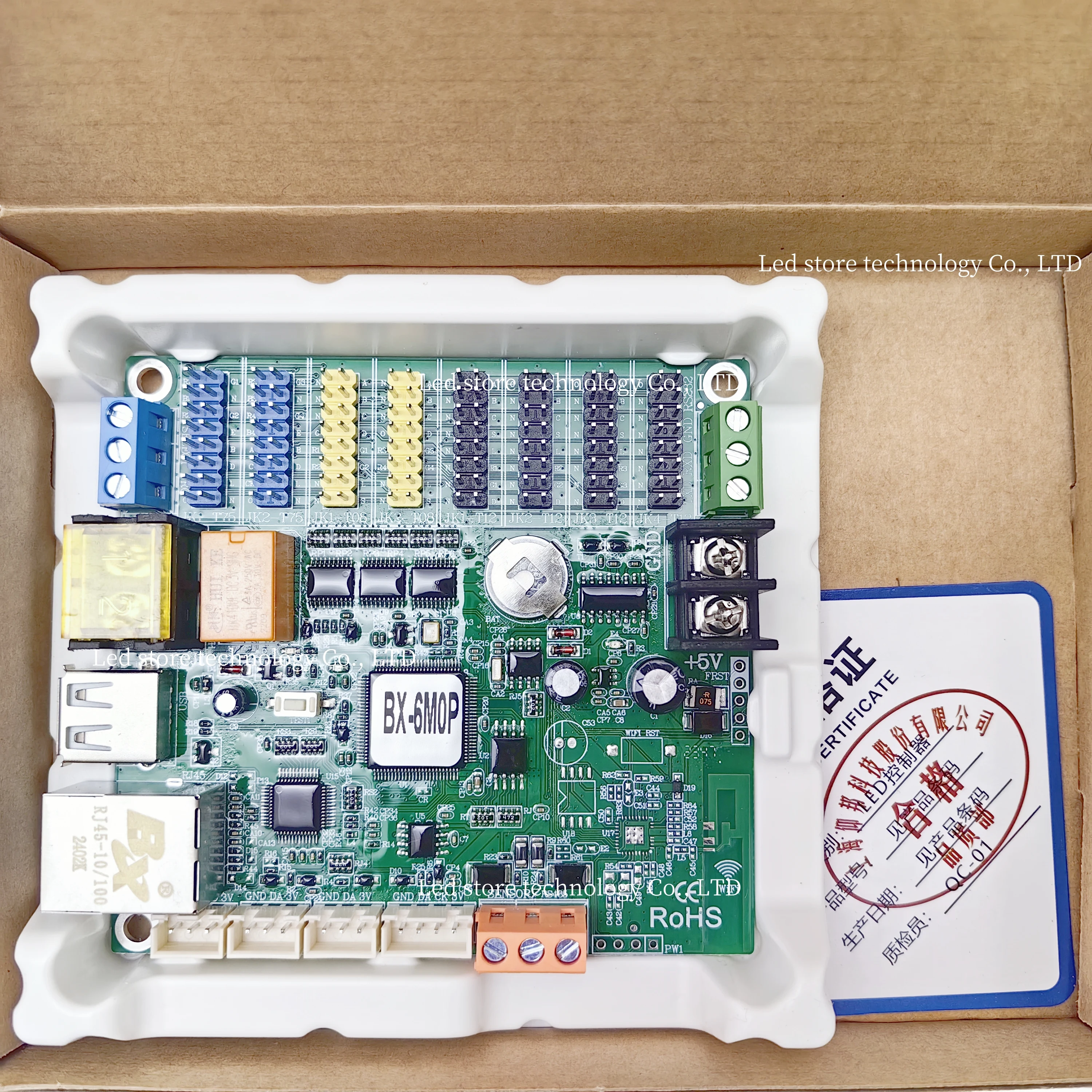

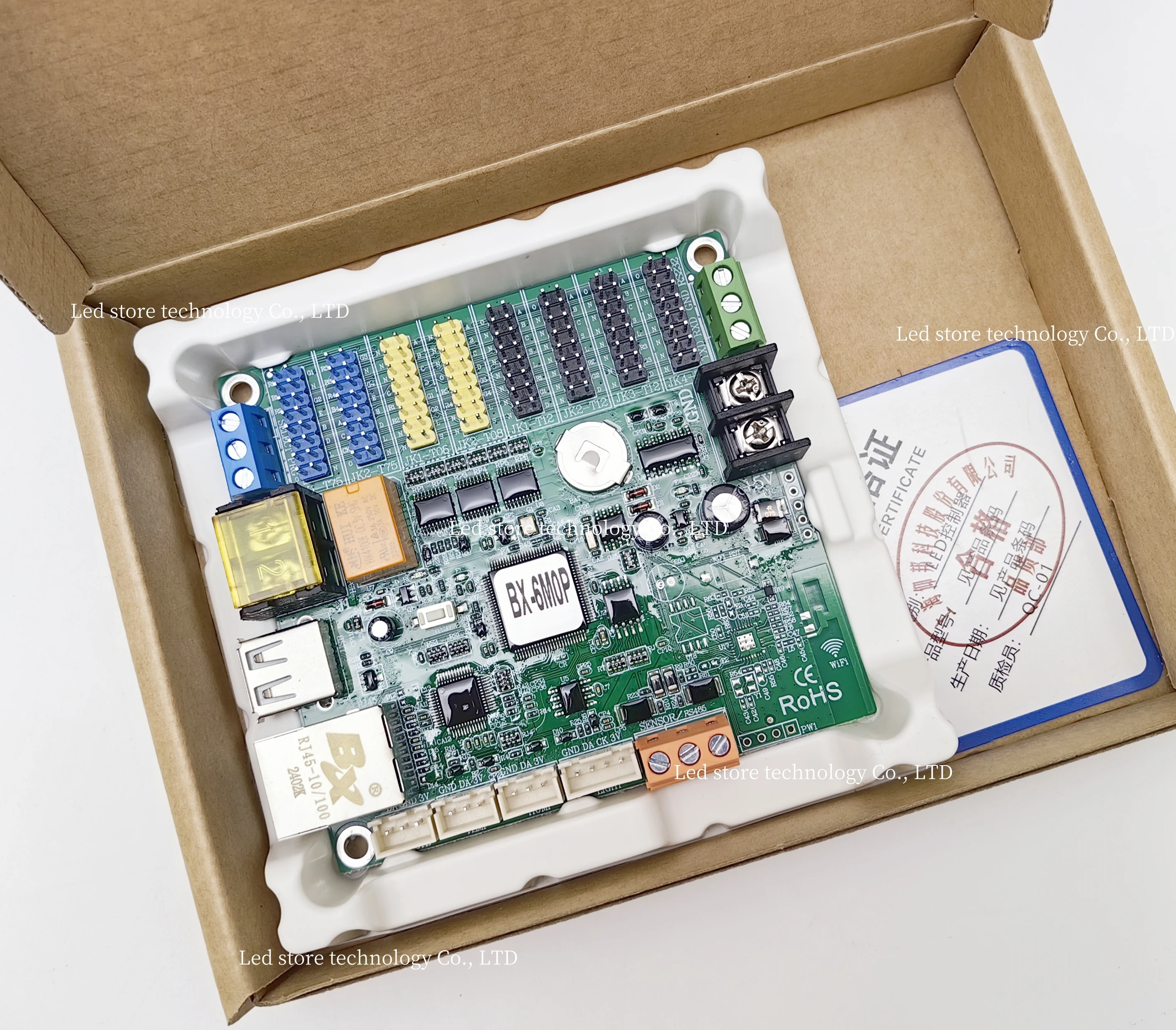

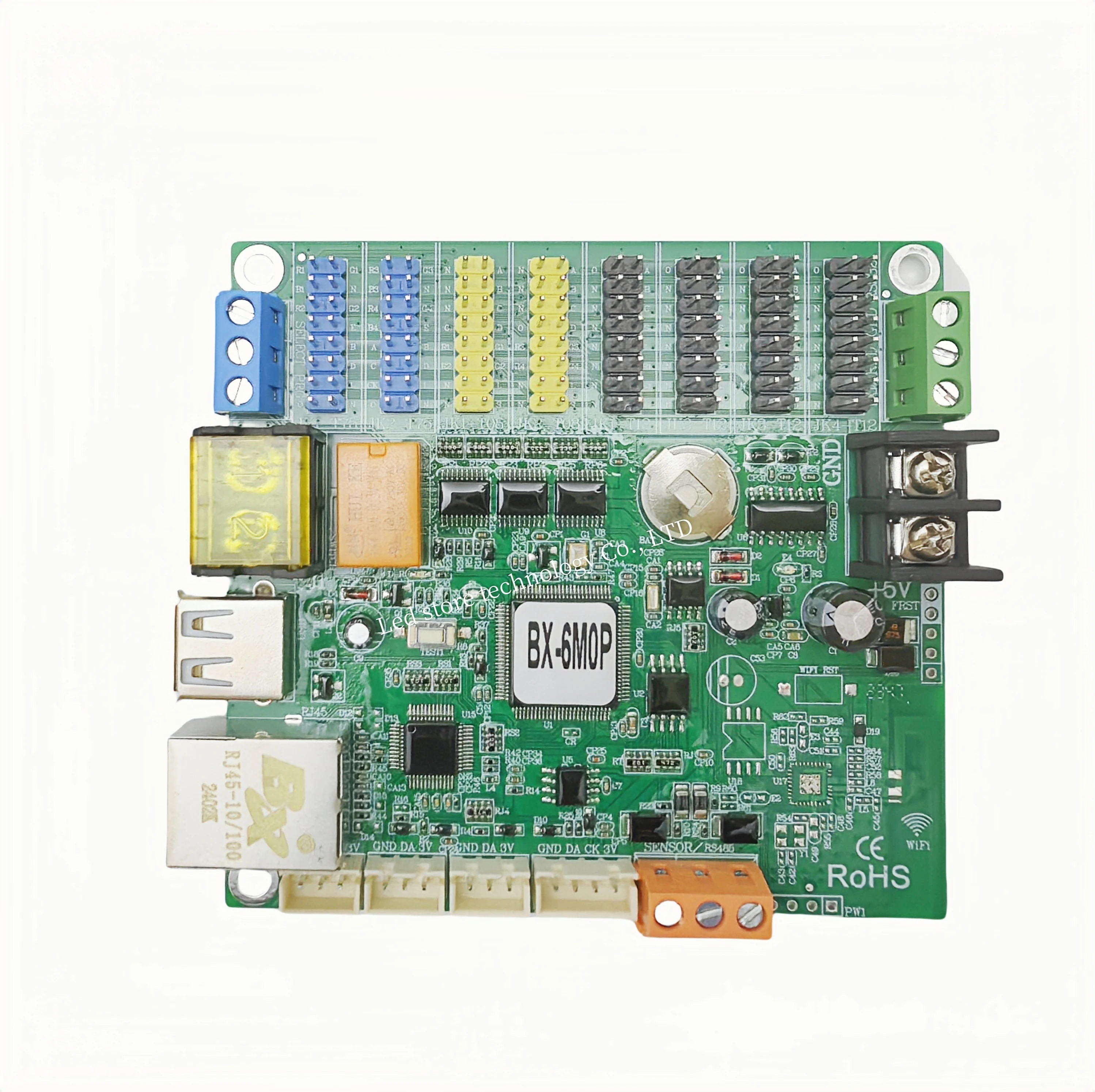

Product display map
