Sanitary Beer Inward Open Elliptical Manway Stainless Steel 304 Pressure Tank Vessel Sanitary 565*465 Oval Manhole Cover
- Category: >>>
- Supplier: Wenzhou Compass Machinery Co. Ltd.Wenzhou Ltd.
Share on (1601277321634):
Product Overview
Description

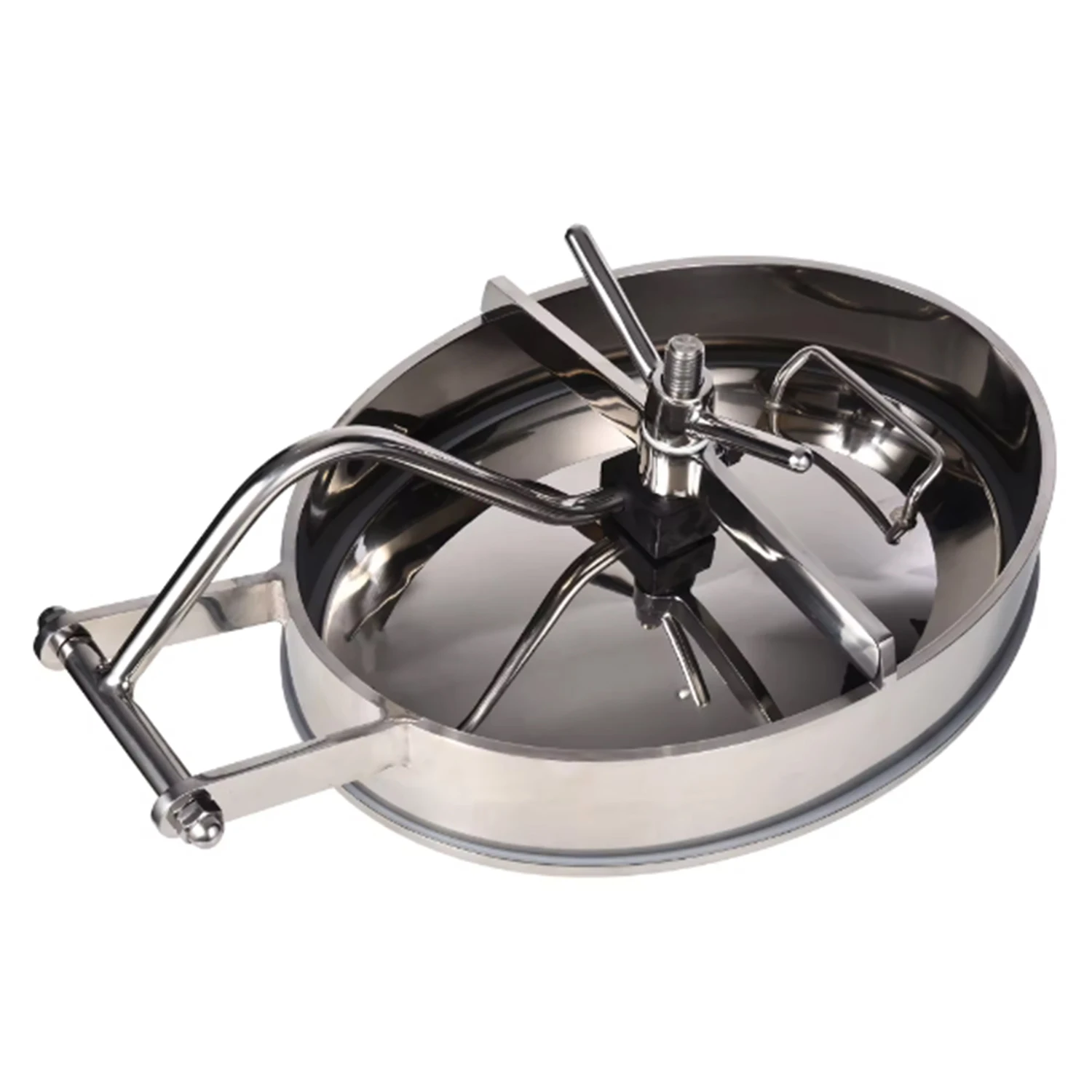

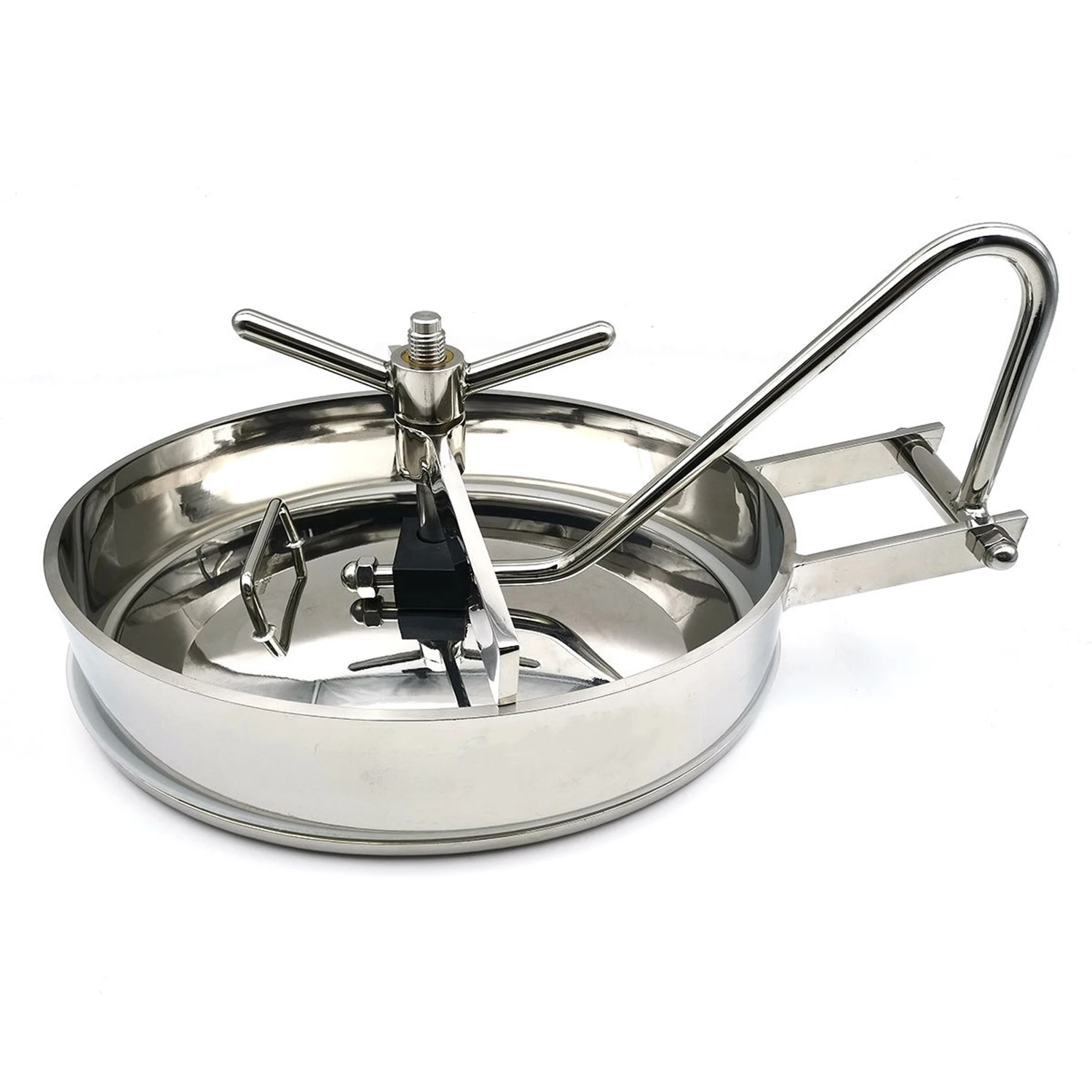

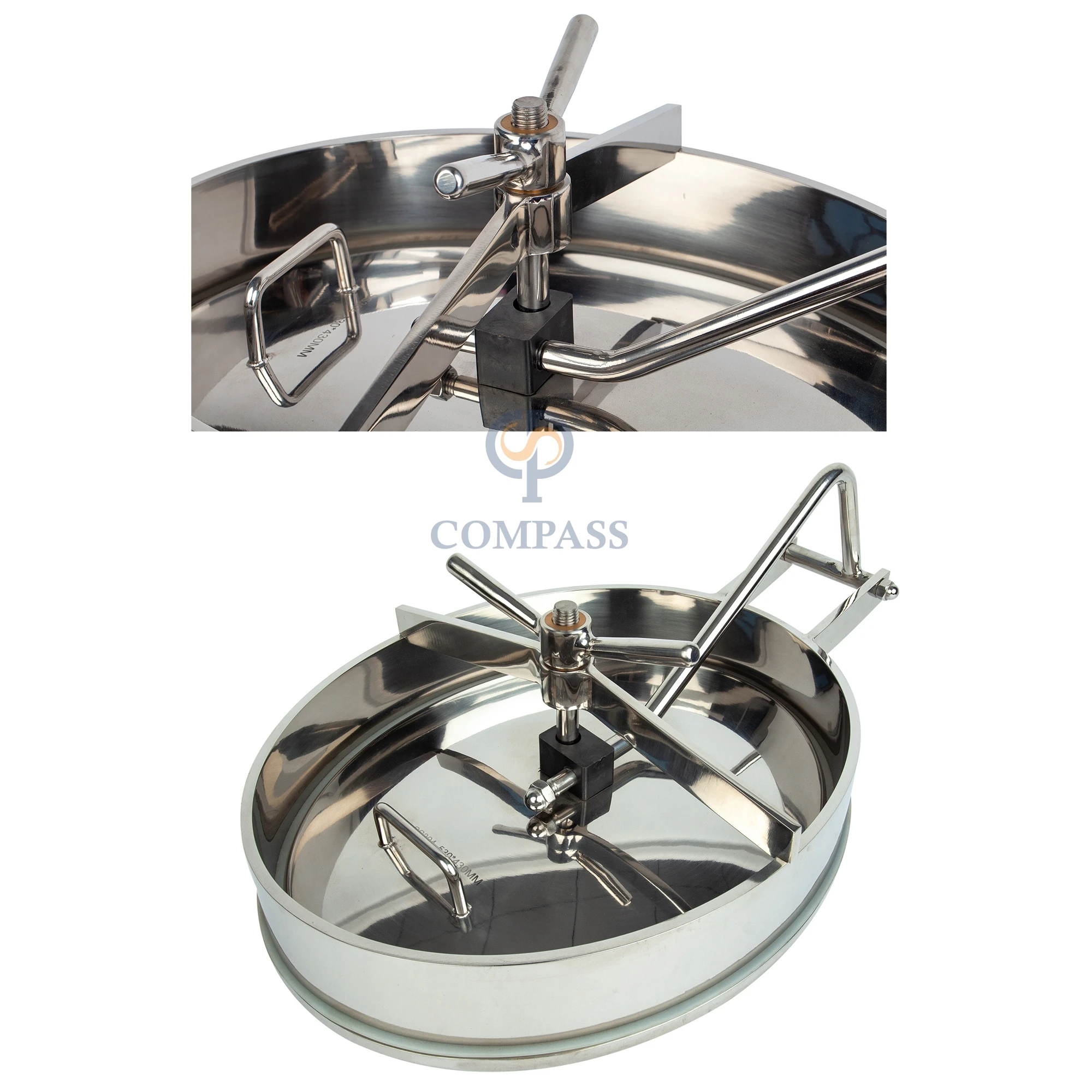

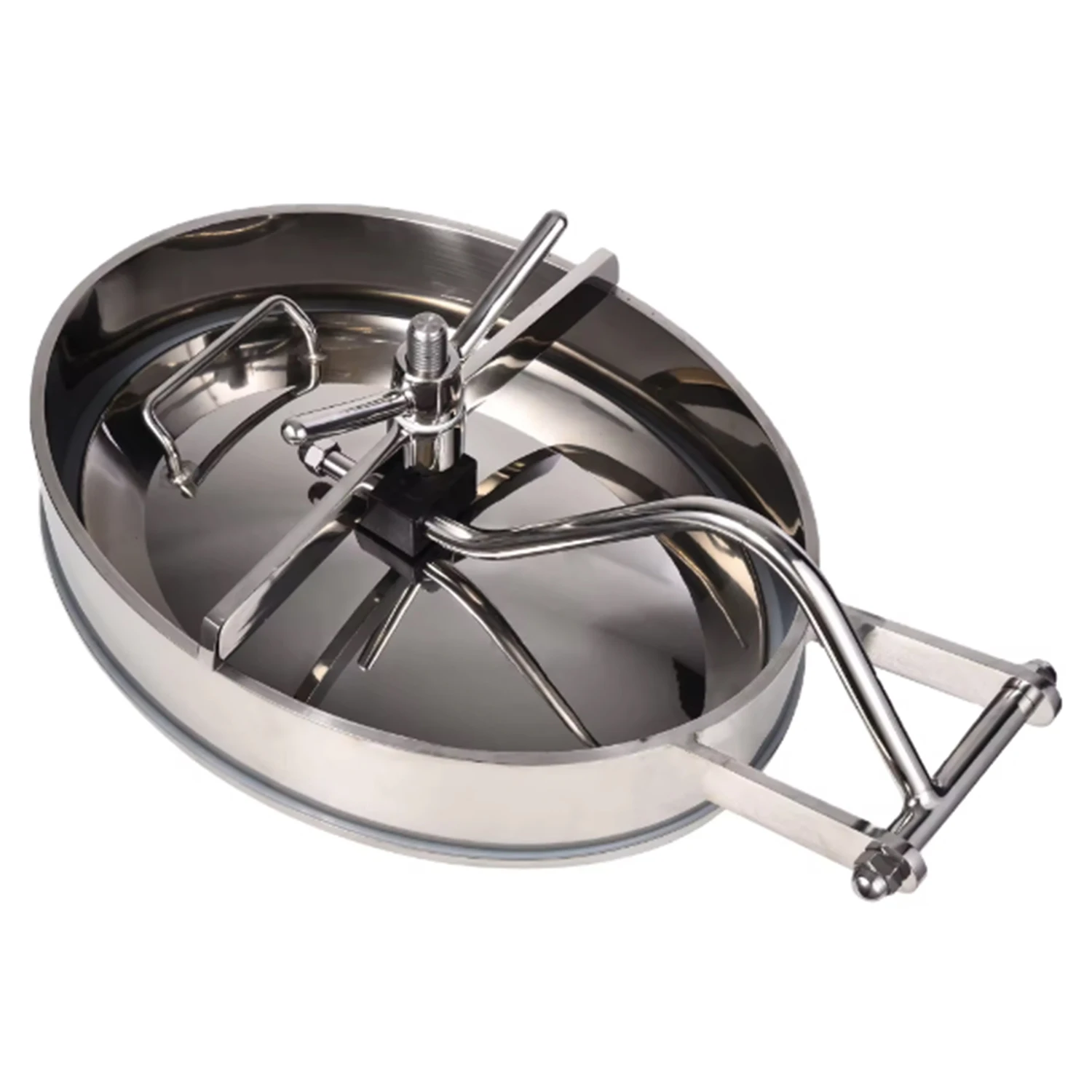

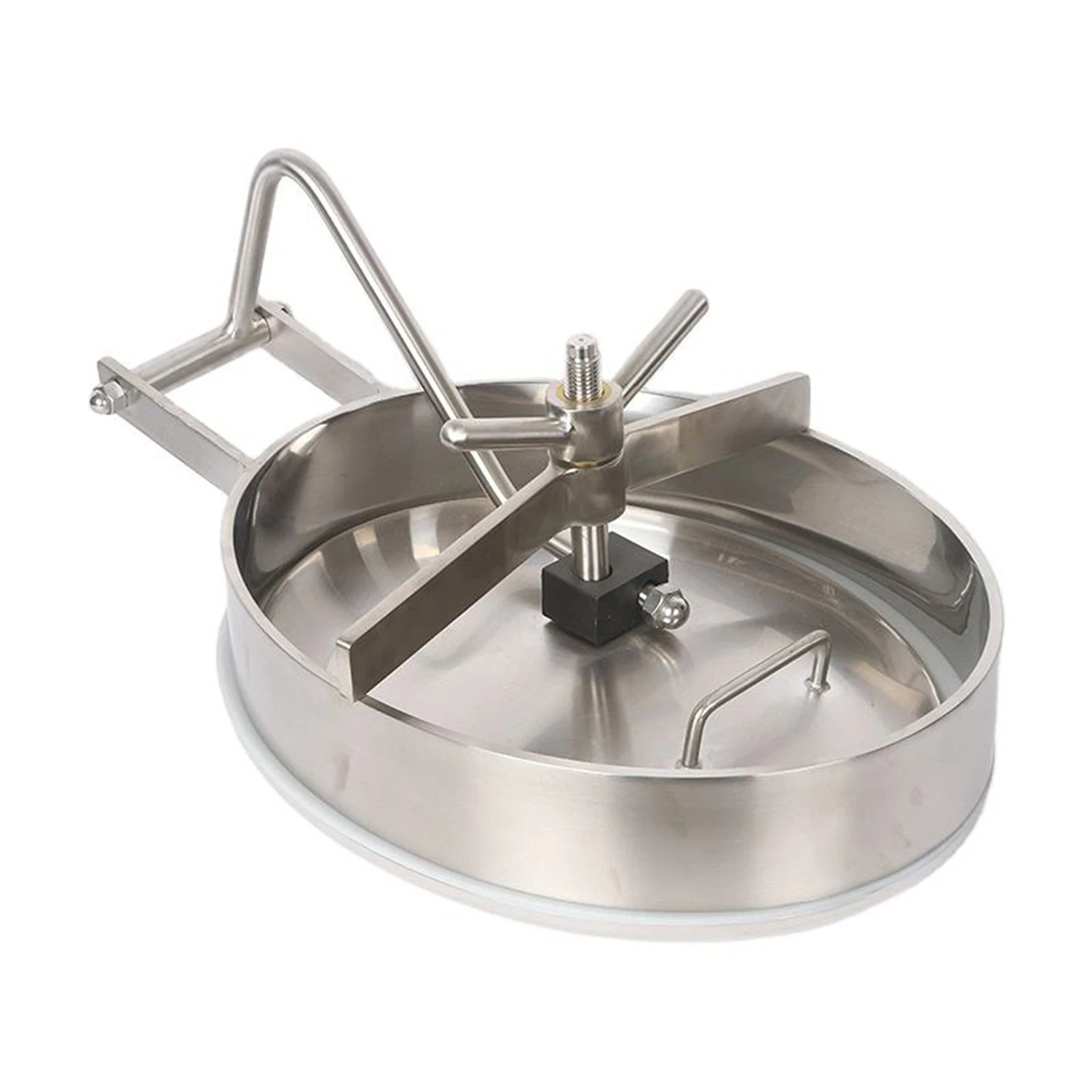

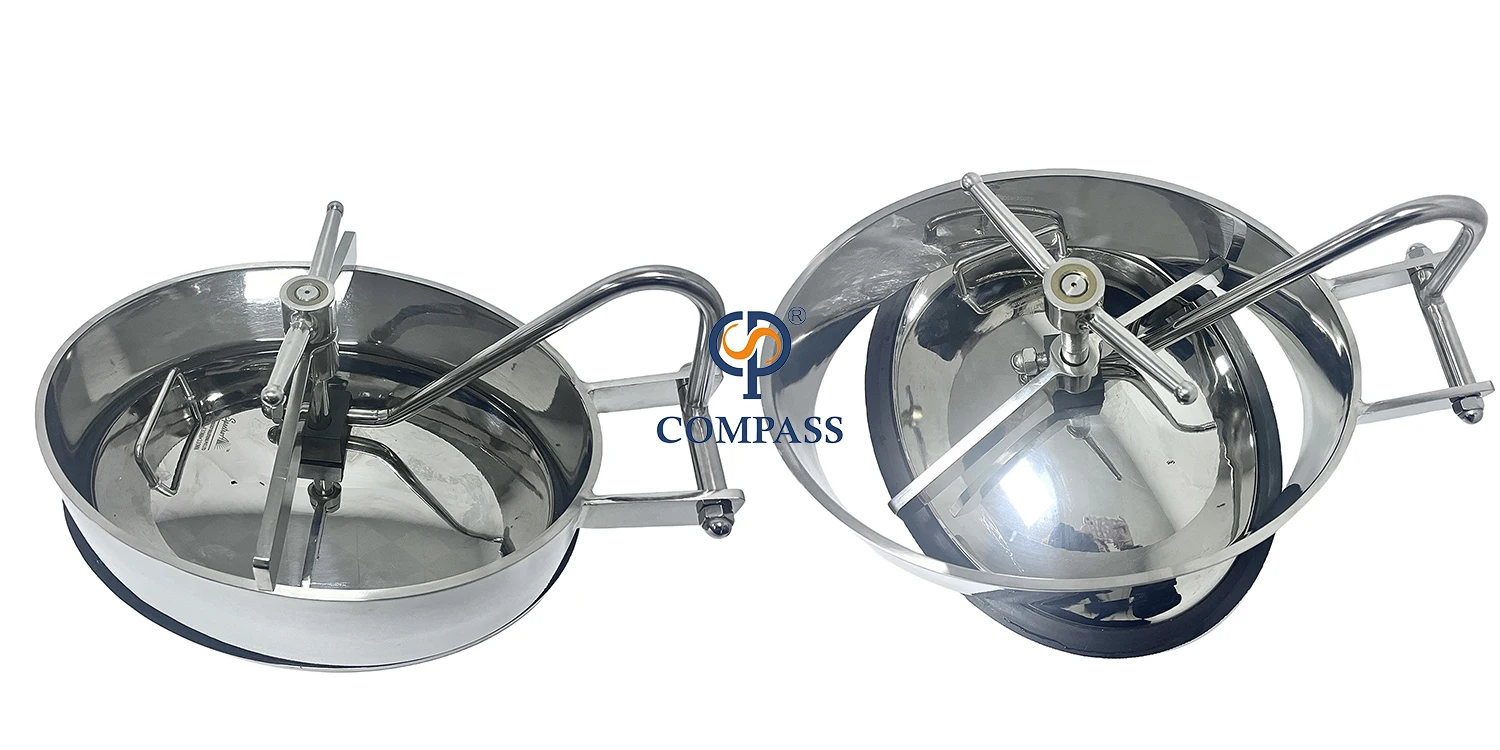

Sanitary Beer Inward Open Elliptical Manway Stainless Steel 304 Pressure Tank Vessel Sanitary 565*465 Oval Manhole Cover
Applications
Sanitary manholes are used in industrial fields such as dairy products, beer, food, beverages, and pharmaceutical processes.Generally all meet the special requirements of various media in food and biopharmaceutical fields.they are all relatively hygienic industries, completely food machinery industries, especially the equipment of large companies such as brewing and beverages.
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | In accordance with FDA 177.2600 Provided with material inspection report | |||||
Material Non-contact Parts | SS304(1.4301) | ||||||

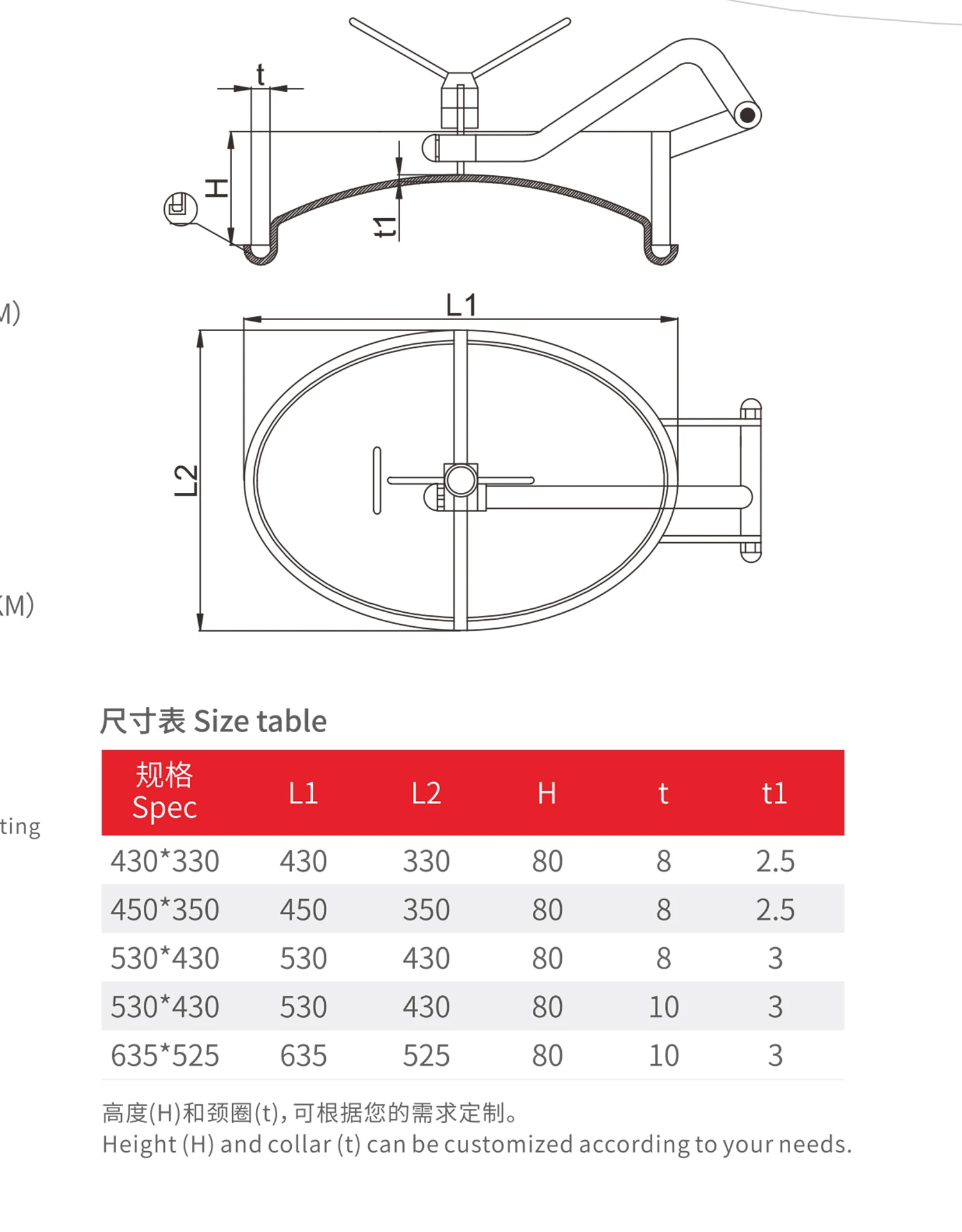

Size | 430*330MM, 450*350MM, 530*430MM, 535*435MM, 635*525MM | ||||||
Seal Material | Silicone, EPDM, FKM, Buna. All seals material comply with FDA21CFR117.2600 | ||||||
Height of Frame | 80MM, 100MM, 120MM, 150MM, 200MM | ||||||
Thickness of Frame | 8MM, 10MM , 12MM | ||||||
Thickness of Cover | 2.5MM, 3MM | ||||||
Pressure Rating | 1 Bar to 3Bar | ||||||
External Surface Treatment | Ra32~64ui n (0.8~1.6um) | ||||||
Internal Surface Treatment | Ra16~32uin (0.4~0.8um) | ||||||
Temperature range | -20~150 ℃ (up to Seat Seal) | ||||||
Certificate | ISO 9001, FDA, SGS, CE | ||||||
Support | OEM, ODM Are Welcome | ||||||
Feature
1. Gasket: Silicone, EPDM, FKM, Buna, . All seals material comply with FDA21CFR117.2600
2. Material: 304(1.4301),316L(1.4404)
3. Internal surface: 0.8um-0.4um
Outside surface: Mirror polished, Matte,sand-blasting finished.
4. Height and frame and cover can be customized according to customer's requirement.
It is applied in industry and sanitary system. Good sealing,no leak,in the oil, chemical industry, water conservancy,electric power, boiler, machinery, metallurgy, sanitary, construction etc
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases ..
COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food,beer,beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machiningunit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.
COMPASS Manufacturing.
Valve Workshop Section 1
Valve Workshop Section 2
Pipe Fitting Workshop
CNC Mahchine Working
Processing Center
Warehouse Section
Raw Material Section 1
Raw Material Section 1
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Team Meeting
Conversation
Conversation
Engineer Meeting Conversation
Engineer Design Valves
Q1. Who are we?
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
How to Order Inward Oval Pressure Manhole Cover ?
1. What's material quality? Such as SS304 and SS316L for optional
2. What's pressure rating for ourward pressure manhole ?
3. Which size you need ?
4. What's Polished for External and Internal ?
5. What's material of seal, such as silicone, EPDM or FKM or Buna ?
1. What's material quality? Such as SS304 and SS316L for optional
2. What's pressure rating for ourward pressure manhole ?
3. Which size you need ?
4. What's Polished for External and Internal ?
5. What's material of seal, such as silicone, EPDM or FKM or Buna ?
