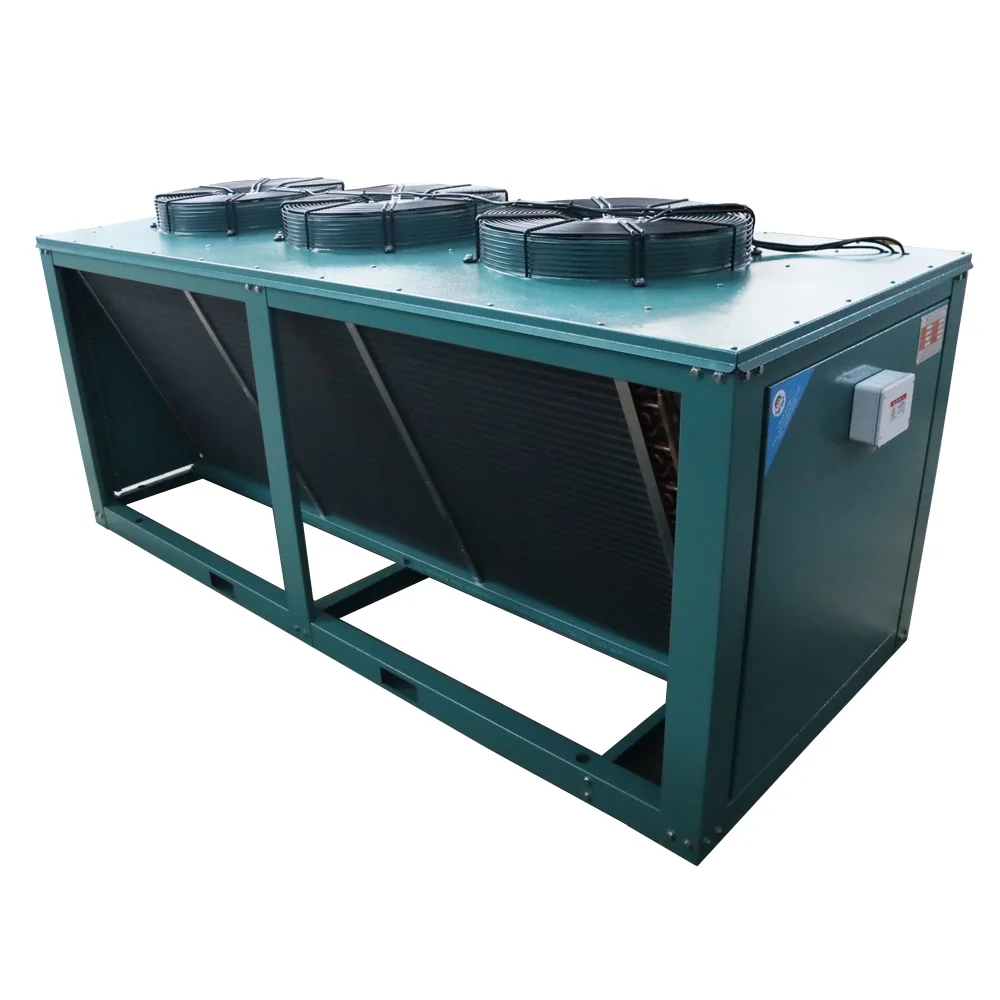

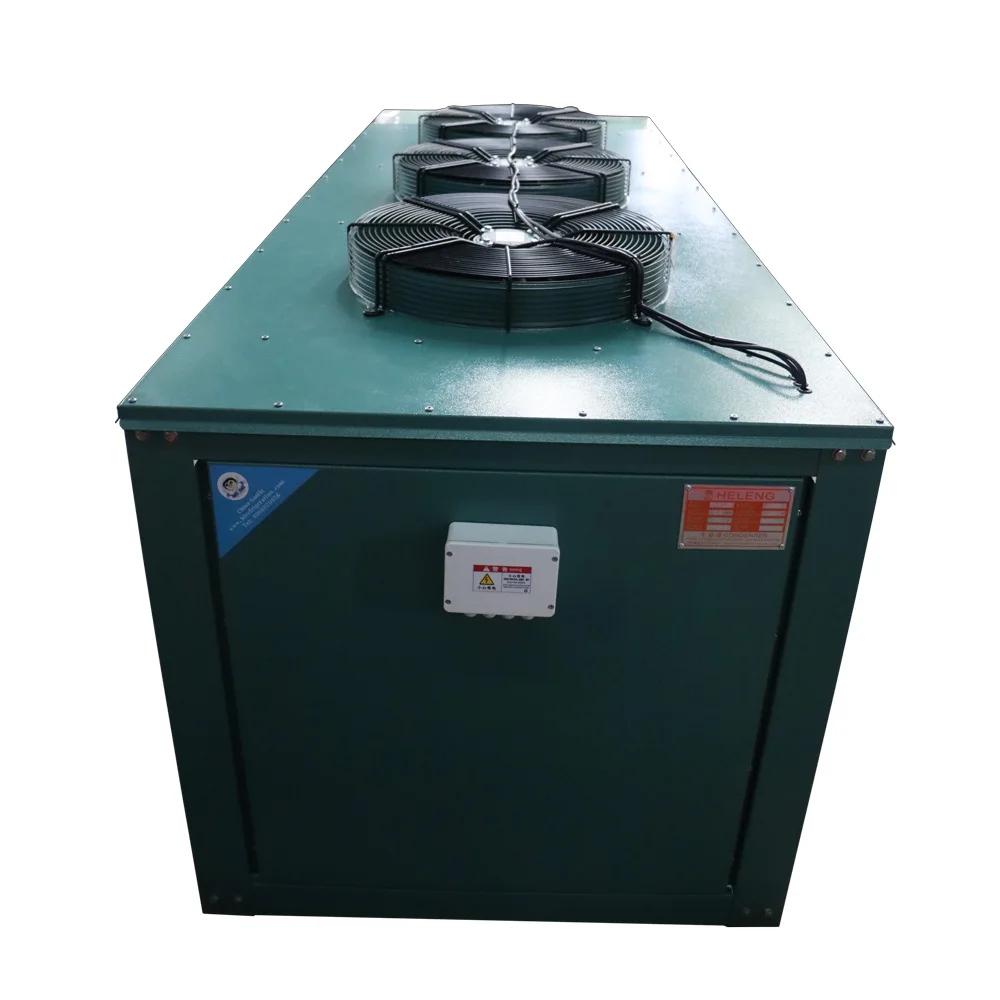

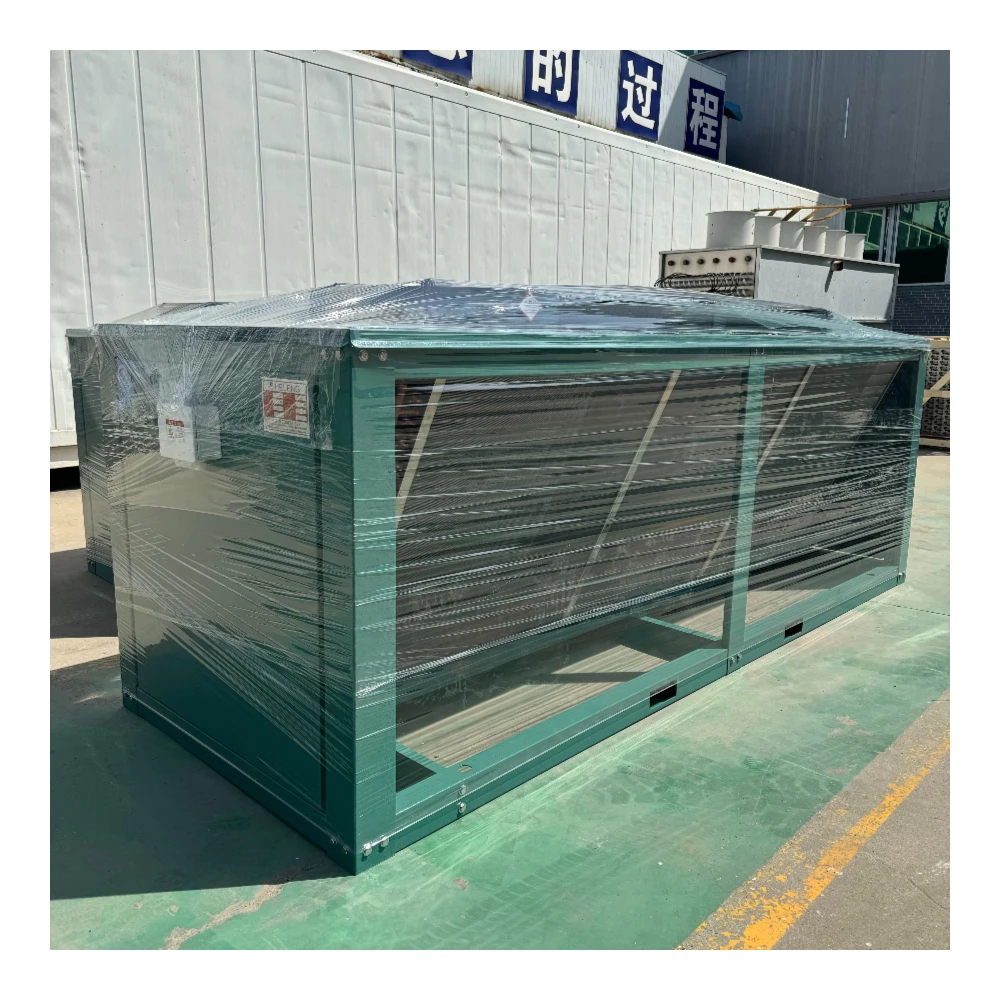

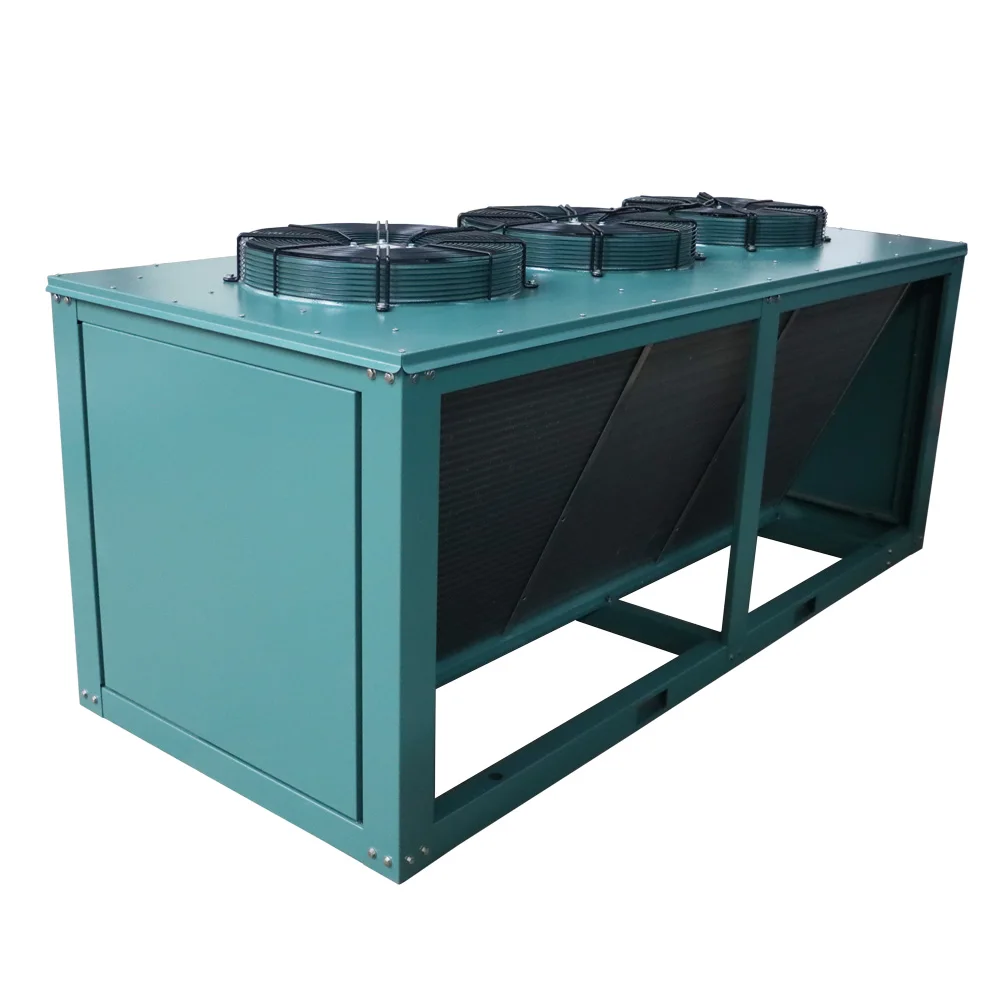

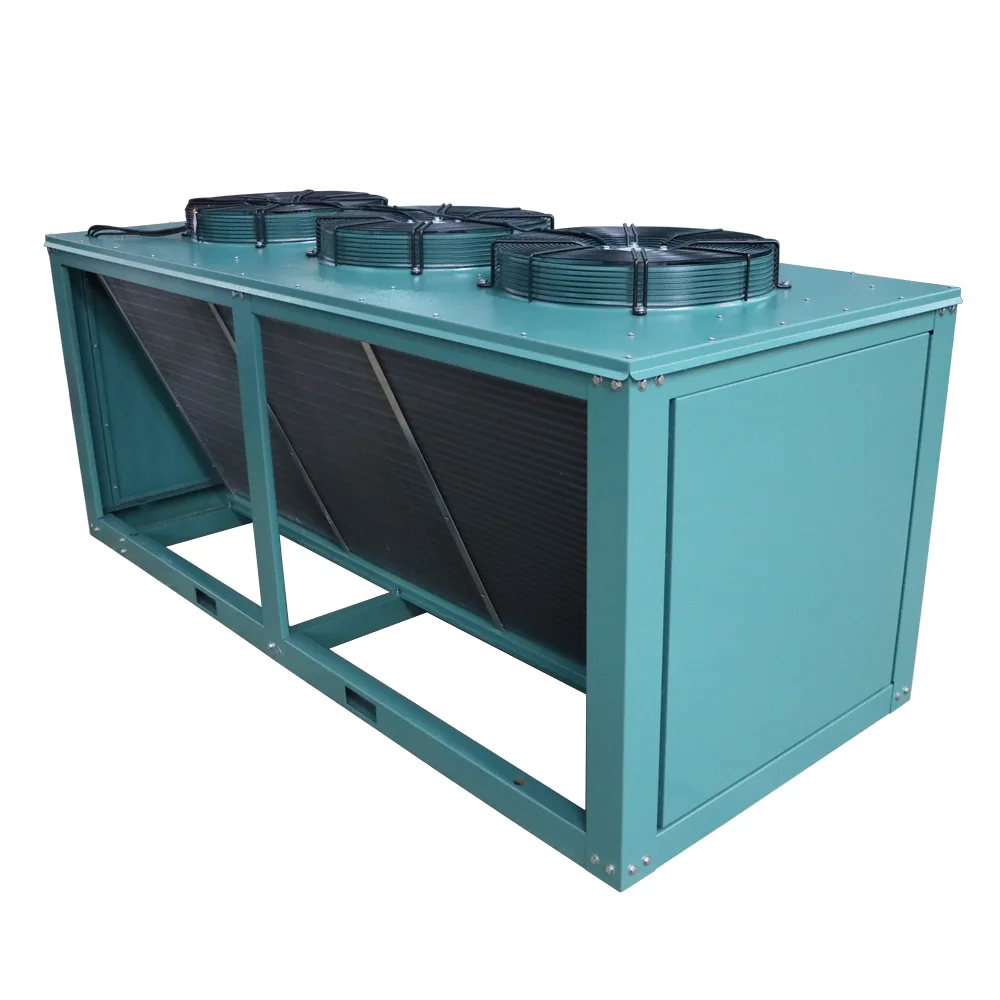

Air condenser 20hp air cooled condensing unit cold storage refrigeration condenser unit for cold rooms
- Category: >>>
- Supplier: Henan Tianjie Cold Chain Equipment Science & Technology Co. Ltd.
Share on (1601277347377):
Product Overview
Description

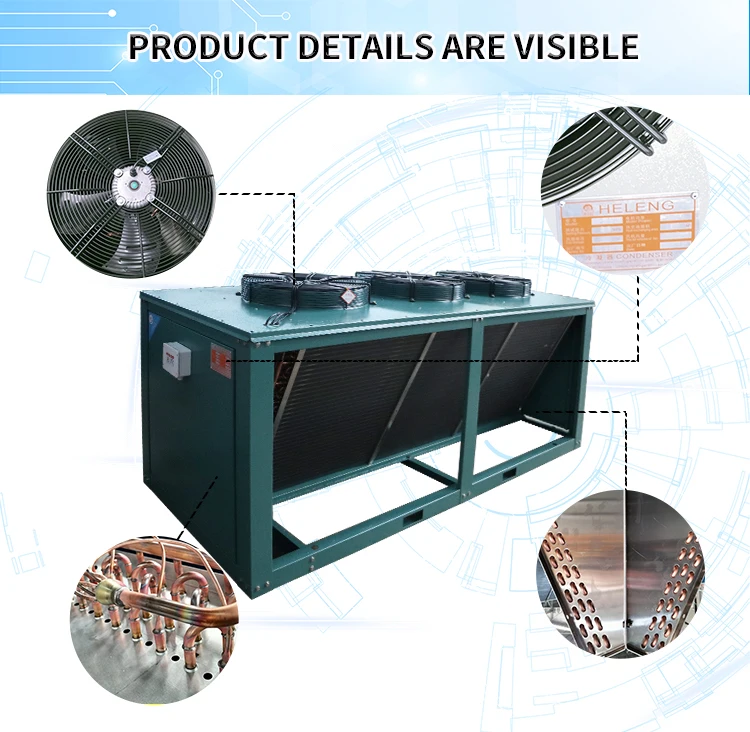

FNV condenser
FNV standard type air condenser for cold storage air condenser unit cost
| FNV type remote condenser technical data sheet | ||||||||||||||
| No. | Model | kw | m2 | L) | (B) | (H) | External Motor | Joint Pipe Size | ||||||
| mm | mm | mm | ||||||||||||
| Cooling Capacity | Heat Exchange Area | Length | Width | Height | Qty | Diameter | Power | Air Volume | Inlet Pipe | Outlet Pipe | ||||
| 1 | FNV-90 | 26.4 | 90 | 1465 | 855 | 900 | 2 | φ450 | 2×250 | 2×4500 | φ28 | φ19 | ||
| 2 | FNV-100 | 33.1 | 100 | 1465 | 855 | 900 | 2 | φ450 | 2×250 | 2×4500 | φ28 | φ19 | ||
| 3 | FNV-120 | 39.6 | 120 | 1755 | 1025 | 1080 | 2 | φ550 | 2×550 | 2×7500 | φ28 | φ19 | ||
| 4 | FNV-140 | 42.9 | 140 | 1755 | 1025 | 1080 | 2 | φ550 | 2×550 | 2×7500 | φ28 | φ19 | ||
| 5 | FNV-160 | 52.8 | 160 | 1755 | 1025 | 1080 | 2 | φ550 | 2×550 | 2×7500 | φ28 | φ19 | ||
| 6 | FNV-190 | 59.4 | 190 | 2190 | 1025 | 1080 | 2 | φ600 | 2×800 | 2×9500 | φ28 | φ19 | ||
| 7 | FNV-220 | 66 | 220 | 2190 | 1025 | 1080 | 2 | φ600 | 2×800 | 2×9500 | φ28 | φ19 | ||
| 8 | FNV-240 | 72.6 | 240 | 2190 | 1025 | 1080 | 2 | φ550 | 3×550 | 3×7500 | φ32 | φ19 | ||
| 9 | FNV-260 | 79.2 | 260 | 2450 | 1025 | 1080 | 2 | φ550 | 3×550 | 3×7500 | φ32 | φ19 | ||
